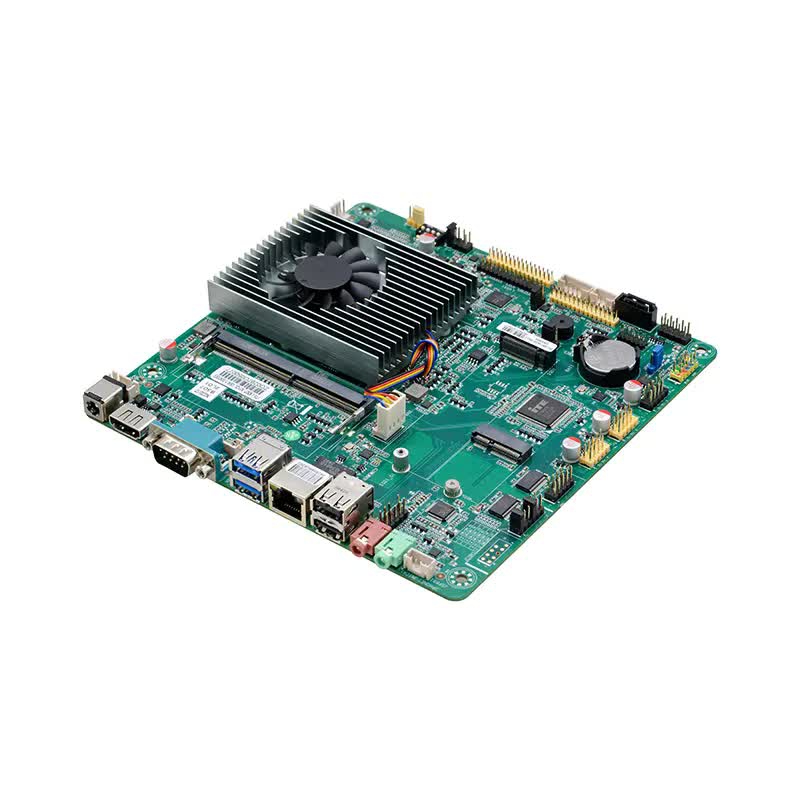

This energy-efficient Thin ITX motherboard features Intel‘s 12th Gen Celeron N100 processor (4C/4T, 3.4GHz) in a compact Thin ITX form factor (170×170mm), delivering modern performance with low 6W TDP for space-constrained industrial applications.
Key Features:
✔ Modern Processing: Intel N100 (Alder Lake-N) with UHD Graphics
✔ Multi-Display Support: VGA + HDMI2.0 + LVDS + dual eDP (quad output)
✔ Memory: Single DDR4 3200MHz (max 16GB)
✔ Industrial I/O:
1×GbE (Realtek 8111H) + 10×USB
2×COM ports
✔ Storage & Expansion:
1×SATA3.0 + 1×M.2 SSD
1×M.2 Key E (WiFi 6)
✔ Rugged Design:
GPIO + Watchdog + 4Ω/3W audio
✔ Power Input: 12V DC
Applications: Edge Computing | Digital Signage | IoT Gateways

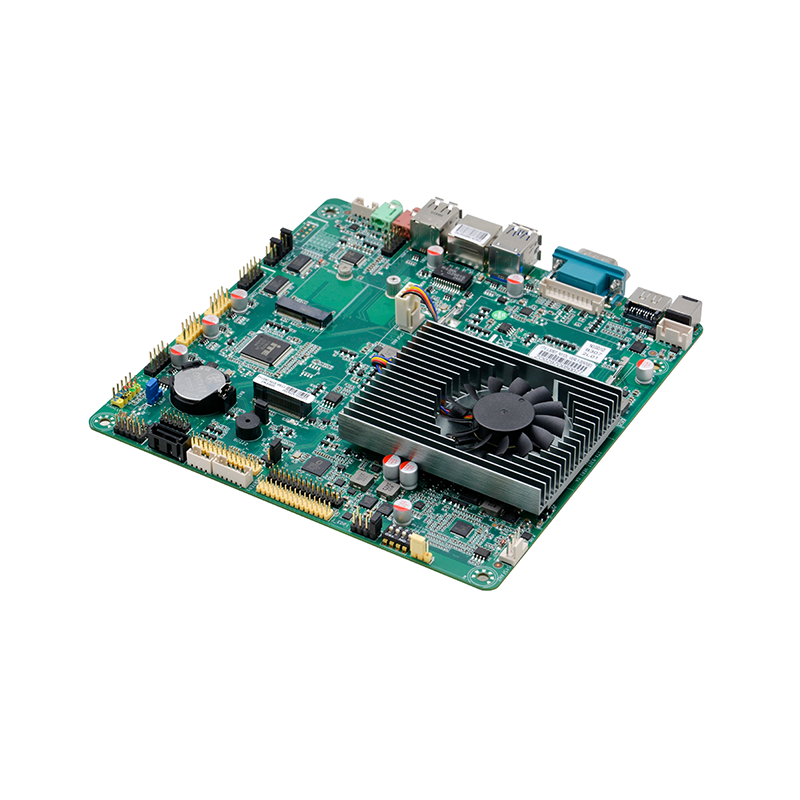

Detail Display
Product Description
Model No.: ITX-LS307_N112L VER:0.1(N100)
Processor: Integrated Intel®Alder Lake-N N100 Base Frequency 0.8GHz Max Turbo Frequency 3.4GHz quad-core quad-thread processor, TDP 6W
Compatible with Intel® Alder Lake-N all series CPU
Chipset: SOC
RAM: 1* SODIMM memory slot, support single channel 3200MHz DDR4 memory, up to 16GB
Display:
Integrated Intel® UHD Graphics, support DirectX 12.1, OpenGL4.6
1* VGA, 1*HDMI2.0, 1* LVDS, 2* EDP
Note: The LVDS and EDP1 interfaces are selected by wire jumper(LVDS default)
Supports dual EDP display or LVDS+EDP display
Ethernet: 1* RTL8111H Gigabit LAN, support Wake-on-LAN, PXE function
Storage:
1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps
1* M.2 slot, support M.2 Key M 2280 PCIE X1 specification SSD
Audio:
Onboard ALC897 7.1+2 channel Hi-Fi audio controller,support MIC/Line-out.Power amplifier
It is recommended to use a 4Ω3W speaker for the power amplifier
Expand slot: 1* M.2 slot, support M.2 Key E 2230 WIFI module

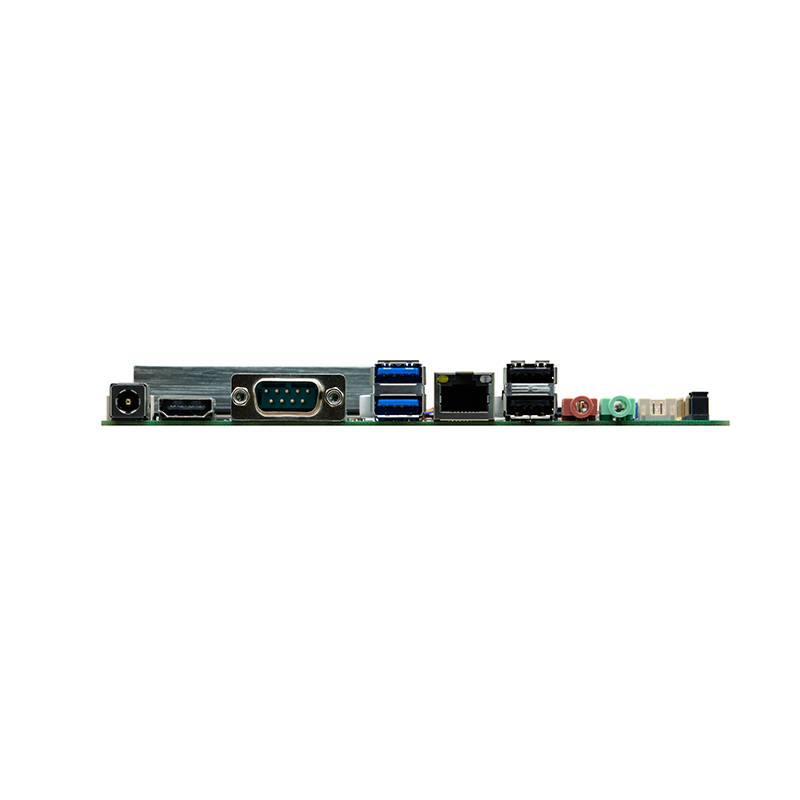

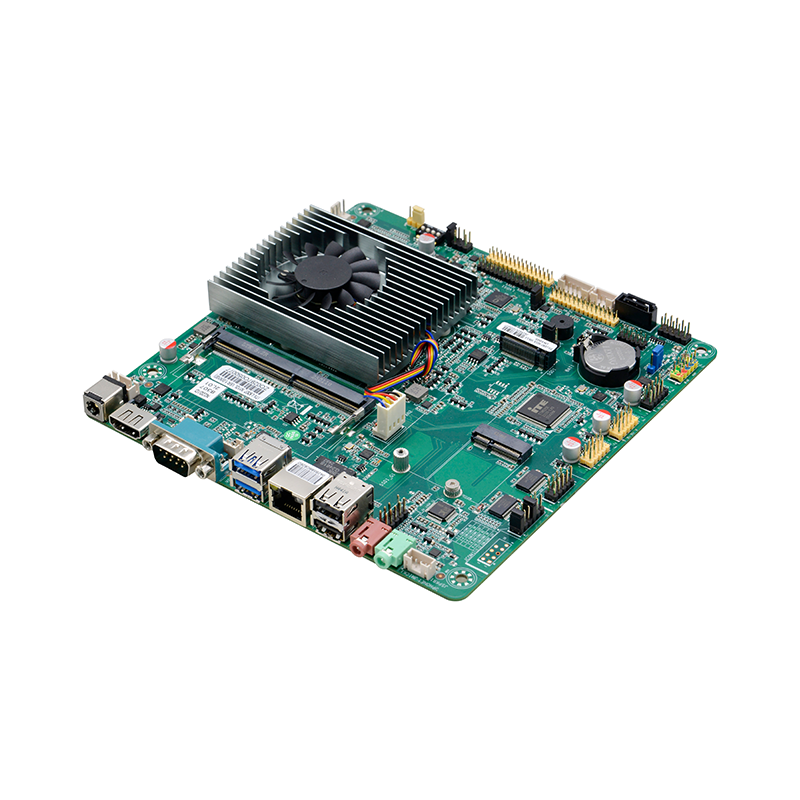

Backplane I/O Interface:
1* DC 12V power supply input interface
1* DB9 (DB15 is optional)
1* HDMI1.4
2* USB3.0; 2* USB2.0
1* RJ45 Gigabit network interface
1* Line-out(green), 1*MICK(red)

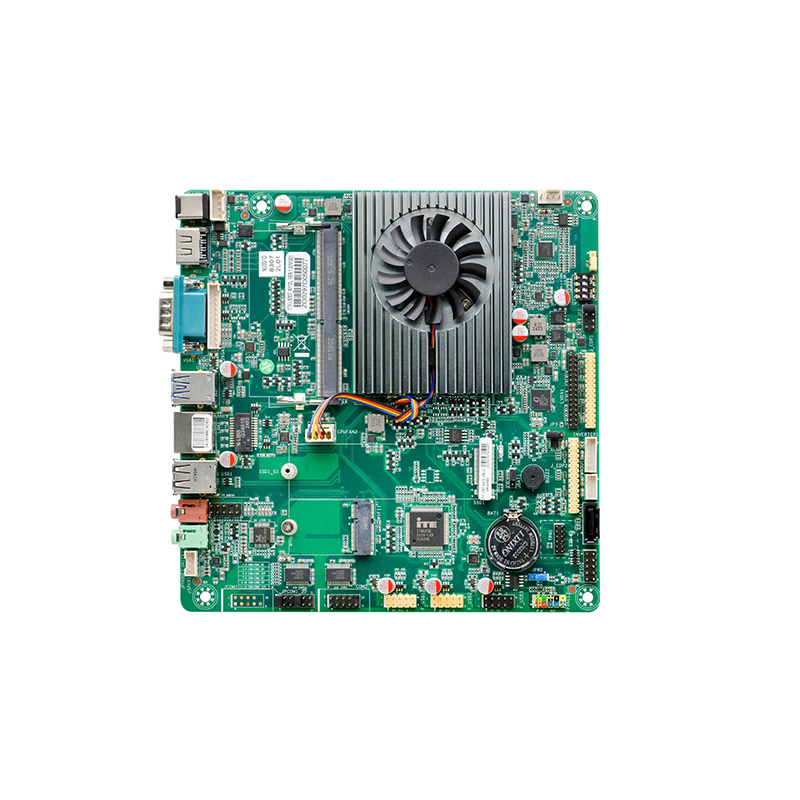

Built-in I/O interface:
1* DC power supply interface, 1*4pin support 12V power input output
1* JVGA, 1*12pin (same signal as DB15)
1* LVDS, 2*15pin, support dual channels 24BIT
2* EDP(yellow), 2*15pin(The LVDS and ED1P interfaces are selected by wire jumper)
1* Screen backlight power supply interface, 1*6pin
6* USB2.0, 2*5pin; F_USB1 and F_USB2 are USB ports transferred from PCIE
1* RS232 serial port,COM1/2 Support the 9th pin charging function, COM1 and external DB9 are optional
1* Hard drive power supply interface, 1*4pin
1* Front panel audio interface, 2*5pin
1* Amplifier interface, 1*4pin
1* Front panel function button and indicator interface, 2*5pin
Fan interface: Reserved 1*4pin CPU smart fan interface, 1*4pin system fan interface
GPIO: Support 4 input and output GPIO
BIOS: 256Mb Flash ROM
Watchdog: Support hardware reset function(256 levels, 0~255 seconds)
Operating system: Windows 10/Windows 11/Linux
Power Type: Powered by DC 12V power supply
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, no condensation
Dimension: 170mm x 170mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
