Product Description
Model NO.: ST-C2468L-2P V1.0 (C246)
Chassis:
Structure: 1U standard Rackmount case, high-quality galvanized steel plate
Dimension: 440mm*481.4mm*44.6mm
Color: Dark Black
Installation: 1U Rack_mount / Desktop
Motherboard:
Processor: Intel® LGA1151 Socket 6th~ 9th Gen Celeron/Pentium/Core/Xeon Processors
Chipset: Intel C246 Chipset (Coffee Lake)
Graphics: Integrated Intel®HD Graphics (according to CPU)
Memory: 2x SO-DIMM slot, dual channel 2666/3200MHz DDR4 Memory, up to 32GB

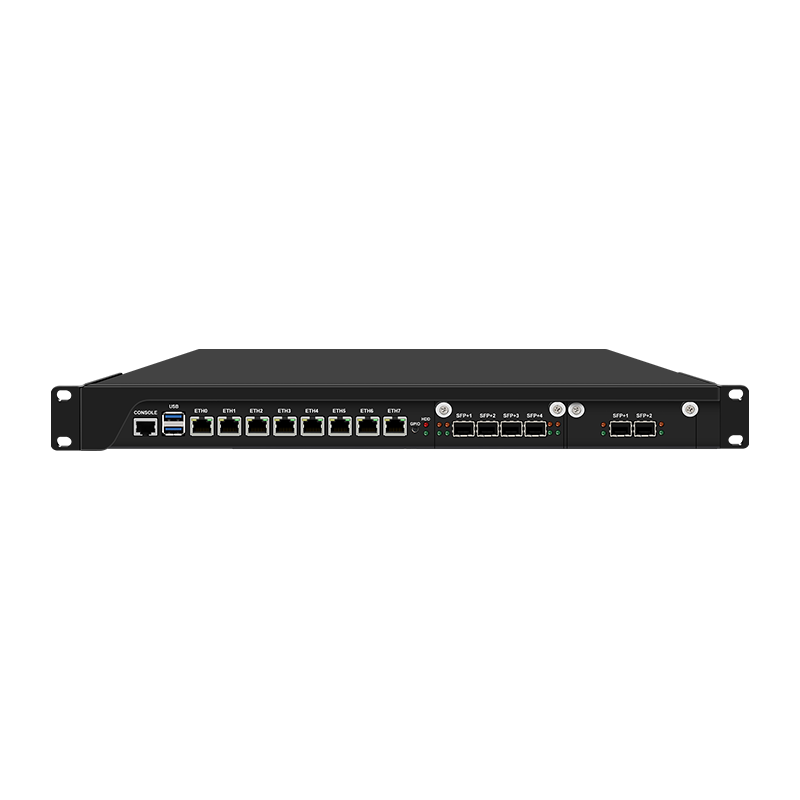

Front Panel:
Switch: 1x Power switch
LED: 1x Power.LED ; 1x HDD.LED
Ethernet: 8x RJ45 2.5GbE ports (Intel I225/I226V 2.5G Ethernet Controller), support Wake_on_LAN/PXE
Console: 1x RJ45_Console Port
USB: 2x USB3.0
Expansion: 2x PCI-E Expansion window ( support RJ45 Copper Card / SFP+ Copper/Fiber Card )

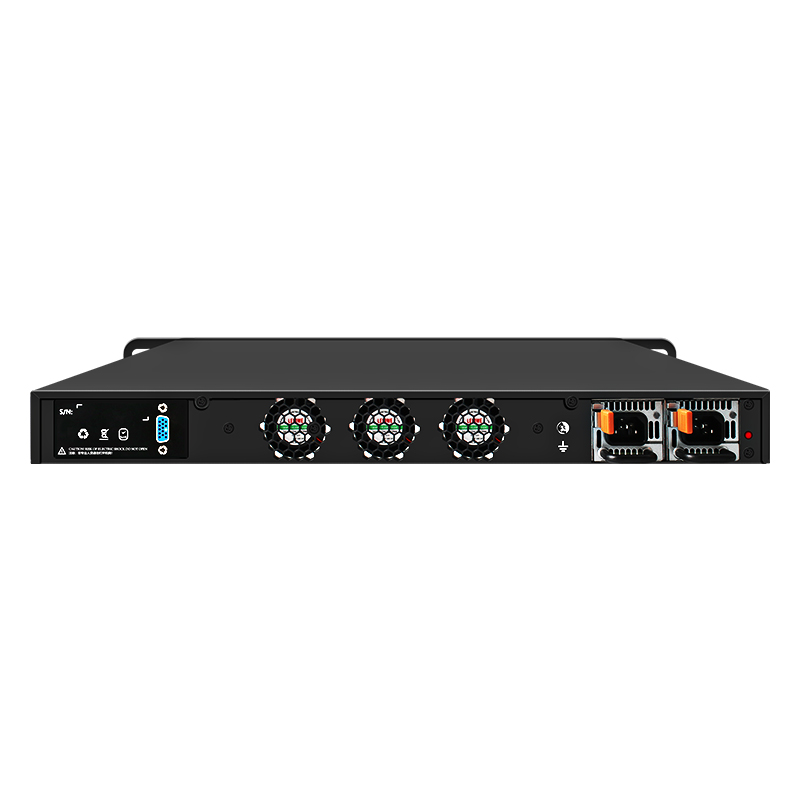

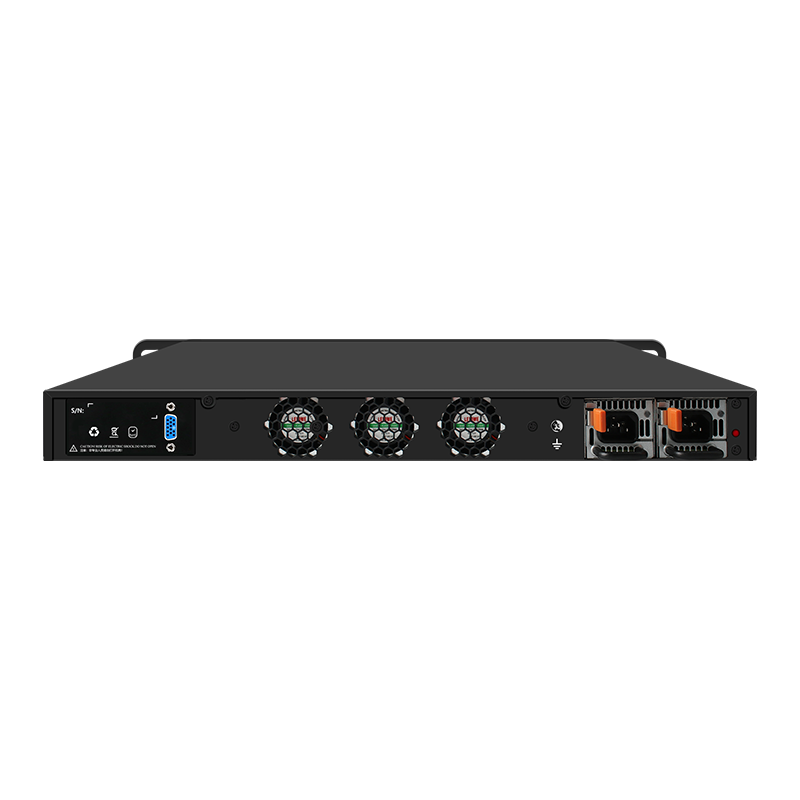

Rear Panel:
Display: 1x VGA (HDMI/eDP optional)
Indicator: 1x AC_power LED indicator
Fan: 3x System Fan (Ventilated)
Power Supply: 1+1 Redundant Power Supply ( Hot_Swap 168W + 168W )
Storage:
SATA: 4x SATA3.0, support 4x 2.5” HDD / 3x 3.5” HDD
MSATA: 1x MSATA slot, support SSD ,transfer rate up to 6Gbps
M.2: 1x M.2 Key_M slot, support 2242/2280 NVMe SSD
Expansion:
Mini-PCIE: 1x Mini-PCIE slot, support Wifi&BT/4G/5G modules
M.2: 1x M.2 Key_B slot, support M.2 2230/2242 4G/5G modules
PCI-E: 2x PCI-E X8 slot ; 1x PCI-E X4 slot
Inner_I/O: 4x USB2.0(2*5pin) ; 1x RS232(2*5pin) ; 1x HDMI1.4(2*8pin) ; 1x eDP (FPC 40P)
OS Support:
System: Windows / Linux OS etc.
BIOS: 64Mb Flash ROM
Watch Dog: Hardware reset function (L256, 0~255 seconds)
Power Supply:
Power Type: 1+1 Hot-Swappable (168W +168W)
Voltage Input: AC_100V~240V
Power output: AC_to_DC 336W
Reliability:
Working Temp.: - 10℃ ~ 60℃
Storage Temp.: -20℃ ~ 70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
