Home > Products > Industrial Motherboard > Thin-ITX_MB > 8 gen Coffee Lake(i3/i5/i7)

8 gen Coffee Lake(i3/i5/i7)

Products

Industrial Motherboard
Router/Firewall/Server
Industrial Box PC
Industrial Monitor
Industrial Tablet PC
Accessories

New Products

  • LGA1151 1+1 Power Supply 1U Firewall Appliance
    LGA1151 1+1 Power Supply 1U Firewall Appliance
    ♦Model NO.:ST-C2468L-2P  V1.0
    ♦1U Standard Rack_mount  Chassis
    ♦Intel Socket LGA1151 processors
    ♦2x DDR4 RAM slot, up to 32GB
    ♦4x SATA3.0 + 1x MSATA + 1x M.2
    ♦8x 2.5GbE Ports (RJ45)
    ♦2x PCI-E x8 (SFP+ Expansion)
    ♦(Bypasss/Vpro) Optional
    ♦1x Mini-pcie&M.2 (Wifi&BT&4G/5G LTE)
    ♦2x USB3.0 ; 4x USB2.0(inner)
    ♦1+1 Redundant Power Supply (Hot_Swap)
  • 4 Lan N100 2x SFP+ (10Gb) Firewall MIni Router
    4 Lan N100 2x SFP+ (10Gb) Firewall MIni Router
    ♦Model NO.:ST-AD12N-6S  V1.0
    ♦Aluminum Alloy ; Active Cooling
    ♦Intel N97/N100/N200/N305 CPUs
    ♦1x DDR5 RAM slot, up to 32GB
    ♦1x SATA3.0 + 1x M.2 NVMe X1 + 1x TF slot
    ♦4x 2.5GbE RJ45 + 2x SFP+ (10Gb)
    ♦DP+HDMI+Type_C Triple Display
    ♦1x Mini-PCIe for 4G LTE
    ♦1x SIM slot
    ♦5x USB2.0 ; 1x USB3.0
    ♦DC_12V Power Input
  • 23.8 inch RK3588 Android Industrial Tablet PC support 5G module
    23.8 inch RK3588 Android Industrial Tablet PC support 5G module
    ♦Support RK3588, Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55) at 2.4GHz CPU
    ♦Capacitive / Resistive touch:23.8" TFT LCD / 1920*1080 / 250 cd/m²
    ♦3mm Super Thin Front Bezel, Best for Embedded Cabinet.
    ♦Pure flat panel IP65 dust-proof and waterproof.
    ♦RK3588 eight-core high-end CPU ，Built-in independent NPU with 6TOPS AI computing power
    ♦6TOPS AI computing power
    ♦Support 8K ultra-high definition display, support double display,can be customized four display
    ♦Provide SDK package, support secondary development and upgrade customization
  • 15.6 inch RK3588 Android Industrial Tablet PC support 5G module
    15.6 inch RK3588 Android Industrial Tablet PC support 5G module
    ♦Support RK3588, Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55) at 2.4GHz CPU
    ♦Capacitive / Resistive touch:15.6" TFT LCD / 1920*1080 / 300 cd/m²
    ♦3mm Super Thin Front Bezel, Best for Embedded Cabinet.
    ♦Pure flat panel IP65 dust-proof and waterproof.
    ♦RK3588 eight-core high-end CPU ，Built-in independent NPU with 6TOPS AI computing power
    ♦6TOPS AI computing power
    ♦Support 8K ultra-high definition display, support double display,can be customized four display
    ♦Provide SDK package, support secondary development and upgrade customization

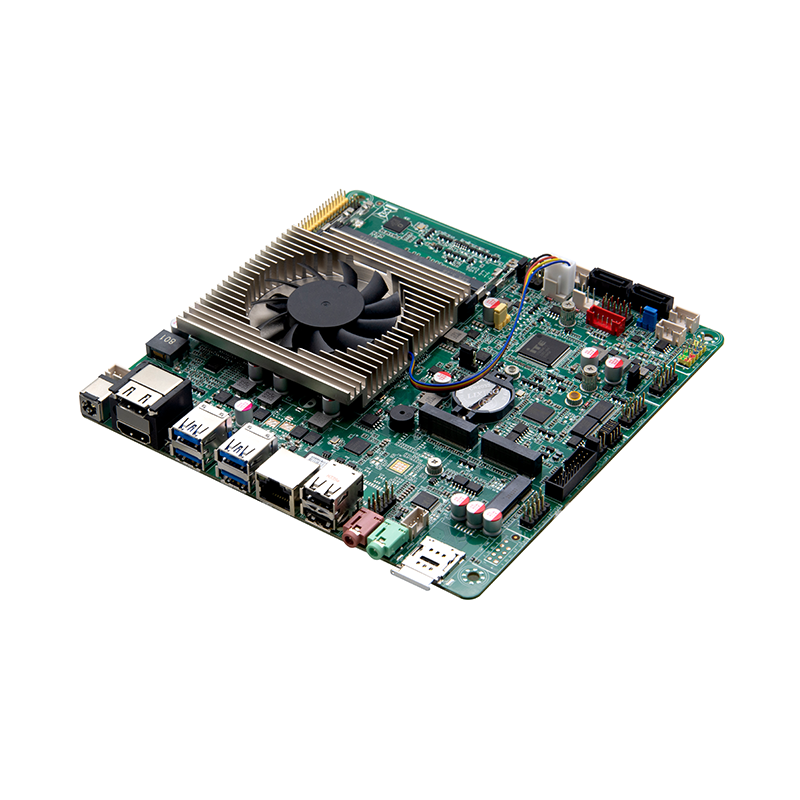

  • i5-8260U 2 Lan DDR4 Thin ITX Motherboard

    i5-8260U 2 Lan DDR4 Thin ITX Motherboard

    ♦Model No.:ITX-YL82V1_I522L VER:1.0
    ♦Integrated Intel®I5 8260U 1.6GHz quad-core eight-thread processor
    ♦2x SODIMM 2400MHz DDR4,up to 64GB
    ♦2x RJ45 GbE  ports
    ♦1x eDP, 2x HDMI1.4,1x LVDS
    ♦2x M.2 slot, supports  WIFI / 5G module
    ♦2x SATA3.0 ; 1x M.2
    ♦2x COM; 10x USB
    ♦DC_12V power supply
    Read More Make an inquiry
  • 8th Gen i5-8260U DDR4 Thin ITX Motherboard

    8th Gen i5-8260U DDR4 Thin ITX Motherboard

    ♦Model:ITX-B102_I512L VER:1.1(8260U)
    ♦Based on Intel Coffee lake-U SOC platform
    ♦Onboard 8th Gen i5-8260U 1.6~3.9GHz (4 Cores / 8 threads) CPU
    ♦Intel UHD Graphics ; VGA+HDMI+LVDS (4K Display)
    ♦2*DDR4 2666MHz SO-DIMM socket, up to 64GB
    ♦1*RJ45 Gigabit Eth / 8*USB / 2*COM(RS232/485/422)
    ♦1*SATA3.0 / 1*mSATA SSD / 1*M.2 NVMe / 1*mini-pcie(Wifi/4G)
    ♦Support GPIO ; Watchdog Timer ; SPK 2Ω/3W ; 1*PS2 ; 1*SIM
    ♦Support DC_12V Input
    Read More Make an inquiry
  • I5 8260U 2 Lan Thin ITX Motherboard

    I5 8260U 2 Lan Thin ITX Motherboard

    ♦Model No.:ITX-YL82V1_I522L VER:1.0
    ♦Integrated Intel®I5 8260U 1.6GHz quad-core eight-thread processor
    ♦2x SODIMM 2400MHz DDR4,up to 64GB
    ♦2x RJ45 GbE  ports
    ♦1x eDP, 2x HDMI1.4,1x LVDS
    ♦2x M.2 slot, supports  WIFI / 5G module
    ♦2x SATA3.0 ; 1x M.2
    ♦2x COM; 10x USB
    ♦DC_12V power supply
    Read More Make an inquiry

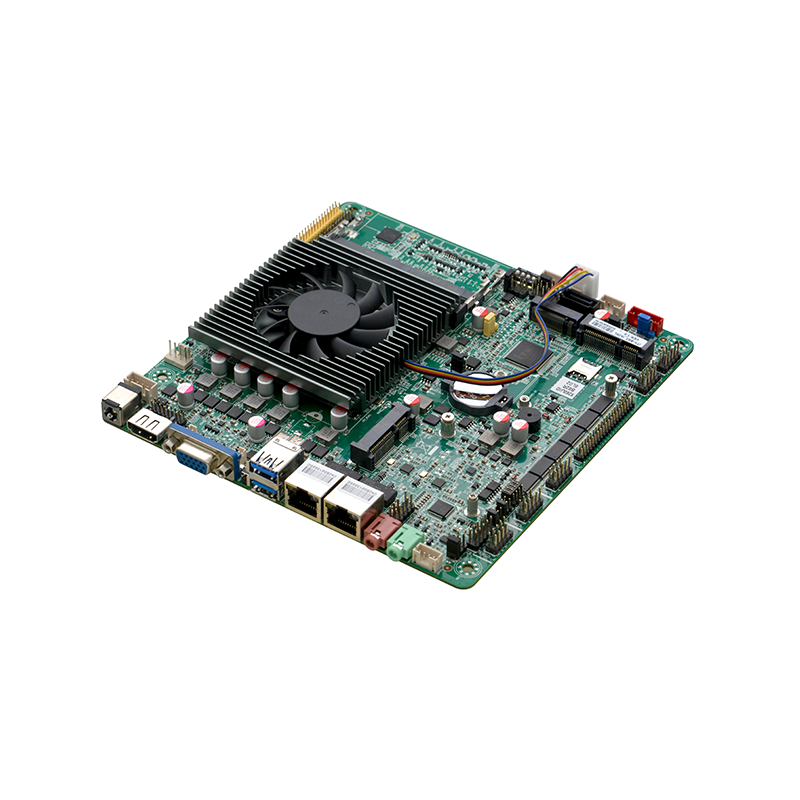

  • 2 Lan i5-8260U thin itx motherboard

    2 Lan i5-8260U thin itx motherboard

    ♦Model No.: ITX-B82_I526L VER:1.6(8260U)
    ♦Based on Intel Coffee Lake-U SOC platform
    ♦Integrated 8th Gen i5-8260U 1.6~3.9GHz (4 Cores / 8 threads) CPU
    ♦Intel UHD Graphics ; VGA+HDMI+LVDS/eDP (4K Display)
    ♦2*DDR4 2666MHz SO-DIMM socket, up to 64GB
    ♦2*RJ45 Giga Eth / 8*USB / 6*COM(RS232/485/422)
    ♦1*SATA3.0 / 1*mSATA SSD / 1*M.2 SSD / 1*mini-pcie(Wifi/4G)
    ♦Support GPIO ; Watchdog Timer ; SPK 4Ω/3W ; 1*LPT ; 1*SIM
    ♦Provide: 1* DC_Jack 12V Input ; 1*ATX 4pin 12V input
    Read More Make an inquiry
