This versatile Thin ITX motherboard is built on Intel Coffee Lake-U SOC platform, featuring the 8th Gen Core™ i5-8260U processor (4C/8T, 1.6-3.9GHz) in a compact Thin ITX form factor (170×170mm). Designed for space-optimized industrial solutions, it delivers balanced performance with low power consumption and rich connectivity options.
Key Features:
✔ Efficient Processing: Intel i5-8260U with 3.9GHz Turbo Boost (15W TDP)
✔ 4K Display Output: VGA + HDMI + LVDS (triple-display support)
✔ Memory Configuration: Dual-channel DDR4 2666MHz (max 64GB)
✔ Industrial I/O:
1×GbE LAN (Intel® I219V)
8×USB ports (4×USB3.1 Gen1)
2×COM ports (RS232/485/422)
✔ Storage & Expansion:
1×SATA3.0 + 1×mSATA
1×M.2 NVMe (PCIe 3.0 x4) + 1×mini-PCIe (WiFi/4G)
✔ Rugged Design:
GPIO + Watchdog Timer
2Ω/3W speaker output + PS/2 legacy port
SIM card slot for cellular connectivity
✔ Power Input: 12V DC
Applications: Industrial Control | Kiosk Systems | Medical Equipment | Transportation

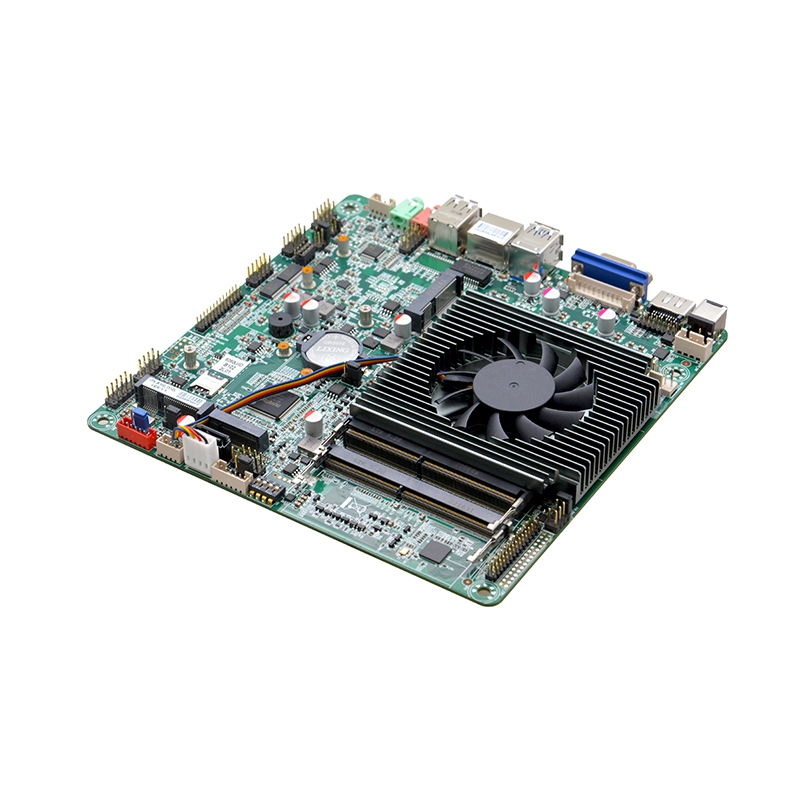

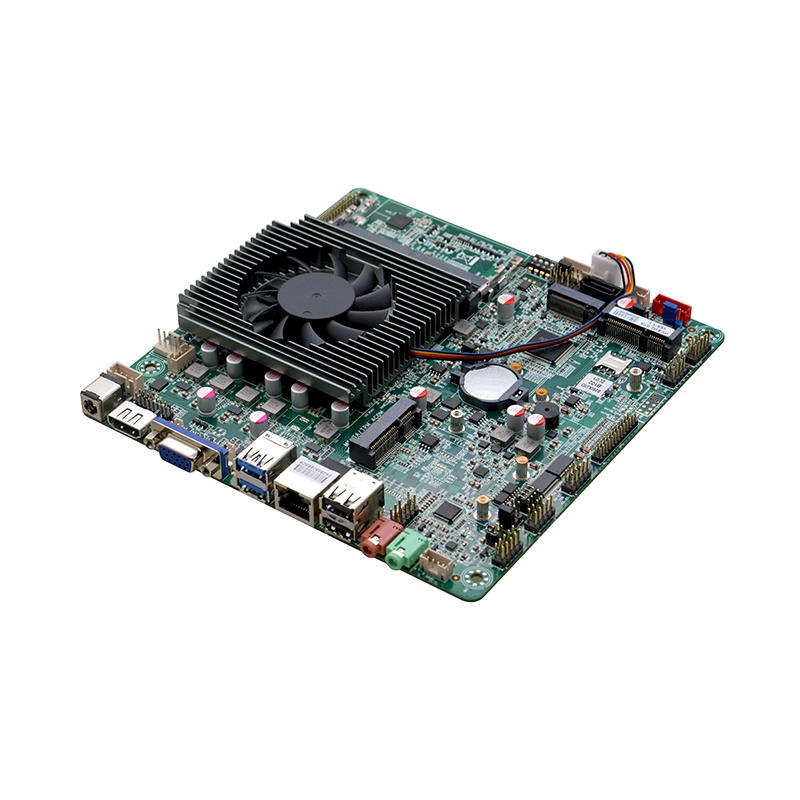

Detail Display
_JPG.png)
_JPG.png)

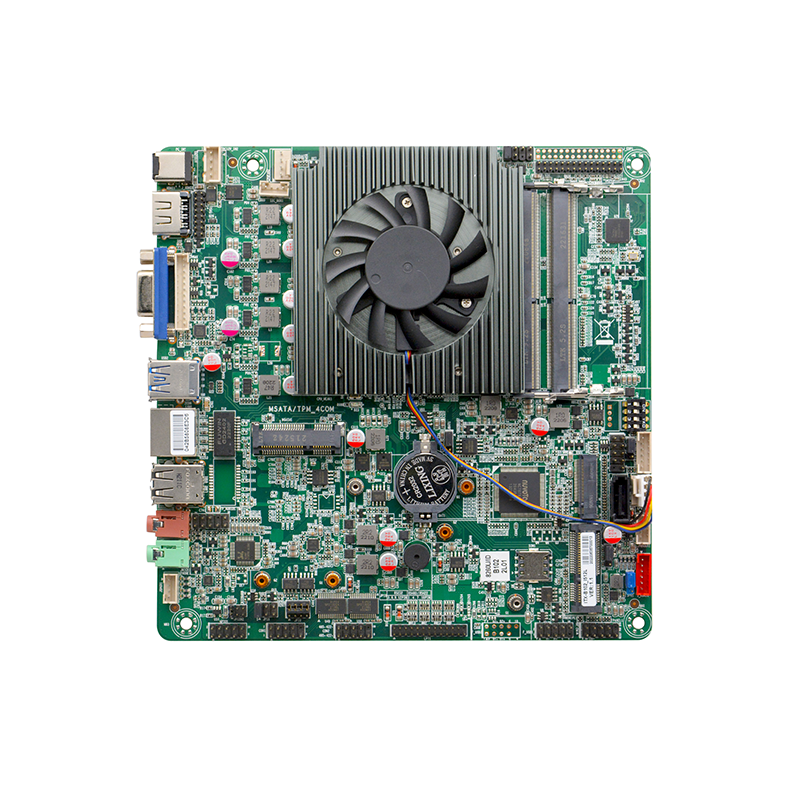

Product Description
Model No.: ITX-B102_I512L VER:1.1(8260U)
Processor: Integrated 8 Gen Intel®I5 8260U 1.6GHz quad-core eight-thread processor,TDP 15W
Compatible with Intel®Whiskey Lake-U/Comet Lake-U/Coffe Lake-U 8th/10th Celeron /Pentium/I3/I5/I7 low power processor
Chipset: SOC
Memory: 2* DDR4 SODIMM memory slot,supports 2666MHz memory,up to 64GB
Display:
Integrated Intel® UHD Graphics ,supports DirectX 12 OpenGL 4.5, supports 4K
1*VGA, The maximum resolution supported is：1920X1200@60Hz
1*HDMI1.4, The maximum resolution supported is：4096x2304@24Hz
1*Support dual-channel 24bit LVDS interface, choose one from EDP, default LVDS
Ethernet: 1* Intel I225 Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage:
1* SATA3.0 hard disk interface,the trasfer rate is up to 6Gbps
1* MSATA slot, SSD solid state drive supporting Intel protocol,the trasfer rate is up to 6Gbps
1* M.2 slot,supports M.2 2260/2280 NVME PCIE x4/SATA SSD
Note: Choose one of MSATA and TPM-4COM, you can use TPM-4COM to expand 4 serial ports, when using TPM-4COM small board, you can use M.2 SSD
Audio:
Integrated ALC892 7.1+2 channel high-fidelity audio controller, supports MIC, Line_out, power amplifier
Support power amplifier 2 Ω 3W horn
Expansion Slot: 1* Mini-PCIE slot,supports WIFI/4G moudle

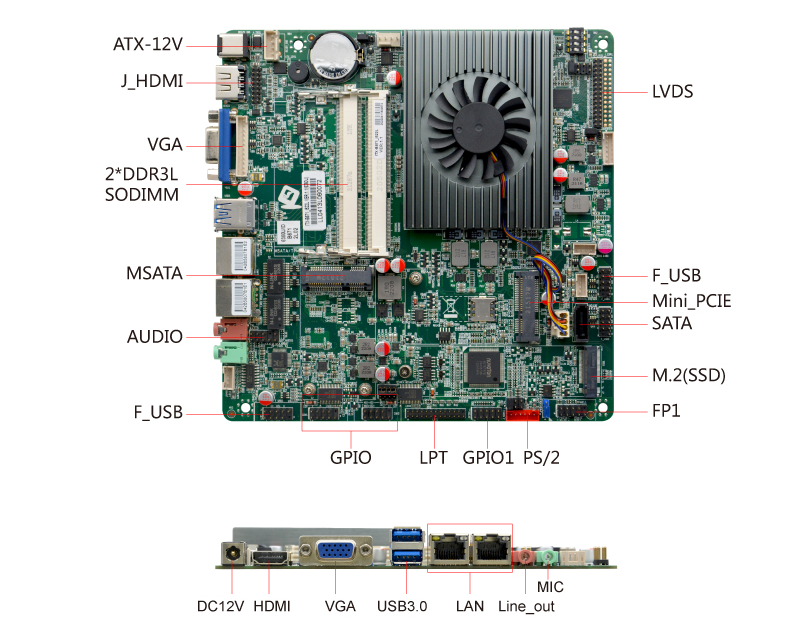

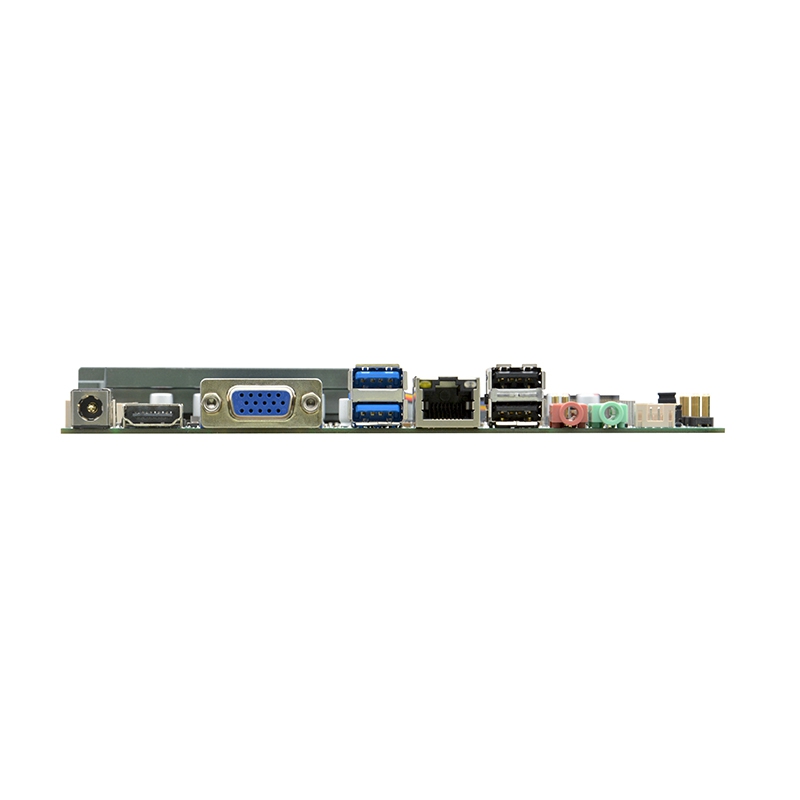

Backplane I / O interface:
2* USB3.0，2*USB2.0
1* HDMI
1* DB15 VGA
1* RJ45 Gigabit Network Interface
1* Line-out(Green），1*MIC(red）
1* DC12V power interface, supports 12V power input
Built in I / O interface:
1* JVGA1, 1*12pin(Same signal as DB15)
1* JHDMI, 2*10pin，Same signal as HDMI
1* LVDS, 2*15pin，supports Dual channel 24bit，
1* LVDS Backlight power supply interface 1*6pin
1* Screen brightness adjustment interface 1*4pin
2* RS232 serial interface,,COM2 supports the 9th pin live function, COM2 supports RS485/422 function
1* PS/2 Keyboard and mouse interface (red)1*6Pin
4* USB2.0 interface 2*5pin ,
1* front audio interface 2*5pin
1* LPT print interface 2*13pin
1* front panel switch button and indicator light interface 2*5Pin
1* HDD power supply interface 1*4pin
1* amplifier interface 1*4pin
1* DC power interface, 1*4pin (Can be used as 12V input power interface)
1* SIM card slot
Fan Connector: 1*4pin CPU smart fan connector, 1* 4pin system fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: DC 12V
OS: Windows 10 ,/Linux
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

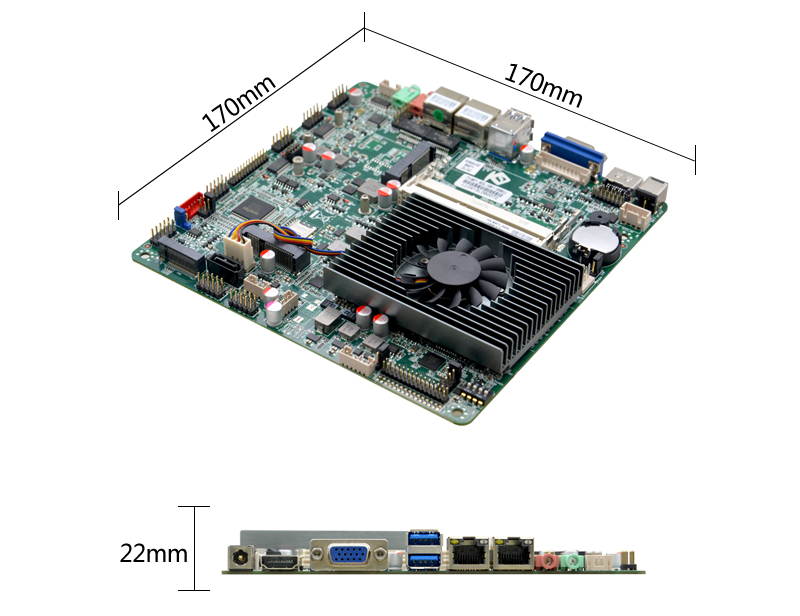

Dimension: 170mm x 170mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
