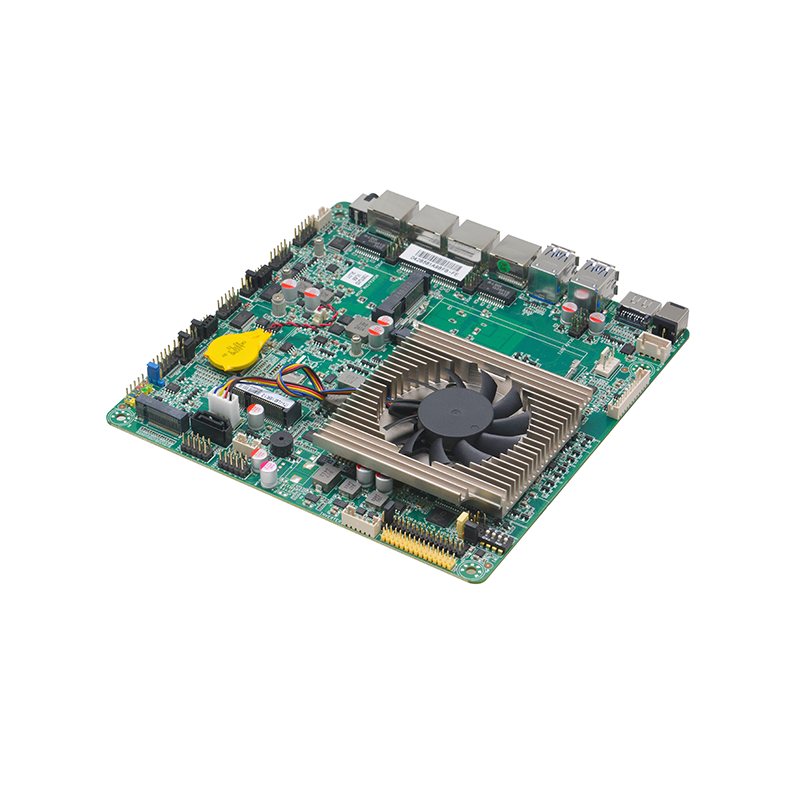

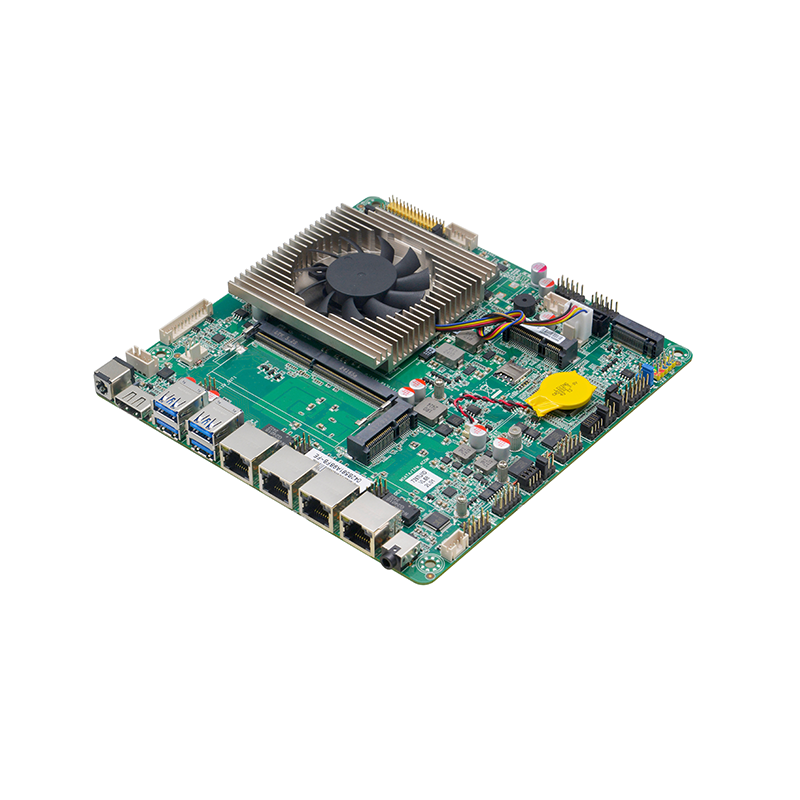

Product Description

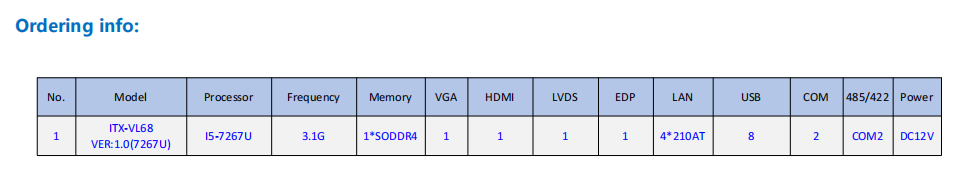

Model No.: ITX-VL68 VER:1.0(7267U)
Processor: Integrated Intel® I5-7267U 3.1GHz dual-core four-thread processor, TDP 28W
Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low-power processors
Chipset: SOC
Memory: 1x SODIMM slot, supports 2133MHz DDR4 memory up to 32GB
Display:
Integrated Intel® Iris® Plus Graphics 650, supports DirectX 12, OpenGL 4.5, supports 4K
1x VGA interface, the highest resolution supported is: 1920X1200@60Hz
1x HDMI1.4 interface, the highest resolution supported is: 4096X2304@24Hz
1x Support dual-channel 24bit LVDS interface
1x EDP interface, with LVDS interface, you can choose one of the two through pop-up
Network:
4x Intel WGI210AT Gigabit network card, supports network wake-up and PXE functions
Note: POE can be supported. If you want POE function, you need to use the VL68-PW expansion board
Storage:
1x SATA3.0 hard disk interface, transmission speed up to 6Gbps
1x MSATA slot, supports Intel protocol SSD solid state drive, transmission speed can reach 6Gbps,
Note: MSATA and TPM-4COM are two options. It can support the use of TPM-4COM small board to expand 4 serial ports. The default is MSATA. To use the TPM-4COM function, you need to change the BIOS
1x M.2 slot, supports M.22280 NVME PCIE X4/SATA specification SSD
Audio:
Integrated ALC897 7.1+2 channel high-fidelity audio controller, supports MIC, Line_out, power amplifier
Support amplifier 4Ω 3W speaker
Expansion slots: 1x Mini-PCIE slot, supports WIFI / 4G module

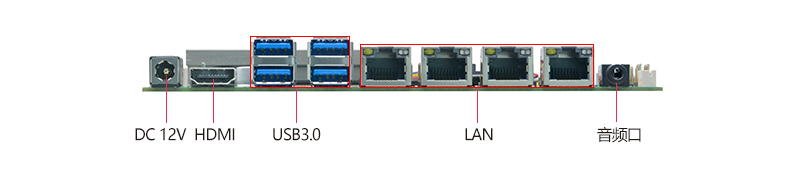

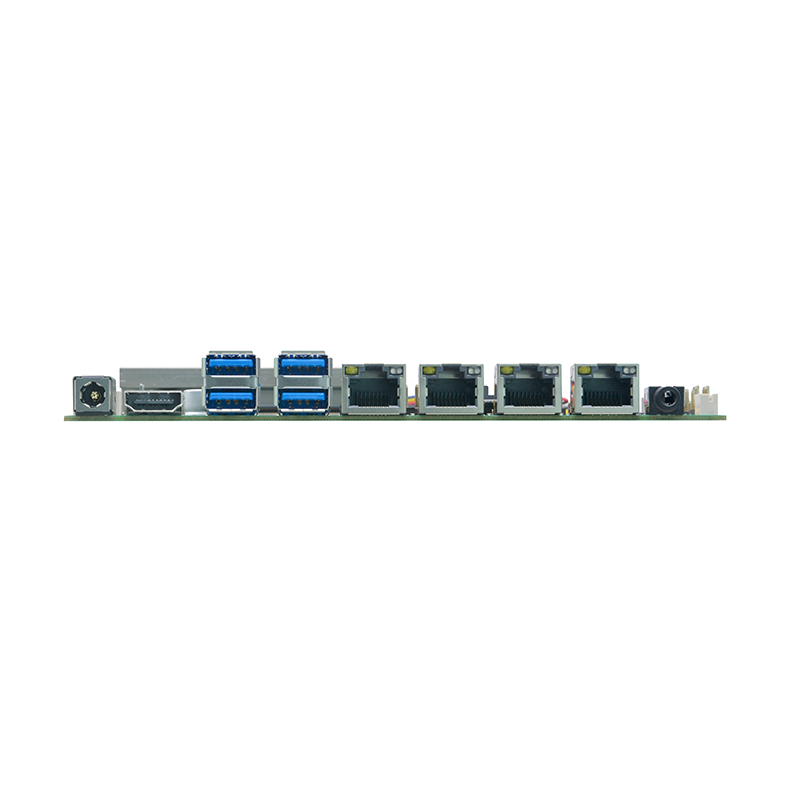

Backplane I/O interface:
1x DC12V
1x HDMI1.4
4x USB3.0
4x RJ45 Gigabit network port
1x Two and one audio interface

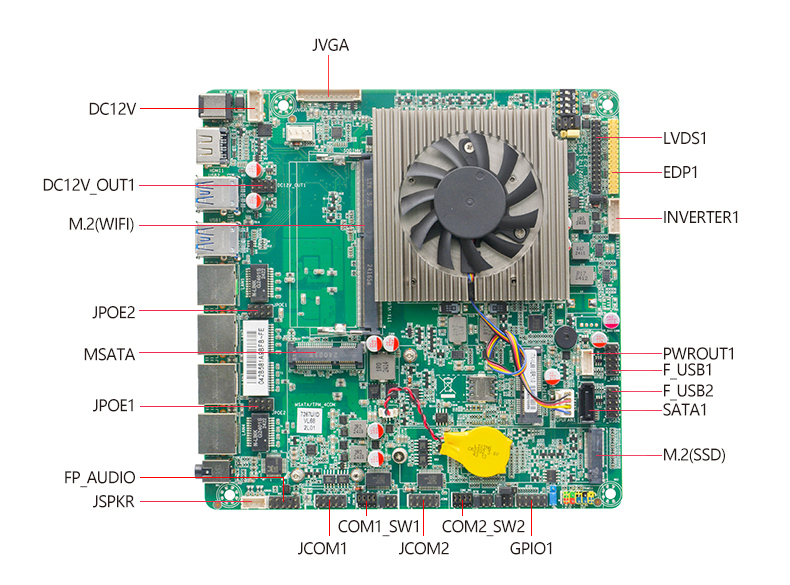

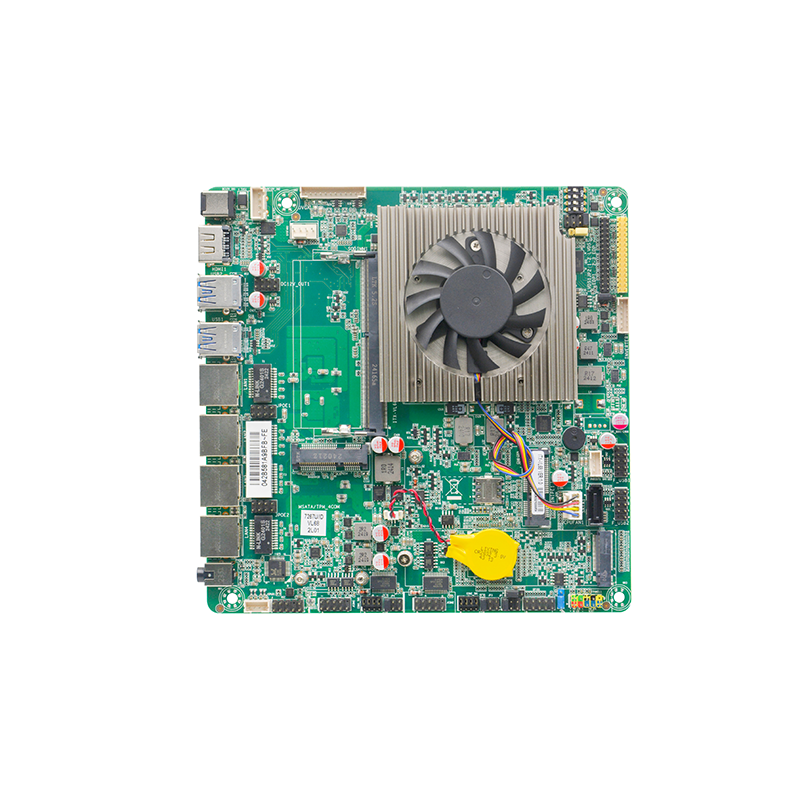

Built in I/O interface:
1x JVGA1, 1x 12pin
3x 2x 4pin PH=2.54mm pin header, connected to VL680-PW small board
1x LVDS interface 2x 15pin, supports dual channel 24bit
1x EDP（yellow） 2x 15pin,with LVDS as a pass-through alternative
1x LVDS backlight power supply interface 1x 6pin
2x RS232 serial interface, supports RS485/422 function
4x USB2.0 interface 2x 5pin
1x Front panel switch button and indicator light interface 2x 5Pin
1x Hard drive power supply interface 1x 4pin
1x Front audio interface 2x 5pin
1x Power amplifier interface 1x 4pin
1x 4pin DC power interface (can be used as 12V input and output power interface)
1x SIM card slot
Fan: 1x 4pin CPU fan interface; 1x 4pin system fan interface
GPIO: Supports four-in and four-out GPIO functions
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (level 256, 0~255 seconds)
OS: Windows 7 , Windows 10 , Linux
Power supply: DC 12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)

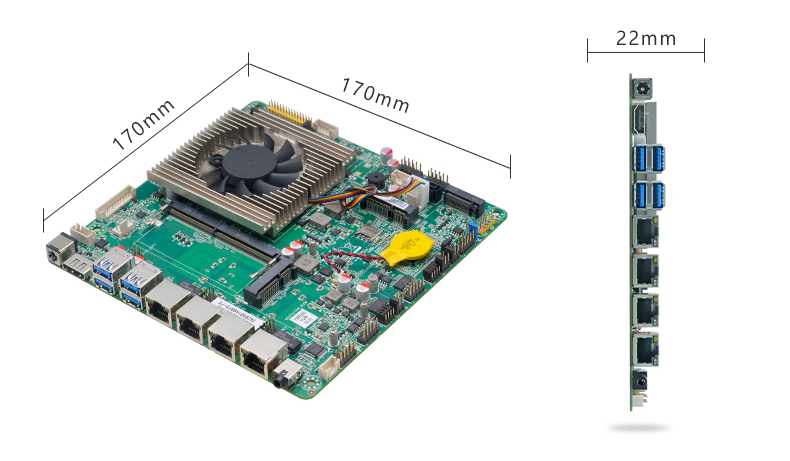

Dimension: 170mm x 170mm
