Overview

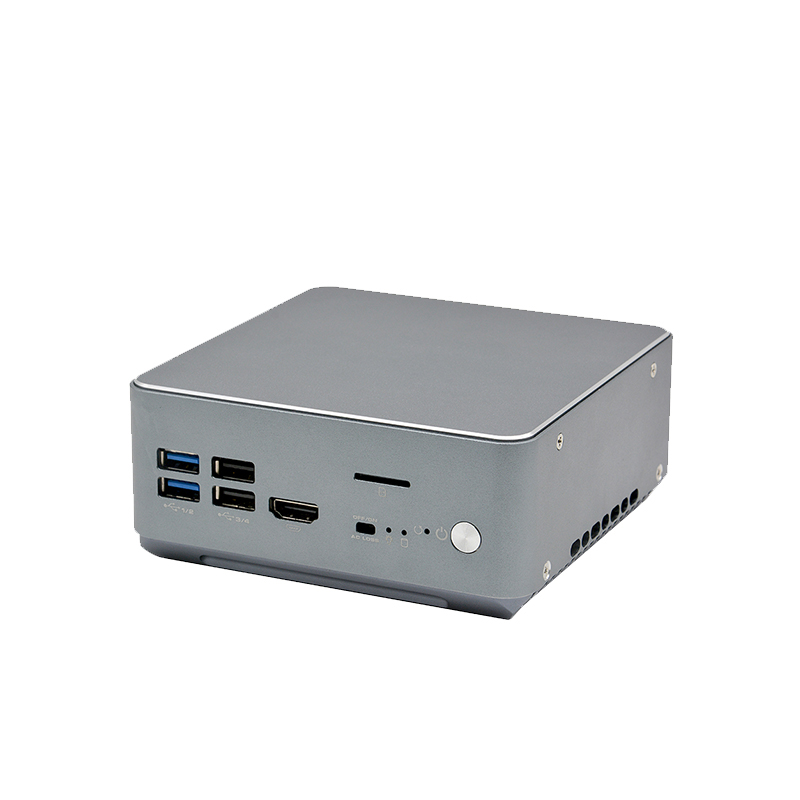

The N8150Z-L6 V1.0(5205U) Mini Firewall/Router is a high-performance compact network security device with fanless aluminum alloy enclosure, powered by 10th Gen Intel Celeron 5205U dual-core processor (1.9GHz). This mini firewall features 6×GbE ports, combining enterprise firewall and router functionalities in a compact form factor.
Key Advantages:
✔ Silent fanless design - Full aluminum alloy passive cooling
✔ Energy-efficient CPU - 10th Gen Intel 5205U (15W TDP)
✔ Enterprise networking - 6×GbE ports + 4G/WiFi expansion
✔ Industrial reliability - Auto power-on recovery (AC_Loss)
✔ Dual storage - 2.5" SATA + mSATA options
✔ Rich interfaces - 4×USB + dual COM + SIM slot
✔ Compact size - Mini form factor with enterprise performance
Typical Applications:
◼ Branch office firewall
◼ Industrial IoT security gateway
◼ 4G/5G mobile router
◼ Smart edge networking
◼ Digital signage controller
Product Description
Model NO.: N8150Z-L6 V1.0 [5205U]
Chassis:

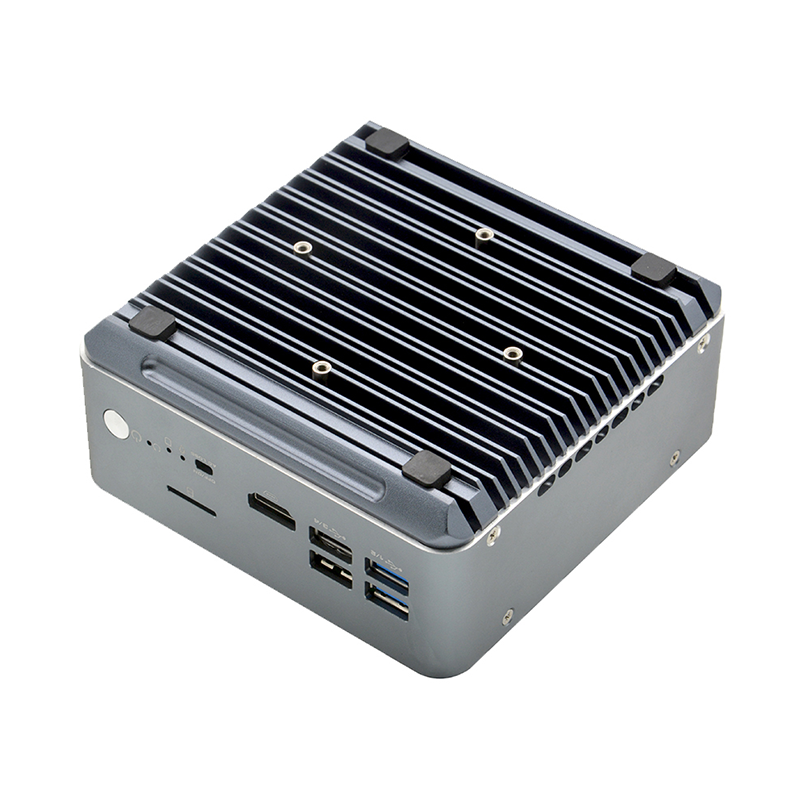

Structure: Fanless structure, all aluminum alloy chassis
Dimension: Iron gray 128mmx 128mmx 56mm
Color: Iron gray
Installation: Desktop / VESA/Wall mounted
Motherboard:
Processor: Integrated Intel® 10th Gen Celeron5205U 1.9GHz dual-core processor ; TDP 15W compatible Intel® Comet Lake-U series CPU
Chipset: Comet Lake SOC
Display: Integrated Intel® UHD Graphics
Memory: 1x SODIMM slot, support single channel 2400MHz DDR4 ram, up to 32GB

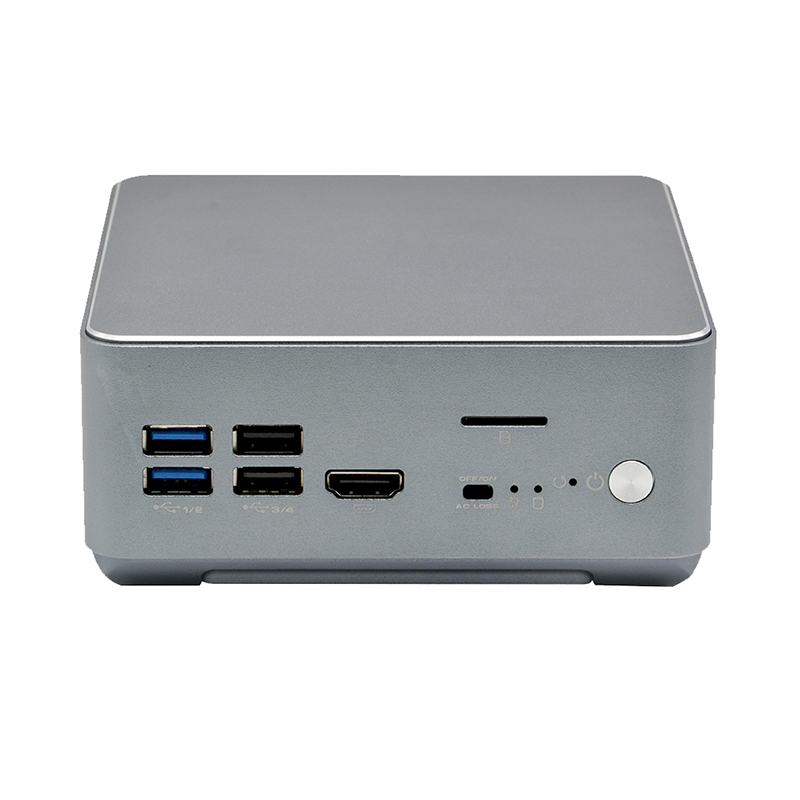

Front I/O:
Switch: 1x Power switch ; 1x Reset ; 1x AC LOSS (auto_power_on switch)
Display: 1x HDMI1.4 (4096X2160@30Hz)
Indicator: 1x Power LED / 1x HDD LED
USB: 2x USB2.0 ; 2x USB3.0 ; 1x USB2.0(inner box)
SIM: 1x Standard SIM slot

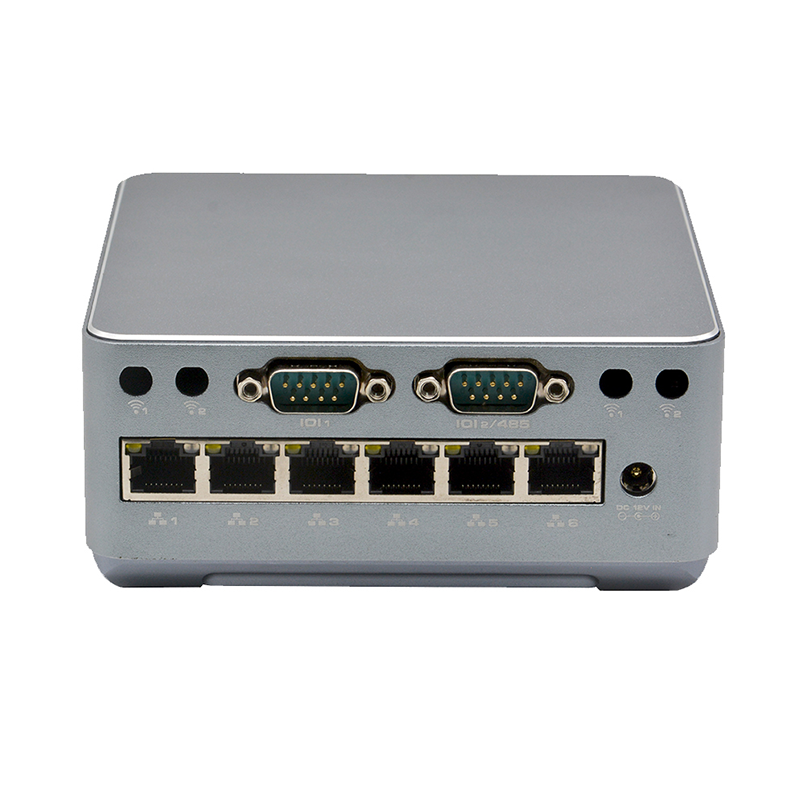

Rear I/O:
Ethernet: 6x Intel I225V 2.5G Gigabit Ethernet, support Wake_on_LAN/PXE
Serial Port: 2x DB9 RS_232 serial port (COM2 support RS_485)
Power: 1x DC_JACK , support DC_12V power input
Storage:
SATA: 1x SATA port, support 2.5” Notebook HDD
SSD: 1x MSATA slot, support SSD ,transfer rate up to 6Gbps
Expansion:
Mini PCIE:1x Mini-PCIE slot, support 4G module
M.2: 1x M.2 slot, support M.2 2230 standard Wifi
OS support:
Microsoft Windows: 10, 64bit
Linux:Ubuntu
Watch Dog:Support hardware reset function (L256, 0~255 seconds)
Power Require:
Power Type:External power adaptor
Voltage Input:DC_12V
Power output:AC_to_DC 60W
Reliability:
Working Temp.: -10℃ ~ 60℃
Storage Temp.: -20℃ ~ 70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
