Overview
This rugged Thin ITX motherboard is built on Intel Skylake-U SOC platform, featuring the 6th Gen Core™ i5-6300U processor (2C/4T, 2.4GHz) in a compact Thin ITX form factor (170×170mm). Designed for industrial automation and communication applications, it delivers reliable performance with exceptional connectivity options.
Key Features:
✔ Efficient Dual-Core Processing: Intel i5-6300U with Intel® HD Graphics 520
✔ 4K Display Support: VGA + HDMI + eDP (triple independent outputs)
✔ Memory Configuration: Single-channel DDR4 2133MHz (max 32GB)
✔ Industrial-Grade I/O:
Dual Intel® WGI210AT GbE ports
8×USB ports (4×USB3.0)
10×COM ports (RS232/485 configurable) + SIM slot
✔ Storage & Expansion:
1×SATA3.0 + 1×M.2 2280 (NVMe/SATA)
1×mini-PCIe (WiFi/4G modules)
✔ Rugged Design:
GPIO control + Hardware Watchdog
2Ω/5W audio amplifier
✔ Dual Power Input: 12V DC jack or ATX 4-pin
Applications: Industrial Automation | Communication Gateways | Digital Signage | Medical Equipment

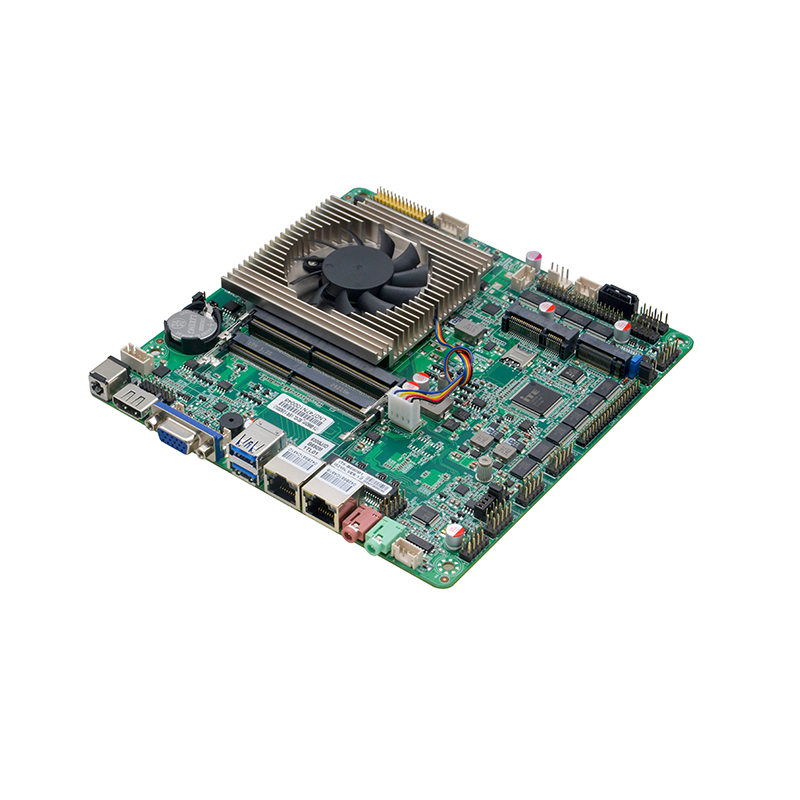

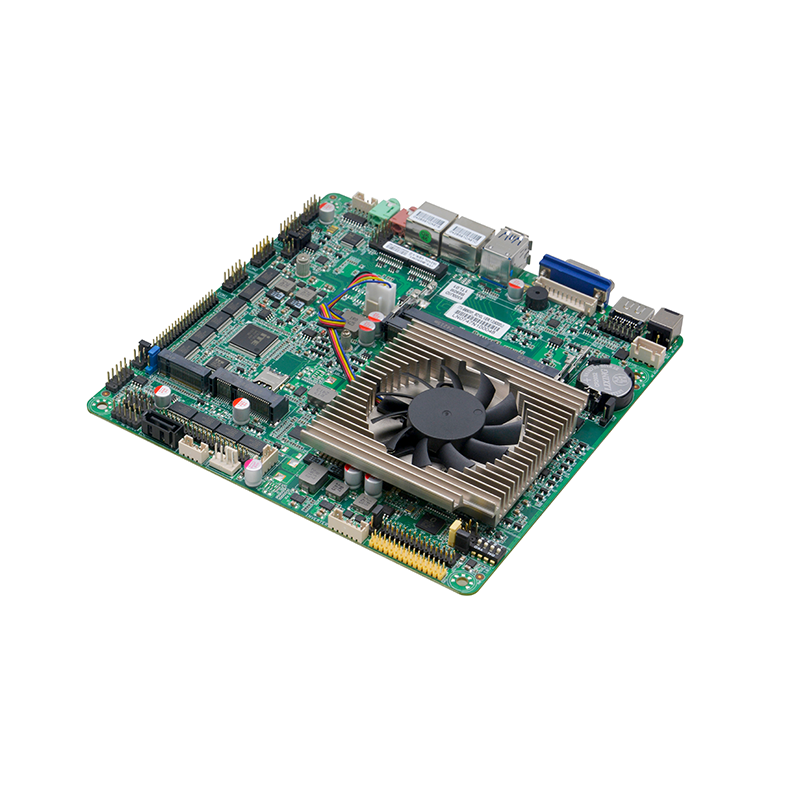

Detail Display
Product Description
Product No.: ITX-B690M1_I5210L VER1.0
Processor: Integrated Intel®I5-6300U 2.4GHz dual-core quad-thread processor, TDP 15W
Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low power processor
Chipset: SOC
RAM: 2* SODIMM slot, support dual channel 2133MHz DDR4 memory,up to 32GB
Display:
Integrated Intel® UHD Graphics 520, support DirectX 12, OpenGL 4.5, support 4K
1* VGA interface, the highest supported resolution is: 1920X1200@60Hz
1* HDMI1.4 interface, the highest supported resolution is: 4096X2304@24Hz
1* LVDS interface, support dual-channel 24bit. (1*EDP is optional)
Ethernet: 2* Intel WGI210AT Gigabit Ethernet,support Wake-on-LAN/PXE
Storage:
1* SATA3.0 hard disk interface, the transfer speed can reach 6Gbps
1* M.2 slot, support M.2 2280 NVME PCIE X4/SATA specification SSD
Audio:
Onboard ALC897 7.1+2 channel high-fidelity audio controller, support MIC/Line-out. Power amplifier
It is recommended to use a 2Ω5Wspeaker for the power amplifier
Expansion slot: 1* Mini-PCIE slot, support WIFI, 4G module

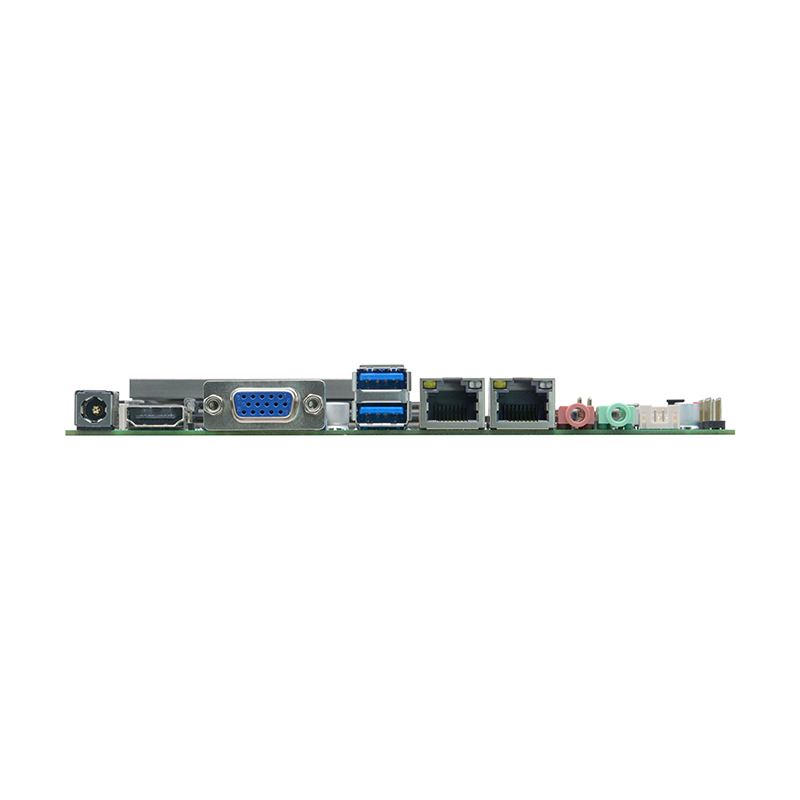

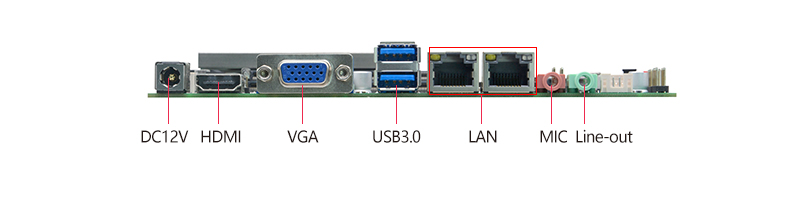

Backplane I/O Interface:
1* HDMI display interface
1* DB15 VGA display interface
2* USB3.0 interface
2* RJ-45 Gigabit network interface (LAN1 and double-layer USB2.0 are on the same column)
1* Line out interface (green), 1* MIC interface (red)
1*DC12V power supply, supports 12V power input and output

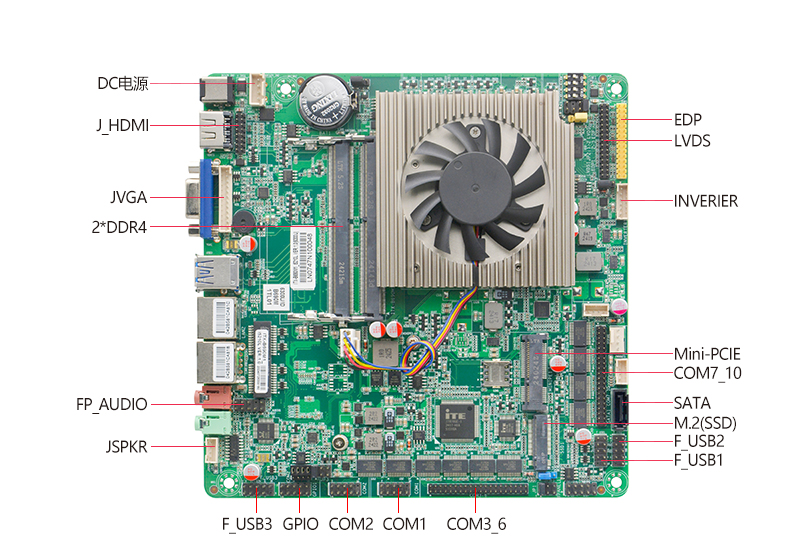

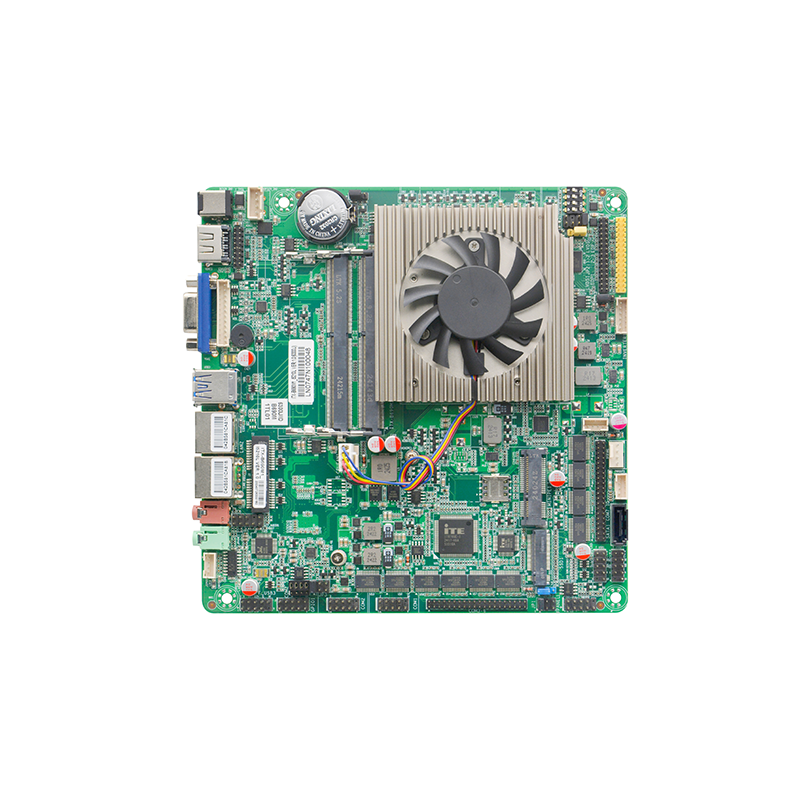

Built-in I/O interface:
1* JVGA interface, 1*12Pin(same signal as DB15)
1* J_HDMI interface, 2*8Pin(same signal as HDMI of interface)
1* LVDS interface 2*15pin, support dual channel 24BIT
1* EDP interface (yellow) 2*15pin, and LVDS can be selected through jumper
1* Screen backlight power supply interface, 1*6pin
1* front audio interface, 2*5pin
10* RS232 serial interface, COM1 supports the 9th pin live function, COM2 supports RS485/422 function.
6* USB2.0 interface 2*5pin, F_USB3 and USB1 are optional
1* Front panel switch button and indicator port, 2*5Pin
1* hard drive power supply interface, 1*4pin
1* Amplifier interface, 1*4pin
1* 4pin DC power interface (can be used as 12V input and output power interface)
1* SIM card slot
Fan interface: Fanless cooling design,reserved 1*4pin CPU fan interface, 1* 4pin system fan interface
GPIO: Support 4 input and output GPIO
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Operating system: Windows 7/Windows 10/Linux
Power Type: DC 12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, no condensation

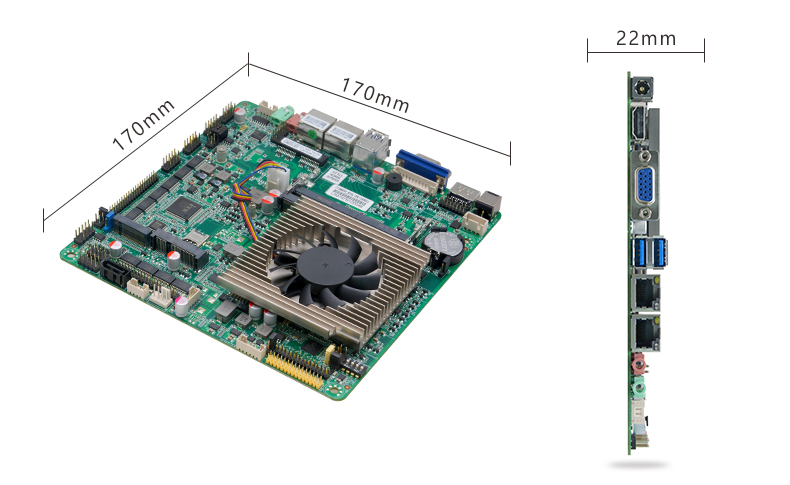

Dimension: 170mm x 170mm
