Key Advantages:
✔ Powerful processing - Intel® N100 quad-core CPU (6W TDP)

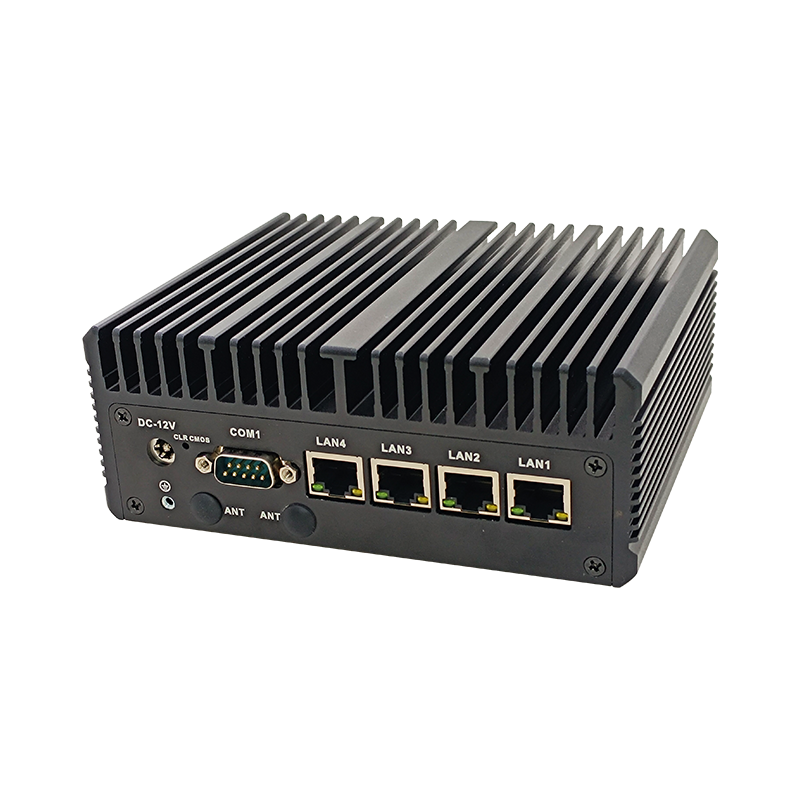

✔ High-speed networking - 4×2.5GbE Intel ports
✔ Space-saving design - Ultra-compact form factor

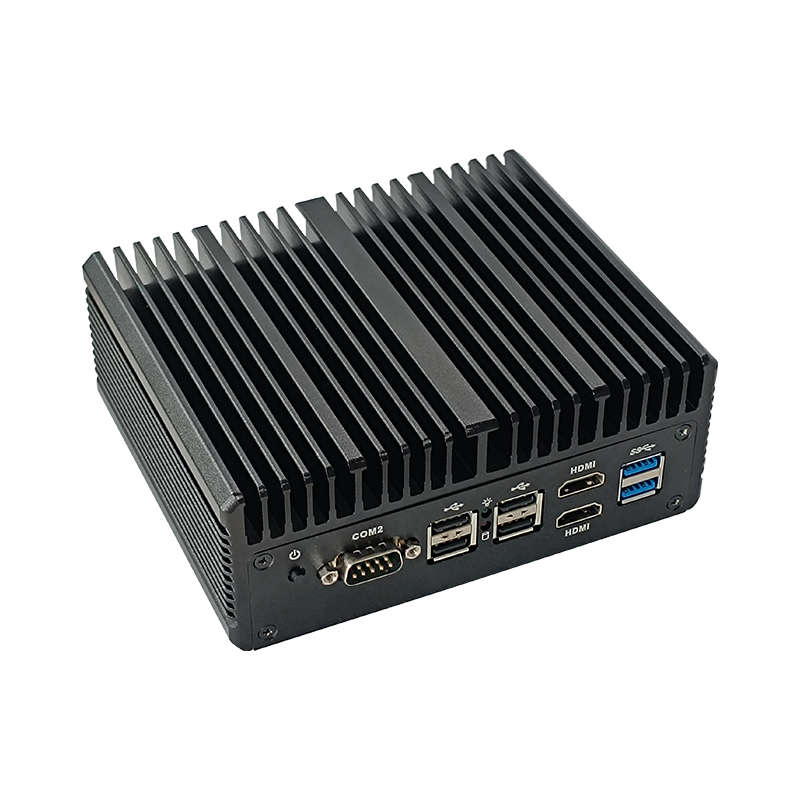

✔ Versatile interfaces - Dual COM+multiple USB+EDP/HDMI outputs
✔ Flexible storage - M.2 SSD+WiFi/4G expansion slots
✔ Energy efficient - 12V DC power input
Typical Applications:
◼ SMB perimeter firewall
◼ Secure router/gateway
◼ Industrial IoT security node
◼ Branch office networking
◼ Smart home control center
Product Description
Model NO.: W-N12(N100)
Motherboard:
Processor: Integrated Intel®Alder Lake-N N100 3.4GHz quad-core quad-thread processor, TDP 6W
Chipset: Intel SoC
BIOS: AMI 128M BIOS，ACPI supported，auto power on
Storage:
Structure: DDR5 4800MHz
Capacity: Up to 16GB
Slot: 1*DDR5 SODIMM
Display:
GPU: Integrated Intel® UHD Graphics
HDMI: 2*HDMI2.0
EDP: 1*EDP（2*15Pin 2.0mm;inside）
Multi Dispay: HDMI/DP/EDP，synchronous/asynchronous
Storage:
SATA :1*SATAⅢ 6Gb/s
M.2: 1*M.2 SSD(NGFF/PCIE Adaptive) 1*M.2_WIFI

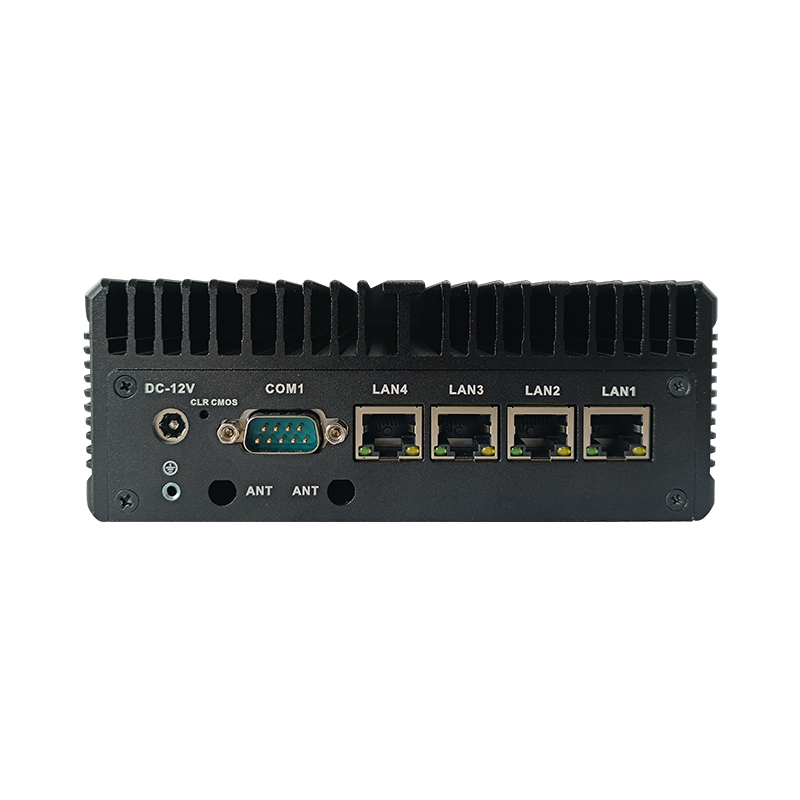

Ethernet: RJ45: 4*RJ45 INTEL I226V 2.5G Ethernet controller

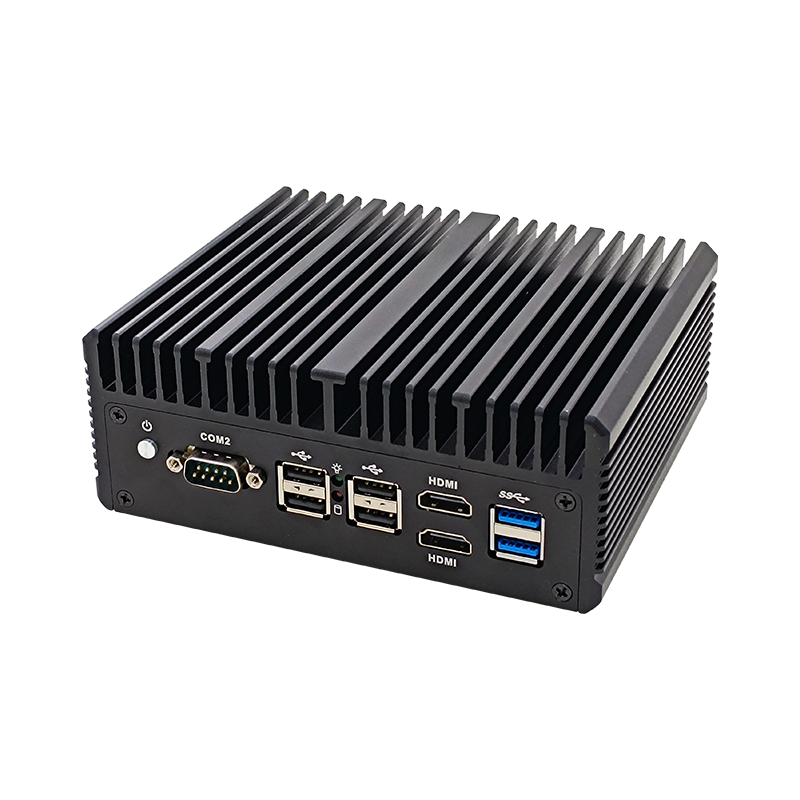

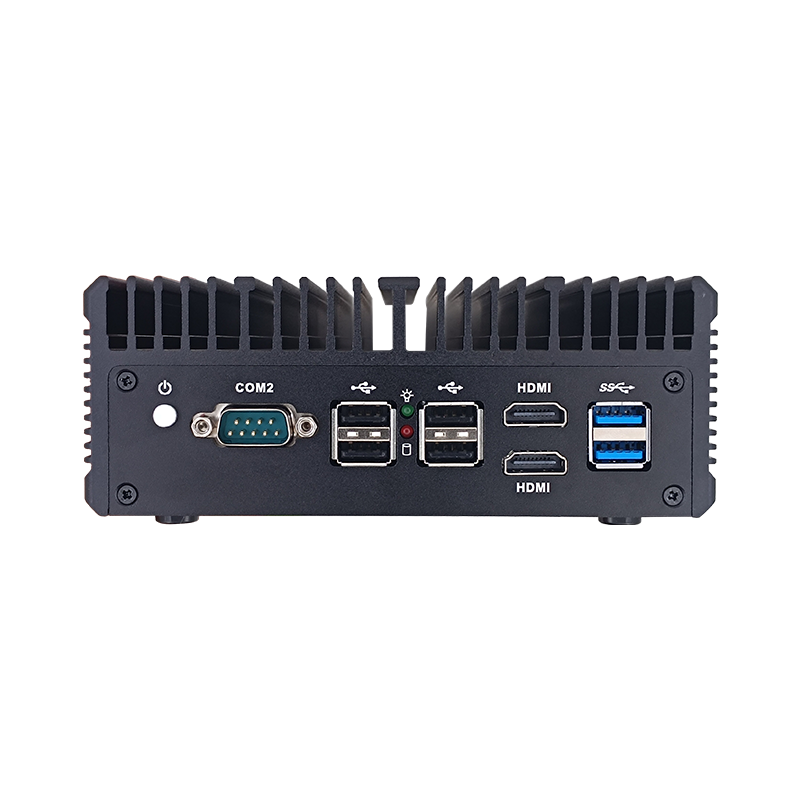

USB: USB2.0/3.0: External 4*USB2.0 + 2*USB3.0
Serial port : RS232: 2*COM (COM2 support RS485)
Expasion: SIM:1*SIM (inside)
Hardware monitor:
Whatchdog: 4~255 seconds
Voltage: +12V,3.3V,5V,CPU Vcore，DDR Power voltage detection

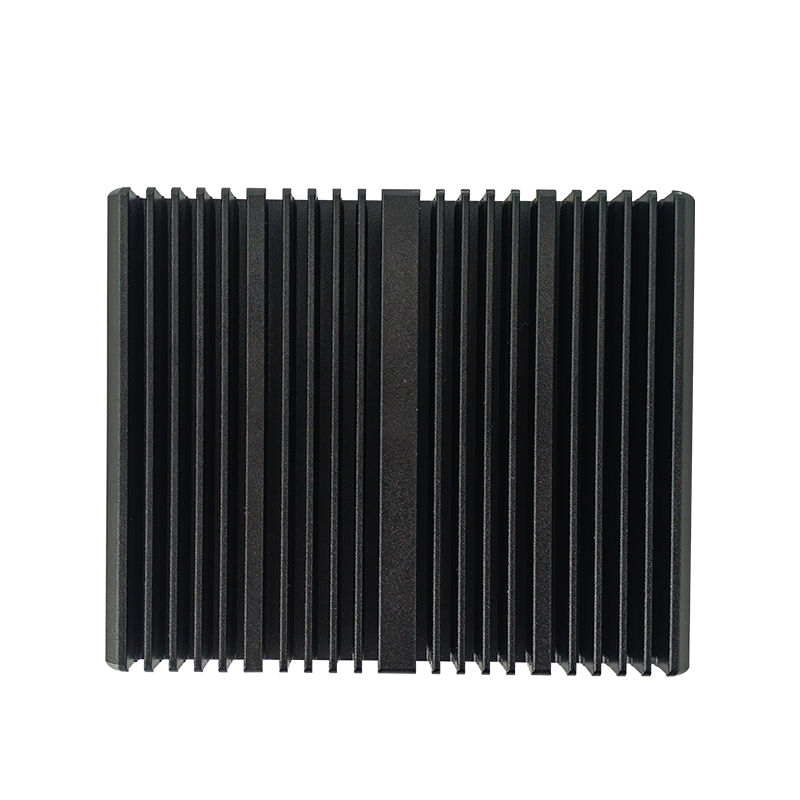

Fanless: Without fan
Hardware control:
Auto power on (inner jumper):JP3(1-2)_AUTO POWER ON
JP3(2-3)_NORMAL
Hardware encryption: TPM: TPM2.0 hardware encryption（optional）

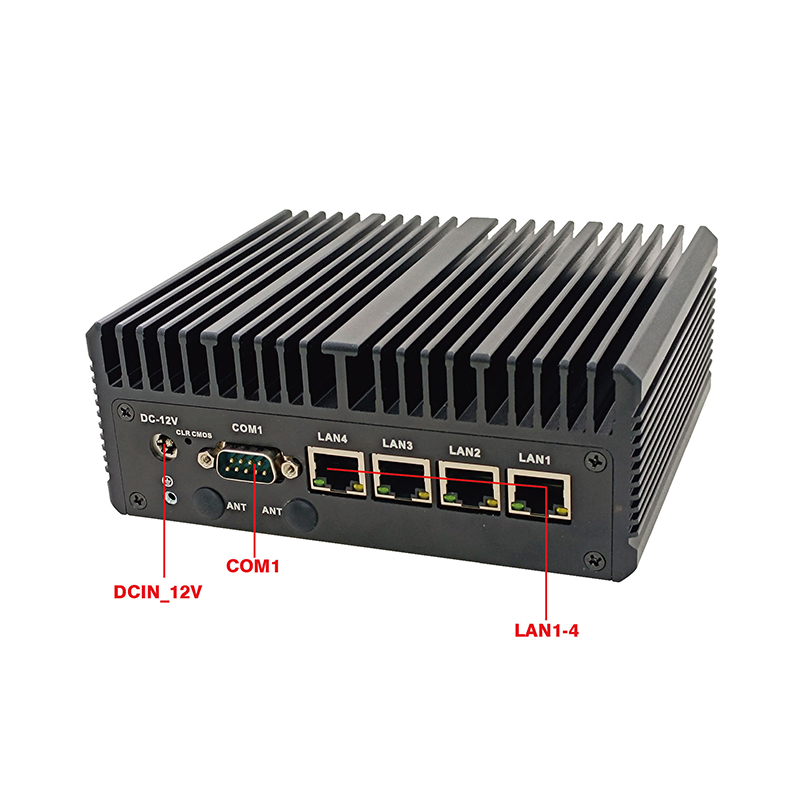

Power: DC_IN: DC 12V，DC_Jack 5.5*2.5mm
Workking temperature:
Working temperature: -20~60℃
Storage temperature: -20~60℃
Working Humidity: 0~90％RH, (relative humidity, non-condensing)
Storage Humidity: 0~90％RH, (relative humidity, non-condensing)

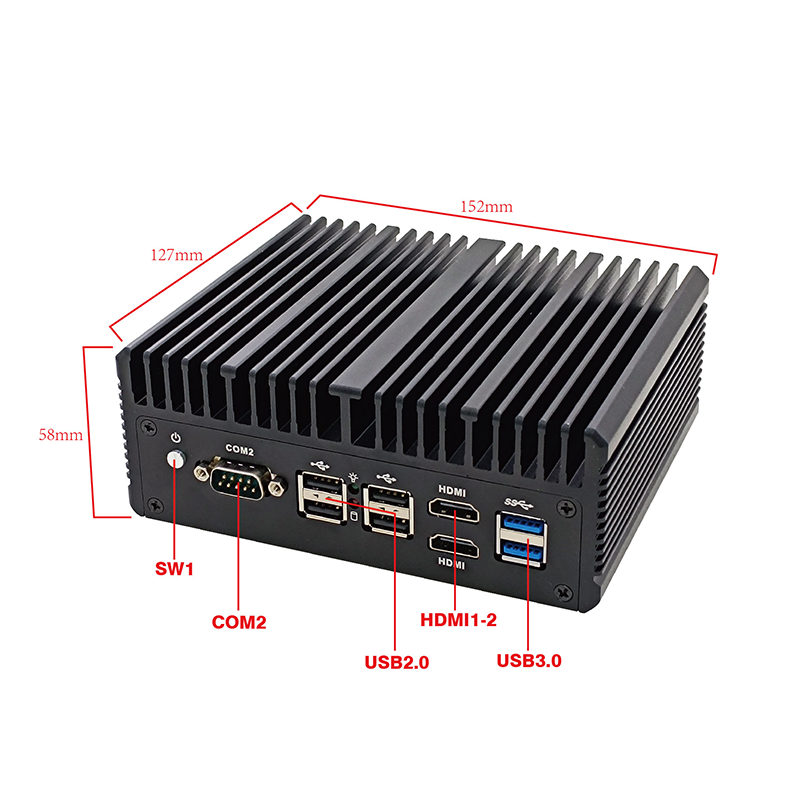

Size:152mm*126mm*52mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
