Key Advantages:
✔ Silent fanless design - Aluminum alloy passive cooling
✔ Efficient quad-core - Intel J4125 CPU (10W TDP)
✔ Professional networking - 4×GbE ports (PXE/WoL supported)
✔ Industrial reliability - Watchdog timer + wide-temperature
✔ Flexible expansion - Mini-PCIE (WiFi/4G) + SIM slot
✔ Dual storage - SATA2.0 + mSATA options
✔ Energy saving - 12V DC power input
Typical Applications:
◼ Branch office firewall
◼ Industrial IoT security gateway
◼ Smart router/VPN device
◼ Digital signage controller
◼ Edge computing security node
Product Description
Model NO.: R41EZ VER:1.0
Chassis:

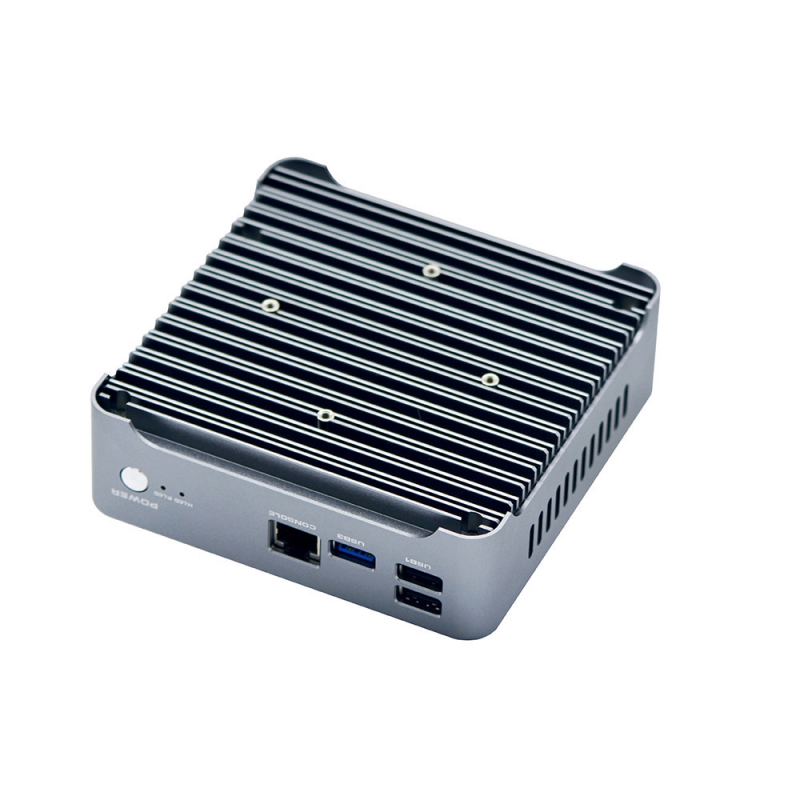

Structure: Fanless structure, all aluminum alloy chassis
Dimension: Iron gray 128mm*128mm*41mm
Color: Iron gray
Installation:Desktop / VESA/Wall mounted

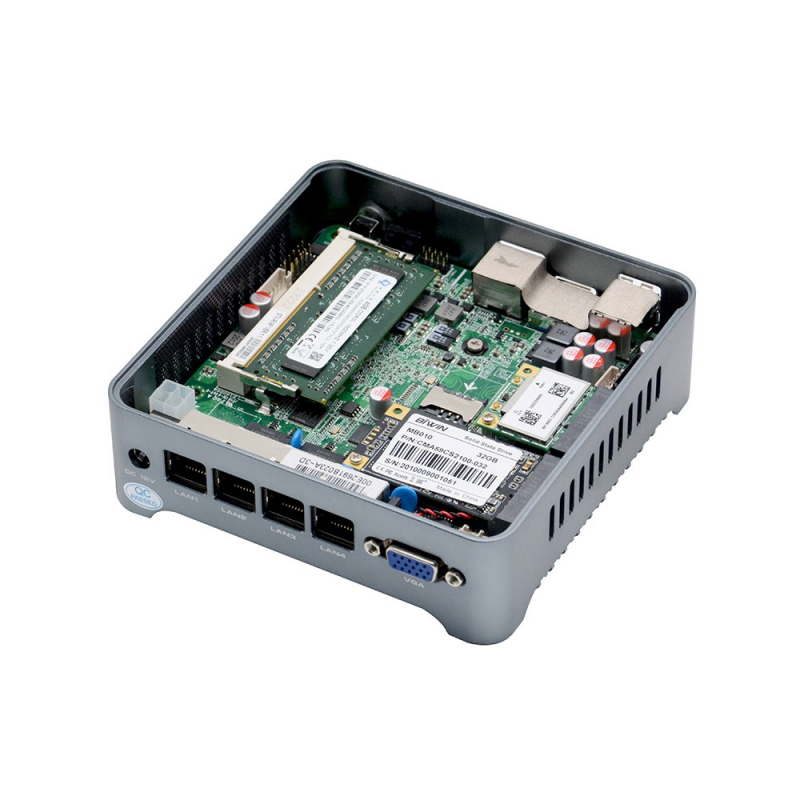

Motherboard:
Processor: Integrated Intel®Celeron J4125 2.0GHz quad-core quad-thread processor ; TDP 10W
compatible Intel® Gemini Lake series CPU
Chipset: Gemini Lake SOC
Display: Integrated Intel® UHD Graphics 600
Memory: 1* SODIMM slot ,support single channel 2400MHz DDR4 ram, up to 8GB

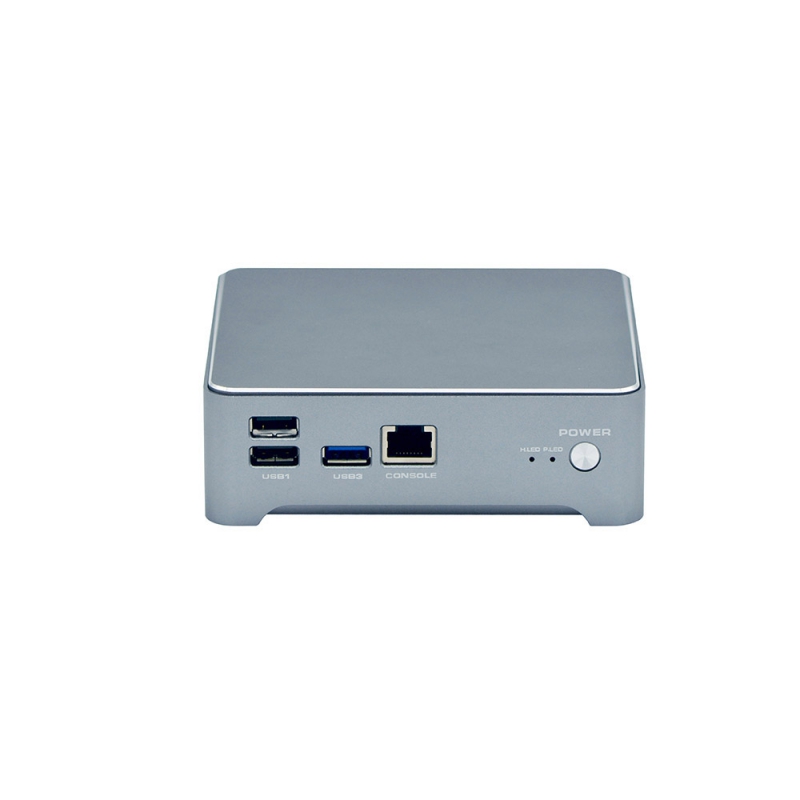

Front I/O:
Switch: 1* Power switch
COM: 1* RJ_45 CISCO standard RS232 serial port
USB: 2* USB2.0 ,1*USB3.0

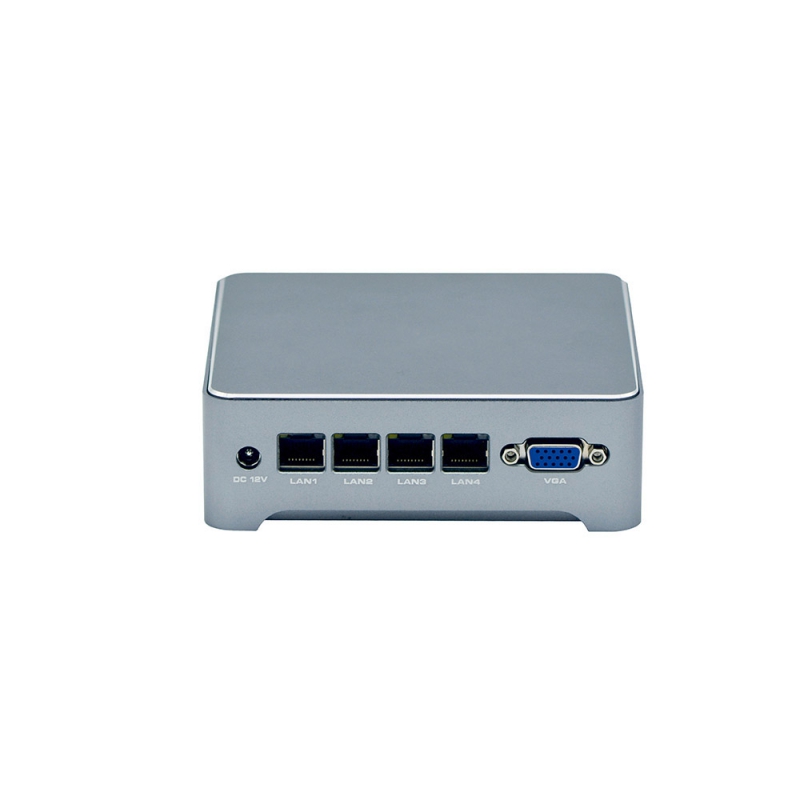

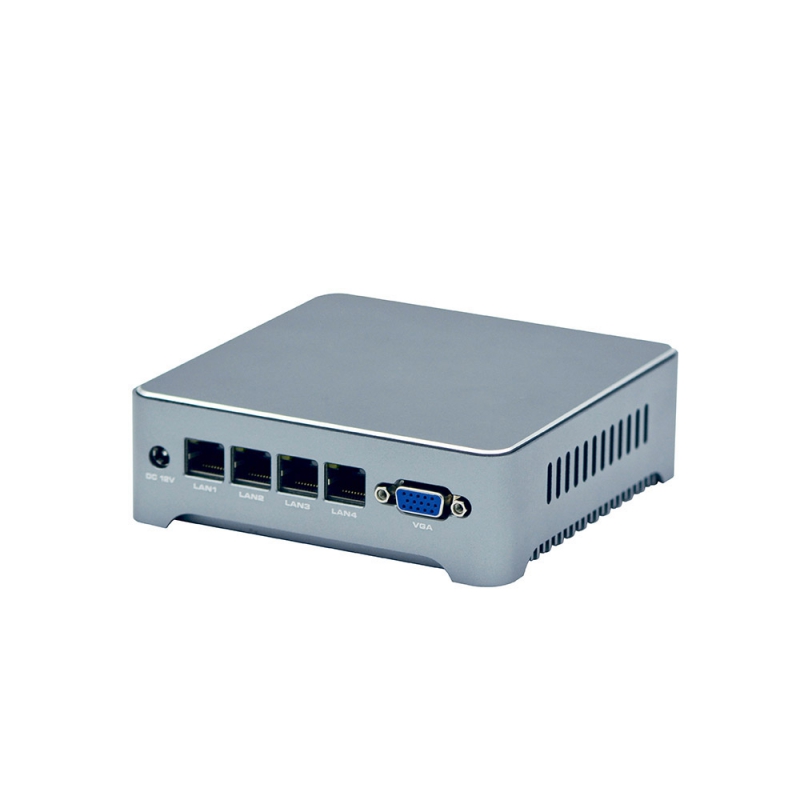

Rear I/O:
Display: 1*VGA
Ethernet: 4* Intel WGI211AT Gigabit Ethernet, support Wake on LAN function
Power: 1* DC JACK power port, support DC 12V power input
Storage:
SATA: 1* Standard SATA2.0 HDD port ,transfer speed up to 3Gbps
SSD: 1* MSATA slot ,support SSD ,transfer speed up to 3Gbps
Extension: Mini PCIE: 1*Mini-PCIE slot ，support WIFI/4G module
Note:WIFI with LAN4 optional ,default LAN4
OS support:
Microsoft Windows: Windows 7/10，64bit
Linux: Ubuntu
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power:
Power Type: External power adaptor
Voltage Input: DC_12V
Power output: AC TO DC、36W / 60W（optional）
Reliability:
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
