Key Advantages:
✔ Powerful processor - 10th Gen Intel 5205U dual-core
✔ Enterprise networking - 6×GbE ports + 5G/WiFi expansion
✔ Large memory - Dual DDR4 slots (up to 64GB)
✔ Industrial reliability - Active cooling + watchdog
✔ 5G ready - M.2 Key_B slot for 5G module
✔ Professional management - Console port
✔ Compact size - Mini form factor, enterprise performance
Typical Applications:
◼ High-performance edge router
◼ 5G network access device
◼ Industrial IoT security gateway
◼ Branch office networking
Product Description

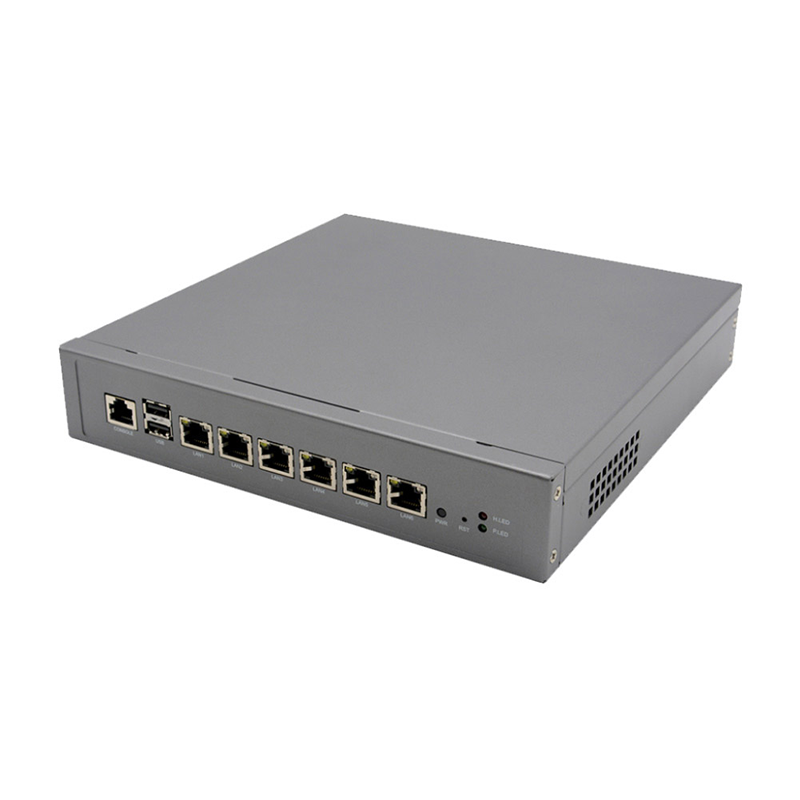

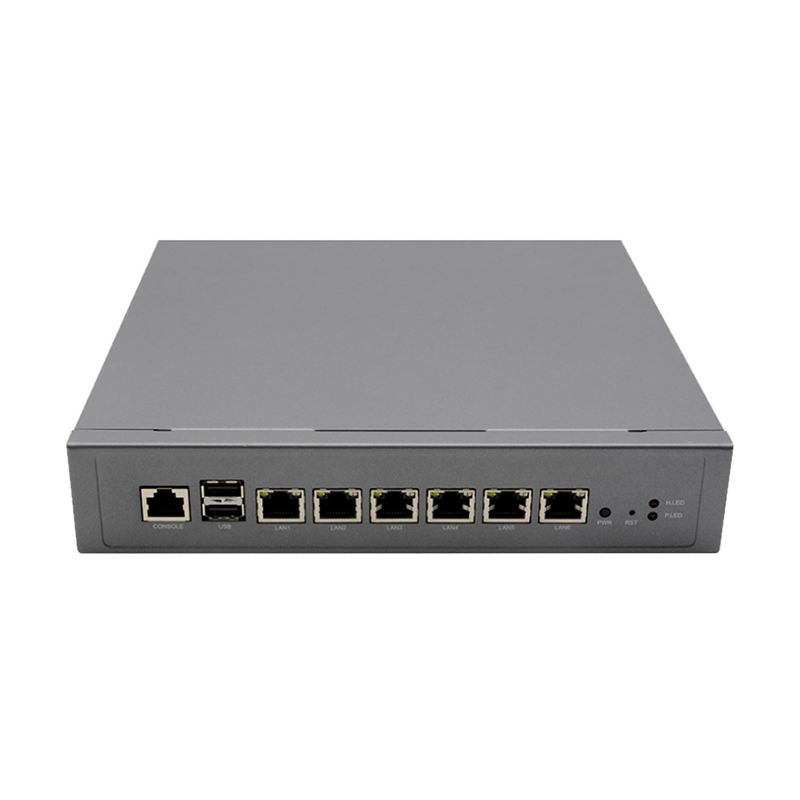

Model NO.: R230V V1.0(5205U)
Chassis:
Structure: High quality galvanized steel plate, fan cooling
Color: silver black
Dimension: 230x 230x 44.5MM
Installation: Desktop

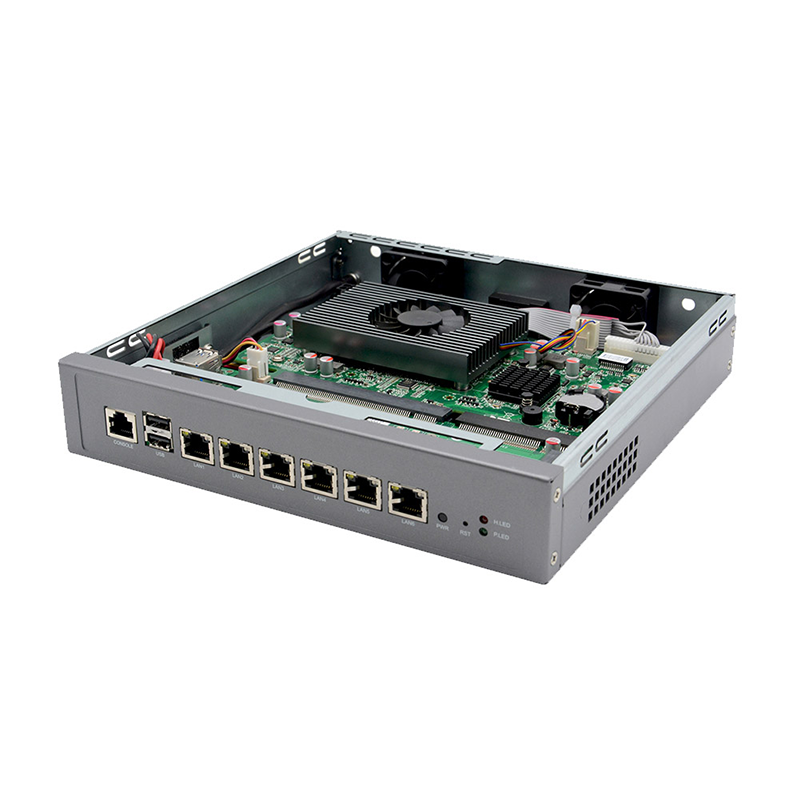

Motherboard:
CPU: Integrated 10th Intel®Celeron 5205U 1.9GHz dual-core dual-thread processor,TDP 15W
Display: Integrated Intel®HD Graphics
Memory: 2x SODIMM memory slot,support 2400MHz DDR4 memory, up to 64GB

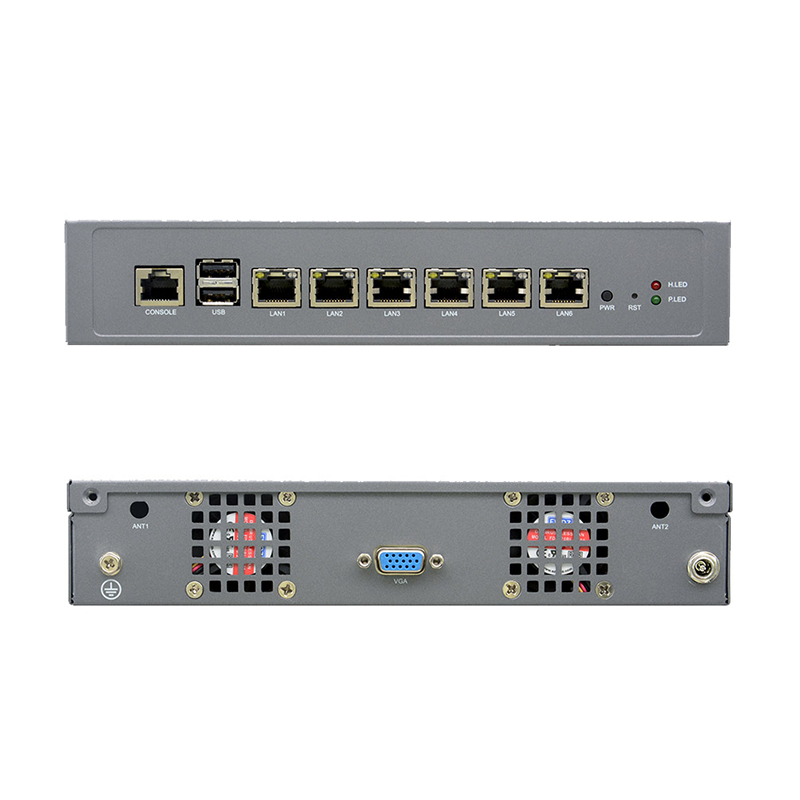

Front I/O:
POWER: 1x Power switch,1*Reset switch
LAN: 6x Intel I225V network card, supports wake-on-LAN/PXE function
COM: 1x RJ45 serial port
USB: 2x USB2.0
LED: 1x hard disk indicator light, 1x power indicator light
Rear I/O:
Display: 1x VGA
power: 1x DC power interface
Storage: SSD: 1x MSATA，transfer speed up to 6Gbps
Extension:
Mini PCIE: 1x MINIPICE WiFi
M.2: 1x M.2 Key-B slot. Supports M.2 2242/2252 5G module (same signal as built-in USB3.0, default USB3.0)
OS support:
Windows: Windows 7/ 10
Linux: Ubuntu
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power:
Power Type: DC power adapter
Voltage Input: 12V
Power output: AC TO DC，60W以上
Reliability:
Working Temp.: -10℃～50℃
Storage Temp.: -20℃～70℃
Relative Humidity: 5%-95%(relative humidity, non-condensing)
Working Vibration: 0.5g rms/5-500HZ/random/operating
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
