Product Description
Model NO.: ST-CWQJ-6L V1.0 (N100)
Chassis:
Structure: All Aluminum Alloy ; Passive Cooling (Fanless)
Dimension: 158mm*125.2mm*63.9mm

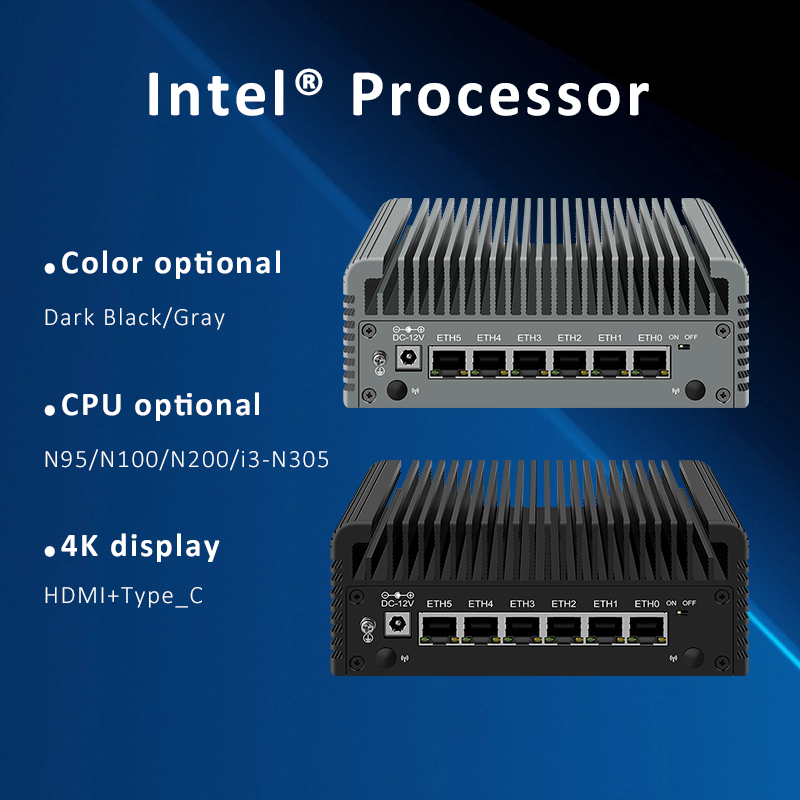

Color: Dark Black / Gray
Installation: VESA_mount / Desktop
Motherboard:
Processor: Intel® 12th Gen Alder Lake-N Series N95/N100/N200/i3-N305 Processors
Chipset: Intel SoC
Graphics: Integrated Intel UHD Graphics (according to CPU)
Memory: 1x SO-DIMM slot,4800MHz DDR5 Memory, up to 32GB

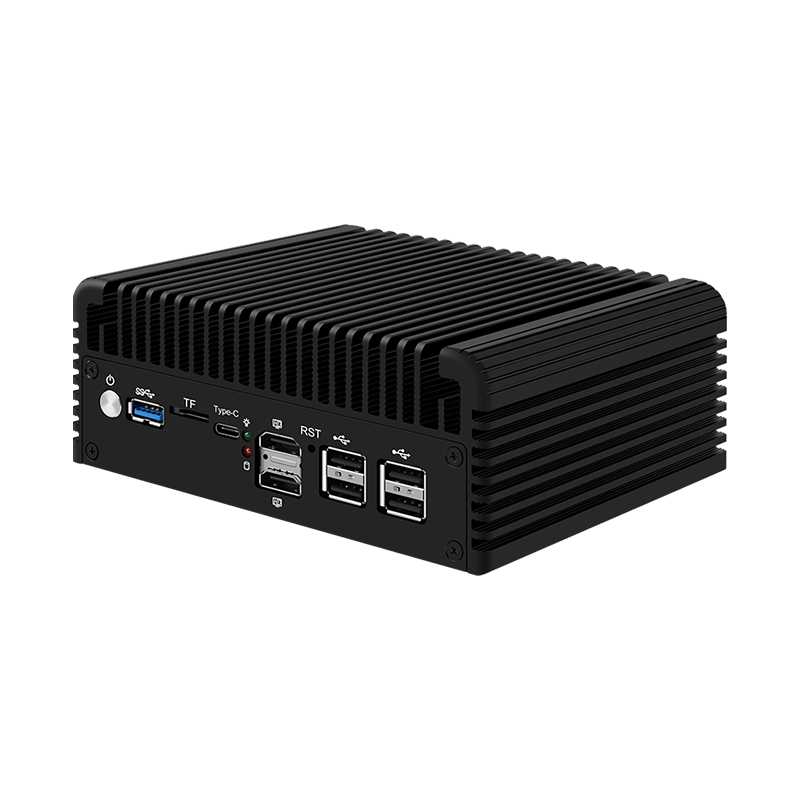

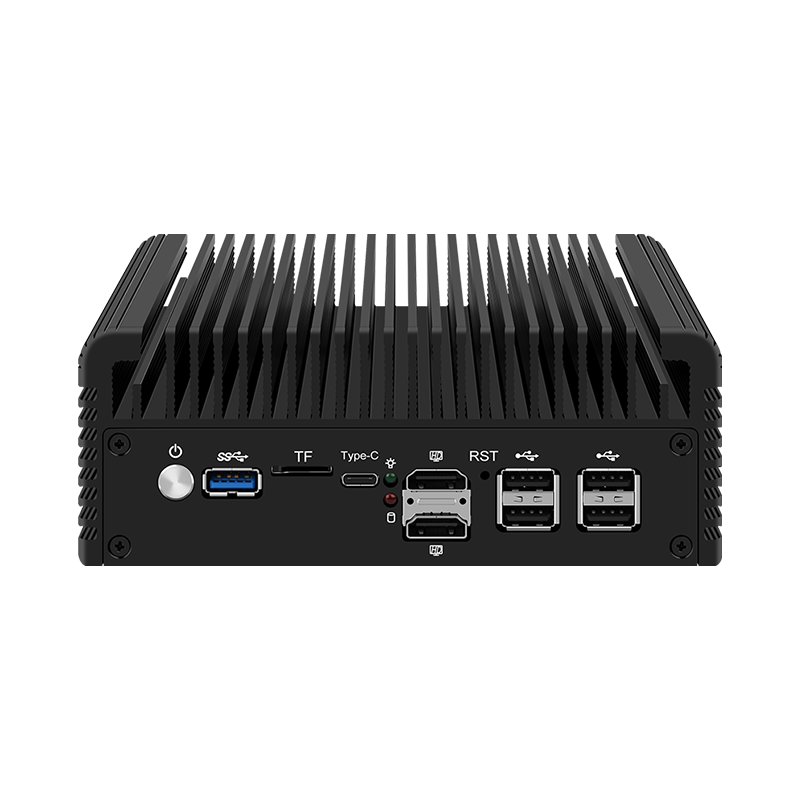

Front Panel:
Switch: 1x Power switch ; 1x Reset
LED: 1x Power.LED ; 1x HDD.LED
Display: 2x HDMI2.1 (4096*2160 @60Hz) ; 1x Type_C (4096*2160 @60Hz)
USB: 4x USB2.0 ; 1x USB3.0
Expansion: 1x TF card slot

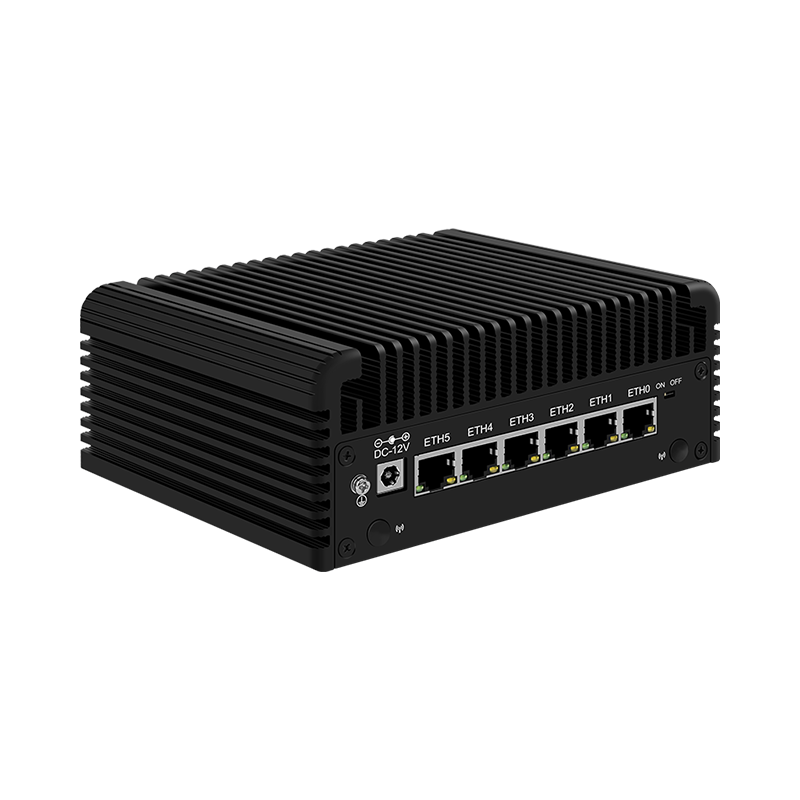

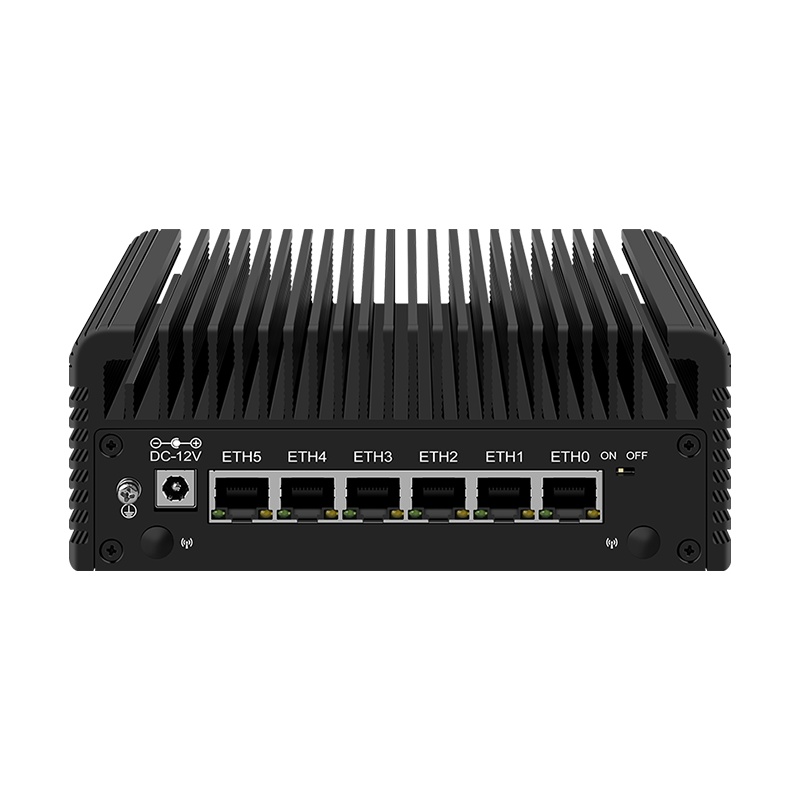

Rear Panel:
Ethernet: 6x RJ45 2.5GbE ports (Intel I226V 2.5G Ethernet Controller), support Wake_on_LAN/PXE
Switch: 1x Auto_Power on Switch
Antennas: 2x Wifi&BT Antenna holes
DC_Jack: 1x DC_12V Power Jack (55*25)
Storage:
SATA: 1x SATA3.0, support 1x 2.5” HDD
M.2: 1x M.2 Key_M slot, support 2242/2280 NVMe SSD
Expansion:
M.2: 1x M.2 Key_E slot, support M.2 2230/2242 Wifi&BT module
Inner_I/O: 1x RS232(2*5pin) ; 1x TPM (optional)
OS Support:
System: Windows / Linux OS etc.
BIOS: 64Mb Flash ROM
Watch Dog: Hardware reset function (L256, 0~255 seconds)
Power Supply: Power Adaptor DC_12V 5A input
Reliability:
Working Temp.: - 10℃ ~ 60℃
Storage Temp. : -20℃ ~ 70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
