Overview

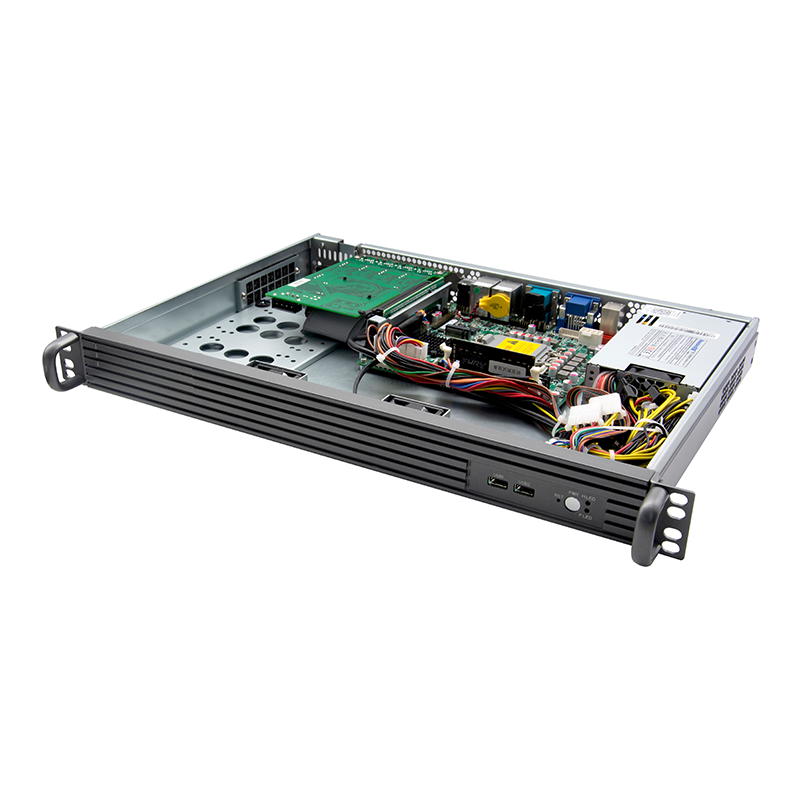

The R570H-E1 V1.0 (LGA1700) 1U Server Appliance is a compact computing solution built on the high-performance LGA1700 platform, optimized for networking, edge computing and virtualization workloads. As a complete 1U server appliance, it integrates motherboard, PSU and cooling system for out-of-the-box deployment.
Key Advantages:
✔ Ready-to-deploy 1U solution - Pre-integrated LGA1700 board + 1U Flex PSU + thermal system
✔ Powerful computing - Supports 12th/13th/14th Gen Intel® Core™ CPUs (up to 125W TDP)
✔ Enterprise networking - Dual Intel® I226V 2.5GbE + 6× industrial COM ports
✔ Flexible storage - 2×SATA3.0 + NVMe SSD hybrid storage support
✔ Professional expansion - PCIe x16 slot for GPU/accelerator cards
✔ Industrial reliability - Certified for 24/7 operation with high MTBF
Typical Applications:
◼ Enterprise firewall/NGFW
◼ Edge computing node
◼ Virtualization host (VMware/Proxmox)
◼ NAS storage server
◼ Industrial automation controller
Product Description
Model No.: R570H-E1 V1.0 (LGA1700)

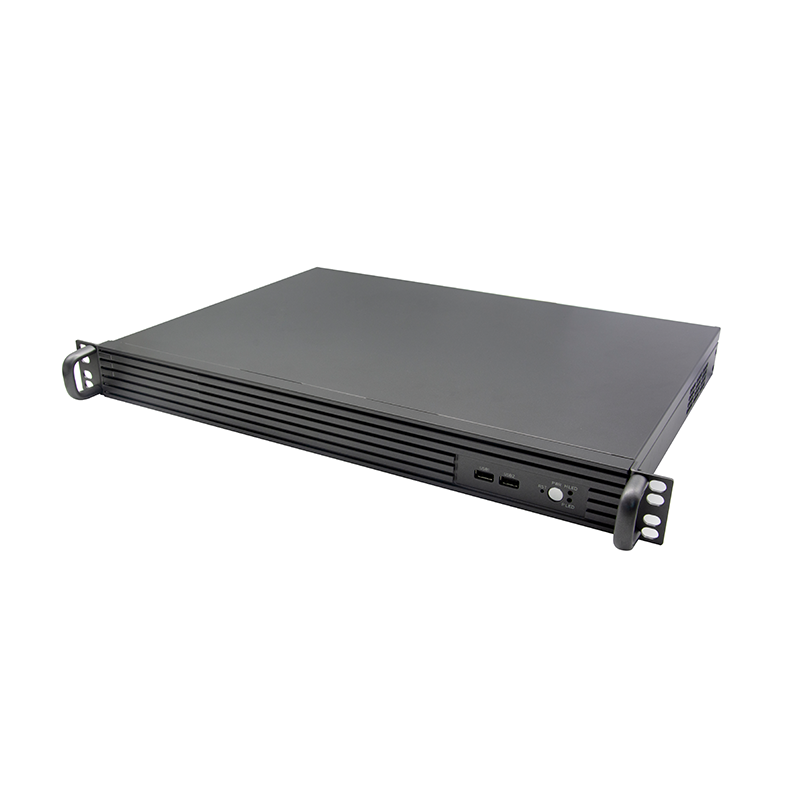

Chassis:
Structure: 1U standard chassis, aluminum alloy panel, high quality galvanized steel plate
Color: Dark Black
Dimension (L/W/H): 430MM*320MM*44.5MM
Weight (bare weight): 4.5KG
Installation: 1U Standard Rack

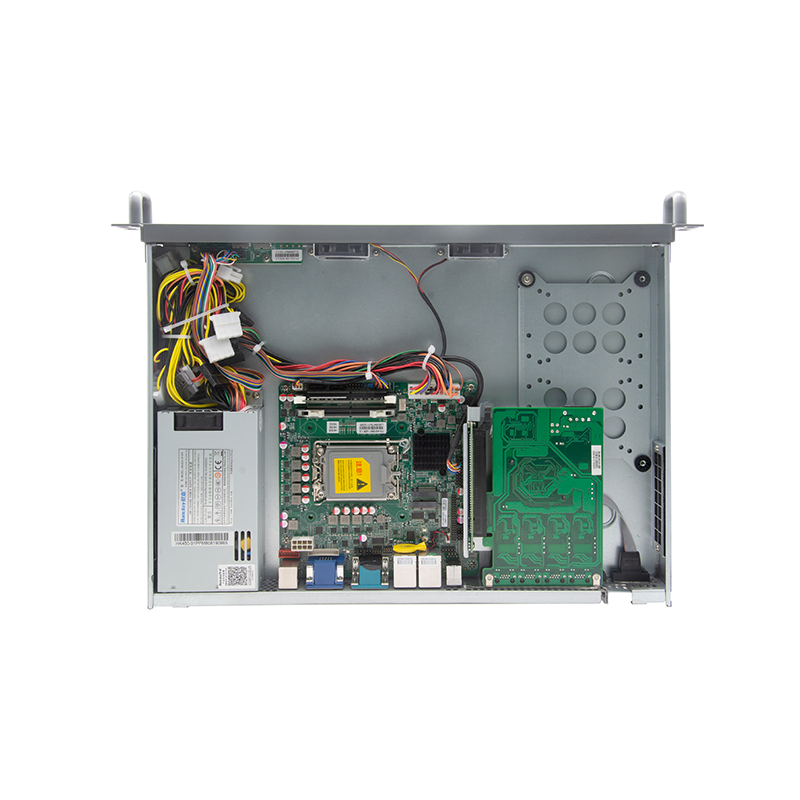

Motherboard:
Processor: Socket LGA1700 support 12/13/14th Gen Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors (Note: Processor TDP up to: 125W)
Display:
Integrated Intel®HD Graphics (Support Direct x12.1 ; OpenGL 4.5)
1x VGA (Maximum resolution：1920X1200@60Hz)
1x HDMI1.4 (Maximum resolution：4096x2304 @24Hz)
Memory: 2x DDR4 SO-DIMM memory slot, 3200MHz dual channels, up to 64GB

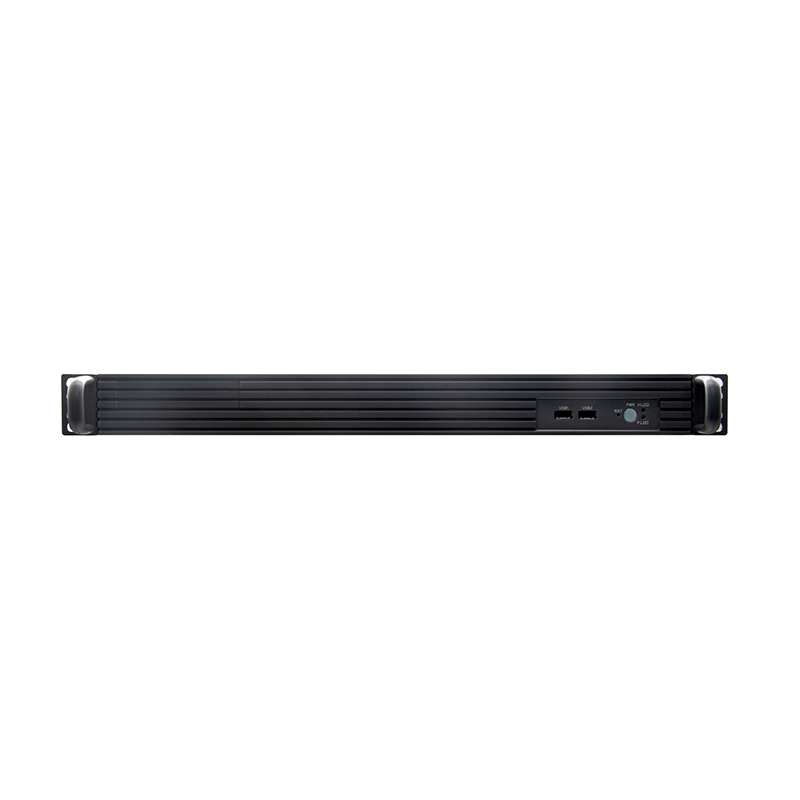

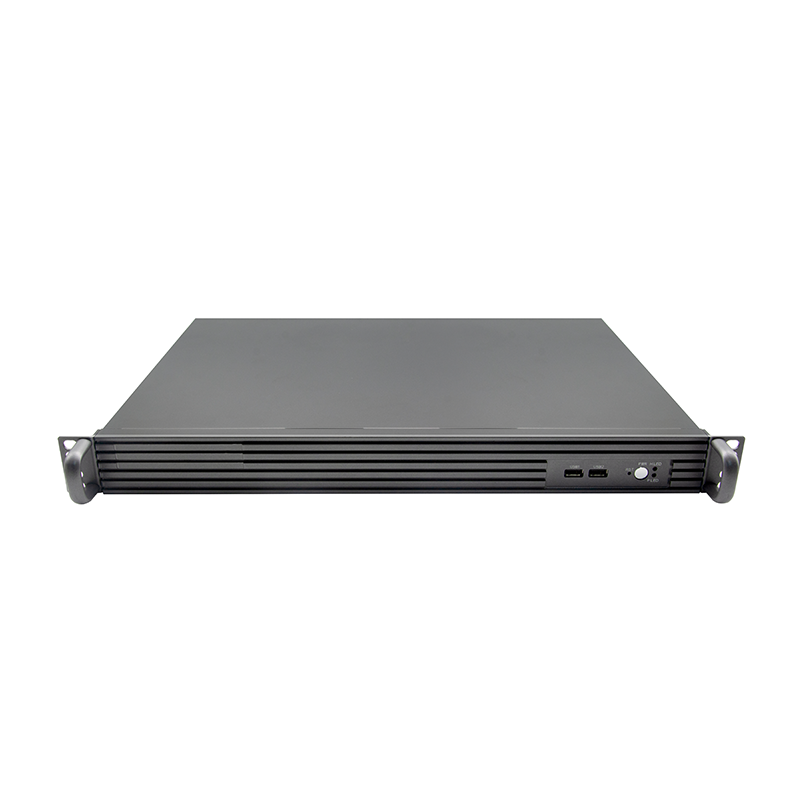

Front I/O:
POWER: 1x Power Switch ; 1x Reset Switch
LED: 1x HDD indicator, 1x Power indicator
USB: 2x USB2.0

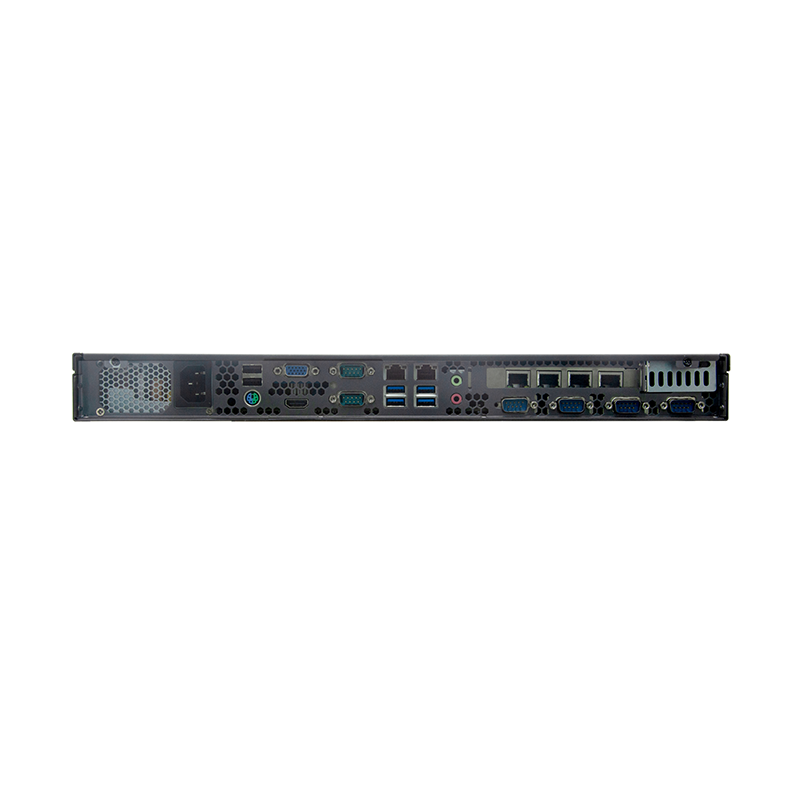

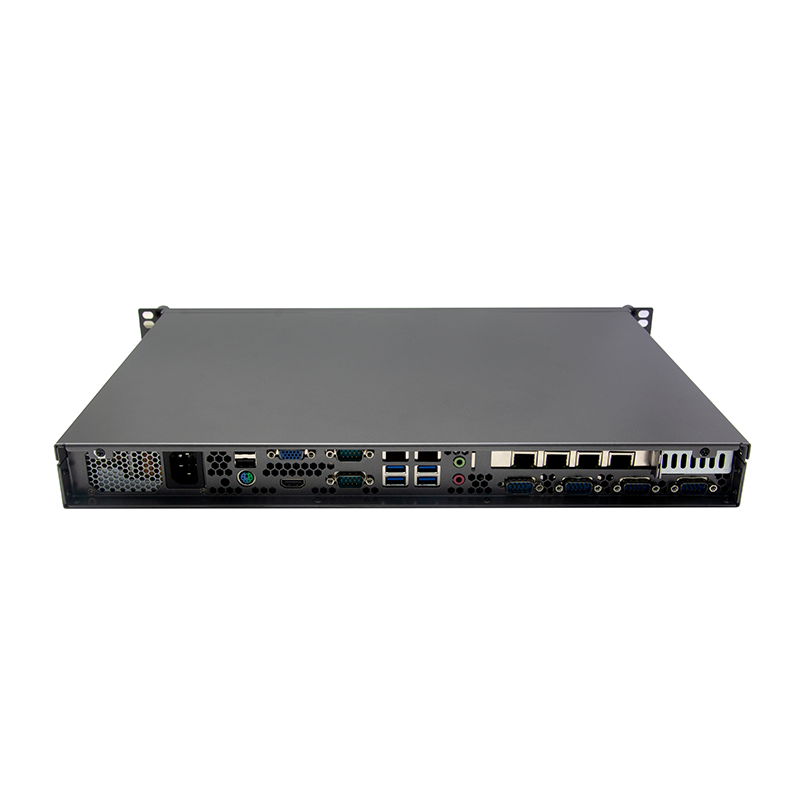

Rear I/O:
Display port: 1x VGA DB15 ; 1x HDMI1.4
COM: 6x RS232 DB9 serial ports (COM1 & COM2 support RS485/422)
Ethernet: 2x RJ45 Ethernet ports(Intel I226V 2.5G Ethernet Controller)
USB: 4x USB3.0 + 2x USB2.0
PS/2: 1x PS/2 (K&M)
Audio: 1x Mic_in ; 1x Line_out
Storage:
SATA : 1x 3.5” SATA3.0 HDD or 2x 2.5” SATA3.0 HDD/SSD
M.2: 1x M.2 Key_M 2260/2280 NVMe PCI-E3.0 Gen4/SATA SSD
Expansion:
PCI_E Slot: 1x PCI-E3.0 X16 slot ( Expansion: Copper&SFP+ Card / COM card / USB card / SATA(RAID 0,1) / Graphics Card )
M.2: 1x M.2 Key_E 2230 socket for ( Wifi&BT Module )
Power:
Power Type: Built-in 1U ATX FLEX Power Supply (350W)
Voltage Input: AC_100~240V
Environment:
Working Temp.: -10℃～50℃
Storage Temp.: -20℃～70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
