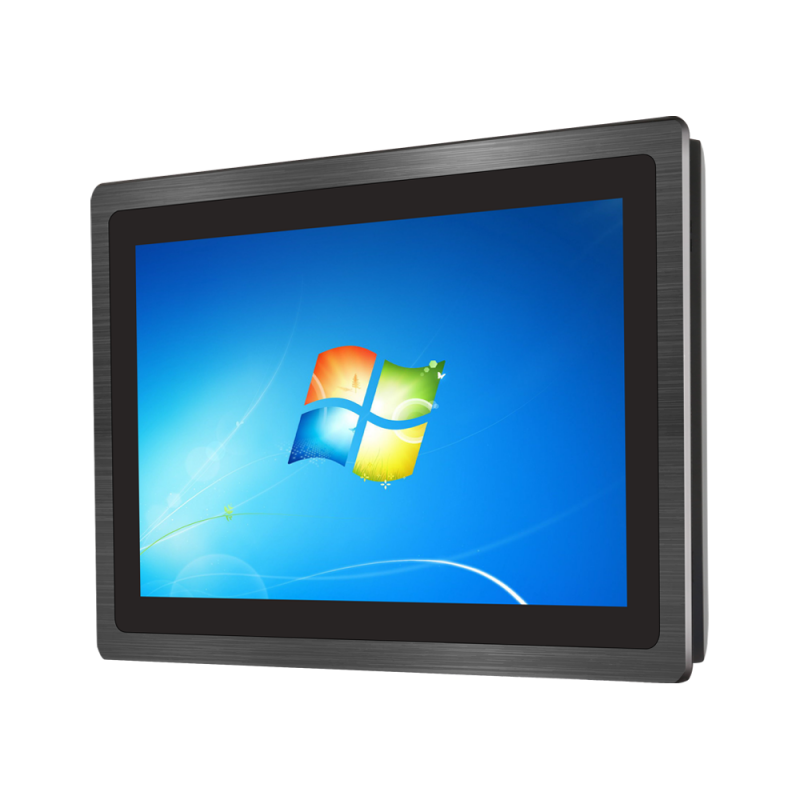

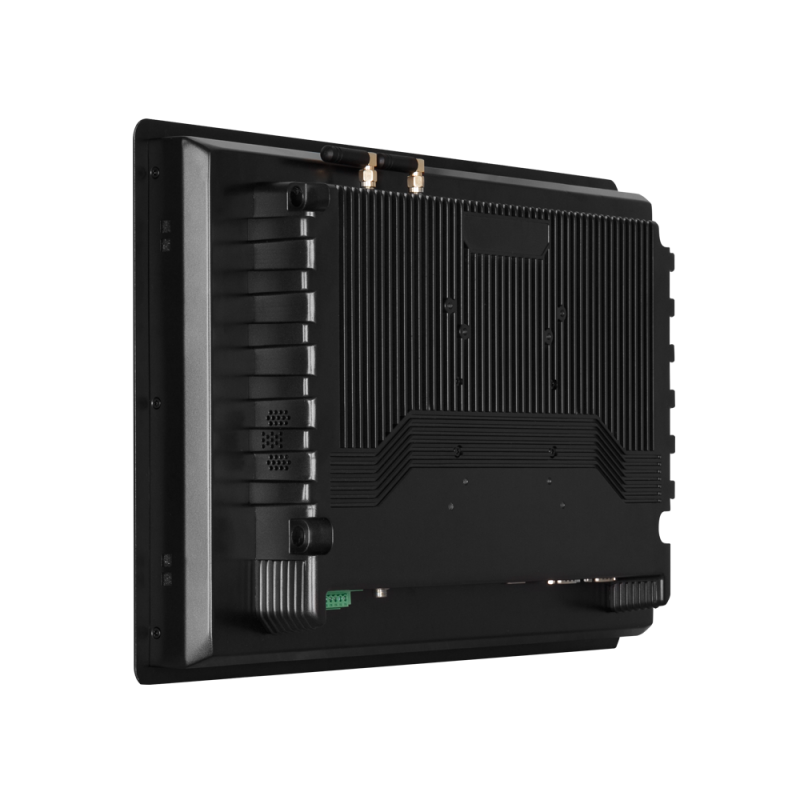

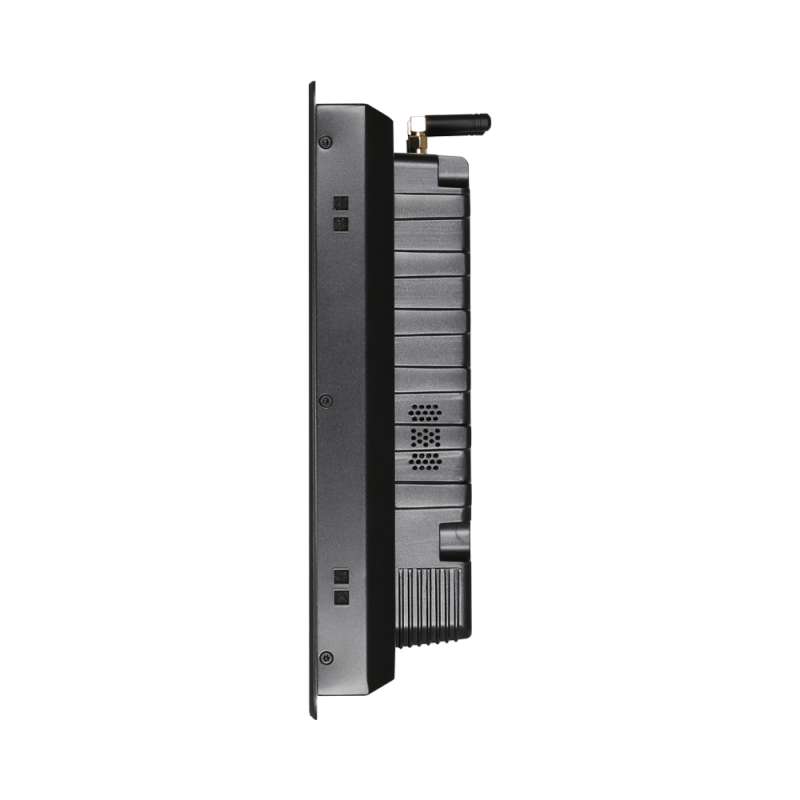

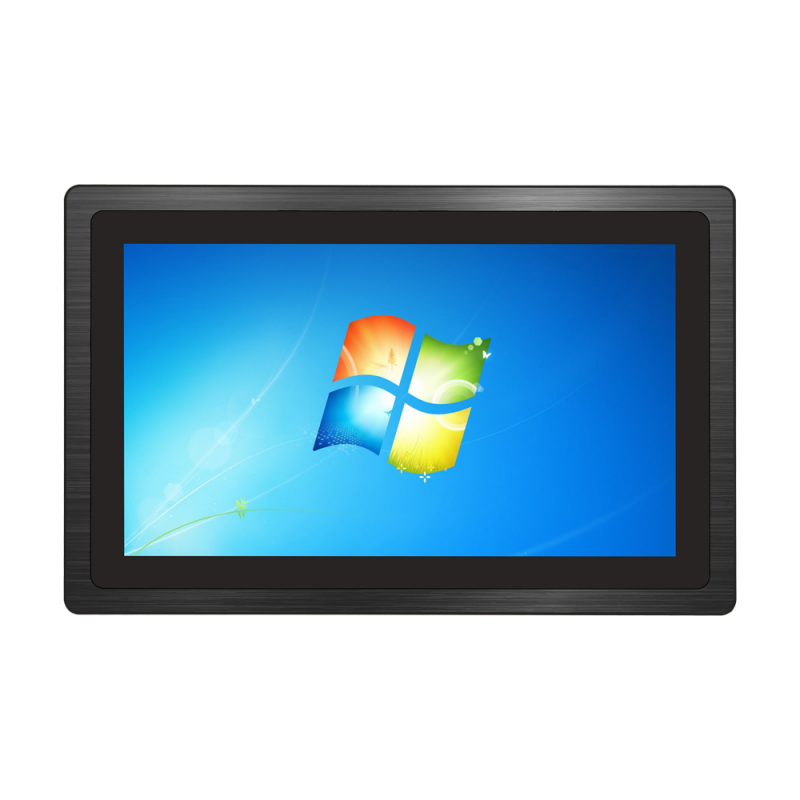

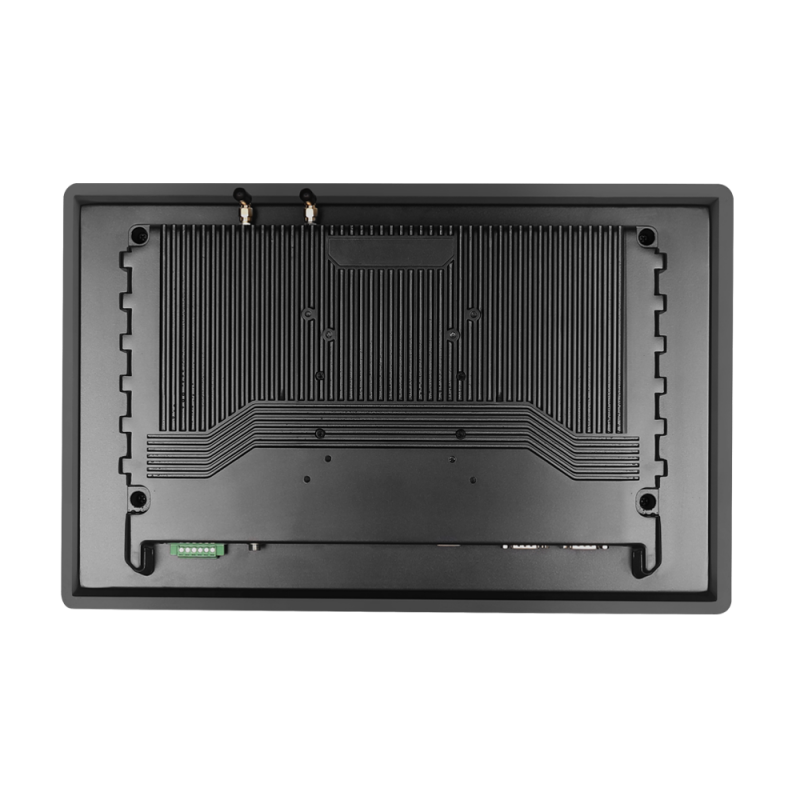

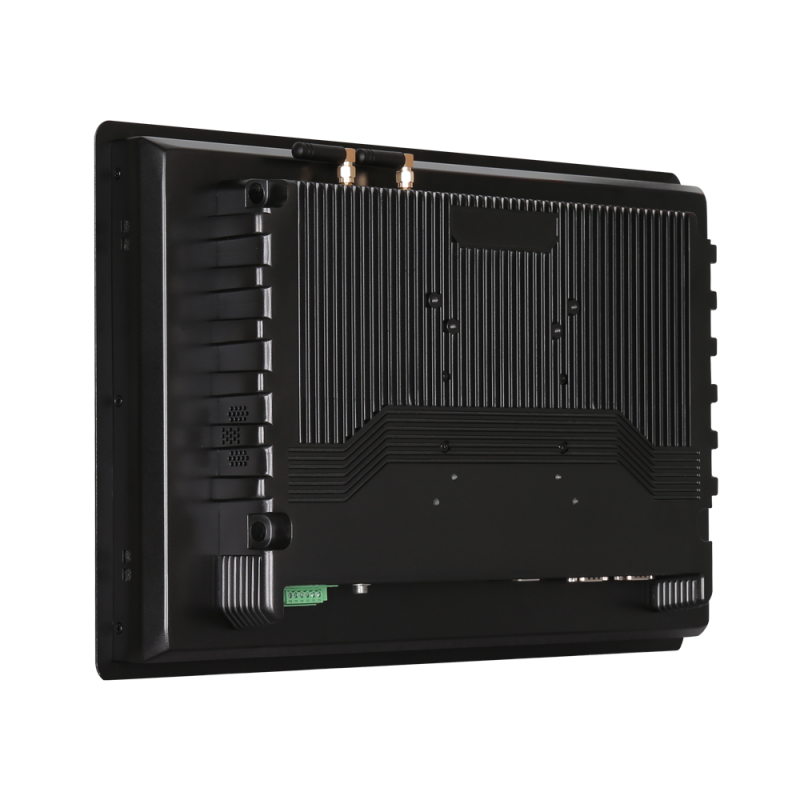

Product Description
The overall use of flat aluminum alloy panel, fanless fully enclosed integrated design. Meet the requirements of different equipment in different environments. It is widely used in industrial control, military, communication, power, network, intelligent self-service terminal equipment and other automation applications.
Product Size: 15.6”
Non-touch: TPC156-W1000-I5
Capacitive touch: TPC156-W1010-I5
Resistive touch: TPC156-W1020-I5
Screen Parameters:
LCD Size: 15.6" TFT LCD
Resolution: 1920×1080
Viewing Angle: 85/85/85/85 (L/R/U/D)
Colour: 16.7M
Brightness: 300 cd/m2
Contrast ratio: 800:1
Physical Characteristics:
Overall dimensions: W420x H269x D70mm
Size of opening: W403 x H252mm

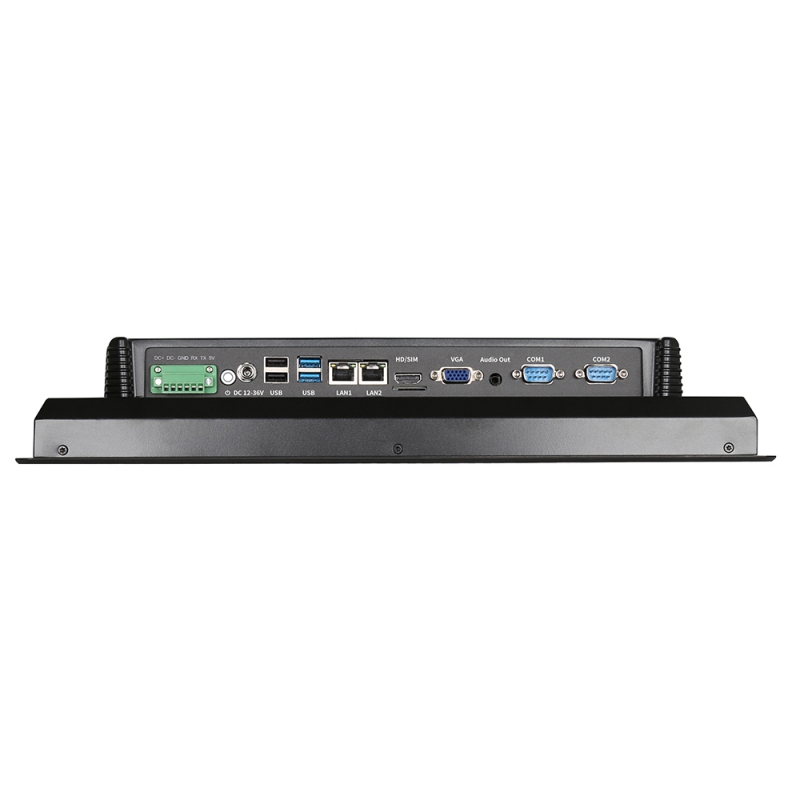

Interface:
Power interface1: 1*DC 2.5, Supporting 12V-36V power input
Power interface2: 1*Industrial terminal, Supporting 12V-36V power input
HDMI: 1*HDMI, Supporting HDMI data output, Up to 4K
USB: 2*USB 2.0 2*USB 3.0
LAN: 2*LAN, Dual 1000M adaptive Ethernet
AUDIO: 1*Audio Out, Support audio output
SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
VGA: 1*VGA
COM: 2*RS232

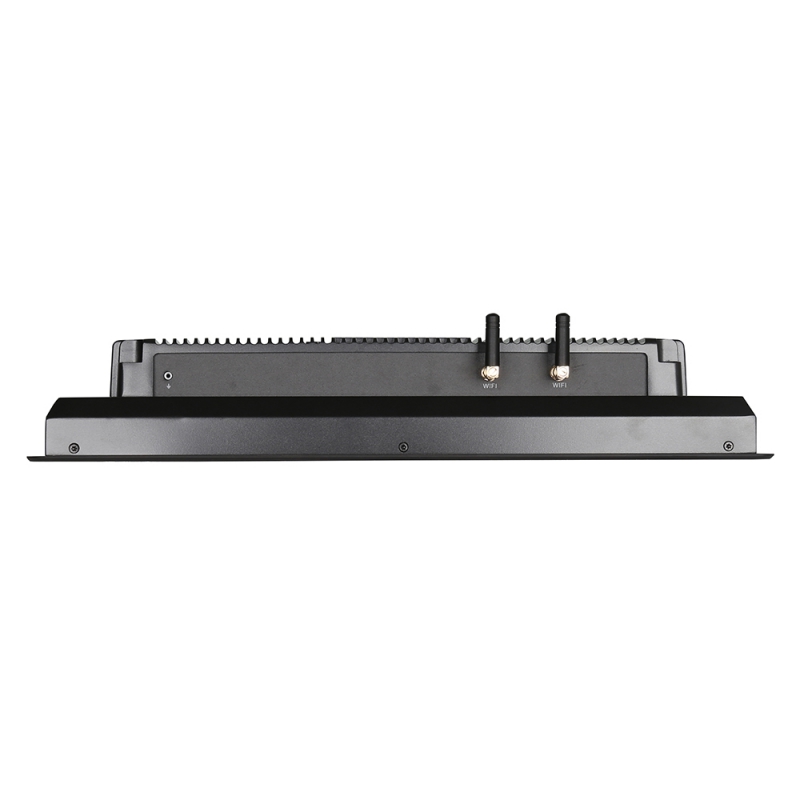

WiFi antenna: 2*WiFi antenna
POWER: Support (1*POWER)
Grounding post: 1*Grounding post (GND)
Product Reliability:
Working Temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, half sine wave, duration 11ms
Authentication: CCC/CE/FCC/EMC/CB/ROHS
Waterproof: Front panel reaches IP65 protection level
Hardware Configuration:
CPU: I5-6200U / I5-7200U / I5-8265U / I5-10210U
CPU frequency:2.3GHz / 2.5GHz / 1.6GHz / 1.6GHz
Integrated graphics:Inte HD Graphic 520 / Intel HD Graphics 620 / Intel Ultra HD Graphics 620 / Intel UHD620 Graphics
RAM: 4G DDR4(Optional 8G/16G/32G) / 4G DDR4(Optional 8G/16G/32G) / 4G DDR4(Optional 8G/16G/32G) / 8G DDR4(Optional 16G/32G /64G)
Storage: 128G SSD(256G/512G SSD, 1T/2T HDD Optional)
WiFi: Dual band 2.4G&5G
Bluetooth: BT4.0(Optional)
Operating system: Win7/10/11, Ubuntu/Centos/Redhat/Debian/Linux
Other support: Support RTC real-time clock and timing switch
Power parameters:
Input voltage: DC 12V~36V
Static power: 18W
