●Ultra-Slim 3mm Bezel for seamless cabinet integration
●Military-Grade Protection - IP65 rated aluminum alloy enclosure
●Powerful Processing - Supports Intel i7-6500U/7500U/8565U/10510U CPUs
●True Industrial Design - Fanless X86 architecture with wide temperature operation
●High-Speed Connectivity - Dual Gigabit Ethernet ports
●Flexible Power Options - 12V-36V wide voltage input
●Enhanced Expandability - Multiple industrial I/O interfaces
✓ Unmatched Durability for 24/7 harsh environment operation
✓ Large 17.3" Touch Interface for superior control precision
✓ Enterprise-Grade Performance with Intel i7 processors
✓ Seamless Integration with industrial automation systems
Ideal Applications:
✔ Smart factory automation
✔ Mission-critical control rooms
✔ Industrial HMI solutions
✔ Equipment monitoring systems
Product Description

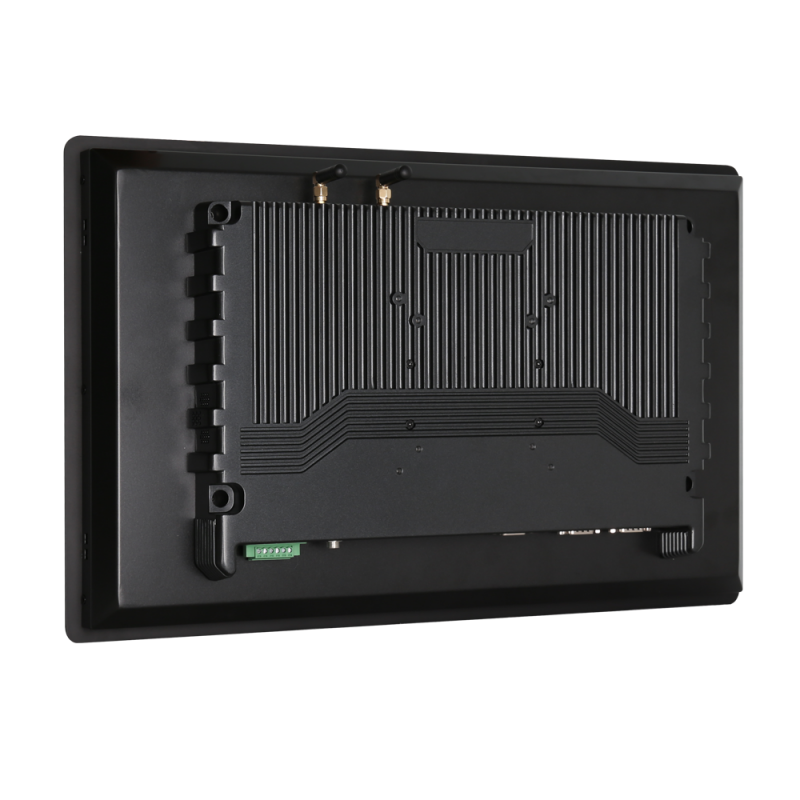

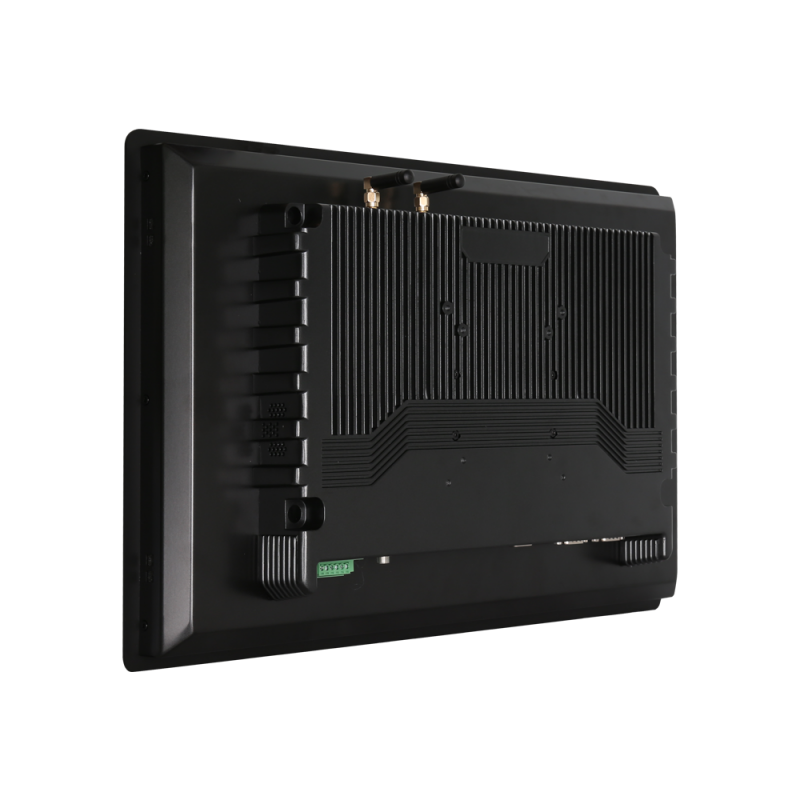

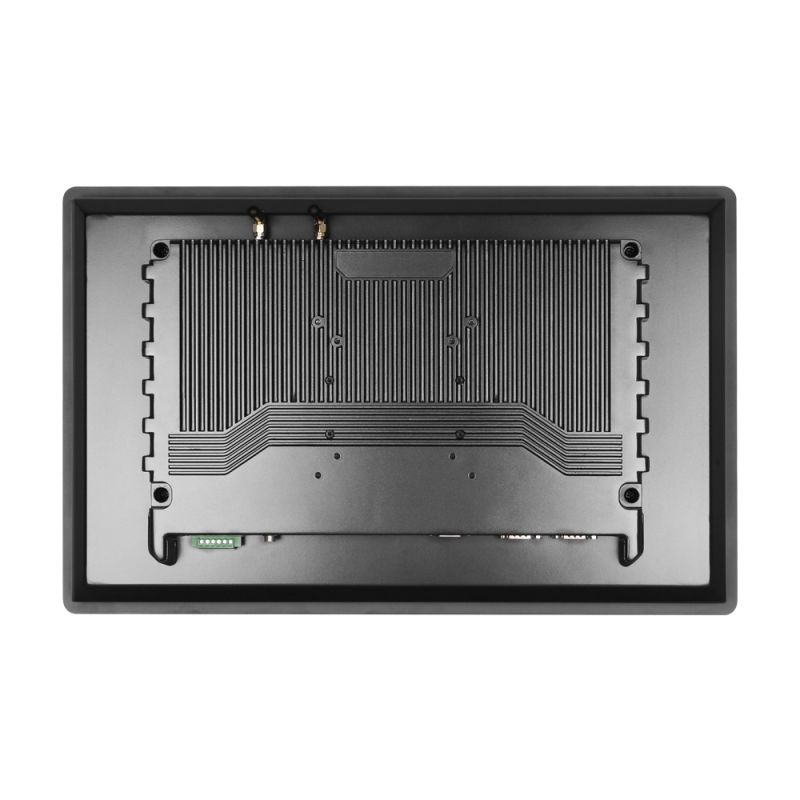

The overall use of flat aluminum alloy panel, fanless fully enclosed integrated design. Meet the requirements of different equipment in different environments. It is widely used in industrial control, military, communication, power, network, intelligent self-service terminal equipment and other automation applications.

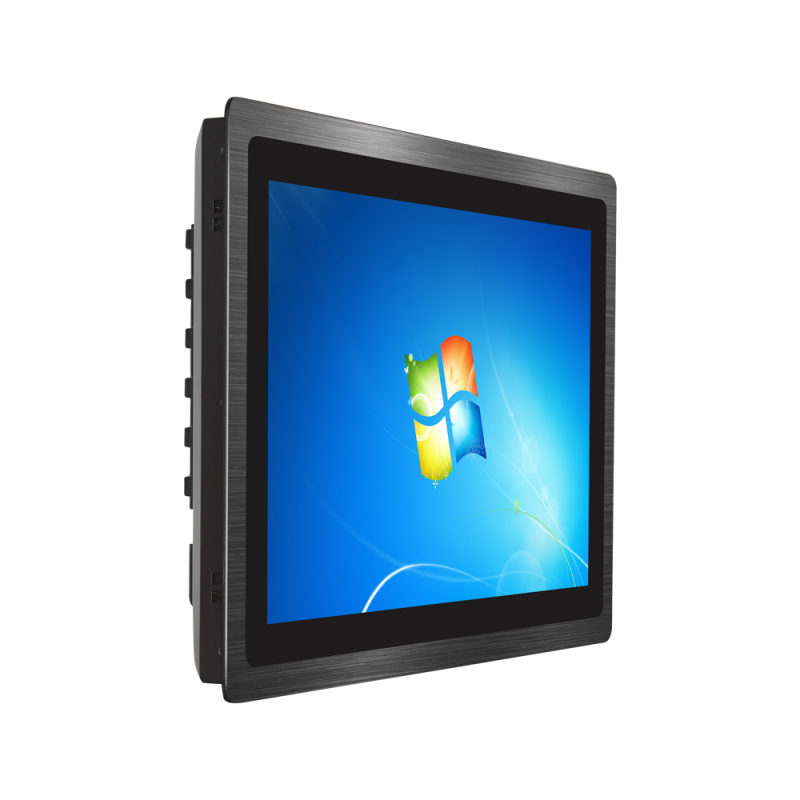

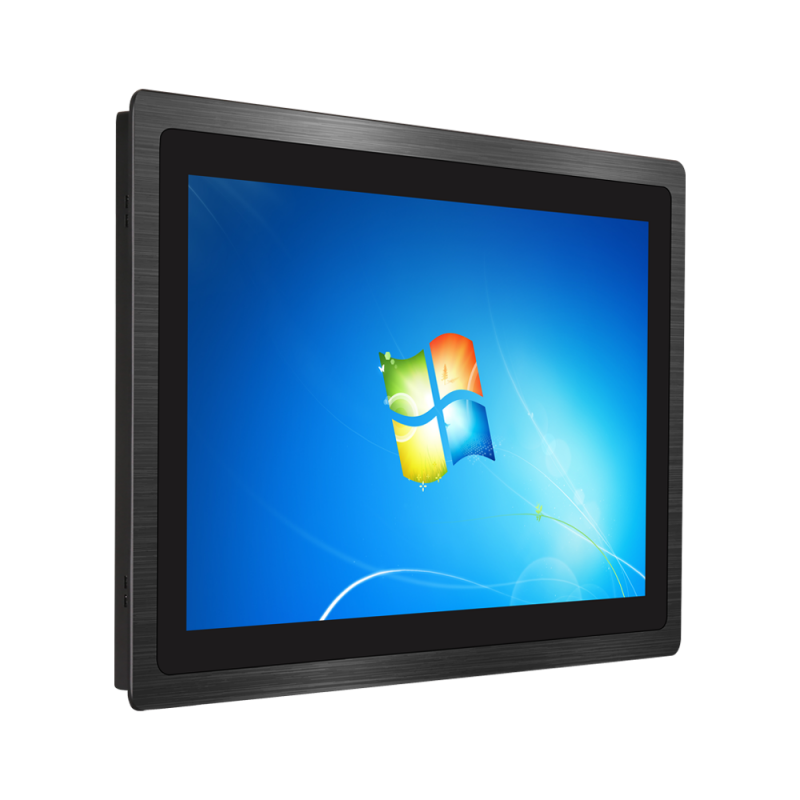

Product Size: 17.3"
Non-touch: TPC173-W1000-I7
Capacitive touch: TPC173-W1010-I7
Resistive touch: TPC173-W1020-I7
Screen Parameters:

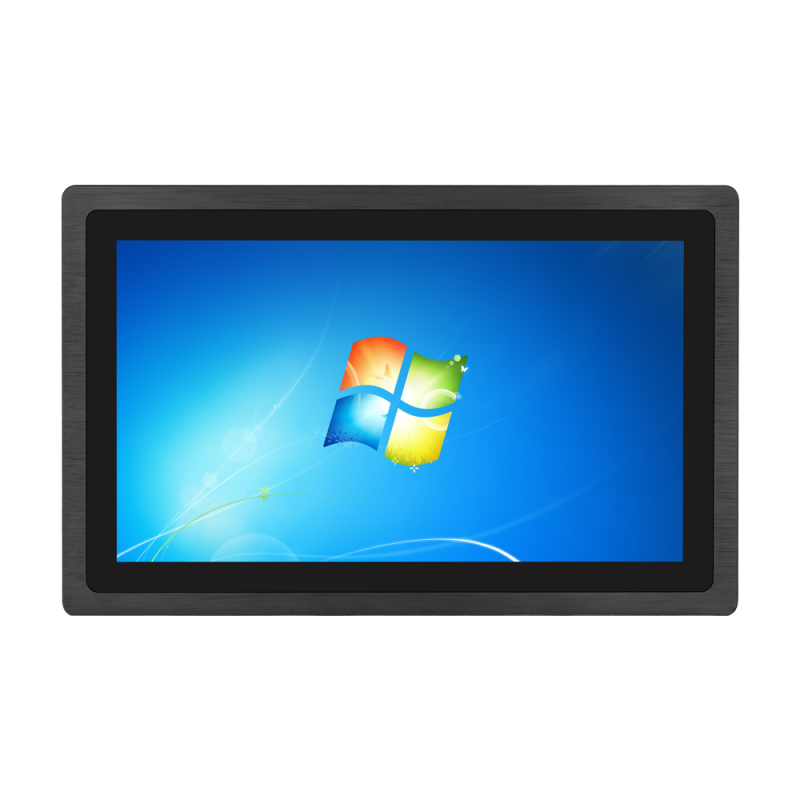

LCD Size: 17.3" TFT LCD
Resolution: 1920×1080
Viewing Angle: 80/80/60/80 (L/R/U/D)
Colour: 16.7M
Brightness: 300 cd/m2
Contrast ratio: 600:1
Physical Characteristics:
Overall dimensions: W458x H291x D67mm
Size of opening: W441 x H274mm

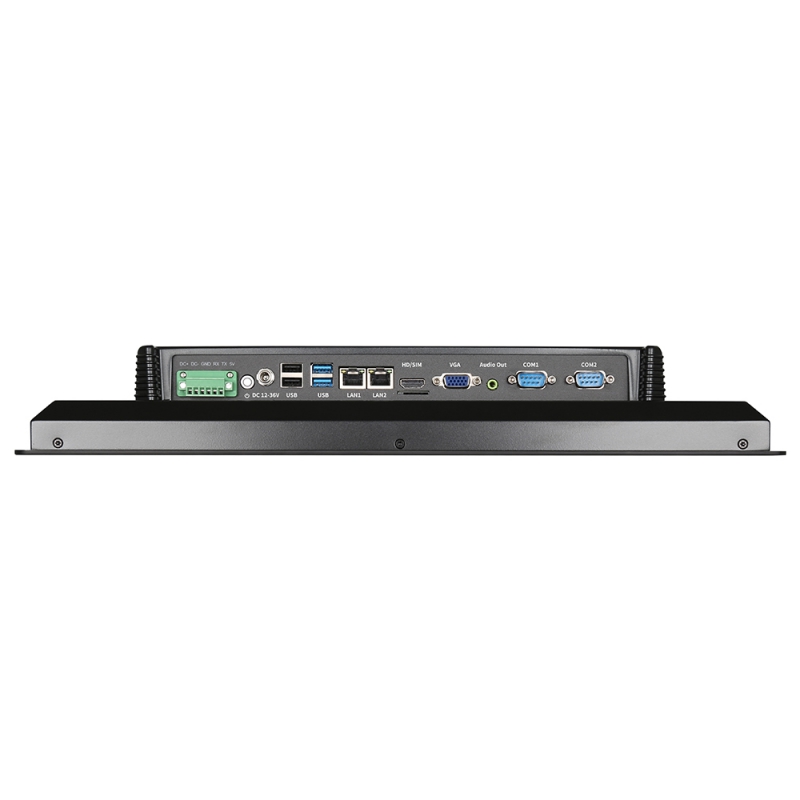

Interface:
Power interface1: 1*DC 2.5, Supporting 12V-36V power input
Power interface2: 1*Industrial terminal, Supporting 12V-36V power input
HDMI: 1*HDMI, Supporting HDMI data output, Up to 4K
USB: 2*USB 2.0 2*USB 3.0
LAN: 2*LAN, Dual 1000M adaptive Ethernet
AUDIO: 1*Audio Out, Support audio output
SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
VGA: 1*VGA
COM: 2*RS232

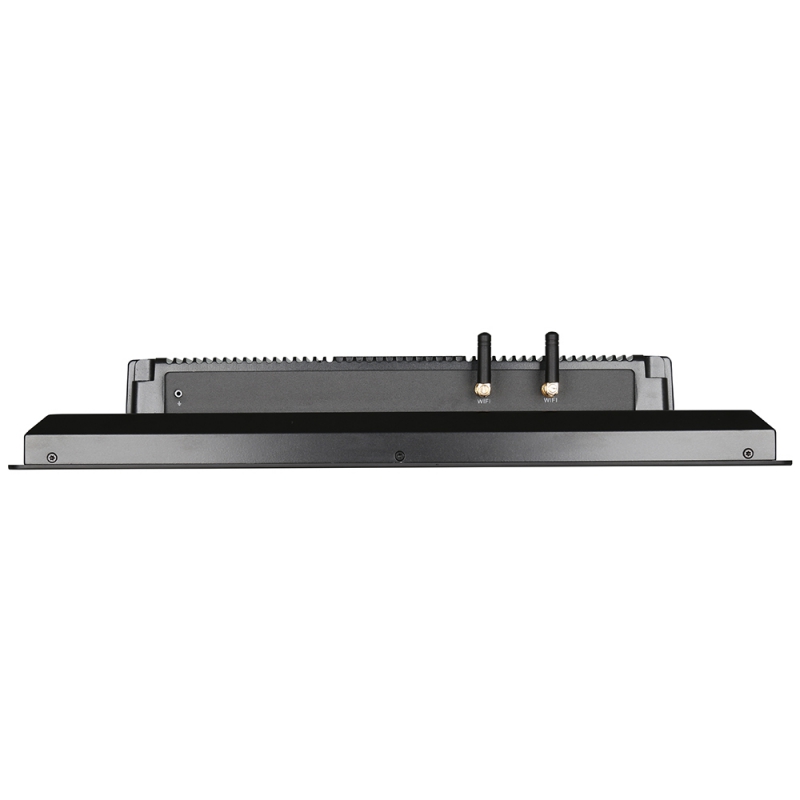

WiFi antenna: 2*WiFi antenna
POWER: Support (1*POWER)
Grounding post: 1*Grounding post (GND)
Product Reliability:
Working Temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, half sine wave, duration 11ms
Authentication: CCC/CE/FCC/EMC/CB/ROHS
Waterproof: Front panel reaches IP65 protection level
Hardware Configuration:
CPU: l7-6500U / l7-7500U / I7-8565U / I7-10510U
CPU frequency: 2.5GHz / 2.7GHz / 1.8GHz / 1.8GHz
Integrated graphics: Inte HD Graphic 520 / Inte HD Graphic 620 / Intel Ultra HD Graphic 620 / Intel UHD630 Graphics
RAM: 4G DDR4 (Optional 8G/16G) / 4G DDR4(Optional 8G/16G/32G) / 4G DDR4(Optional 8G/16G/32G) / 8G DDR4(Optional 16G/32G/64G)
Storage: 128G SSD(256G/512G SSD, 1T/2T HDD Optional)
WiFi: Dual band 2.4G&5G
Bluetooth: BT4.0(Optional)
Operating system: Win7/10/11, Ubuntu/Centos/Redhat/Debian/Linux
Other support: Support RTC real-time clock and timing switch
Power parameters:
Input voltage: DC 12V~36V
Static Power: 18W
