This ultra-compact Thin Mini-ITX motherboard is engineered on Intel Alder Lake-N SOC platform, featuring the efficient 12th Gen i3-N305 processor (8C/8T, 3.8GHz) with Intel UHD Graphics. Designed for space-sensitive industrial applications, it delivers reliable performance in a minimal footprint.
Key Specifications:
●Multi-Display Support: VGA + HDMI2.0 + LVDS/eDP (triple display capable)
●Memory: Single-channel DDR4 3200MHz SO-DIMM (max 16GB)
●Network & I/O: Dual GbE ports, 8×USB, 6×COM (RS232/485/422)
●Storage & Expansion:
1×SATA + 1×mSATA + 1×M.2 SSD
1×M.2 WiFi + 1×M.2 (4G/5G module)
●Industrial Features: GPIO, watchdog timer, 4Ω/3W speaker output, SIM slot, LPT port
●Power: 12V DC input
Ideal for: Industrial Automation | Edge Computing | Digital Signage | Kiosk Systems

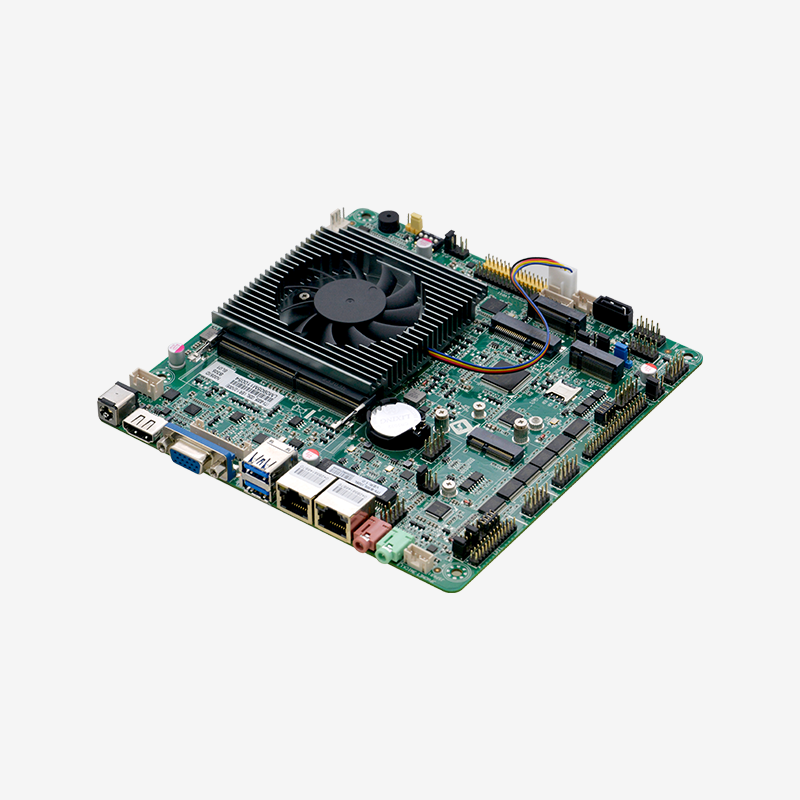

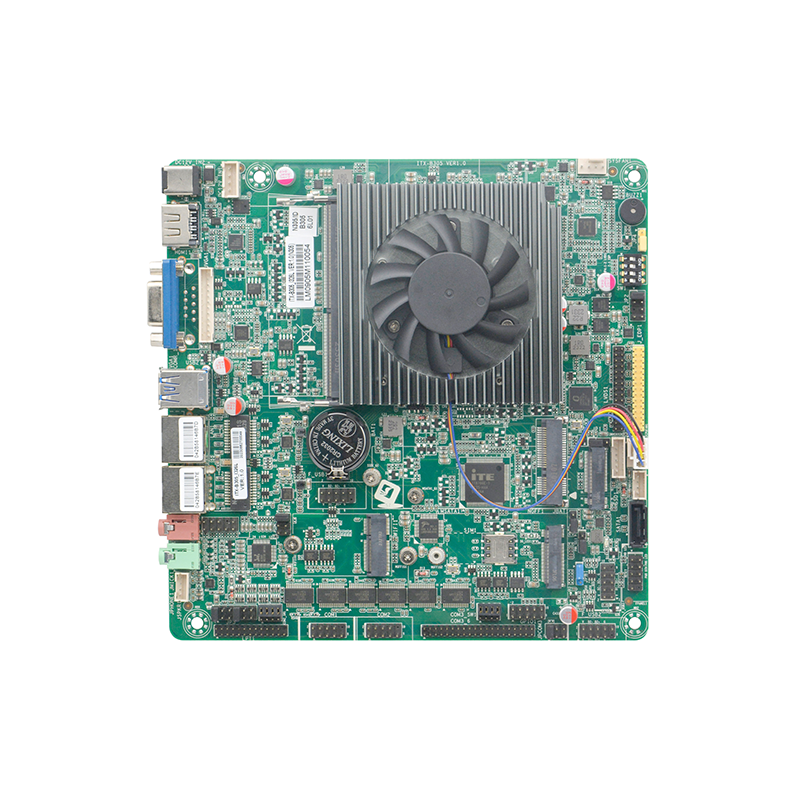

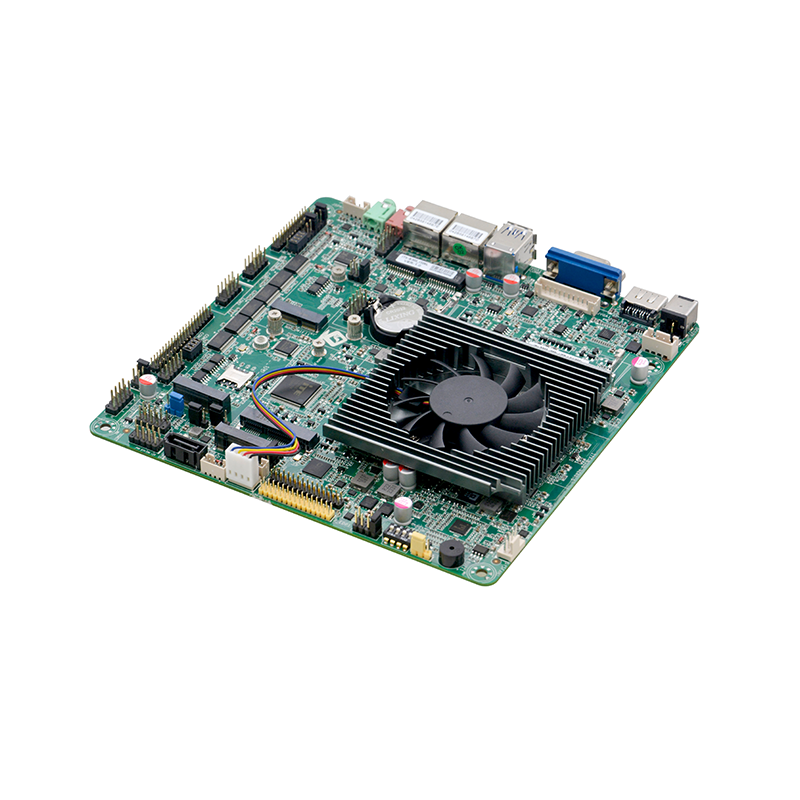

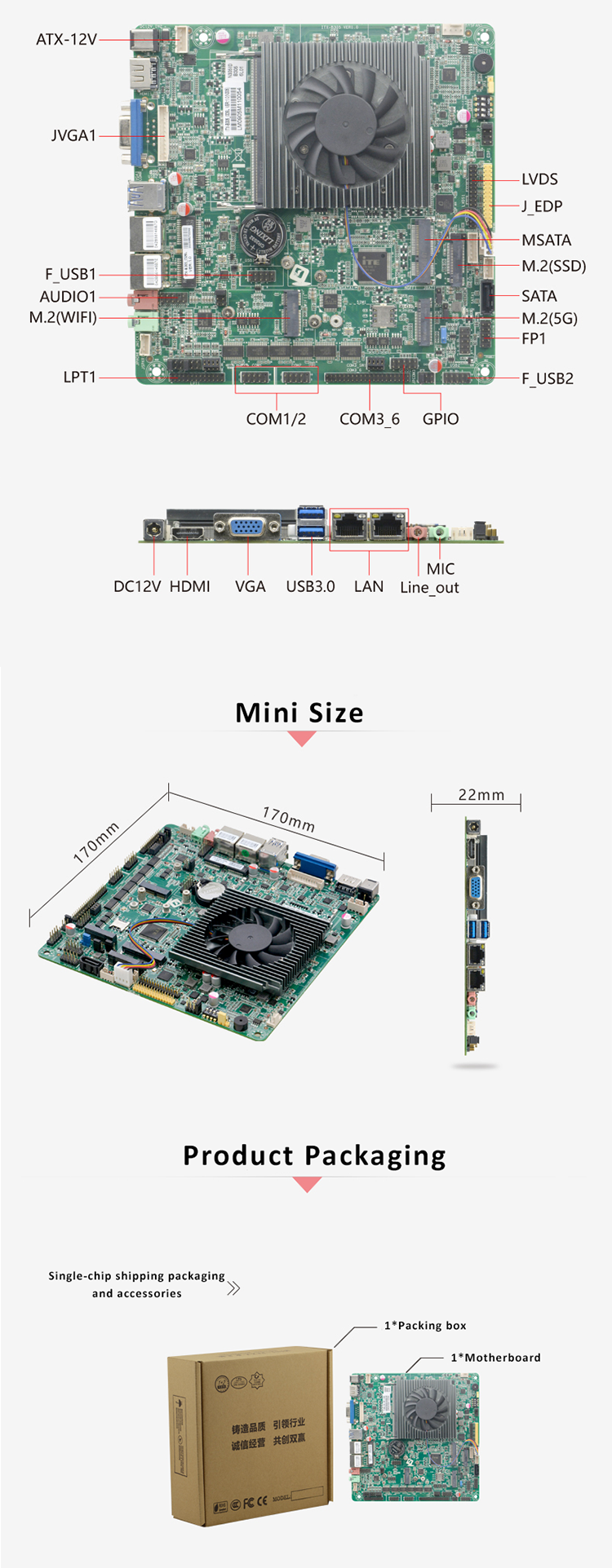

Detail Display
.png)
Product Description
Model No.:ITX-B305_I326L VER:1.0(N305)
Processor: Integrated Intel®Alder Lake-N Core I3-N305 3.8GHz 8-core 8-thread processor, TDP 15W
Compatible with Intel® Alder Lake-N all series CPU
Chipset: SOC
Memory: 1* DDR4 SODIMM memory slot, supports single channel 3200MHz memory, up to 16GB
Display:
Thin itx motherboard Integrated Intel®UHD Graphics , supports DirectX12.1,OpenGL4.6
1* VGA,1*HDMI2.0, 1* LVDS, 1* EDP
Note:LVDS and EDP are optional by jumper
Ethernet: 2* RTL8111H Gigabit Ethernet chip, supports Wake on LAN/PXE function
Storage:
1* 7pin SATA3.0 , the transfer rate is up to 6Gbps
1* MSATA slot, supports SSD, the transfer rate is up to 6Gbps
1* M.2 slot, supports M.2 Key M 2280 PCIE X1 SSD
Audio:
Onboard ALC897 7.1+2 channel high fidelity audio controller, supporting MIC/Line-out/power amplifier
Recommended to use 4Ω 3W horn for the power amplifier
Expansion Slot:
1* M.2, supports M.2 Key B 2242/2252 5G module
1* M.2, supports M.2 Key E 2230 WIFI module

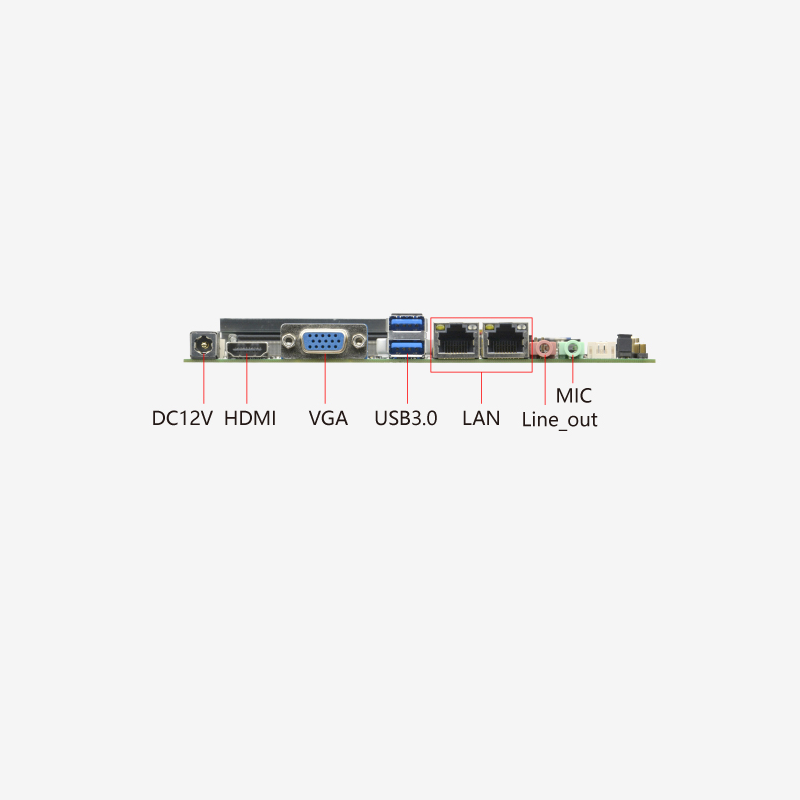

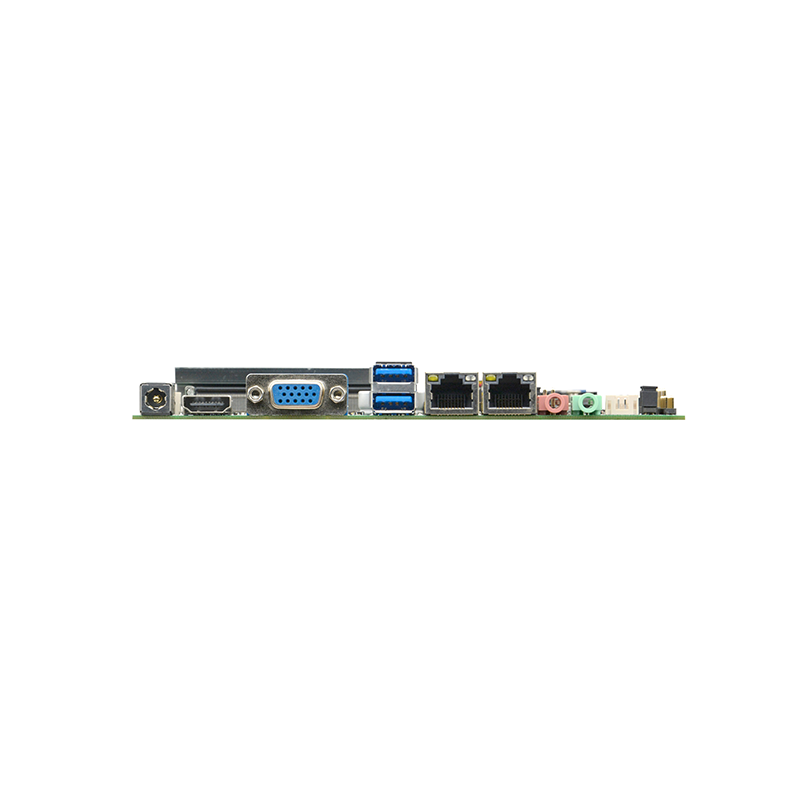

Rear I /O interface:
1* DC 12V
1* VGA
1* HDMI2.0
2* USB3.0
2* RJ45
1* Line-out (green), 1*MICK (red)

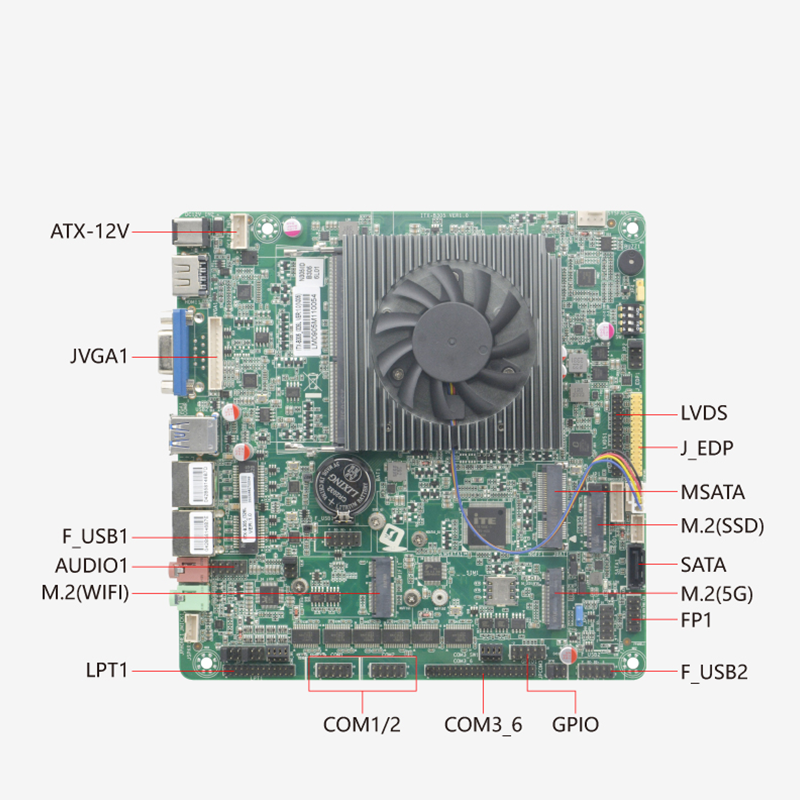

1* DC power supply interface, 1*4pin support 12V power supply input output
1* JVGA interface, 1*12pin (Same signal as DB15)
1* LVDS interface, 2*15pin, support dual channels 24BIT
1* EDP (yellow), 2*15pin (EDP and LVDS are optional)
1* Screen backlight power supply interface, 1*6pin
6* USB2.0, 2*5pin
6* RS232 serial ports, COM1/2 supports the 9th pin with-power function, COM2/COM3 supports RS485/422 function
1* HDD power supply interface, 1*4pin
1* Front audio interface, 2*5pin
1* Power amplifier interface, 1*4pin
1* LPT, 2*13pin
1* SIM card slot
1* Front panel function button and indicator light interface (2*5pin)
Fan Connector: 1* 4pin CPU fan connector ,1*4pin system fan connector
GPIO: Thin itx motherboard Support 4-way input and output GPIO
BIOS: 256Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 10/Windows 11/Linux
Power Type: Adapt DC 12V power supply
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

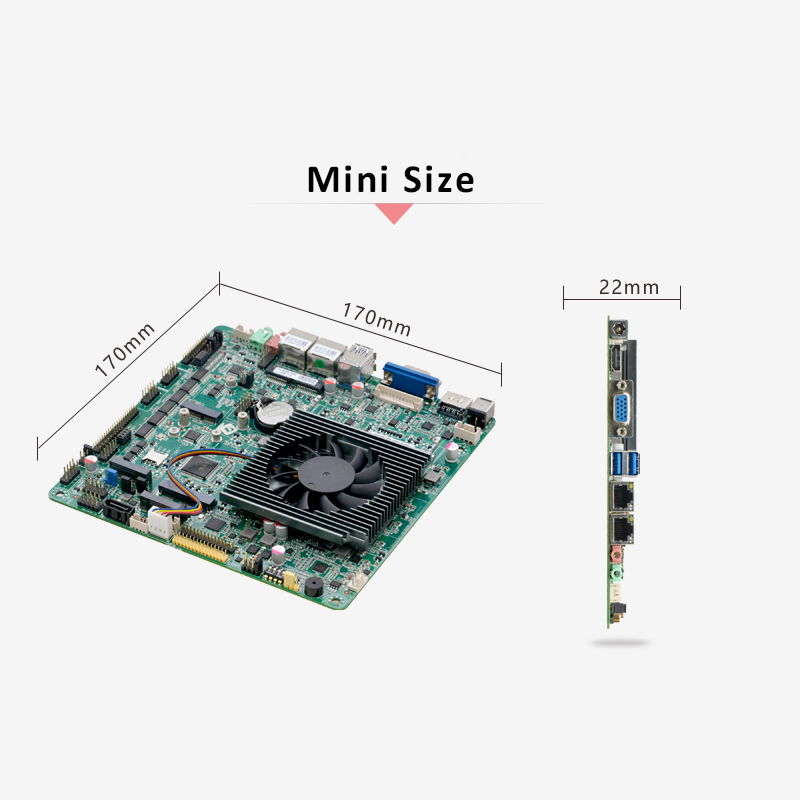

Dimension: 170mm x 170mm

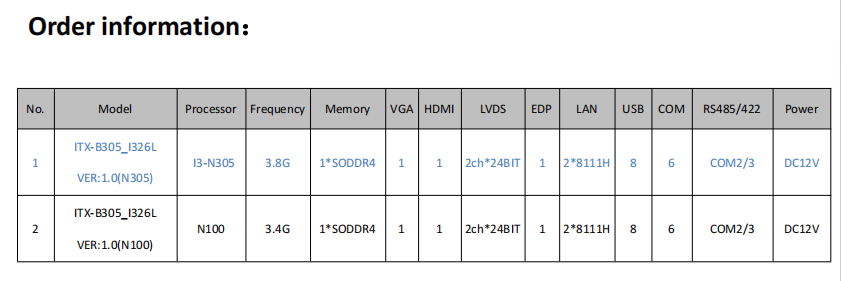

--order.png)
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.

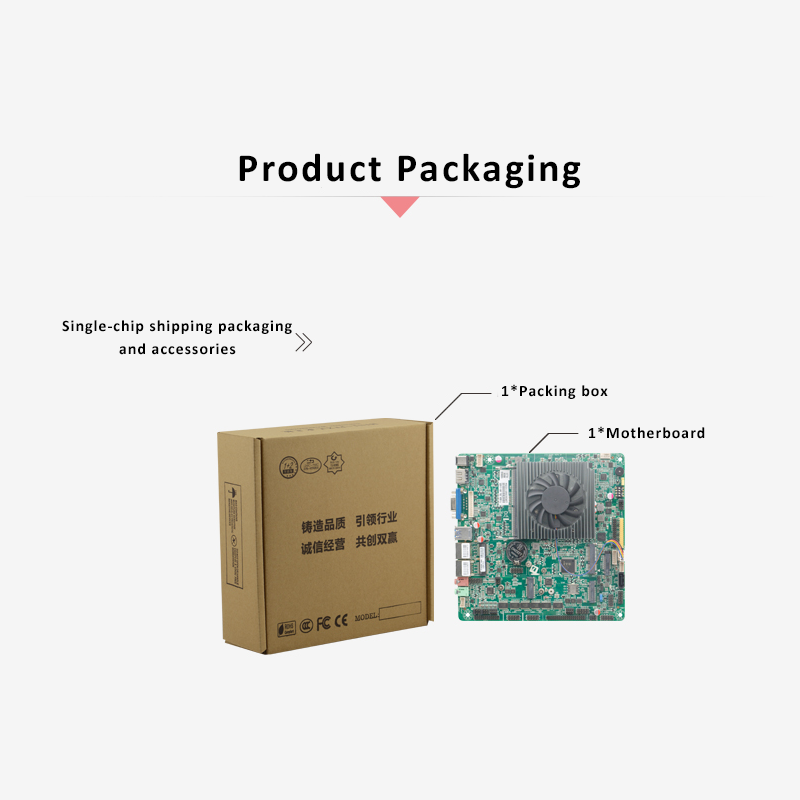

Packing & Delivery
