Product Description

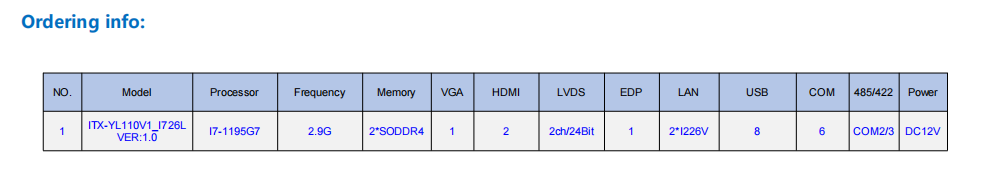

Model No.: ITX-YL110V1_I726L VER:1.0(1195G7)
Processor: Integrated Intel® Tiger Lake 11th Core I7-1195G7 2.9GHz quad-core eight-thread processor, TDP28W
Compatible with Intel® Tiger Lake-U Celeron Penium Core I3/I5/I7 processors
Chipset: SOC
Memory: 2x SODIMM slot, supports 3200MHz DDR4 memory up to 64GB
Display:
Integrated Intel® UHD Graphics, supports DirectX 12 OpenGL 4.5, supports 4K
2x HDMI1.4 interface, the highest resolution supported is: 4096x2304@24Hz
1x Support dual-channel 24bit LVDS interface,
1x EDP interface, choose one of the two with LVDS through pop-up
Network: 2x Intel ®I226V Gigabit Ethernet,supports Wake-on-LAN/PXE function(LAN2 and USB2.0 are listed together)
Storage:
1x SATA3.0 hard disk interface, transmission speed up to 6Gbps
1x M.2 slot, supports M.2 2280 NVME PCIE x1/SATA adaptive Standard SSD
Audio:
Integrated ALC897 7.1+2-channel high-fidelity audio controller, supports MIC, Line_out, and power amplifier
Support amplifier 4Ω 3W speaker
Expansion slots:
1x M.2 slot, supports M.2 Key E 2230 WIFI module
1x M.2 slot, supports M.2 Key B 2242/4452 5G module
Backplane I/O interface:
4x USB3.0 interface
2x HDMI1.4
2x RJ45 Gigabit network interface (one network port is listed with USB2.0)
1x Line-out(green), 1*MIC(red)
1x DC12V power interface, supports 12V power input
1x SIM card slot
Built in I/O interface:
1x LVDS interface 2x 15pin, supports dual channel 24bit,
1x LVDS backlight power supply interface 1x 6pin
1x EDP interface 2x 15pin, choose one of the two with LVDS through pop-up
6x RS232 serial interface, COM2/3 supports RS485/422 function,
1x PS/2 keyboard and mouse interface (red) 1x 6Pin
2x USB2.0 interface 2x 5pin
2x USB3.0 interface 2x 10pin
1x Front audio interface 2x 5pin
1x Front panel switch button and indicator light interface 2x 5Pin
1x Hard drive power supply interface 1x 4pin
1x Power amplifier interface 1x 4pin
1x DC power interface 1x 4pin (can be used as 12V input power interface)
Fan: 1x 4pin CPU fan interface; 1x 4pin system fan interface
GPIO: Supports four-in and four-out GPIO functions
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (level 256, 0~255 seconds)
OS: Windows 10/Linux
Power supply: DC 12V
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)
Dimension: 170mm x 170mm
