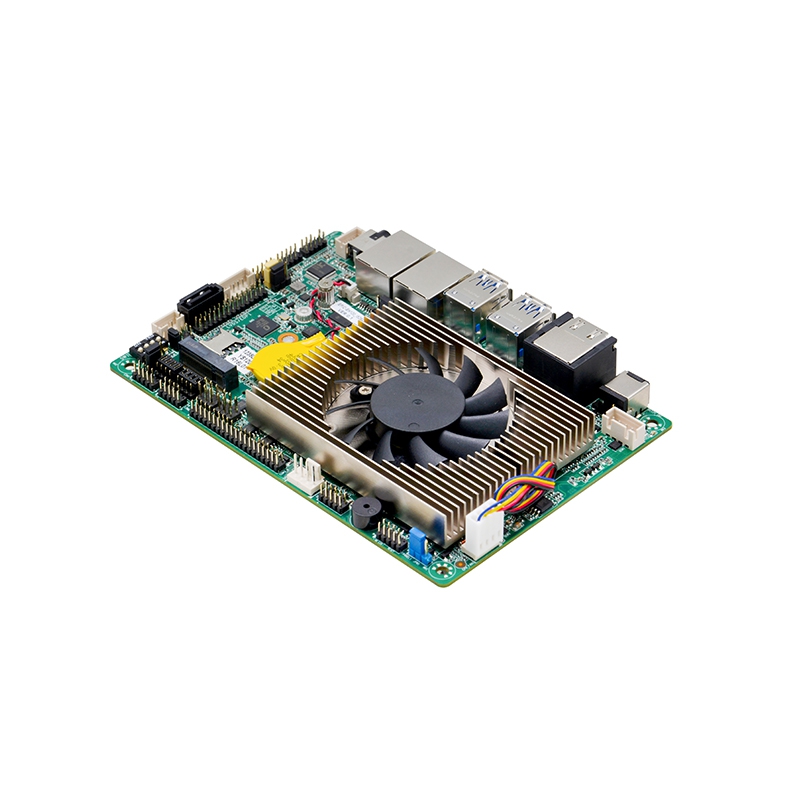

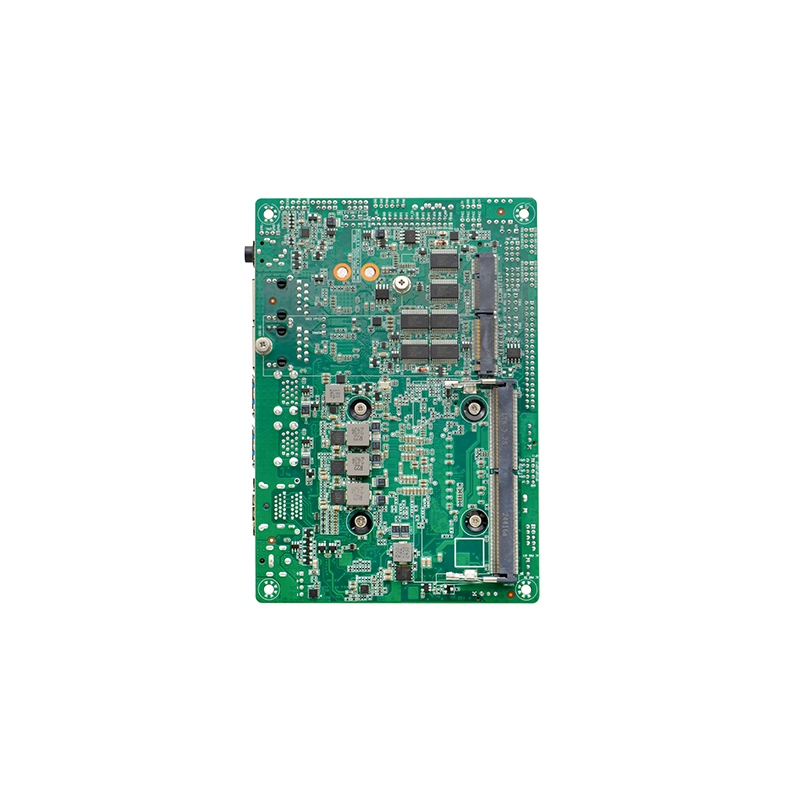

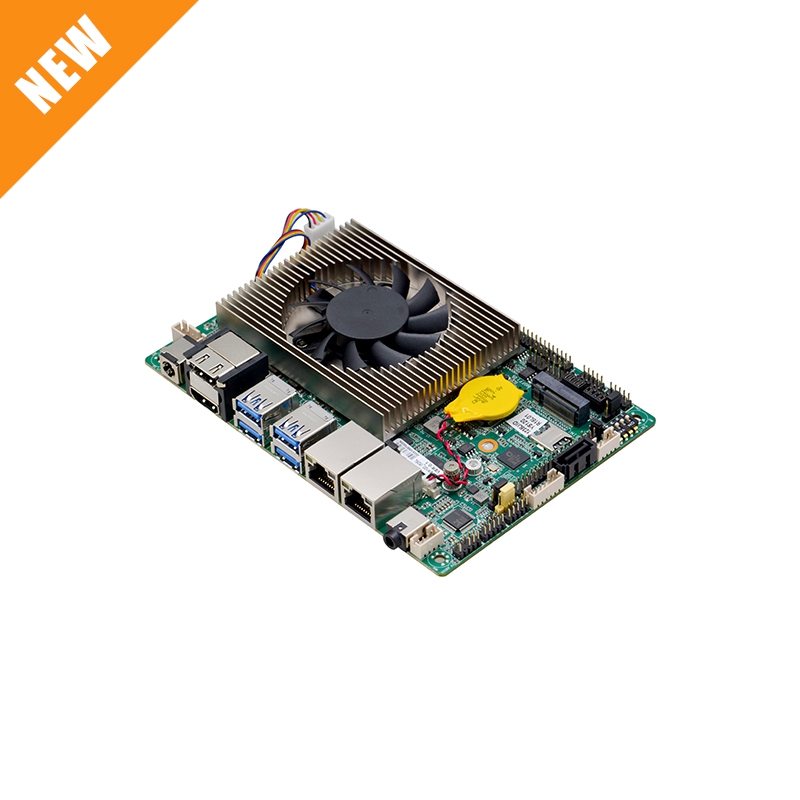

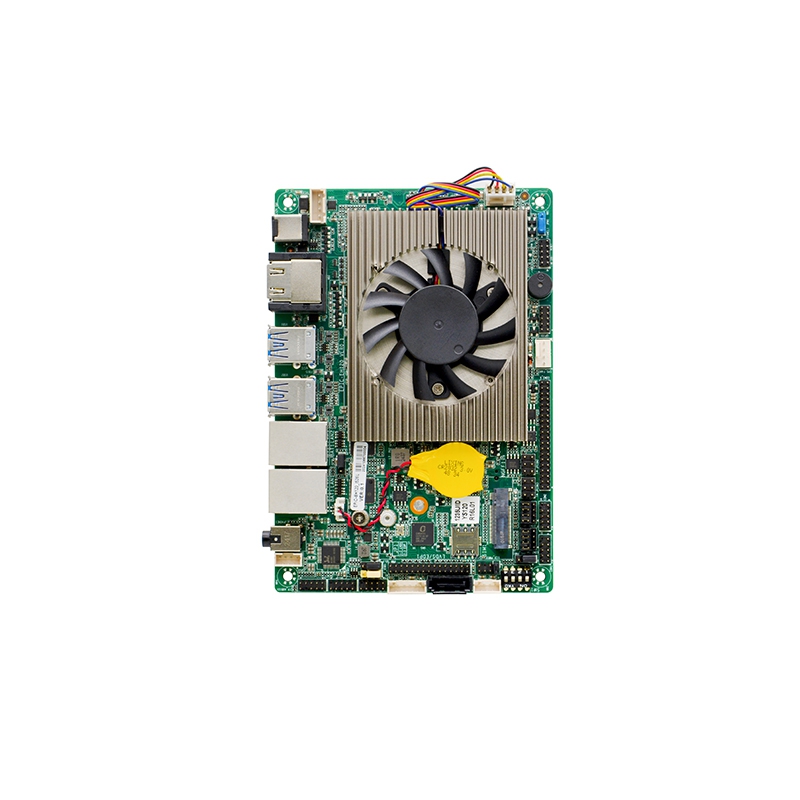

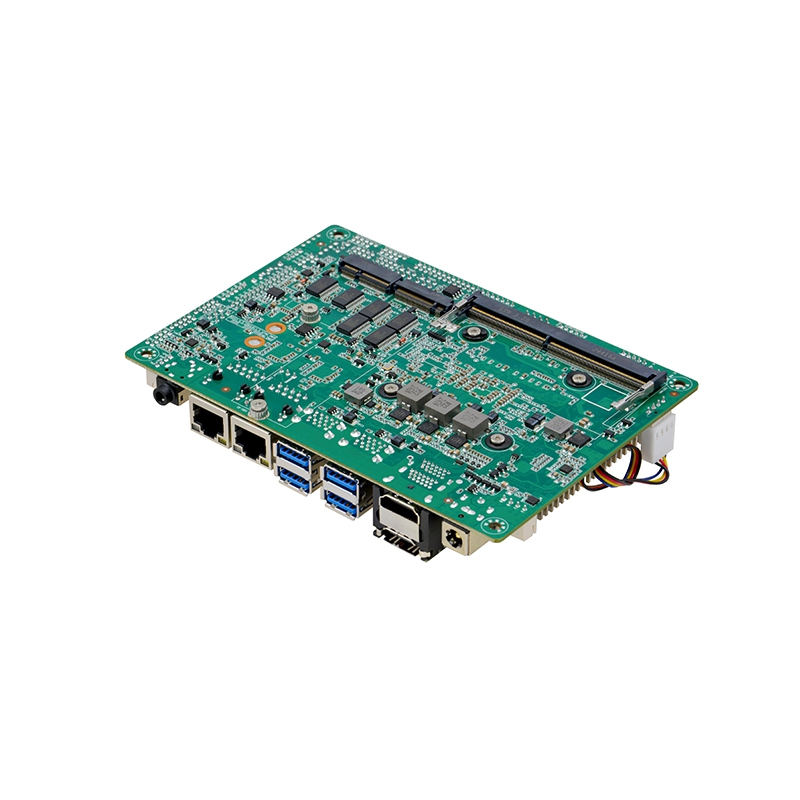

Product Description
3.5 inch motherboard application:Industrial equipment,professional equipment controllers,video doorbells,environmental protection equipment etc.

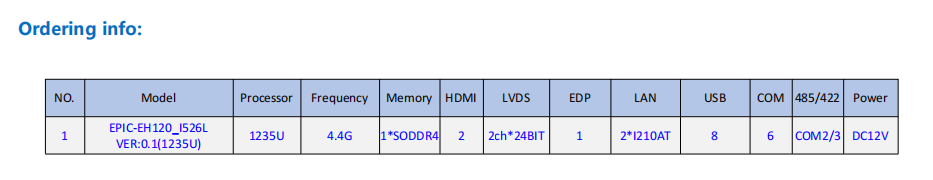

Model No.: EPIC-EH120_I526L VER:0.1(1235U)
Processor: 3.5 inch motherboard Integrated Intel®Alder Lake 12th Core I5-1235U 10-core 12-thread processor，TDP15W
Compatible with Intel® Alder Lake-U/Raptor Lake-U 12th/13th Celeron/I3/I5/I7 processors
Chipset: SOC
Memory: 1x DDR4 SODIMM memory slot,supports 3200MHz memory,up to 64GB
Display: Integrated Intel® Iris® Xe Graphics ,supports DirectX12.1,OpenGL4.6,supports 4K/60Hz display
2x HDMI1.4; 1x LVDS
Note: The LVDS and EDP interfaces share pin headers and can be selected by jumping.
Ethernet: 2x I210AT Gigabit Ethernet, supports Wake on LAN/PXE function
Storage: 1x 7pin SATA3.0,the transfer rate is up to 6 Gbps
1x M.2 slot, supports M.2 2280 NVME PCIE X4 and SATA adaptive SSD
Audio: Onboard ALC897 7.1+2-channel high-fidelity audio controller, supports MIC/Line-out, power amplifier
power amplifier support 4Ω/3W dual channel
Expansion Slot: 1x M.2 slot, supports M.2 Key E 2230 WIFI&BT module
1x M.2 slot, supports M.2 Key B 3042/3052 4G/5G

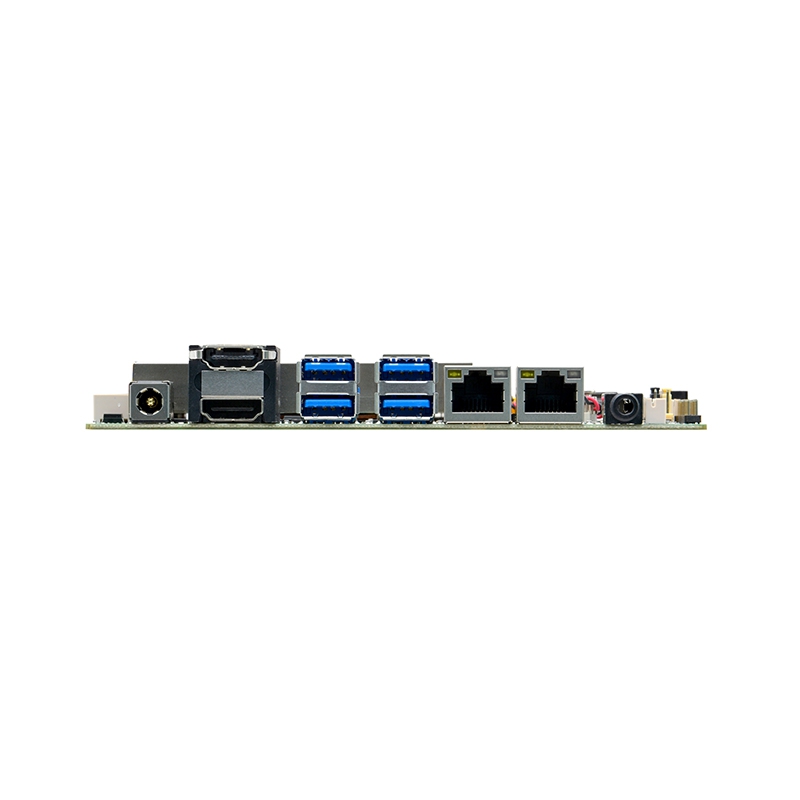

Backplane I/O interface:
2x HDMI1.4
4x USB3.0
2x RJ45 Gigabit Ethernet
1x Two and one audio interface, support Line-out, MICK
Built in I/O interface :
1x DC power interface, 1x 4pin supports 12V power input and output
1x LVDS interface, 2x 15pin, supports dual channel 24BIT, shares the same pin header with EDP, and can be selected by jumping
1x Screen backlight power supply interface 1x 6pin
4x USB2.0 interface, 2x 5pin
6x RS232 serial interface, COM2/COM3 supports RS485/422 function
1x Hard drive power supply interface 1x 4pin
1x Front audio interface 2x 5pin
1x Power amplifier interface 1x 4pin
1x Front panel function button and indicator light interface 2x 5pin
Fan connector: 1x 4pin CPU smart fan connector, 1x 4 pin system fan connector
GPIO:3.5 inch motherboard Supports 4-way input output GPIO
BIOS: 256Mb Flash ROM
Watchdog: Supports Hardware reset function (L256,0~255 seconds)
OS: Windows10/Windows 11/Linux
Power Type: DC 12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% (relative humidity,non-condensing)
Dimension: 148mm x 102mm
