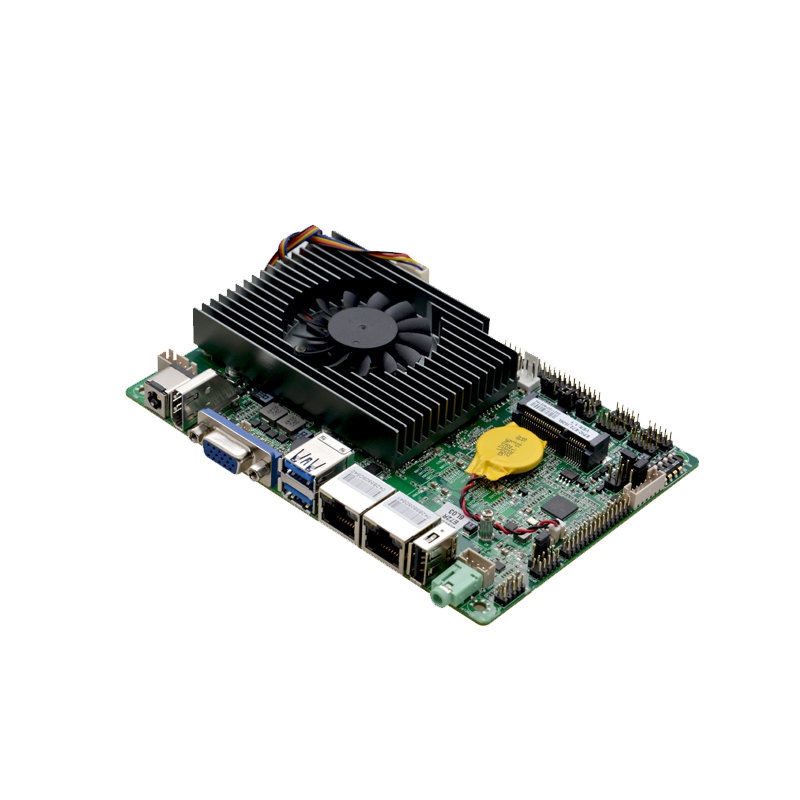

This rugged 3.5 inch motherboard utilizes the Intel Sky Lake-U SOC platform, powered by a 6th Gen Core i5-6200U Dual-Core processor (2.3GHz base, up to 2.8GHz Turbo) with Intel HD Graphics 520, delivering reliable performance in a compact industrial form factor.
Key Features:
●4K multi-display support: VGA + HDMI + LVDS/eDP outputs
●High-capacity memory: 1× DDR4 2133MHz SO-DIMM (up to 32GB)
2× Gigabit Ethernet ports
7× USB ports (including USB3.0)
6× COM ports (RS232/485)
●Flexible storage options:
1× SATA3.0
1× mSATA 3.0
1× mini-PCIe slot (for WiFi/3G/4G modules)
●Enhanced audio: SPDIF + Audio power amplifier
●Industrial reliability:
Watchdog Timer
GPIO control
●Low-power operation: 12V DC input
Detial Display
Product Description

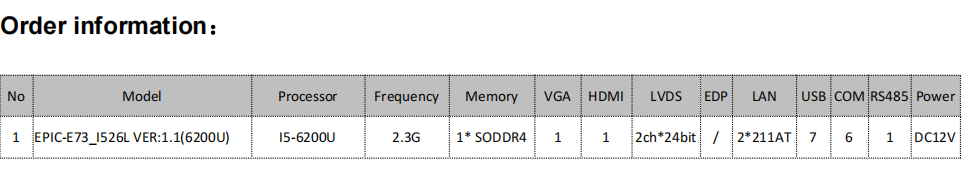

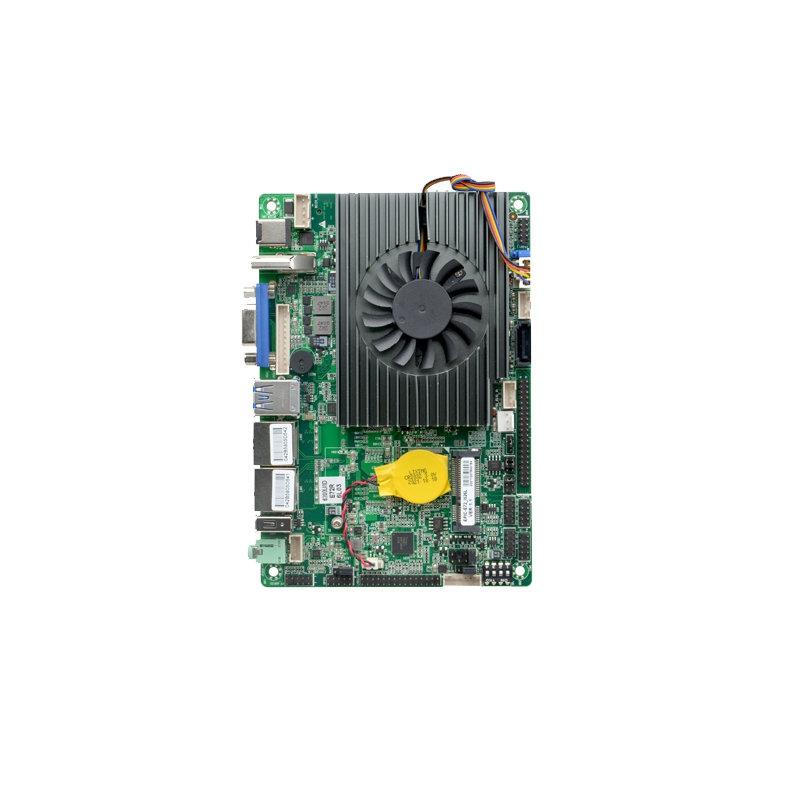

Model No.: EPIC-E73_I526L VER:1.1 (6200U)
Processor: Integrated Intel® I5-6200U 2.3GHz Dual core Quad thread processor , TDP15W
Compatible with Intel® Skylake-U Celeron/PentiumI3/I5/I7 28W low power consumption processors
Chipset: SOC

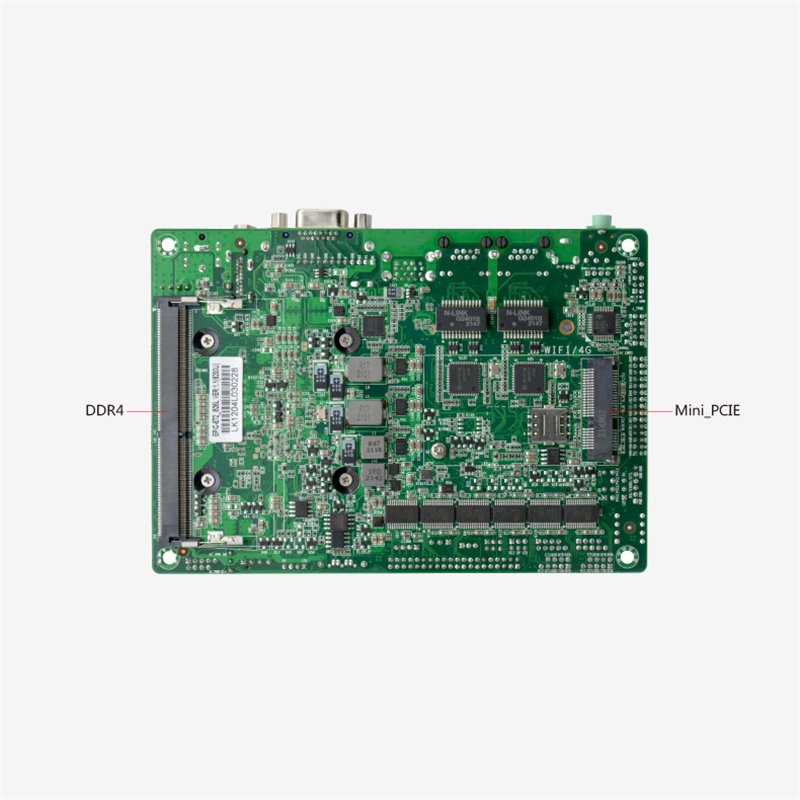

Memory: 1x SODIMM slot,support DDR4 2133MHz memory, up to 32GB
Display: Integrated Intel® HD Graphics 520,supports DirectX 12 OpenGL 4.5, supports 4K
1x VGA,1x HDMI,1x LVDS , supports dual channels 24Bit
Ethernet: 2x Intel WGI211AT Gigabit Ethernet,supports Wake on LAN/PXE function
Storage: 1x 7pin SATA3.0, the transfer rate is up to 6Gbps
1x MSATA slot，supports Intel protocol SSD,the transfer rate is up to 6Gbps
Audio: Onboard USB Audio HS-100B sound card，supports 6 vocal channels high fidelity audio controller,supports Line-out, power amplifier
Support power amplifier 3D /3W dual channels
Expansion Slot: 1x Mini-PCIE slot,supports WIFI/4G module

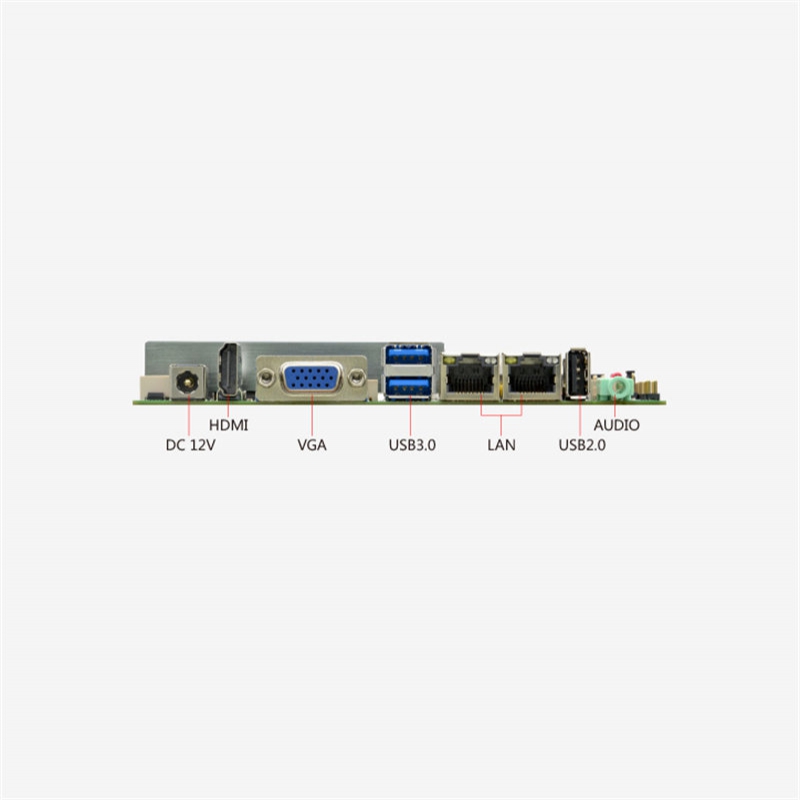

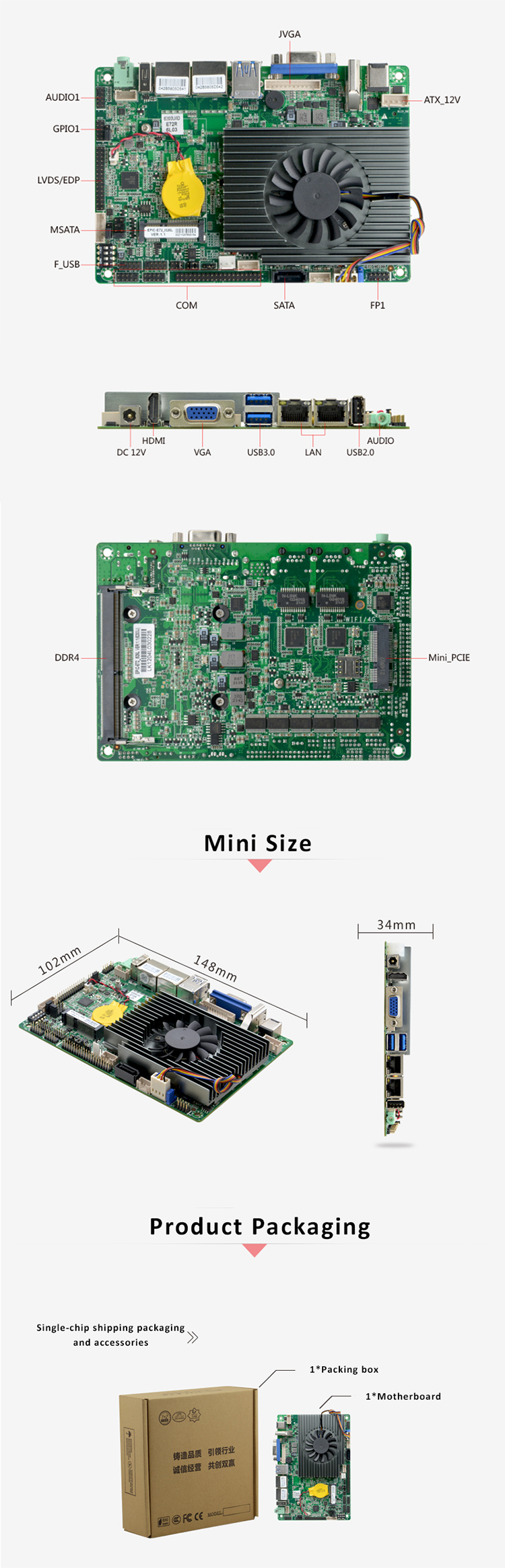

Rear I/O interface:
1x DC_Jack 12V power input interface
1x HDMI
1x VGA
2x USB3.0
1x USB2.0
2x RJ45 Gigabit Network Interface
1x Line-out (Green)
Built in I / O interface:
1x 4pin DC power interface,supports 12V power input output
1x JVGA, 1x 12pin (Same signal as DB15)
1x LVDS, supports Dual channel 24BIT,share row pin with EDP,can choose to do EDP
1x Backlight power supply interface,1x 6pin

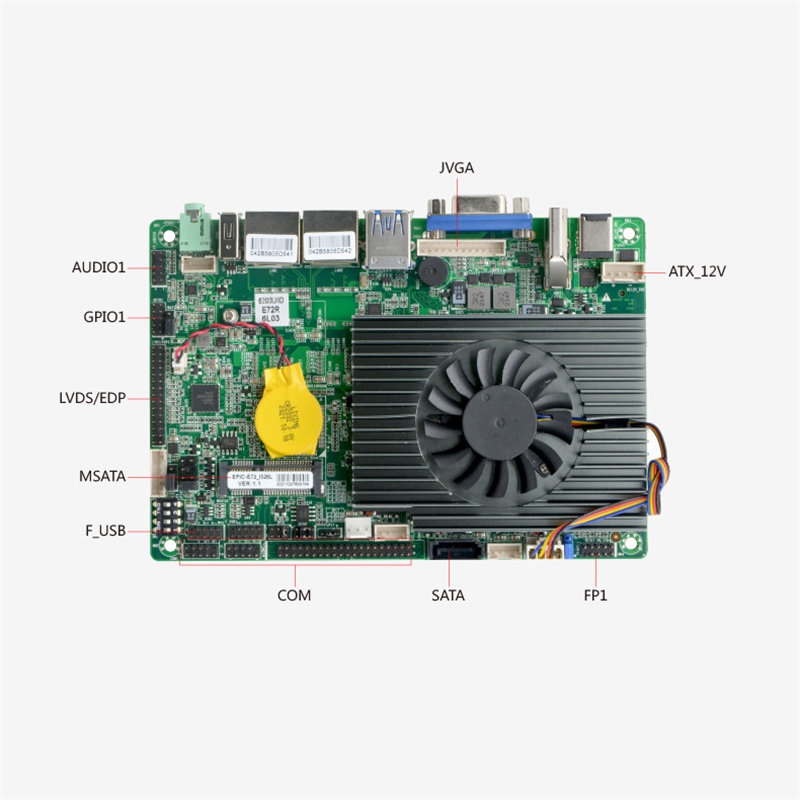

6x RS232 COM ( COM1 supports the 9th pin charged ,COM2 supports RS485 function)
4x USB2.0, 2x 5pin
1x Front audio interface, 2x 5pin
1x Power amplifier interface,1x 4pin
1x Hard disk power supply interface, 1x 4pin
1x Front panel function button and indicator light interface, 2x 5pin
Fan Connector: 1x 4pin CPU smart fan connector, 1x 3pin system fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows7/Windows 10/Linux
Power Type: DC 12V
Working temp.: -10℃～60℃
Storage temp.: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)

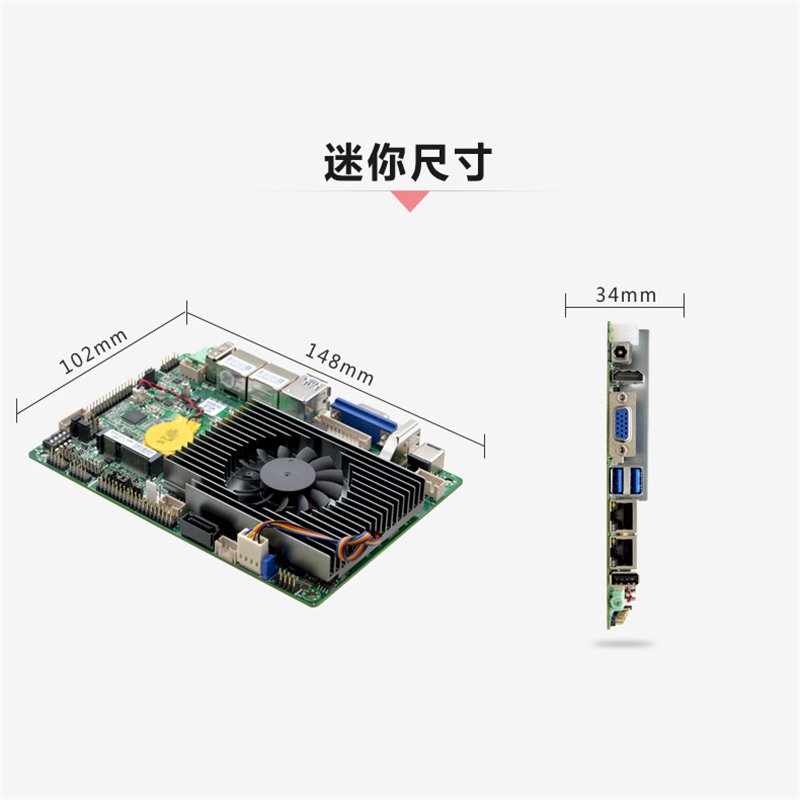

Dimension: 148mm x 102mm
