Product Description

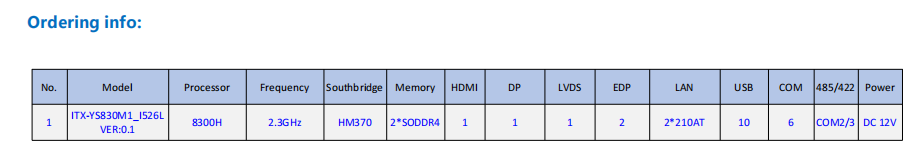

Model No.: ITX-YS830M1_I526L VER:0.1
Processor: Integrated Intel®Core I5-8300H /2.3GHz, 4 core 8 thread processor, TDP 45W
Compatible with Intel® 8/9/10 generation with H processor
Chipset: Intel® HM370
Memory: 2x SODIMM slot, supports 2666MHz DDR4 memory up to 64GB
Display:
Integrated Intel® HD Graphics(ATX power supply) , supports DirectX12,OpenGL4.4, supports 4K
1x HDMI1.4, the highest resolution supported is: 4096x2304@24Hz
1x DP
1x LVDS, 2x EDP, of which 1 EDP and LVDS can be selected through pop-up
Note: Can support dual EDP display or LVDS+EDP display
Network: 2x I210AT Gigabit ethernet, supports network wake-up and PXE functions
Storage:
2x SATA3.0 hard disk interface, transmission speed up to 6Gbps
1x M.2 slot, supports M.2 2280 NVME PCIE3.0 X4/SATA adaptive standards SSD
Audio:
Integrated ALC897 7.1+2 channel high-fidelity audio controller, supports MIC, Line_out, power amplifier
Support amplifier 4Ω 3W speaker
Expansion slots:
1x PCIE X16 slot (side insertion)
1x M.2 slot, supports M.2 Key E 2230 WIFI module
Backplane I/O interface:
4x USB3.0
1x HDMI1.4
1x DP
2x RJ45 Gigabit ethernet
1x Line-out(green),1x MIC(red)
1x DC12V power input interface
Built in I/O interface:
1x LVDS interface 2x 15pin, supports dual channel 24bit
2x EDP interface, 2x 15pin, 1 of which EDP and LVDS can be selected through pop-up
1x Backlight power supply interface 1x 6pin
6x RS232 serial interface, COM2/3 supports RS485/422
6x USB2.0 interface 2x 5pin
1x Front audio interface 2x 5pin
1x Power amplifier interface 1x 4pin
2x Hard drive power supply voltage interface 1x 4pin
1x Front panel function button and indicator light interface 2x 5pin
1x 4pin DC power interface. Supports 12V power input and output
Fan: 1x 4pin CPU fan interface; 1x 4pin system fan interface
GPIO: Supports four-in and four-out GPIO functions
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (level 256, 0~255 seconds)
OS: Windows 10 /Linux
Power supply: DC 12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)
Dimension: 170mm x 170mm
