Products

New Products

LGA1151 1+1 Power Supply 1U Firewall Appliance

♦Model NO.:ST-C2468L-2P V1.0

♦1U Standard Rack_mount Chassis

♦Intel Socket LGA1151 processors

♦2x DDR4 RAM slot, up to 32GB

♦4x SATA3.0 + 1x MSATA + 1x M.2

♦8x 2.5GbE Ports (RJ45)

♦2x PCI-E x8 (SFP+ Expansion)

♦(Bypasss/Vpro) Optional

♦1x Mini-pcie&M.2 (Wifi&BT&4G/5G LTE)

♦2x USB3.0 ; 4x USB2.0(inner)

♦1+1 Redundant Power Supply (Hot_Swap)
4 Lan N100 2x SFP+ (10Gb) Firewall MIni Router

♦Model NO.:ST-AD12N-6S V1.0

♦Aluminum Alloy ; Active Cooling

♦Intel N97/N100/N200/N305 CPUs

♦1x DDR5 RAM slot, up to 32GB

♦1x SATA3.0 + 1x M.2 NVMe X1 + 1x TF slot

♦4x 2.5GbE RJ45 + 2x SFP+ (10Gb)

♦DP+HDMI+Type_C Triple Display

♦1x Mini-PCIe for 4G LTE

♦1x SIM slot

♦5x USB2.0 ; 1x USB3.0

♦DC_12V Power Input
23.8 inch RK3588 Android Industrial Tablet PC support 5G module

♦Support RK3588, Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55) at 2.4GHz CPU

♦Capacitive / Resistive touch:23.8" TFT LCD / 1920*1080 / 250 cd/m²

♦3mm Super Thin Front Bezel, Best for Embedded Cabinet.

♦Pure flat panel IP65 dust-proof and waterproof.

♦RK3588 eight-core high-end CPU ，Built-in independent NPU with 6TOPS AI computing power

♦6TOPS AI computing power

♦Support 8K ultra-high definition display, support double display,can be customized four display

♦Provide SDK package, support secondary development and upgrade customization
15.6 inch RK3588 Android Industrial Tablet PC support 5G module

♦Support RK3588, Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55) at 2.4GHz CPU

♦Capacitive / Resistive touch:15.6" TFT LCD / 1920*1080 / 300 cd/m²

♦3mm Super Thin Front Bezel, Best for Embedded Cabinet.

♦Pure flat panel IP65 dust-proof and waterproof.

♦RK3588 eight-core high-end CPU ，Built-in independent NPU with 6TOPS AI computing power

♦6TOPS AI computing power

♦Support 8K ultra-high definition display, support double display,can be customized four display

♦Provide SDK package, support secondary development and upgrade customization

i5-10310U DDR4 Thin ITX Motherboard

♦Model No.: ITX-B100_I516L

♦Based on Intel Comet lake-U SOC platform

♦Integrated 10th Gen i5-10310U 1.6~4.2GHz (4 Cores / 8 threads) CPU

♦Intel UHD Graphics; VGA+HDMI1.4+LVDS+EDP for display

♦2*DDR4 2400MHz SO-DIMM socket, up to 64GB

♦1* RTL8111H Gigabit Eth / 8*USB / 6*COM(RS232/485/422)

♦1*SATA3.0 / 1*mSATA SSD / 1*M.2 NVMe / 1*mini-pcie(Wifi/4G)

♦Support GPIO ; Watchdog Timer ; SPK 4Ω/3W ; 1*PS2 ; 1*SIM

♦Provide: 1* DC_Jack 12V Input ; 1*ATX 4pin 12V input

Read More Make an inquiry
i5-1155G7 Dual 2.5G Lan DDR4 Thin ITX Motherboard

♦Model No.: ITX-B110_I526L

♦Based on Intel Tiger lake SOC platform

♦Integrated 11st Gen i5-1155G7 2.5~4.5GHz (4 Cores / 8 threads) CPU

♦Intel Iris Xe Graphics ; VGA + HDMI2.0 + HDMI1.4 + LVDS for display

♦2*DDR4 3200MHz SO-DIMM socket, up to 64GB

♦2* I225V 2.5 GbE / 8*USB / 6*COM(RS232/485/422)

♦1*SATA3.0 / 1*M.2 PCIE x1 SSD / 1*M.2 for Wifi6 / 1*M.2 for 5G

♦Support GPIO ; Watchdog Timer ; SPK 2Ω/5W ; 1*PS2 ; 1* SIM

♦Provide: 1* DC_Jack 12V Input ; 1*ATX 4pin 12V input

Read More Make an inquiry

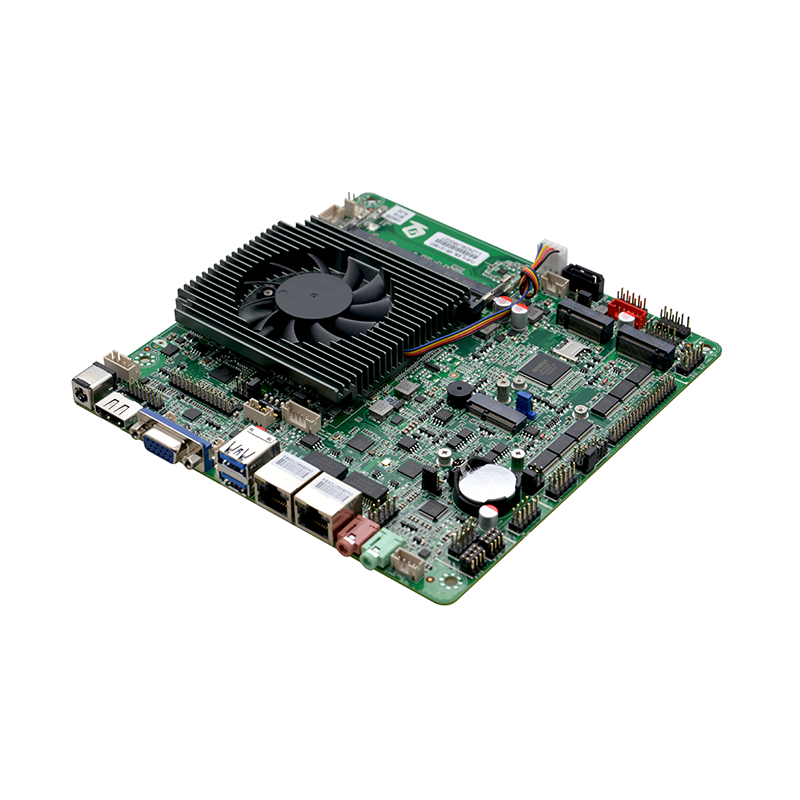

11st Gen 1155G7 DDR4 Thin ITX Mothebroard

♦Model No.: ITX-B110_I716L

♦Based on Intel Tiger lake-U SOC platform

♦Integrated 11st Gen i5-1155G7 2.5~4.5GHz (4 Cores / 8 threads) CPU

♦Intel Iris Xe Graphics ; VGA + HDMI2.0 + HDMI1.4 + LVDS for display

♦2*DDR4 3200MHz SO-DIMM socket, up to 64GB

♦1*RJ45 GbE / 8*USB / 6*COM(RS232/485/422) (2*RJ45 optional）

♦1*SATA3.0 / 1*M.2 PCIE x1 SSD / 1*M.2 for Wifi6 / 1*M.2 for 5G

♦Support GPIO ; Watchdog Timer ; SPK 2Ω/5W ; 1*PS2

♦Provide: 1* DC_Jack 12V Input ; 1*ATX 4pin 12V input

Read More Make an inquiry

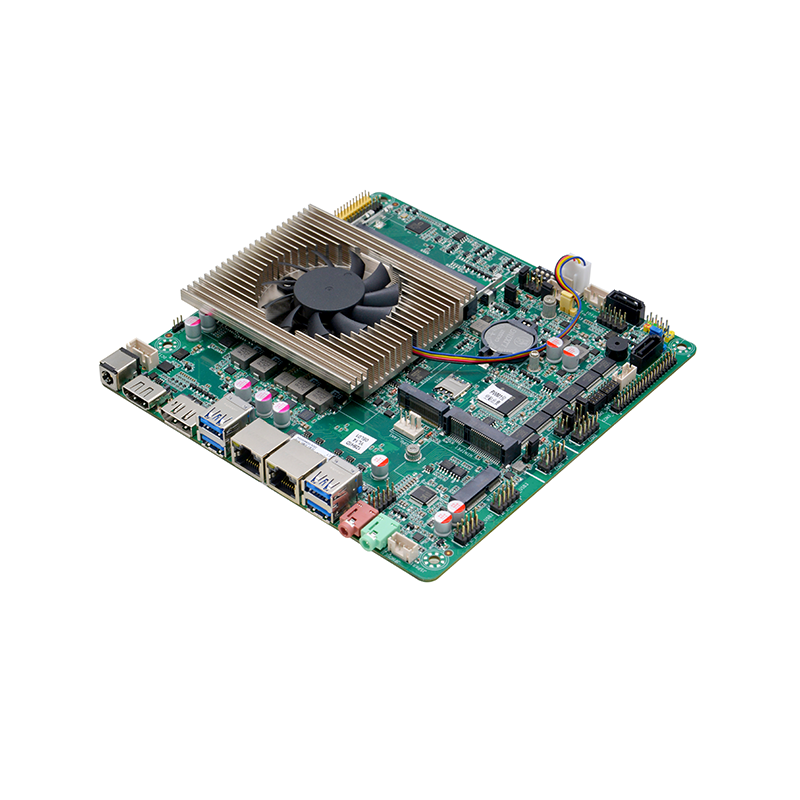

2 Lan Dual DDR5 4K Display Thin ITX Motherboard

♦Model No.: ITX-YS140R1_I526L

♦Based on Intel Meteor Lake SOC platform 125H

♦Integrated Core™ Ultra 5 125H 4.5GHz 14 core processor

♦Intel® Arc™ graphics; EDP + DP + HDMI1.4 + LVDS(4K display)

♦2*DDR5 5600MHz SO-DIMM Socket, up to 96GB

♦2*RTL8111H 1GbE Ethernet/8*USB/6*COM/1*SIM

♦2*SATA3.0/1* M.2 2280 NVME SSD/1*MINI-PCIE (Wifi/4G)/1*M.2 2230(WIFI)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Support DC_12V Input

Read More Make an inquiry
2 Lan J4125 Fanless 3.5 inch Motherboard

♦Model No.: EPIC-W41K_J126L VER:1.0

♦Based on Intel Gemini Lake SOC platform

♦Integrated Celeron J4125 2.0GHz Quad core processor

♦Intel UHD Graphics 600 ; VGA+HDMI+LVDS/eDP for Display

♦1*DDR4 2400MHz SO-DIMM socket, up to 8GB

♦2*RJ45 Gigabit Eth / 6*USB / 6*COM(RS232/485/422) / 1*SIM slot

♦1*SATA3.0/1*mSATA 3.0/1*mini-pcie(Wifi/3G/4G)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 2Ω/3W

♦Support DC 9V~36V Wide voltage power input (Fanless)

Read More Make an inquiry
J4125 Dual Lan DDR4 3.5 inch Motherboard

♦Model No.:EPIC-E42_J122L

♦Based on Intel Gemini Lake SOC platform

♦Integrated Celeron J4125 2.0GHz Quad core processor

♦Intel UHD Graphics 600; VGA+HDMI+LVDS+EDP for Display

♦1*DDR4 2400MHz SO-DIMM socket, up to 8GB

♦2* RTL8111H Gigabit Ethernet/ 7*USB/ 2*COM/ 1* SIM

♦1*SATA3.0/1*mSATA SSD/1*mini-pcie(Wifi/4G)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 2Ω/3W

♦Support DC_12V Input

Read More Make an inquiry
I5-6300U Dual Lan 4K Display 3.5 inch Motherboard

♦Model No.:EPIC-E75_I522L

♦Based on Intel Sky Lake-U SOC platform

♦Integrated 6th Gen Core i5-6300U 2.4GHz dual core processor

♦Intel HD Graphics 520; VGA+HDMI+LVDS/eDP (4K Display)

♦1*DDR4 2133MHz SO-DIMM socket, up to 32GB

♦2* RTL8111H Gigabit Ethernet/ 7*USB/ 2*COM

♦1*SATA3.0/ 1*mSATA SSD/ 1*mini-pcie(Wifi/4G)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Support DC_12V Input

Read More Make an inquiry
i3-N305 Dual I226V 2.5G Lan 3.5 inch Motherboard

♦Model No.:EPIC-EH305_I326L

♦Based on Intel Alder Lake-N SOC platform N305

♦Integrated Intel 12nd gen N305 3.8GHz Eight core processor

♦Intel UHD Graphics;2*HDMI1.4 + LVDS for display

♦1*DDR4 3200MHz SO-DIMM socket, up to 16GB

♦2* I226V 2.5 Gigabit Ethernet/ 7*USB/ 6*COM

♦1*SATA3.0/ 1*mSATA SSD/ 1*M.2 WIFI&BT

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Support DC_12V Input

Read More Make an inquiry
N100 Dual Lan Nano ITX Motherboard

♦Model No.:STX-N305_2L

♦Based on Intel Alder Lake-N SOC platform N100

♦Integrated Intel N100 3.4GHz Quad core processor

♦Intel UHD Graphics;DirectX 12.1 OpenGL4.6 (2*HDMI2.0 display)

♦1*DDR4 3200MHz SO-DIMM socket, up to 16GB

♦2* RTL8125 2.5G Gigabit Ethernet ( Wake-on-Lan / PXE )

♦1*SATA3.0/ 1* M.2 SSD/ 1* M.2 WIFI/6*USB/ 2*COM(RS232)/ 1* TPM

♦Support GPIO;Watchdog Timer

♦DC_12V power Input

Read More Make an inquiry
RK3576 ARM Motherboard

♦Model No.:CX3576-AN V1.0 (4G+32G) VER:5G

♦WIFI use FCS960K,support 2.4G/5G dual-band,Bluetooth5.3

♦Bottom plate thread DC2.0*1（12V-36V input)

♦RJ45*1、HDMI*1、USB3.0*1、USB2.0*1、USB2.0 socket*4、TF*1、Audio 3.5mm*1

♦Size:157*100mm

Read More Make an inquiry
RK3576 ARM Motherboard

♦Model No.:CX3576-A V1.0 (4G+128G) VER:4G

♦WIFI use FCS960K,support 2.4G/5G dual-band,Bluetooth5.3

♦Bottom plate thread DC2.0*1（12V-36V input)

♦RJ45*1、HDMI*1、USB3.0*1、USB2.0*1、USB2.0 socket*4、TF*1、Audio 3.5mm*1

♦Size:157*100mm

Read More Make an inquiry
Dual Lan RK3588 ARM Motherboard

♦Model No.:CX3588-G V1.0

♦WIFI use FCS960K WIFI6 dual-band,Bluetooth5.3

♦4*USB3.0,5*USB2.0,1*SATA,4G/5G,2*Gigabit network

♦Size:160mm x 109mm

Read More Make an inquiry
