Designed for harsh environments, this industrial motherboard supports GPIO, watchdog timer, and 12V DC input, ensuring reliability in factory automation, digital signage, and IoT applications.
Detail Display
Product Description

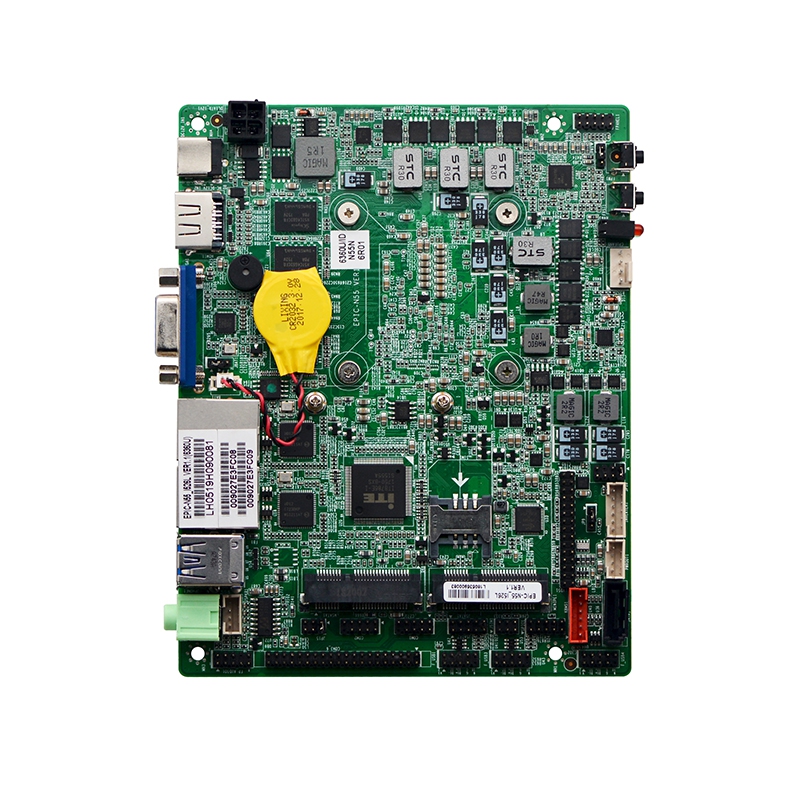

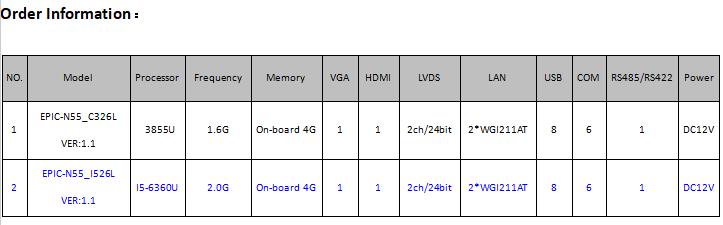

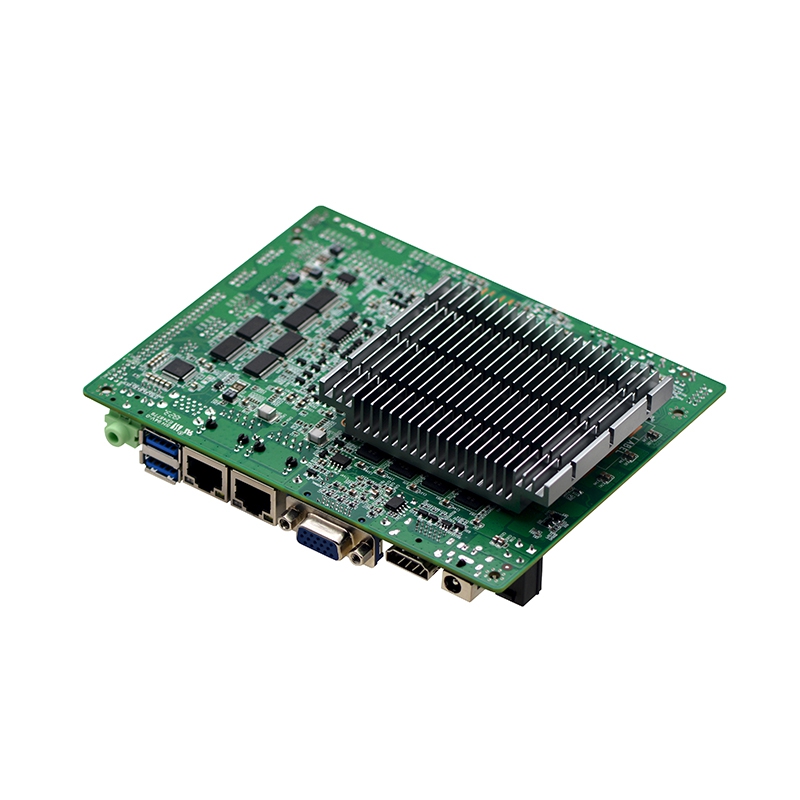

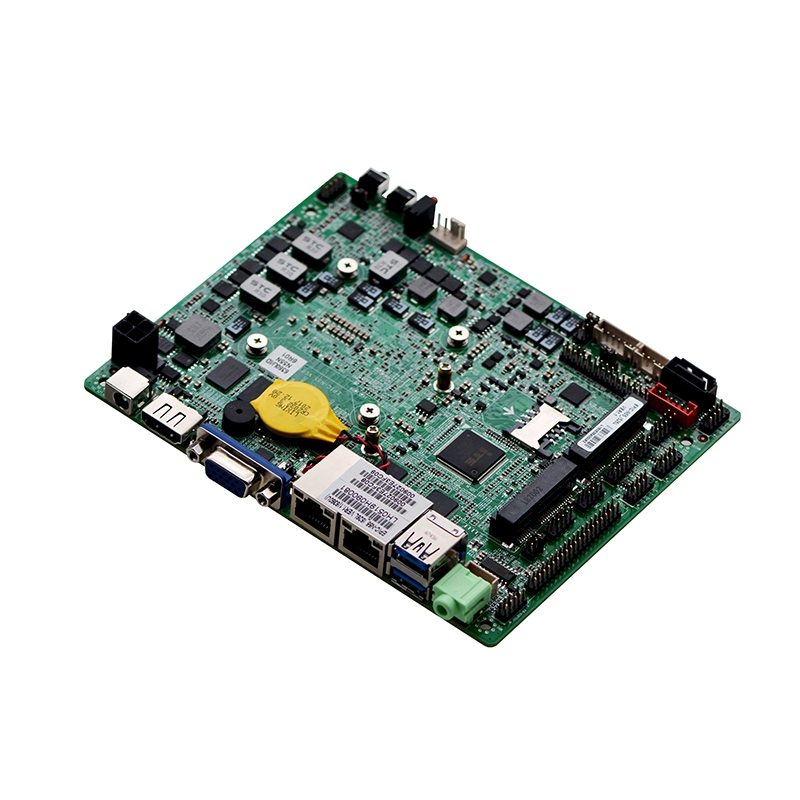

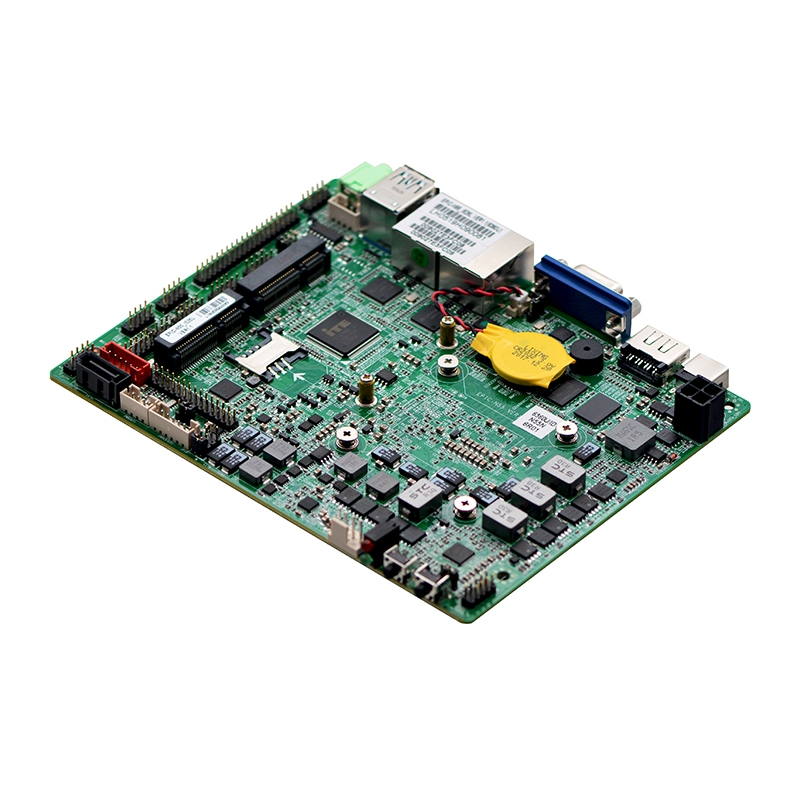

Model No:EPIC-N55_I526L VER:1.1(6360U)
Processor:
Integrated Intel® I5-6360U 2.0GHz dual core processor, TDP15W
Compatible with Intel® SKYLAKE-U Pentium/Celeron/I3/I5 I7 28w low power consumption processor
Chipset:SOC
Memory:Onboard DDR3L 4GB Express memory
Display:
Integrated Intel® HD Graphics 540
1* VGA, support 1920x1200@60Hz
1* HDMI1.4, support 4096x2304@24Hz
1* support dual channel 24bit LVDS port
Network: 2* Intel® 211AT Gigabit Ethernet, support Wake On LAN / PXE
Storage:
1* 7pin SATA3.0 HDD port, transmission rate up to 6Gbps
1* JSATA pin HDD port 2*5pin
1* MSATA SSD slot, transmission rate up to 6Gbps
Audio:Integrated ALC662 6-channel high fidelity audio controller, support MIC、Line_out, power amplifier, power amplifier suggest to use 2Ω5W speaker
Expansion:1* MPCIE slot, support WIFI, 3G, 4G module

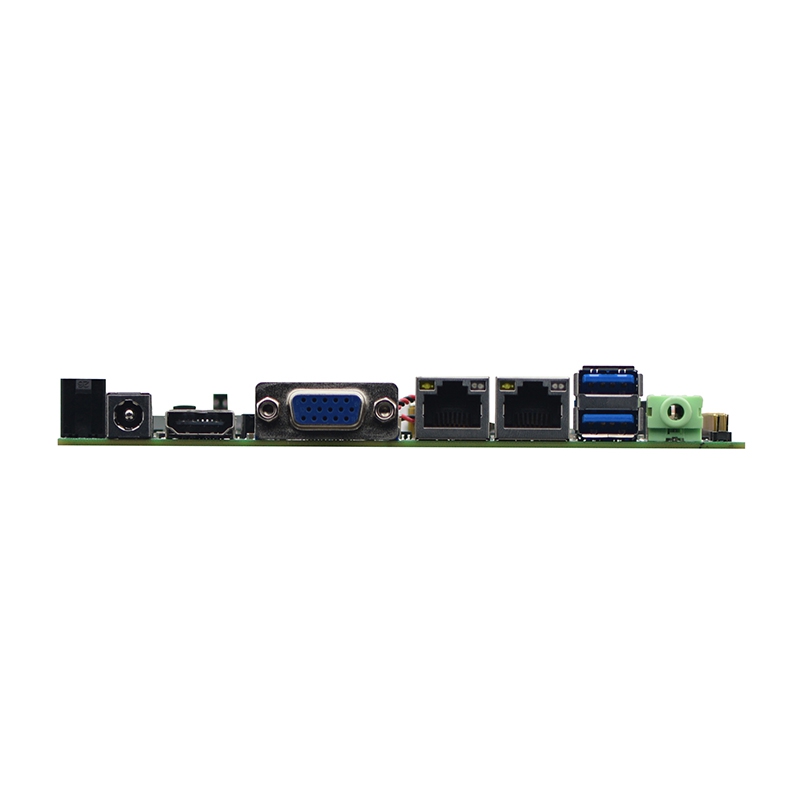

Rear I/O:
2* USB 3.0
1* HDMI
1* VGA
2* RJ-45 Gigabit LAN port
1* Line out (green)
1* 12V DC_JACK input
1* Power switch, 1* Reset switch (front panel)
1* Power/HDD indicator LED(front panel)
Built in I/O:
1* LVDS port 2*15pin
1* LVDS screen backlight power supply port 1*6pin
6* RS232 COM port, COM2 support 485/422
6* USB 2.0 port 2*5pin
1* PS/2 MS/KB port 1*6Pin
1* Front audio port 2*5pin
1* Power amplifier port 1*4pin
1* HDD power supply port 1*4pin
1* Front panel function button and LED interface 2*5pin
1* SIM socket
1*4 pin ATX power supply connector, support 12V input output
Fan connector:1* 4pin CPU smart fan connector
GPIO:Support 4 ways input output GPIO
BIOS:AMI 64Mb Flash ROM
Watchdog:Support hardware reset function(L256, 0~255 seconds)
Power input:DC_12V
Working Temp.:-10℃～60℃
Storage Temp.:-20℃～70℃
Humidity:5%-95% relative humidity, non-condensing

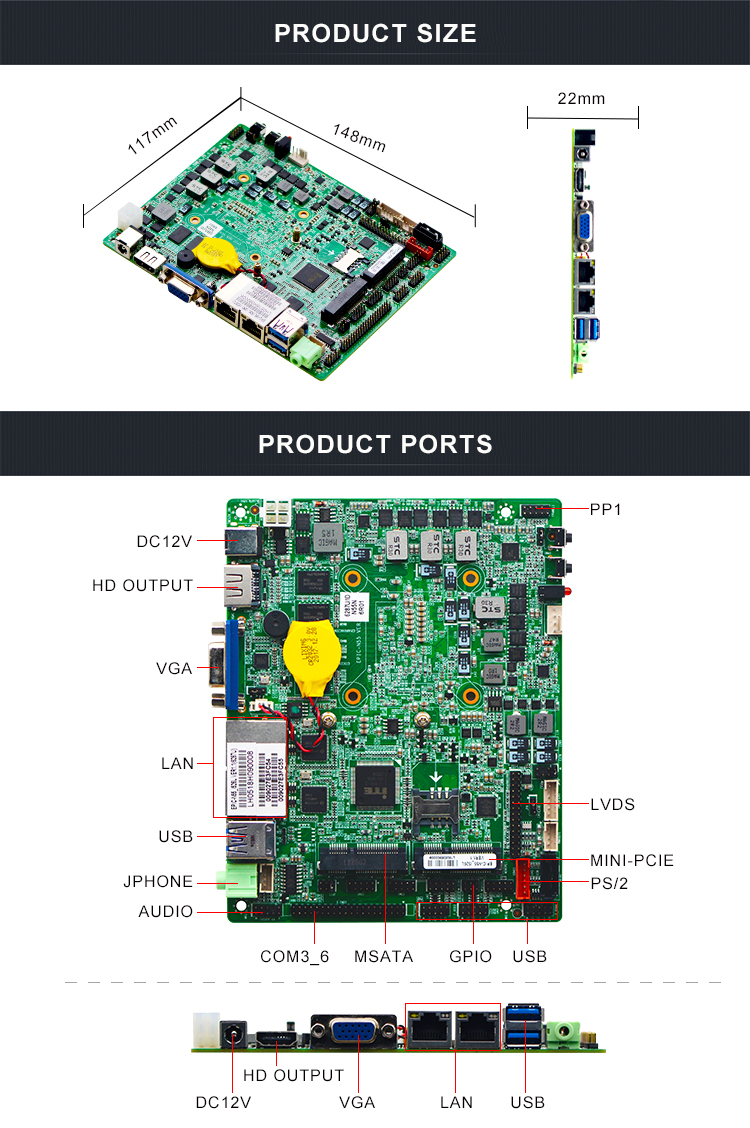

Dimension:148mm x 117mm
