Gemini_Lake(J4125/N4020)

Products

Industrial Motherboard
Router/Firewall/Server
Industrial Box PC
Industrial Monitor
Industrial Tablet PC
Accessories

New Products

  • LGA1151 1+1 Power Supply 1U Firewall Appliance
    LGA1151 1+1 Power Supply 1U Firewall Appliance
    ♦Model NO.:ST-C2468L-2P  V1.0
    ♦1U Standard Rack_mount  Chassis
    ♦Intel Socket LGA1151 processors
    ♦2x DDR4 RAM slot, up to 32GB
    ♦4x SATA3.0 + 1x MSATA + 1x M.2
    ♦8x 2.5GbE Ports (RJ45)
    ♦2x PCI-E x8 (SFP+ Expansion)
    ♦(Bypasss/Vpro) Optional
    ♦1x Mini-pcie&M.2 (Wifi&BT&4G/5G LTE)
    ♦2x USB3.0 ; 4x USB2.0(inner)
    ♦1+1 Redundant Power Supply (Hot_Swap)
  • 4 Lan N100 2x SFP+ (10Gb) Firewall MIni Router
    4 Lan N100 2x SFP+ (10Gb) Firewall MIni Router
    ♦Model NO.:ST-AD12N-6S  V1.0
    ♦Aluminum Alloy ; Active Cooling
    ♦Intel N97/N100/N200/N305 CPUs
    ♦1x DDR5 RAM slot, up to 32GB
    ♦1x SATA3.0 + 1x M.2 NVMe X1 + 1x TF slot
    ♦4x 2.5GbE RJ45 + 2x SFP+ (10Gb)
    ♦DP+HDMI+Type_C Triple Display
    ♦1x Mini-PCIe for 4G LTE
    ♦1x SIM slot
    ♦5x USB2.0 ; 1x USB3.0
    ♦DC_12V Power Input
  • 23.8 inch RK3588 Android Industrial Tablet PC support 5G module
    23.8 inch RK3588 Android Industrial Tablet PC support 5G module
    ♦Support RK3588, Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55) at 2.4GHz CPU
    ♦Capacitive / Resistive touch:23.8" TFT LCD / 1920*1080 / 250 cd/m²
    ♦3mm Super Thin Front Bezel, Best for Embedded Cabinet.
    ♦Pure flat panel IP65 dust-proof and waterproof.
    ♦RK3588 eight-core high-end CPU ，Built-in independent NPU with 6TOPS AI computing power
    ♦6TOPS AI computing power
    ♦Support 8K ultra-high definition display, support double display,can be customized four display
    ♦Provide SDK package, support secondary development and upgrade customization
  • 15.6 inch RK3588 Android Industrial Tablet PC support 5G module
    15.6 inch RK3588 Android Industrial Tablet PC support 5G module
    ♦Support RK3588, Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55) at 2.4GHz CPU
    ♦Capacitive / Resistive touch:15.6" TFT LCD / 1920*1080 / 300 cd/m²
    ♦3mm Super Thin Front Bezel, Best for Embedded Cabinet.
    ♦Pure flat panel IP65 dust-proof and waterproof.
    ♦RK3588 eight-core high-end CPU ，Built-in independent NPU with 6TOPS AI computing power
    ♦6TOPS AI computing power
    ♦Support 8K ultra-high definition display, support double display,can be customized four display
    ♦Provide SDK package, support secondary development and upgrade customization
  • N4020 thin itx motherboard

    N4020 thin itx motherboard

    ♦Model No.: ITX-LS421_J112L VER:1.0（N4020）
    ♦Based on Intel Gemini Lake SOC platform
    ♦Integrated Celeron N4020 1.1~2.8GHz dual core processor (TDP:6W)
    ♦Intel UHD Graphics 600 ; VGA + 2*LVDS / 2*EDP for Display
    ♦1*DDR4 2400MHz SO-DIMM socket, up to 8GB
    ♦1*RJ45 Gigabit Eth / 10*USB / 2*COM(RS232)
    ♦1*SATA / 1*mSATA SSD / 1*M.2 SSD / 1*M.2 Wifi / 1*LPT / 1*PS2
    ♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W
    ♦Provide: 1* DC_Jack 12V ; 1*socket 4pin 12V (Fanless)
    Read More Make an inquiry

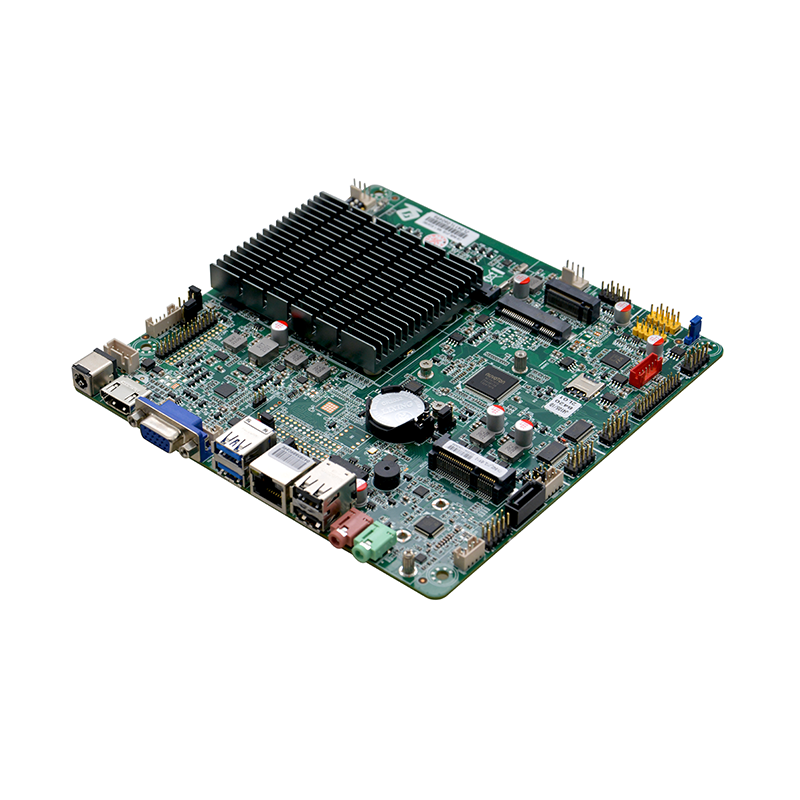

  • J4105 thin itx motherboard

    J4105 thin itx motherboard

    ♦Model No.: ITX-B420_J112L VER:1.0（J4105）
    ♦Based on Intel Gemini Lake SOC platform
    ♦Integrated Celeron J4105 1.50GHz Quad core processor
    ♦Intel UHD Graphics 600 ; VGA+HDMI+LVDS for Display
    ♦1*DDR4 2400MHz SO-DIMM socket, up to 8GB
    ♦1*RJ45 Gigabit Eth / 8*USB / 2*COM(RS232) / 1*SIM slot
    ♦1*SATA / 1*mSATA SSD / 1*M.2 / 1*mini-pcie(Wifi/4G) / 1*LPT
    ♦Support GPIO ; Watchdog Timer ; SPK 2Ω/5W ; 1*PS2
    ♦Provide: 1* DC_12V Input ; 1*ATX 4pin 12V input (Fanless)
    Read More Make an inquiry

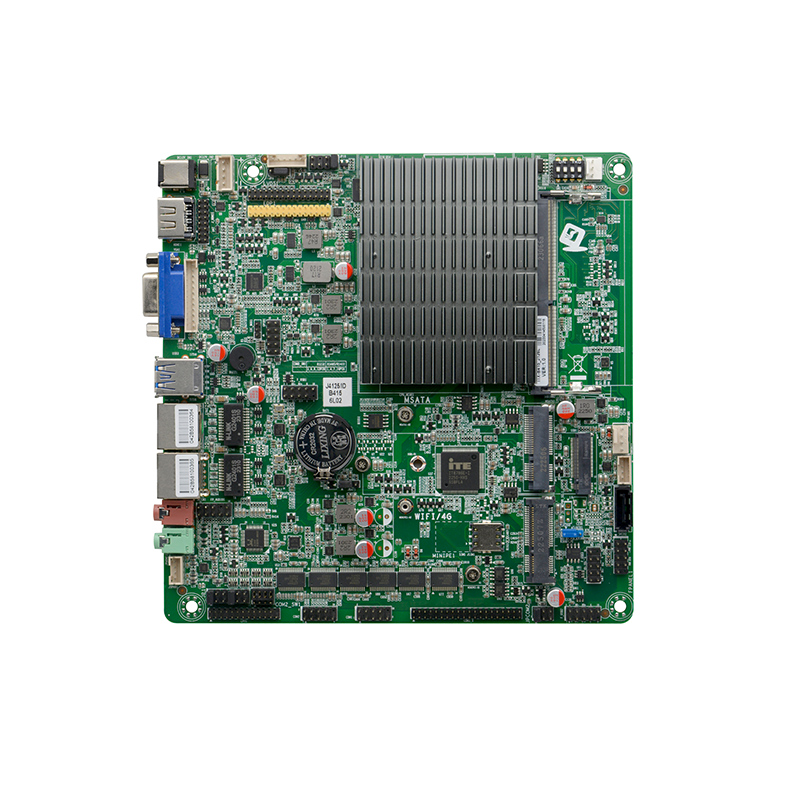

  • 2 Lan J4125 thin itx motherboard

    2 Lan J4125 thin itx motherboard

    ♦Model No.: ITX-B415_J126L VER:1.0（J4125）
    ♦Based on Intel Gemini Lake SOC platform
    ♦Integrated Celeron J4125 2.0GHz Quad core processor
    ♦Intel UHD Graphics 600 ; VGA+HDMI+LVDS/eDP for Display
    ♦1*DDR4 2400MHz SO-DIMM socket, up to 8GB
    ♦2*RJ45 Gigabit Eth / 8*USB / 6*COM(RS232/485/422) / 1*SIM slot
    ♦1*SATA3.0 / 1*mSATA SSD / 1*M.2 SSD / 1*mini-pcie(Wifi/4G)
    ♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W
    ♦Provide: 1* DC_12V Input (Fanless)
    Read More Make an inquiry

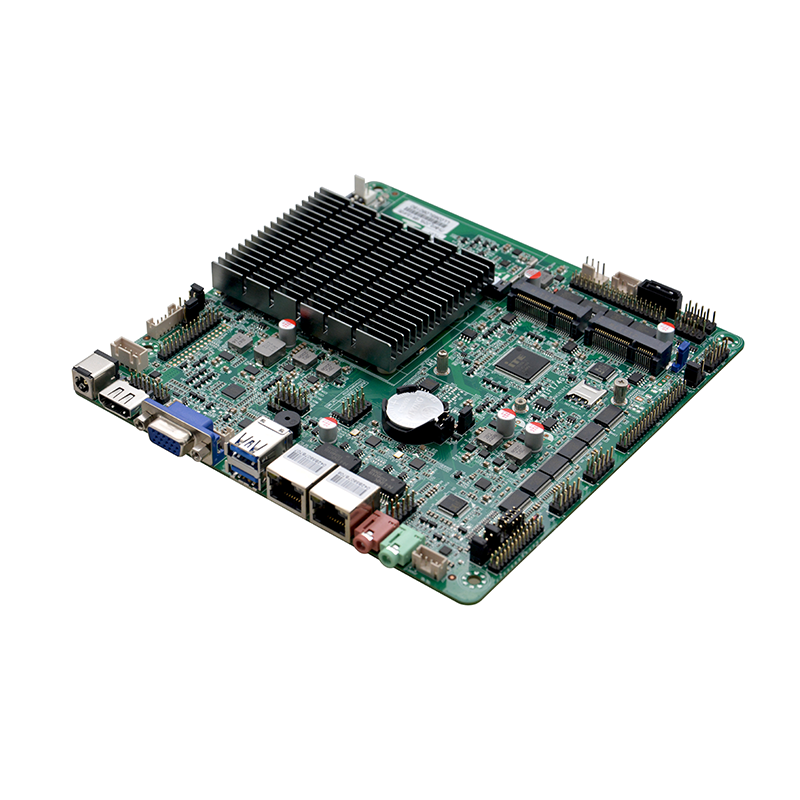

  • 2 Lan J4125 thin itx motherboard

    2 Lan J4125 thin itx motherboard

    ♦Product No.: ITX-B413_J1210L VER:1.0（J4125）
    ♦Based on Intel Gemini Lake SOC platform
    ♦Integrated Celeron J4125 2.0GHz Quad core processor
    ♦Intel UHD Graphics 600 ; VGA+HDMI+LVDS/eDP for Display
    ♦1*DDR4 2400MHz SO-DIMM socket, up to 8GB
    ♦2*RJ45 Giga Eth / 8*USB / 10*COM (RS232/485/422)
    ♦1*SATA3.0 / 1*mSATA SSD / 1*mini-pcie(Wifi/4G)
    ♦Support GPIO ; Watchdog Timer ; Audio power amplifier 2Ω/5W
    ♦Support DC_12V Input (Fanless)
    Read More Make an inquiry
