Overview
This high-performance 3.5 inch motherboard is built on the Intel Sky Lake-U SOC platform, featuring the 6th Gen Core i5-6300U processor (2.4GHz, Dual Core) with Intel HD Graphics 520, delivering powerful computing capabilities in a compact industrial form factor.
Key Features:
●High-resolution display support: VGA + HDMI + LVDS/eDP outputs (4K capable)
●Large memory capacity: 1× DDR4 2133MHz SO-DIMM slot (up to 32GB)
●Comprehensive connectivity:
2× Gigabit Ethernet ports (RTL8111H)
7× USB ports
2× COM ports
●Flexible storage options:
1× SATA3.0
1× mSATA SSD
1× mini-PCIe slot (for WiFi/4G modules)
●Industrial-grade reliability:
Watchdog Timer
GPIO control
4Ω/3W audio amplifier
●Low-power operation: 12V DC input

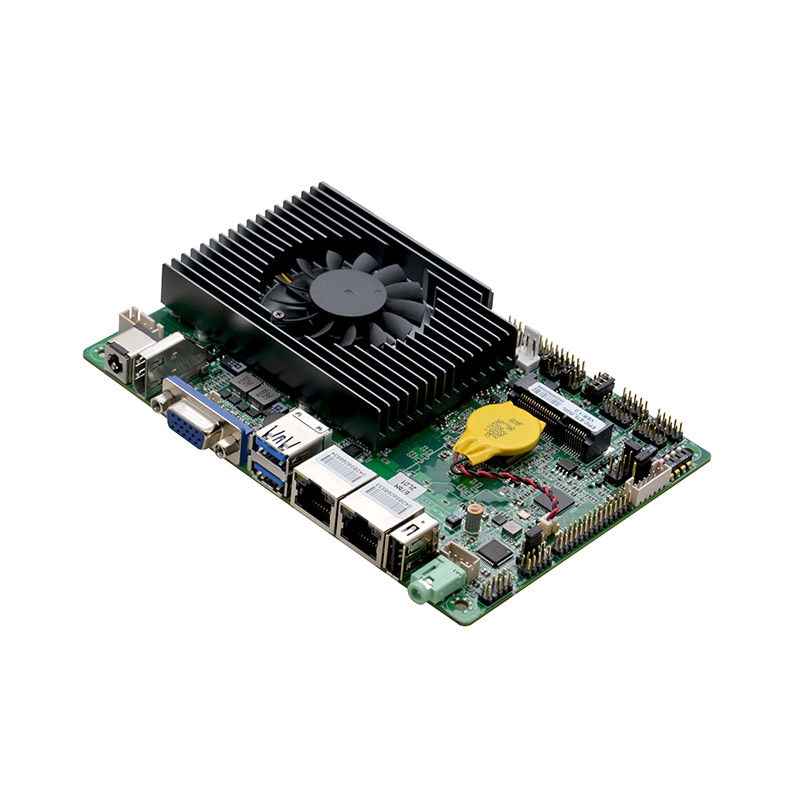

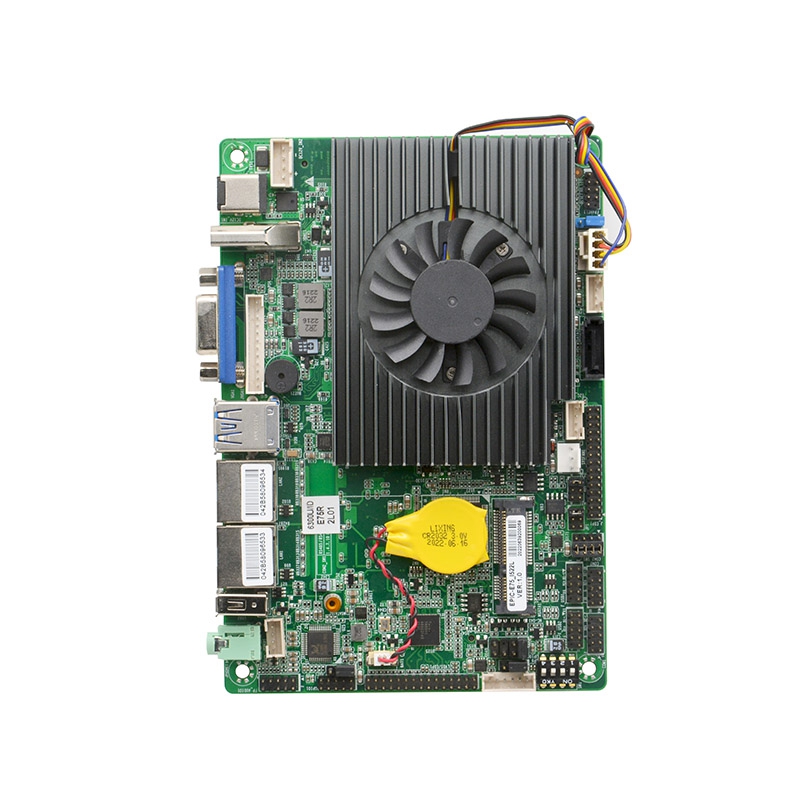

Detail Display
Product Description

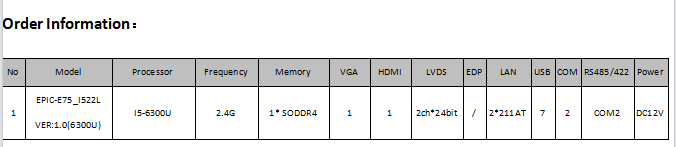

Model No.: EPIC-E75_I522L VER:1.0(6300U)
Processor: Integrated Intel® I5-6300U 2.4GHz Dual core Quad thread processor, TDP15W
Compatible with Intel® Skylake-U Celeron/PentiumI3/I5/I7 28W low power consumption processors
Chipset: SOC
Memory: 1*SODIMM memory slot, supportsDDR4 2133MHz memory,is up to 32GB
Display: Integrated Intel® HD Graphics 520, supports DirectX 12 OpenGL 4.5, supports 4K
1*VGA,1* HDMI, 1*LVDS, supports dual channels 24Bit or EDP
Note: LVDS and EDP, only choose one
Ethernet: 2* RTL8111H Gigabit Ethernet,supports Wake on LAN/PXE function
Storage: 1* 7pin SATA3.0, the transfer rate is up to 6Gbps
1* MSATA slot，supports Intel protocol SSD，the transfer rate is up to 6Gbps
Audio: Onboard ALC888S 7.1+2 channel high fidelity audio controller, supporting line-out, power amplifier
Support power amplifier 4Ω/3W dual channels

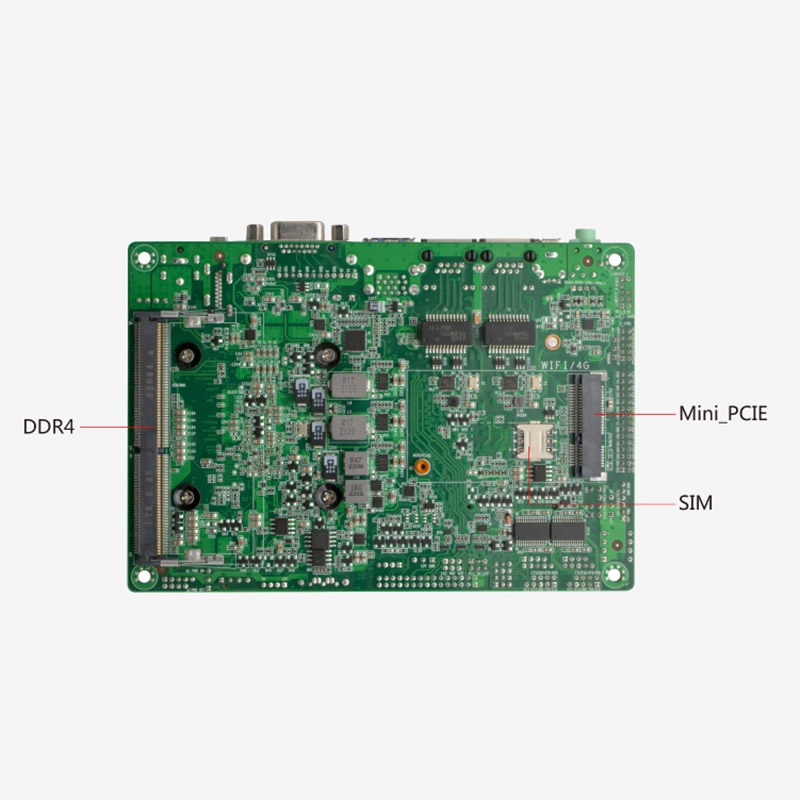

Expansion Slot: 1* Mini-PCIE slot,supports WIFI/4G module

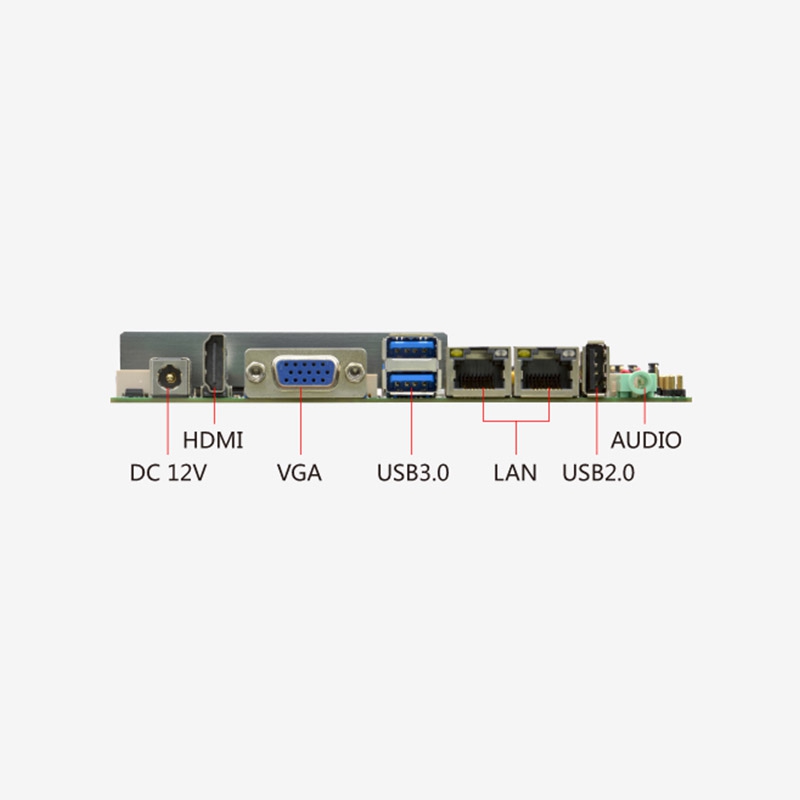

Rear I/O interface:
1* DC_Jack 12V
1* HDMI
1* VGA
2* USB3.0
1* USB2.0
2* RJ45 Gigabit Network Interface
1* Line-out (Green)

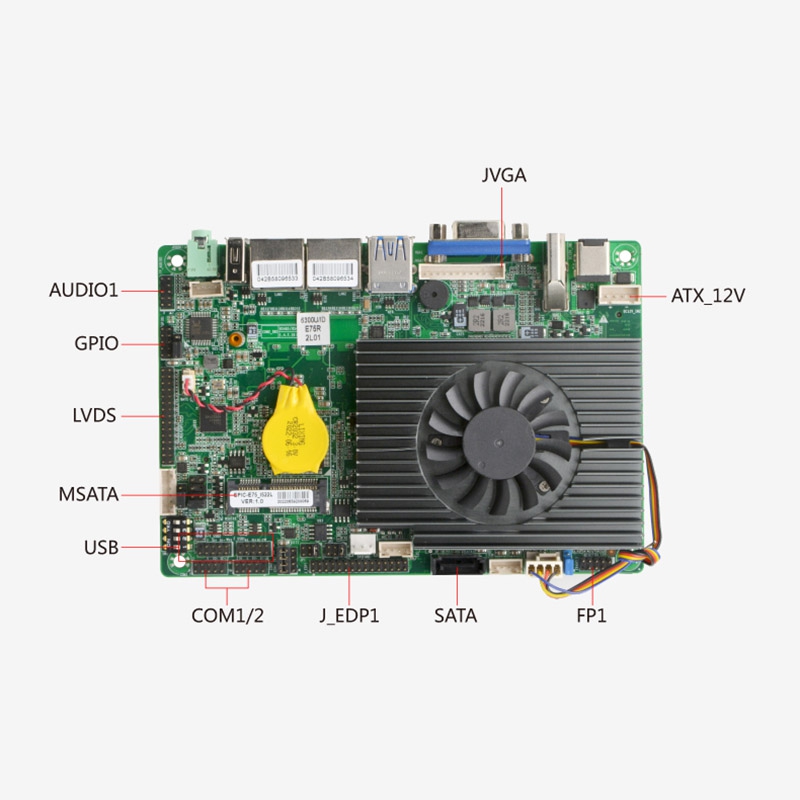

Built in I/O interface:
1* 4pin DC power interface, supports 12V power input output
1* JVGA, 1*12pin (Same signal as DB15)
1* LVDS, 2*15pin, supports Dual channel 24BIT,
1* EDP, 2*15pin, choose either LVDS or EDP interface, default is LVDS
1* Backlight power supply interface, 1*6pin
2* RS232 COM，COM1 supports the 9th pin charged, COM2 supports RS485 function
4* USB2.0, 2*5pin
1* Front audio interface, 2*5pin
1* Power amplifier interface, 1*4pin
1* Hard disk power supply interface, 1*4pin
1*Front panel function button and indicator light interface, 2*5pin
Fan Connector: 1*4pin CPU smart fan connector, 1*3pin system fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows7/Windows 10/Linux
Power Type: DC 12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)

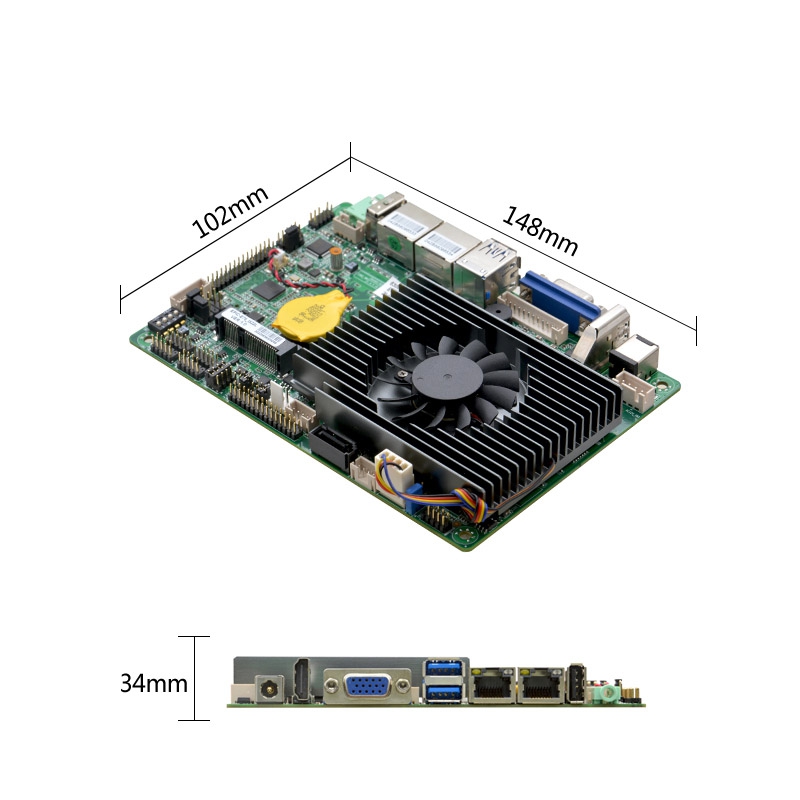

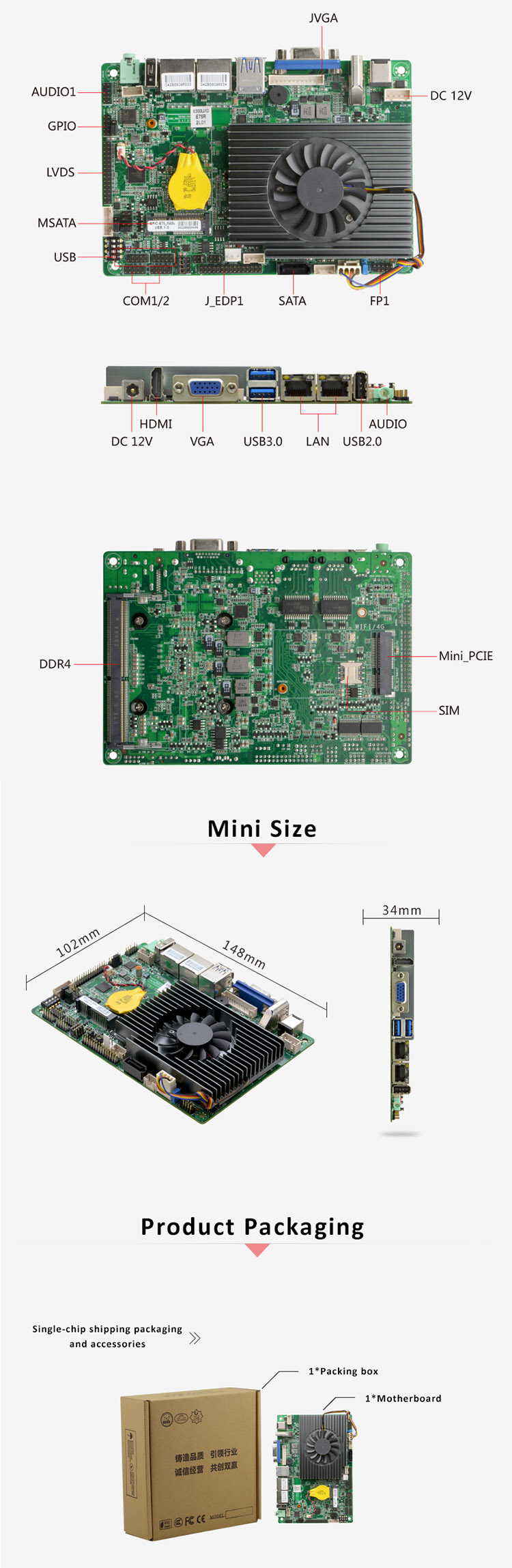

Dimension: 148mm x 102mm
