Product Description

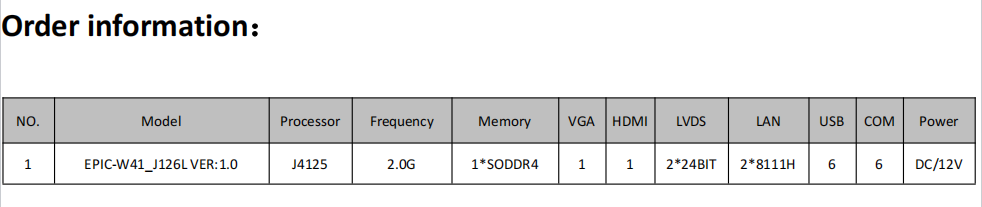

Model No.: EPIC-W41_J126L VER:1.0
Processor: Integrated Intel®Celeron J4125 2.0GHz Quad core Quad thread processor ,TDP 10W
Compatible with Intel® Gemini Lake all series CPU, flexible choice for customers
Chipset: SOC
Memory: 1x SODIMM slot,supports signal channel 2400MHz DDR4 memory,up to 8GB
Display: Integrated Intel®HD Graphics
1x VGA,1x HDMI,1x LVDS,supports dual channel 24BIT
1x EDP,share row pin with LVDS, LVDS by default
Ethernet: 2x RTL8111H Gigabit Ethernet,supports Wake on LAN/PXE function
Storage: 1x 7pin SATA3.0, the transfer rate is up to 6Gbps
1x MSATA slot, supports Intel protocol SSD,the transfer rate is up to 6Gbps
Audio: Onboard ALC892 7.1+2 channel high fidelity audio controller,supports MIC/Line-out,power amplifier
Suggest power amplifier 2Ω3W horn
Expansion Slot: 1x Mini-PCIE slot, supports WIFI、4G module

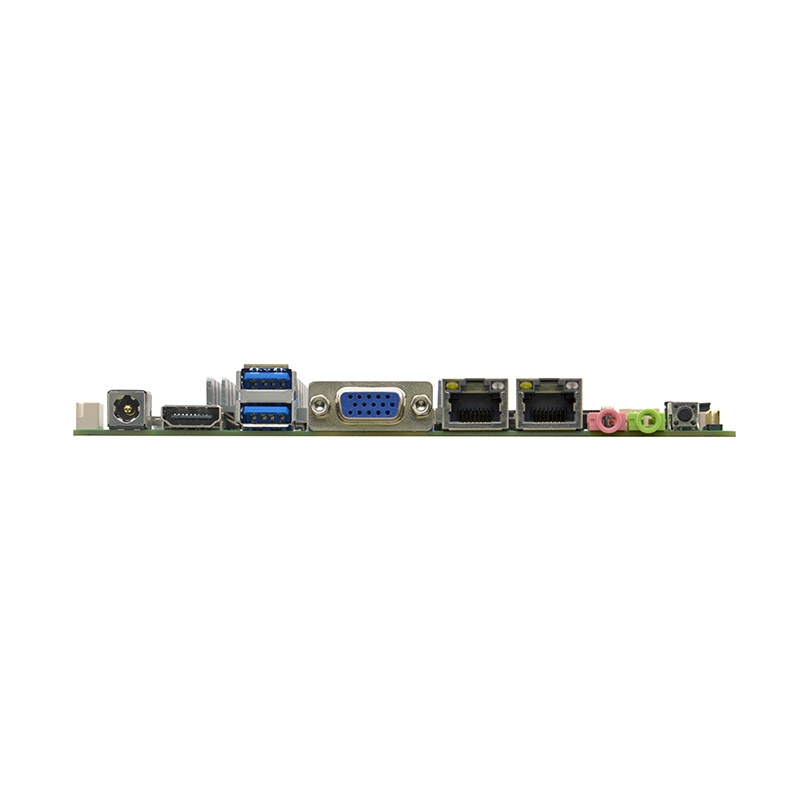

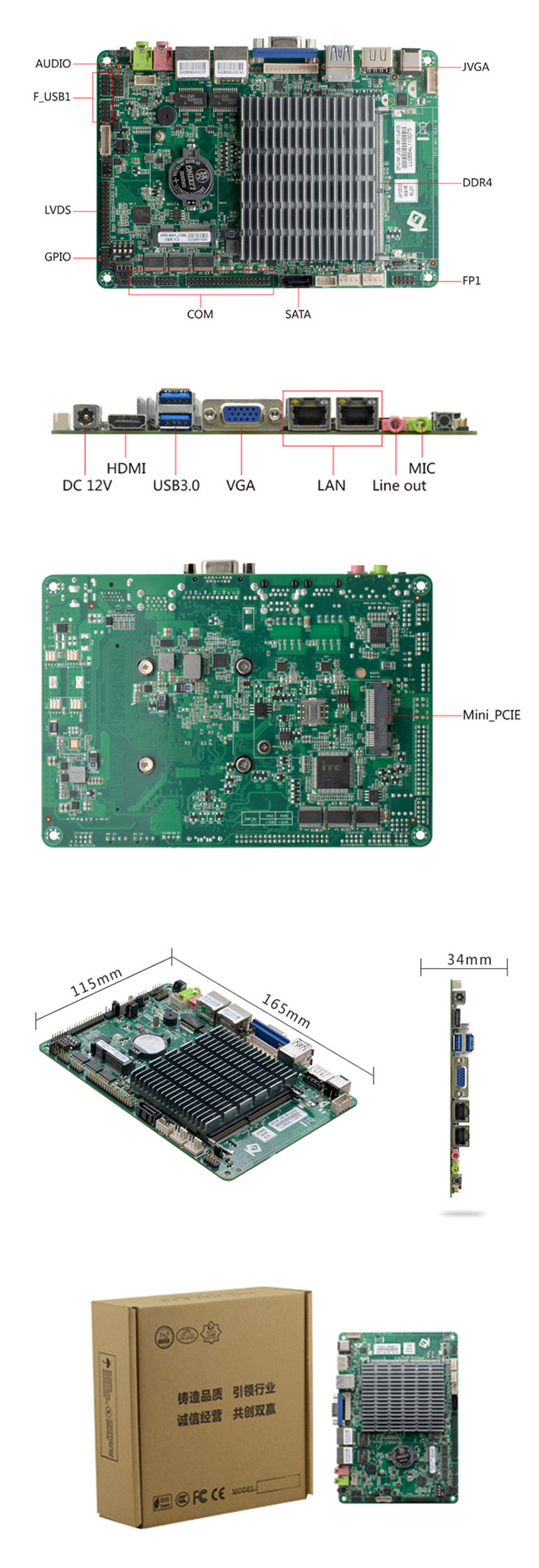

Backplane I / O interface:
1x DC power input interface,supports 12V power input output,supports DC9~36V power，default is 12V
1x HDMI
1x VGA
2x RJ-45 Gigabit Network interface
2x USB3.0
1x Line out (Green)
1x MIC (Red)
1x power switch
Built in I / O interface:
1x DC12V power interface ,1x 4pin
4x USB 2.0, 2x 5Pin
1x JVGA, 1x 12Pin (Same signal as DB15)
6x RS232 COM, COM2 supports RS485/RS422 function
1x Front audio interface, 2x 5pin
1x Power amplifier interface, 1x 4Pin
1x LVDS, 2x 15pin,supports Dual channel 24BIT, LVDS share row pins with EDP,can choose to do EDP interface
1x LVDS Backlight power supply interface, 1x 6pin
1x Front panel switch button and indicator light interface, 2x 5Pin
1x Hard disk power supply interface, 1x 4pin
1x SIM card slot
Fan interface: Support no fan cooling,Reserve 1x 4pin CPU smart fan connector ，1x 4pin system fan connector
GPIO: Supports 4-way input output GPIO
BIOS: 64Mb Flash ROM
Watchdog: Supports hardware reset function (L256, 0~255 seconds)
OS: Windows 10/Linux
Power Type: DC 12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% (relative humidity,non-condensing)
Dimension: 165mm x 115mm
