Machine vision is one of the basic applications of artificial intelligence. By simulating the human visual system, it gives machines the ability to "see" and "recognize". It can replace the human eye in a variety of scenarios to achieve a variety of functions, mainly including recognition, measurement, positioning and detection. In the machine vision industry, the performance of the industrial computer directly affects the processing speed and running time of the entire visual system, and is the key to the entire visual system. The industrial control motherboard is the brain of the industrial computer. Senbainno has developed a number of solutions specifically for the machine vision industry.
1. Low power consumption series visual industrial control motherboard

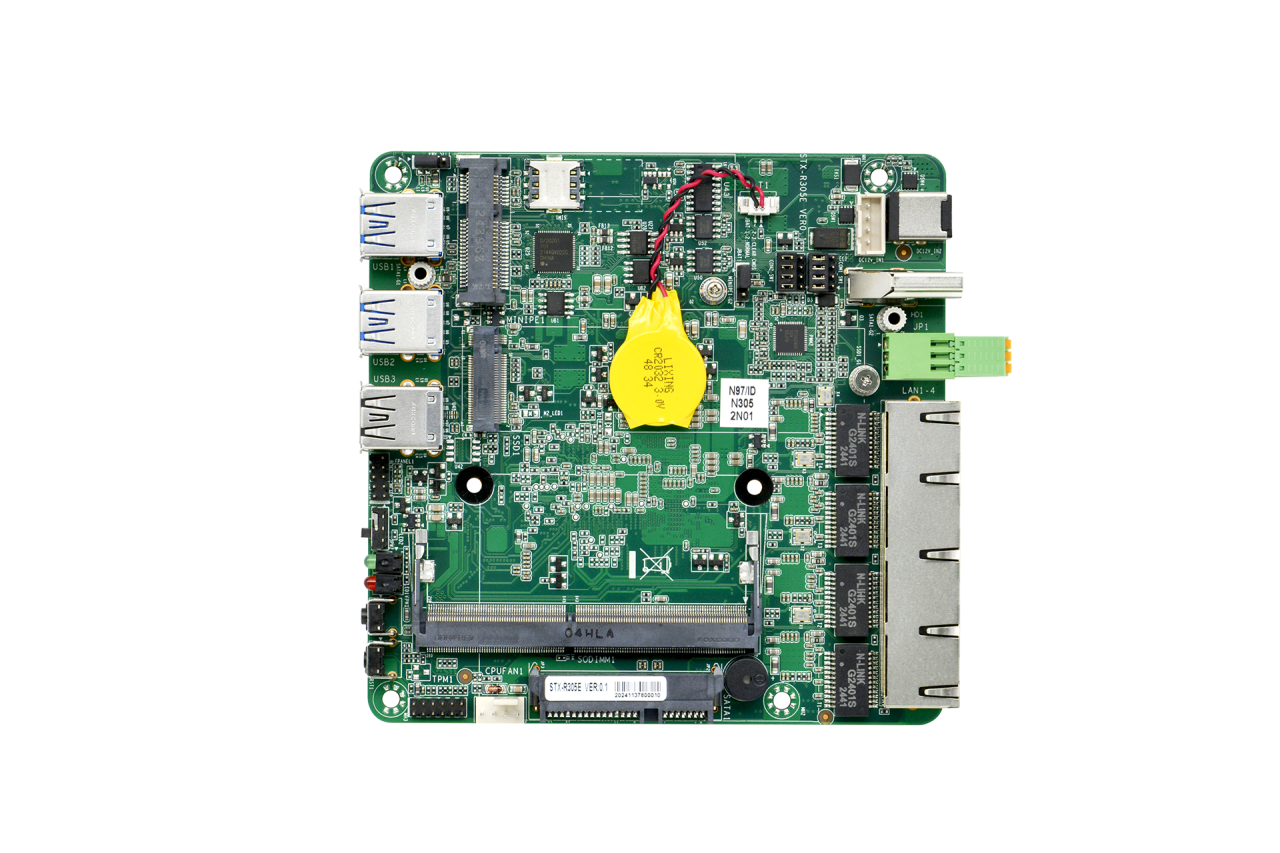

STX-R305E VER:1.0



◆Integrated Intel® Alder Lake-N N97 3.6GHz quad-core processor, TDP 12W
◆1* SODIMM slot, supports single-channel 3200MHz DDR4 memory, supports up to 16GB
◆4* Intel WGI210AT Gigabit network card chip, supports network wake-up/PXE function, can be used with VL68-PW to support POE
◆2* USB3.0, 6* USB2.0, 6* RS232 serial ports, COM2/3 supports RS485/422, 1* TPM pin header
◆DC12V power supply

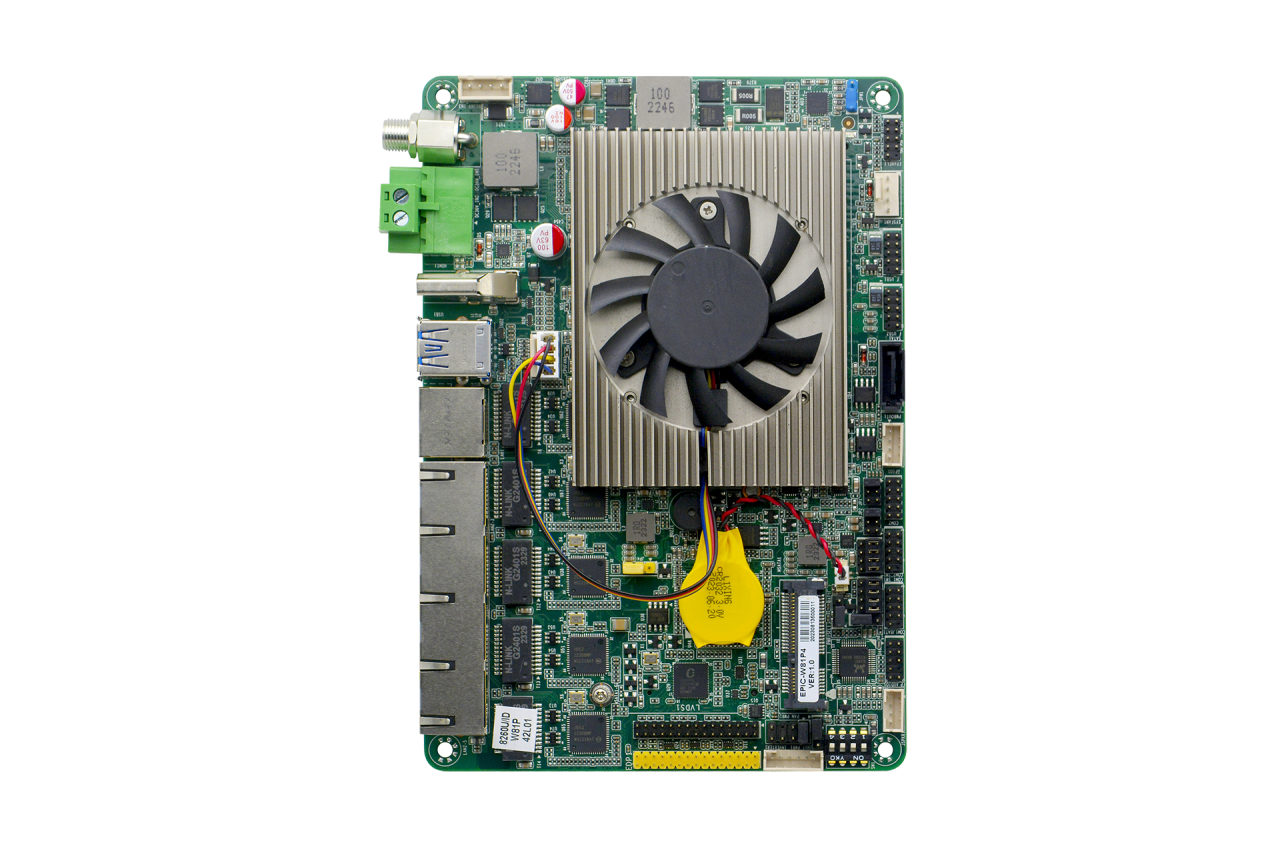

EPIC-W81P4 VER:1.1



◆Integrated Intel® 8th generation I5-8260U 1.6GHz quad-core eight-thread processor, TDP15W
◆1* DDR4 SODIMM memory slot, supports 2400MHz memory, supports up to 32GB
◆1* HDMI interface, 1* LVDS
◆5* Intel WGI210AT Gigabit network card, supports network wake-up, PXE function, LAN2~5 supports POE
◆2* USB3.0, 4* USB2.0, 2* RS232 serial port, supports RS485/422
◆Support DC9~36V power supply

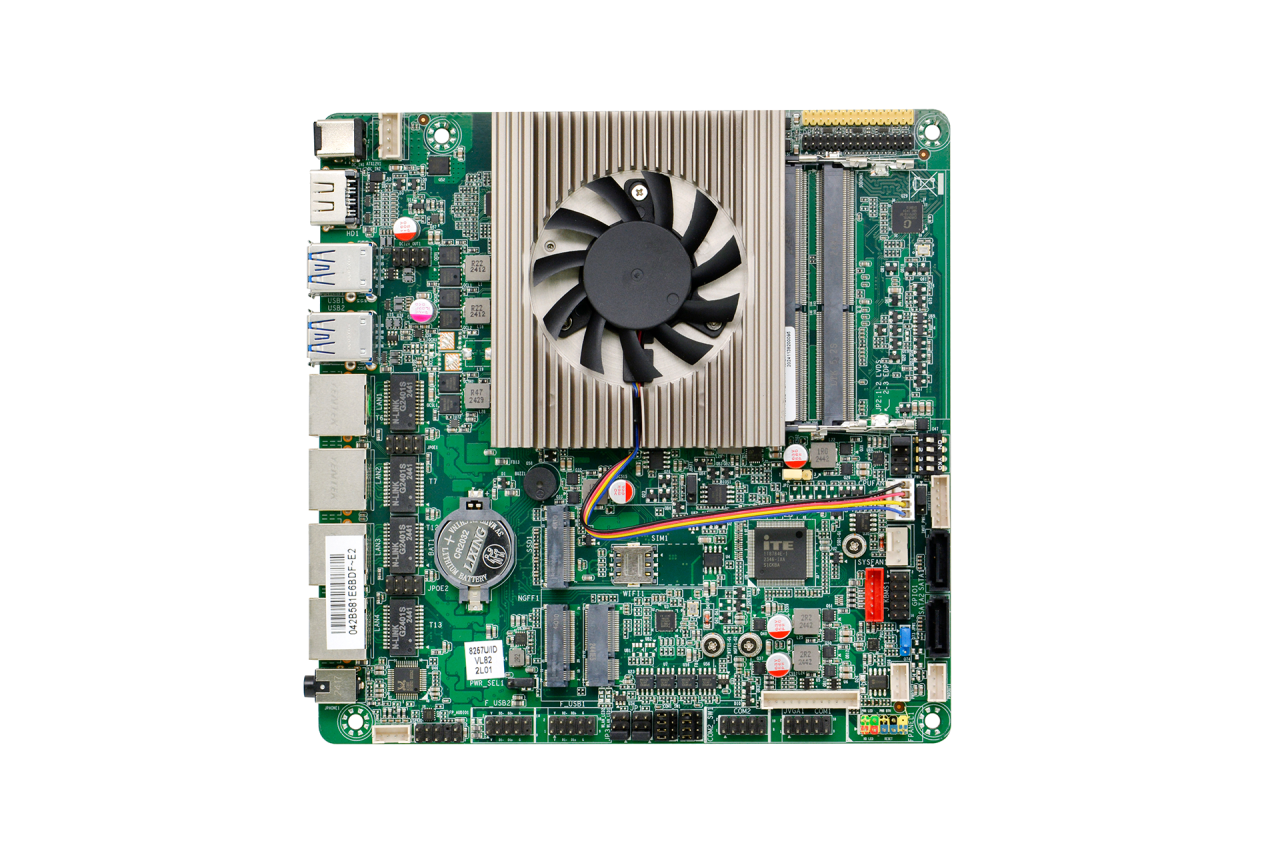

ITX-VL82/VL68/VL730 VER:1.0


◆Integrated 6th/7th/8th generation Intel® I7-6920HQ 2.9GHz quad-core eight-thread/I5-7267U 3.1GHz dual-core four-thread/I5 8257U 1.4GHz quad-core eight-thread processor
◆DDR4 SODIMM memory slot, supports 2400MHz memory, supports up to 64GB
◆1* VGA, 1* HDMI, 1* LVDS, 1* EDP, and LVDS through jumper selection 1
◆4* Intel I210AT Gigabit network cards, support network wake-up, PXE function, support POE (using POE sub-board)
◆Support M.2 SSD, SATA, MSATA (support TPM-4COM to expand 4 serial ports)
◆4* USB3.0, 4* USB2.0, 2* RS232 serial ports, support RS485/422
◆1* M.2 supports WIFI/BT module, 1* M.2 supports 5G
◆DC12V power supply

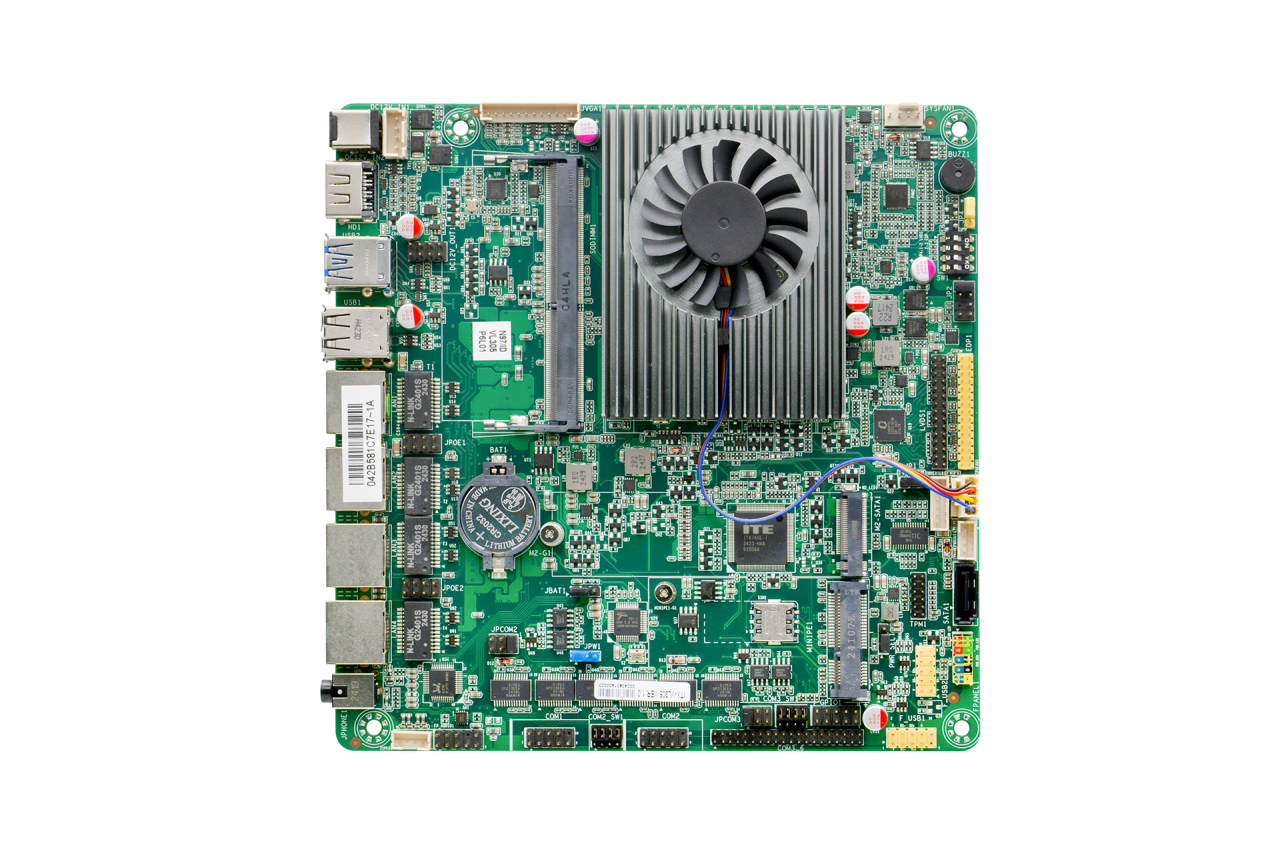

ITX-VL305 VER:1.0


◆Integrated Intel® Alder Lake-N N97 3.6GHz quad-core processor, TDP 12W
◆1* SODIMM slot, supports single-channel 3200MHz DDR4 memory, maximum support 16GB
◆1* VGA, 1*HDMI1.4 interface, 1* LVDS interface, 1* EDP interface, LVDS and EDP can be selected by jumping
◆4* Intel WGI210AT Gigabit network card, supports network wake-up, PXE function, can support POE, with VL68-PW expansion board
◆2* USB3.0, 6* USB2.0, 6*RS232 serial port, COM2/3 supports RS485/422, 1*TPM pin header
◆DC12V power supply
2.Core platform visual industrial control motherboard

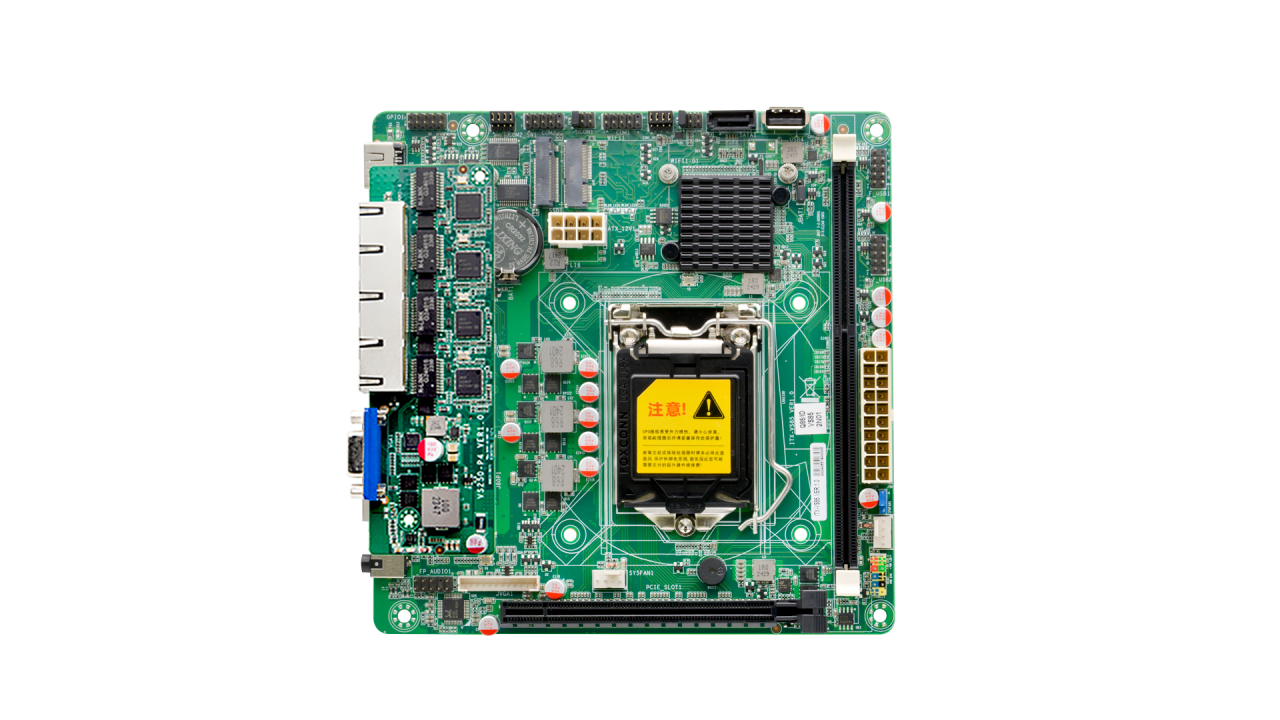

ITX-VS85 VER:1.0




◆Support LGA1150 Intel® Celeron/Pentium/Core™ i3/i5/i7 processor
◆Adopt Intel® Q85 high-speed chipset.
◆1* DDRIII DIMM memory slot, supports single-channel 1600/1333MHz memory, supports up to 8GB
◆1* VGA, 1*HDMI1.4
◆6* Intel ®I210AT Gigabit network card chip, supports network wake-up/PXE
◆1* PCIE X16, 1*M.2 SSD, 1*M.2 WIFI
◆4* USB3.0, 7*USB2.0, 2*RS232 serial port, supports RS485/422
◆Extendable 4 POE network cards

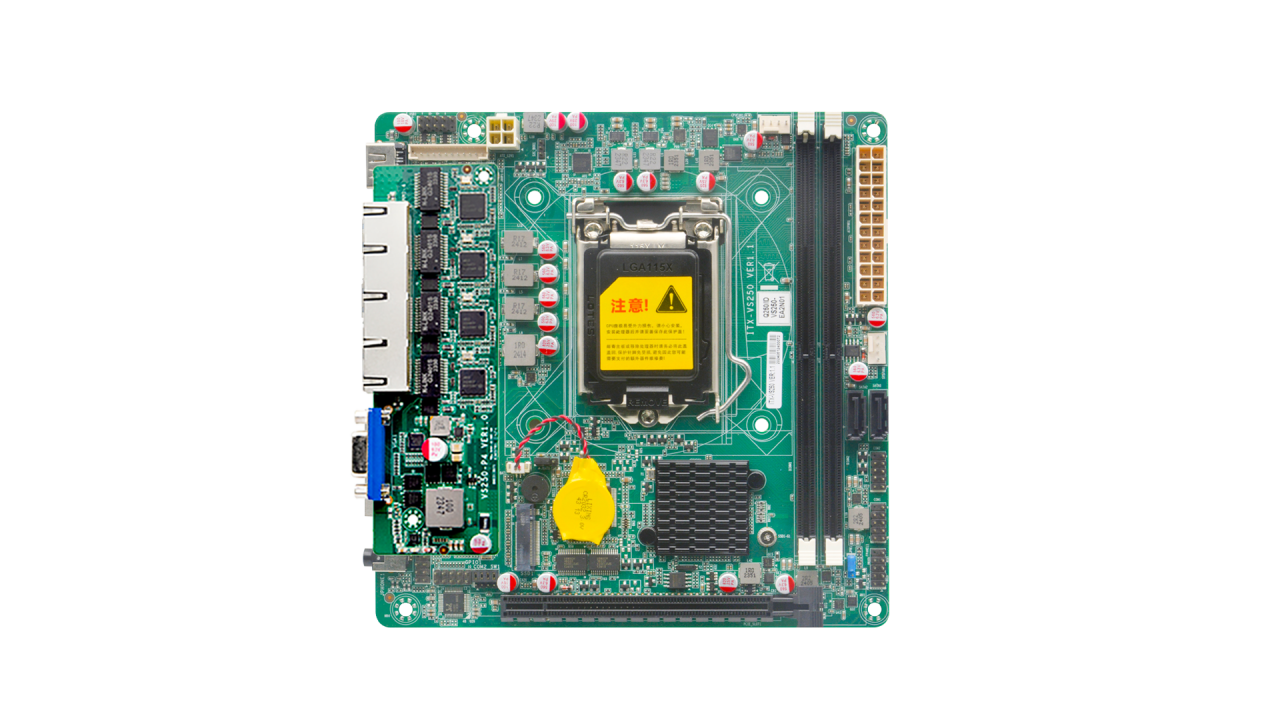

ITX-VS250 VER:1.1


◆Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors
◆Adopt Intel® Q250 chipset
◆2* DDR4 DIMM memory slots, support dual-channel up to 2400MHz memory, support up to 64GB
◆1* VGA, 1*HDMI1.4
◆6* Intel ®I210AT Gigabit network card chip
◆2* SATA3.0, 1* M.2 supports NVME SSD
◆1* PCIE3.0 X16 slot, 2 serial ports, COM2 supports 485
◆Extendable 4 POE network cards

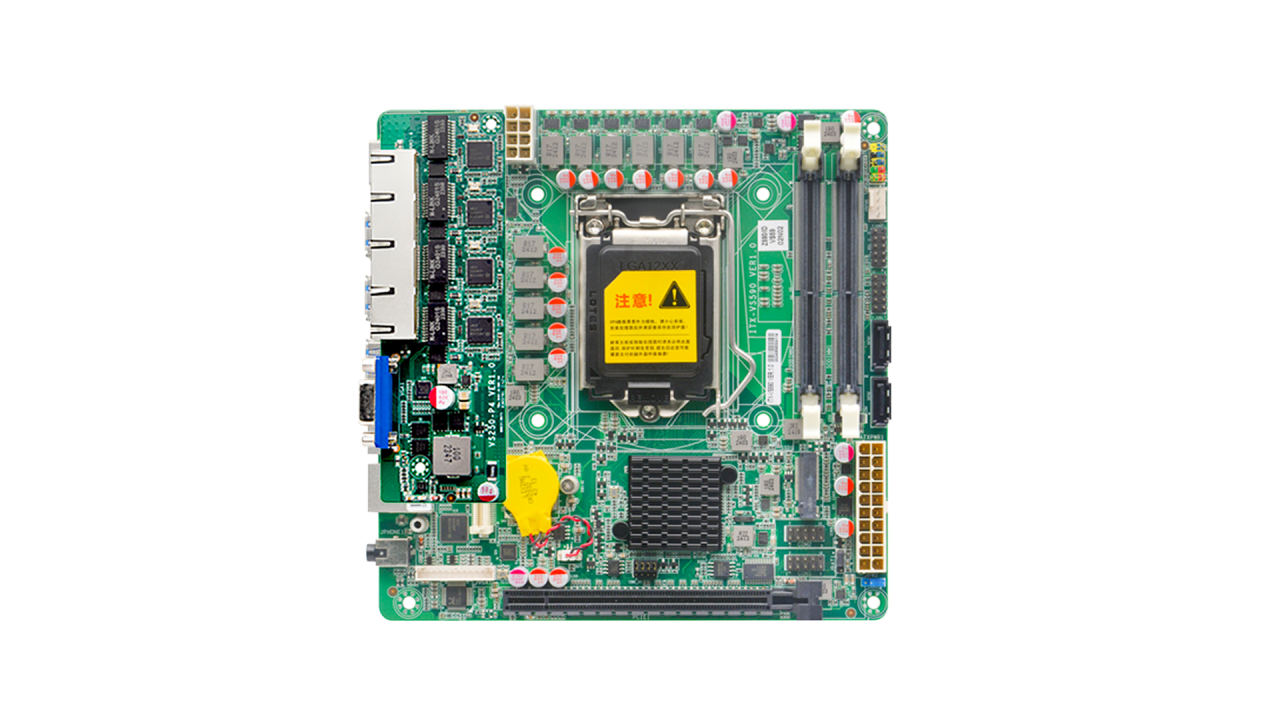

ITX-VS590 VER:1.0



◆Support LGA1200 10th/11th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors
◆Use Intel® Z590 chipset
◆2* DDR4 SODIMM memory slots, support dual-channel up to 3200MHz memory, maximum support 128GB
◆1* VGA, 1*HDMI
◆6* Intel ®I210AT Gigabit network card chip,
◆1* M.2 slot, support SSD
◆1* PCIE3.0 X16 slot
◆1* 80pin high-speed socket, including 4*PCIE signals, 1*VGA signal (with VS250-P4 small board)
◆6*USB3.0,4*USB2.0,2*COM
3. High-performance visual industrial control motherboard

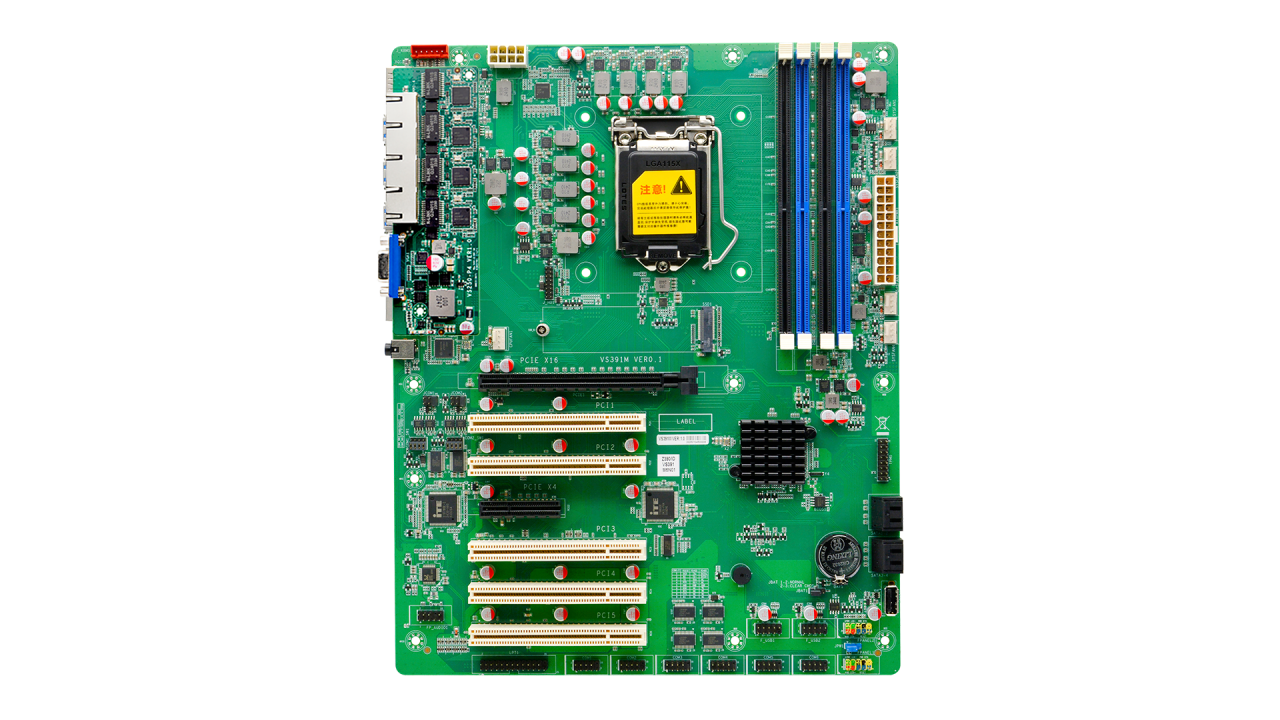

VS391M VER: 1.0



◆Support 8th/9th Celeron/Pentium/Core i3/i5/i7/i9 processors with LGA1151 architecture
◆Adopt Intel Z390 high-speed chipset
◆4*DDR4 DIMM memory slots, support dual-channel 2133/2400/2666MHz memory, support up to 64GB
◆1* VGA, 2* HDMI1.4
◆6* Intel I210AT Gigabit network card, 4 support POE function◆4* SATA3.0, 1* M.2
◆1* PCIE3.0X16, 1* PCIE3.0X4, 5* PCI
◆6* USB3.0, 5* USB2.0, 6* RS232 serial port, COM1/2 support 485/422

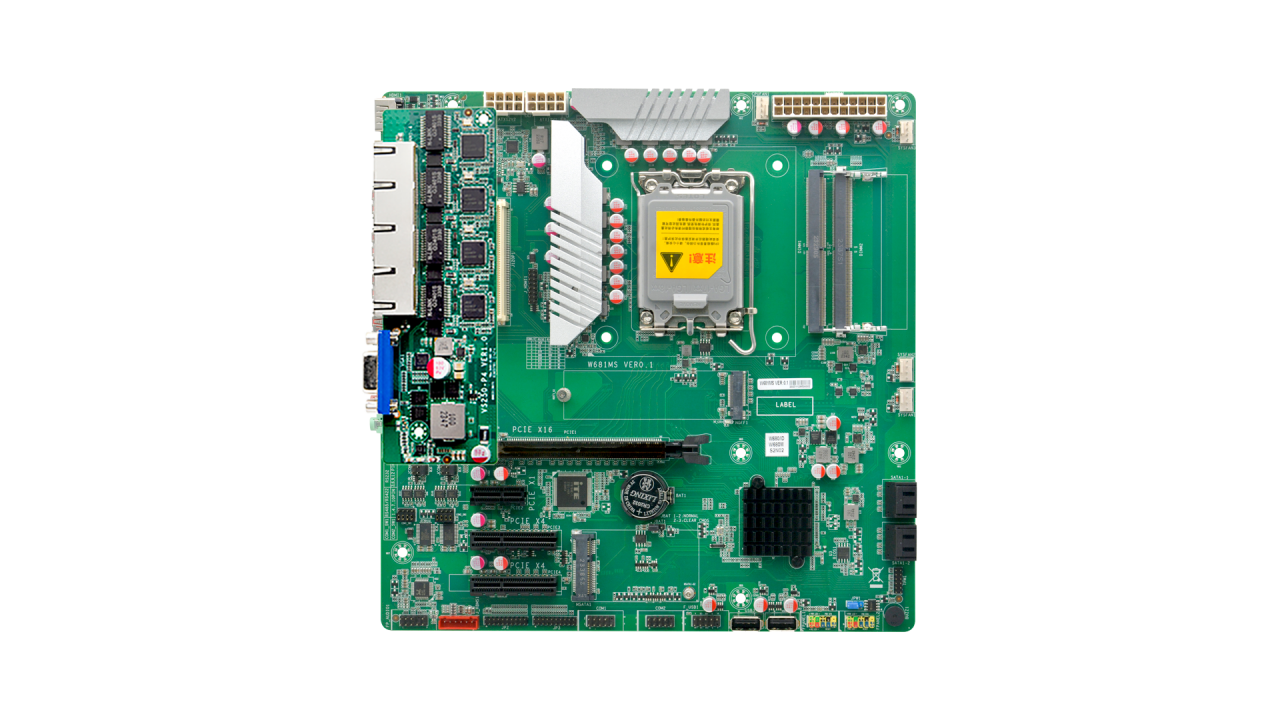

W681MS VER:1.0



◆Support LGA1700 12th/13th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors
◆Adopt Intel® W680 chipset
◆2* DDR5 SODIMM memory slots, support dual-channel up to 3200MHz memory, support up to 128GB, support ECC memory
◆1* VGA, 2* HDMI1.4
◆7* Intel I210AT Gigabit network card chip
