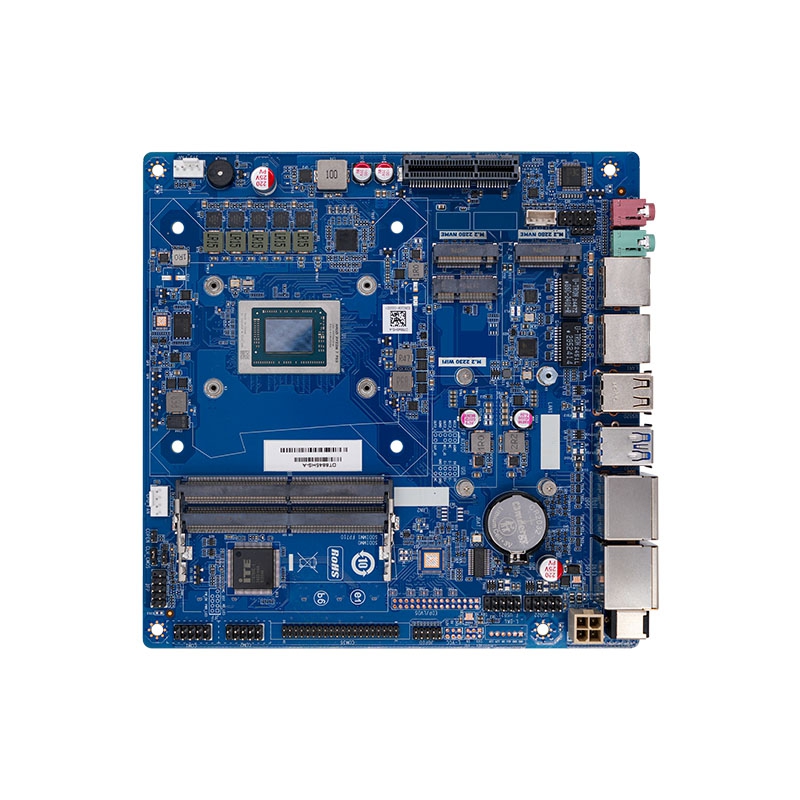

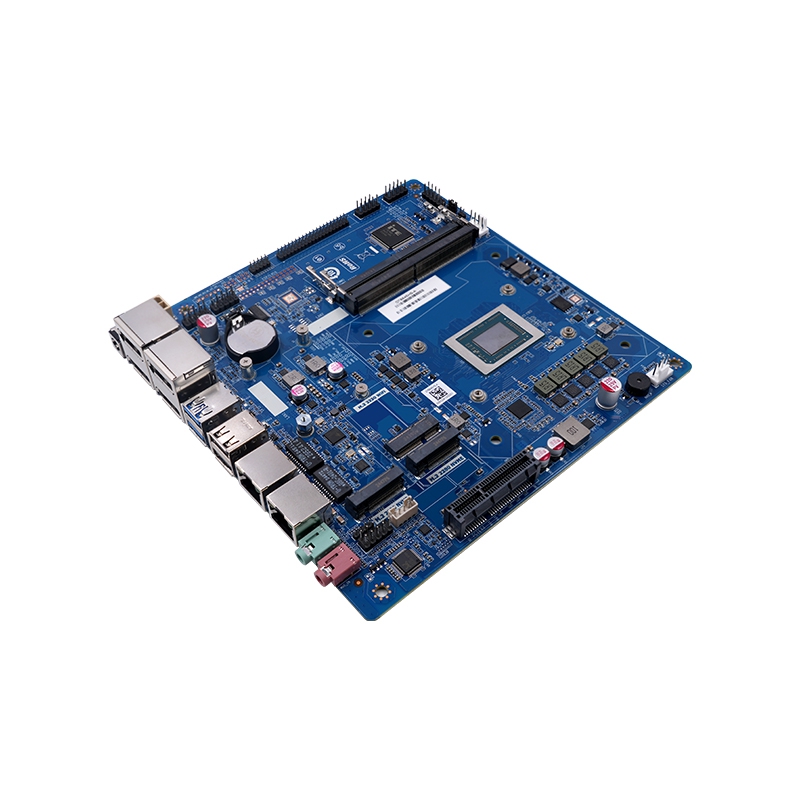

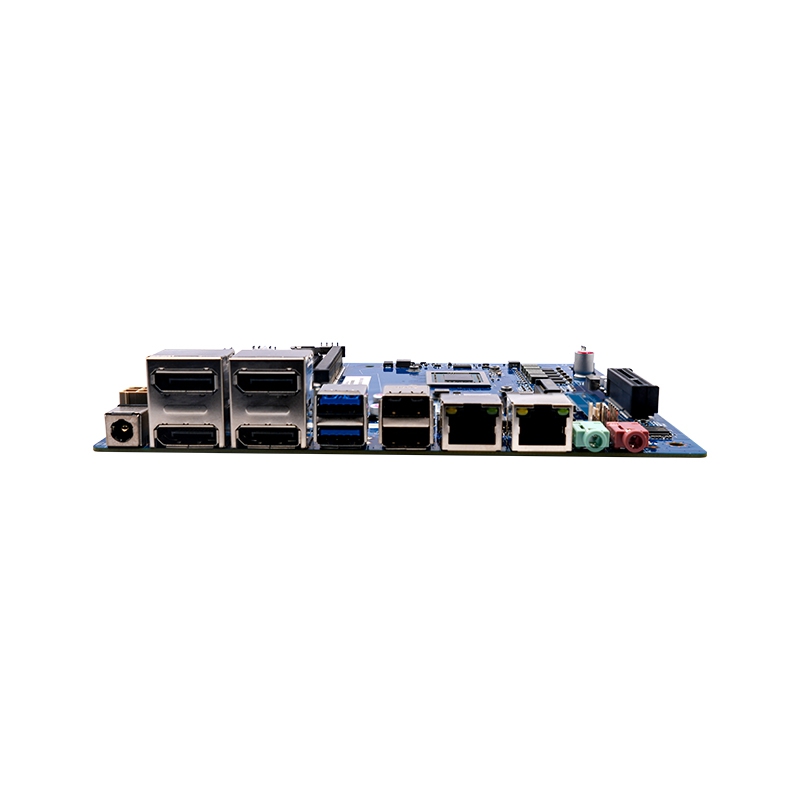

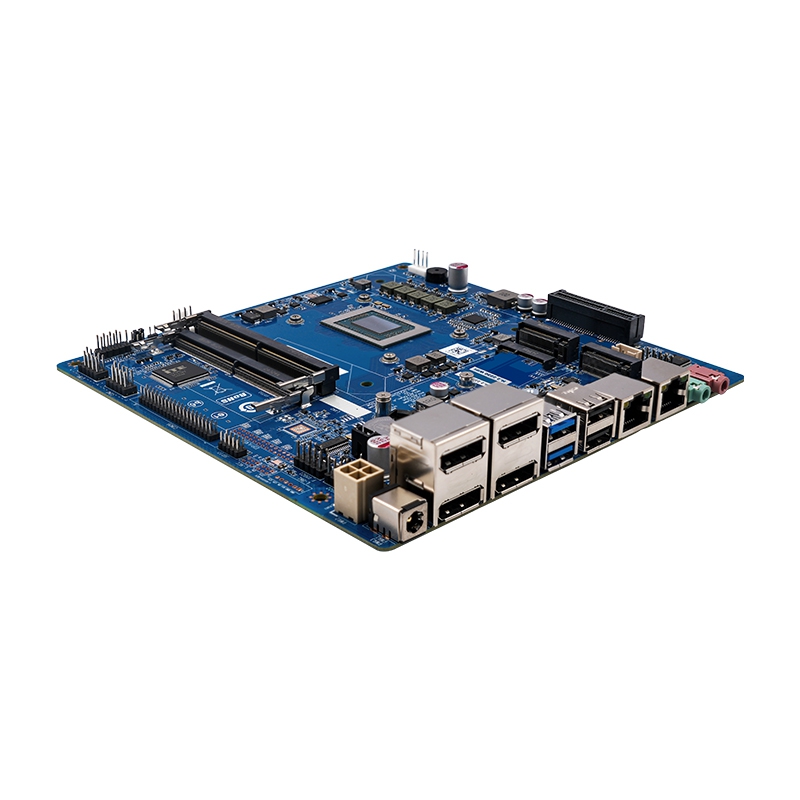

2 Lan DDR5 DP 4K Display AMD Single Board Computer

♦Model No.:FP-710

♦Adopt AMD Express chipset

♦Integrated AMD Ryzen™ 7 8845HS PRO 8 cores 16 threads processor

♦4*DP1.4 for 4K display

♦2*DDR5 SO-DIMM socket,up to 96GB

♦2*RJ45 Gigabit Eth / 8*USB / 6*COM(RS232) / TPM2.0(optional)

♦2* M.2_2280 SSD / 1* M.2_2230 Wi-Fi&BT / 1*PCIe 4X

♦Support GPIO; Realtek® ALC897 High-definition Audio Codec

♦Provide:1*DC_ 12V/19V ;Support Windows/ Linux O/S etc.

Description

Overview
The FP-710 is a flagship AMD Industrial Motherboard engineered for high-intensity computing and complex visual processing tasks. This high-performance AMD Embedded Motherboard is built on the advanced AMD Express chipset and features the powerful integrated AMD Ryzen™ 7 8845HS PRO processor (8 Cores, 16 Threads), delivering exceptional computational power for industrial automation, machine vision, and edge computing applications.

Designed as a highly adaptable custom AMD Industrial Mainboard, the FP-710 boasts top-tier specifications: support for up to 96GB DDR5 memory for seamless handling of massive data, multiple M.2 slots for high-speed storage and wireless connectivity, and 4x DP1.4 ports for multi-channel 4K display output. Its comprehensive I/O suite, including 8x USB ports, 6x COM ports, dual Gigabit Ethernet, and optional TPM 2.0, guarantees broad compatibility with a wide array of industrial peripherals. With a PCIe x4 slot and GPIO support, this versatile AMD Industrial Mainboard provides robust expansion capabilities for specialized applications, making it the reliable core platform for building the next generation of intelligent industrial systems.

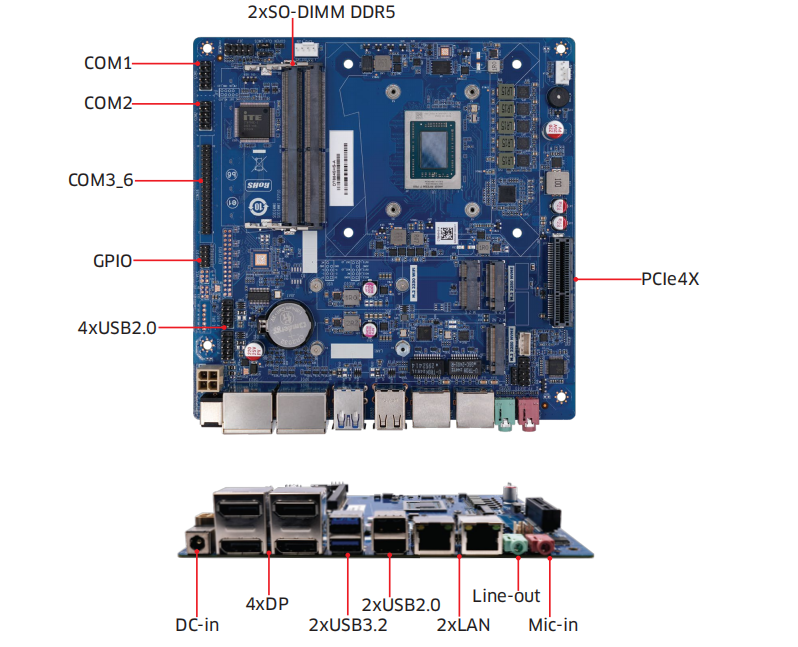

Detail Display

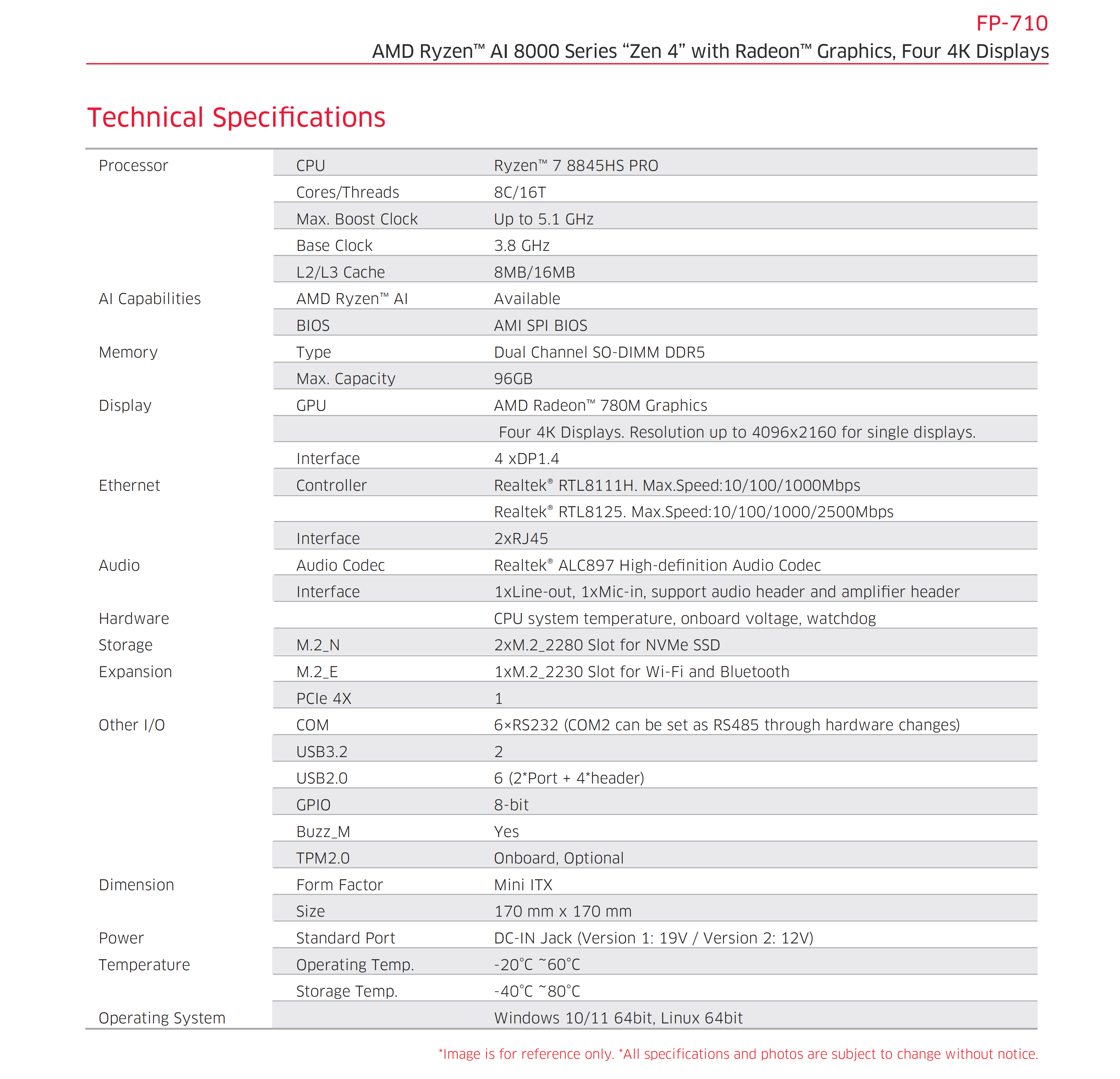

Product Description

Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.

Packing & Delivery

We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.

Company Profile

FAQ

Q1.Do you accept OEM / ODM order?

A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.

Q2:What payment method do you accept?

A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.

Q3:How long is the warranty of your products?

A3:We offer 2 years warranty for all of our products.

Q4:How many days will samples be finished? And how about the mass production?

A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.

Q5:If we come to China,can you arrange the visiting to your factory?

A5:We warmly welcome and look forward to your visiting to our factory at any time.

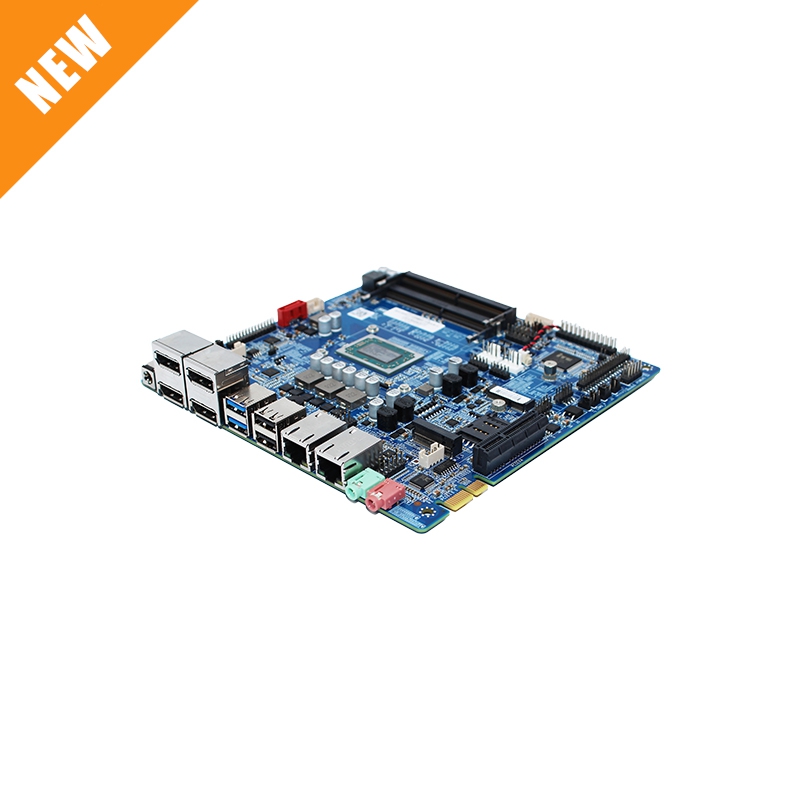

AMD V1605B 2 Lan DDR4 Industrial Mini ITX Mot...
