Product Description

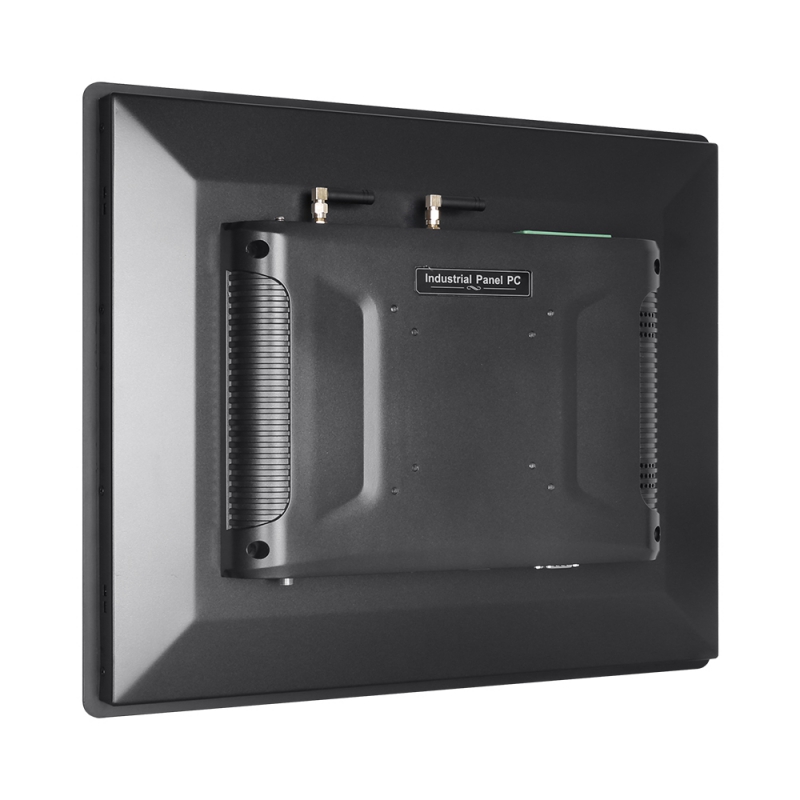

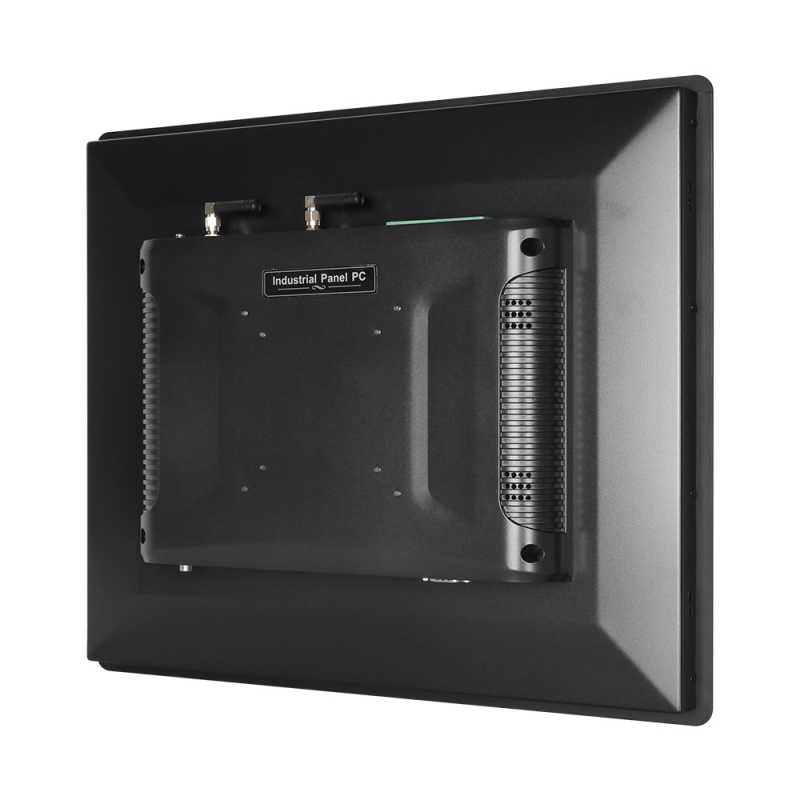

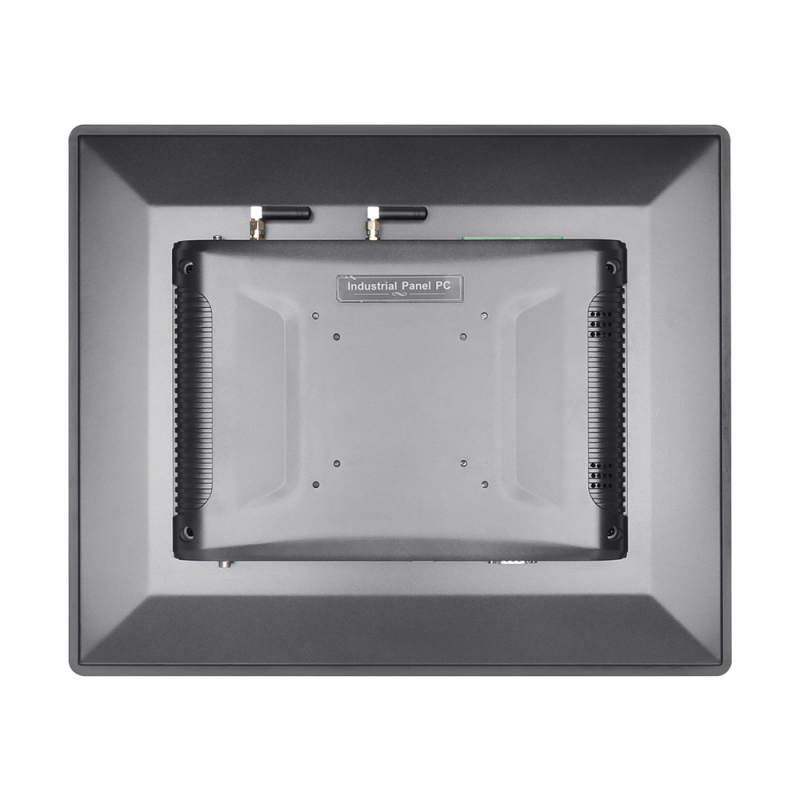

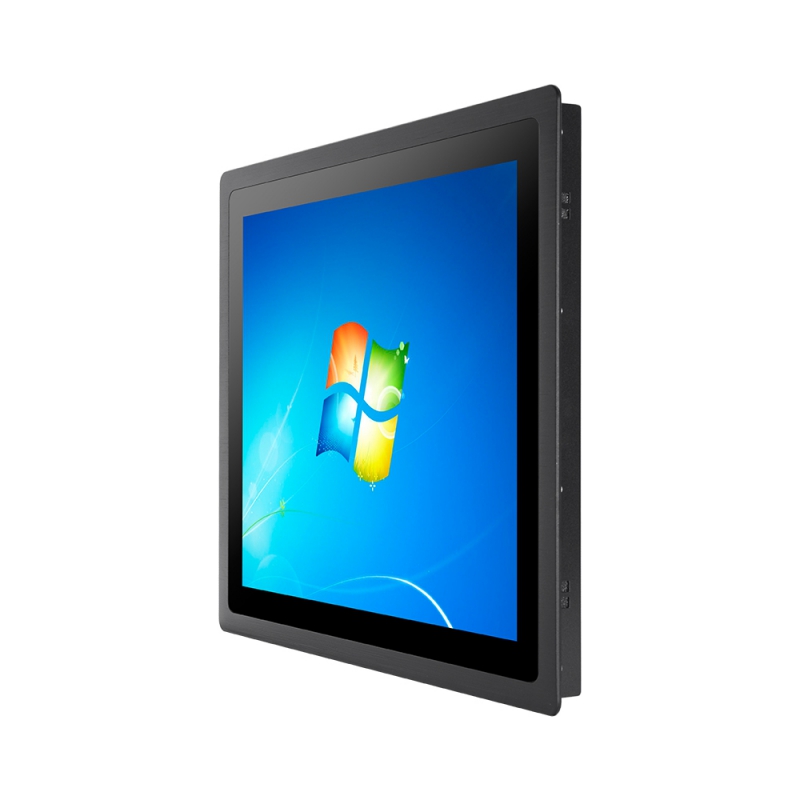

Full aluminum alloy panel structure with an IP65 waterproof front panel and an aluminum alloy rear cover equipped with heat dissipation holes. It is low power consumption.It is suitable for embedded installation applications and supports various external device connections, making it widely applicable in self-service terminals such as self-ser- vice vending machines, inquiry kiosks, parcel lockers, industrial, and medical self-service terminal fields.
Product Size: 17"
Non-touch: TPC170-W200-6412
Capacitive touch: TPC170-W210-6412
Resistive touch: TPC170-W220-6412

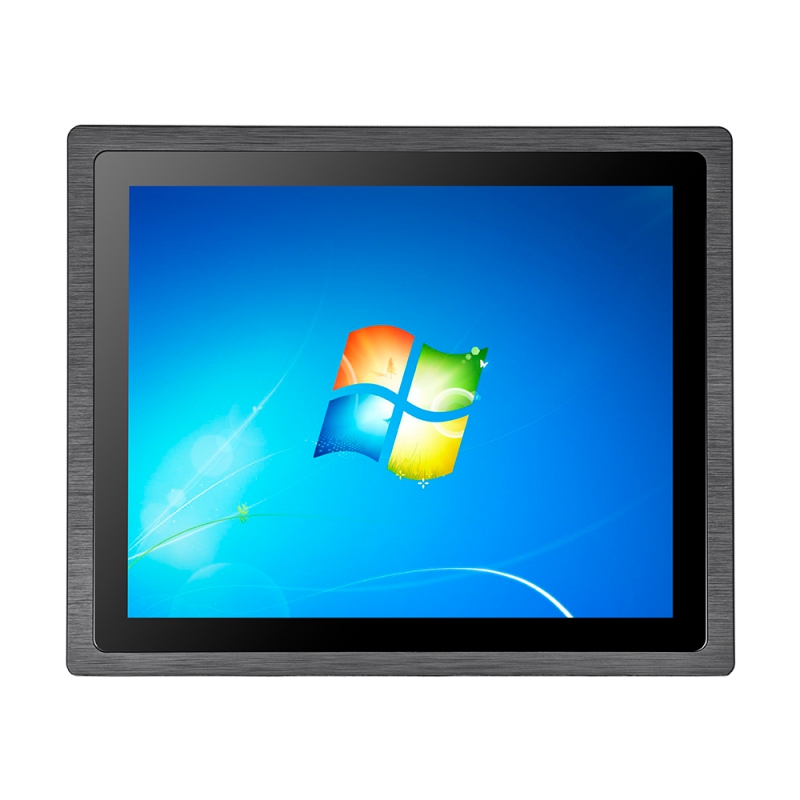

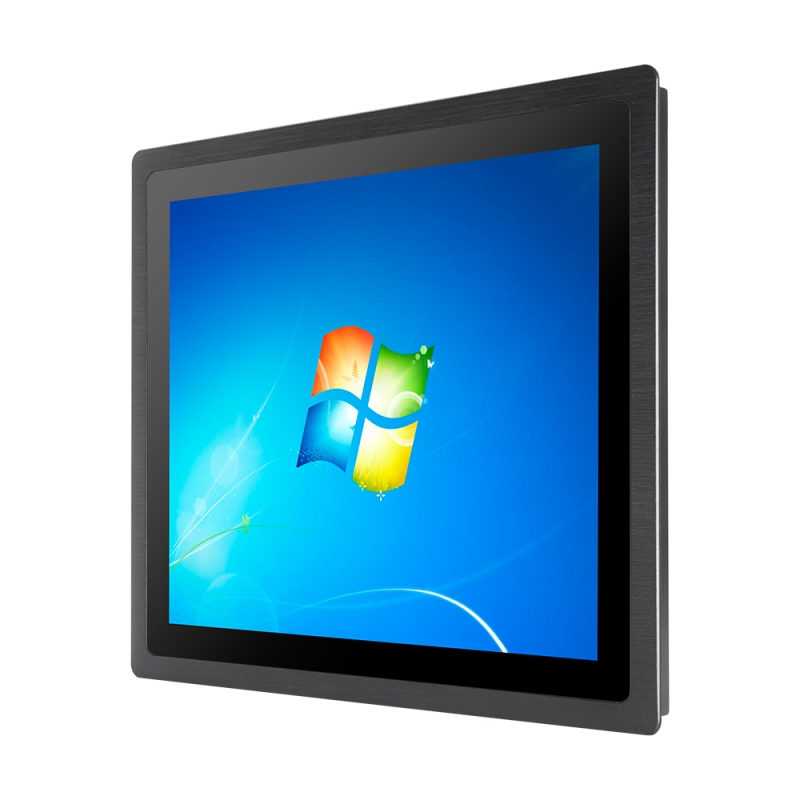

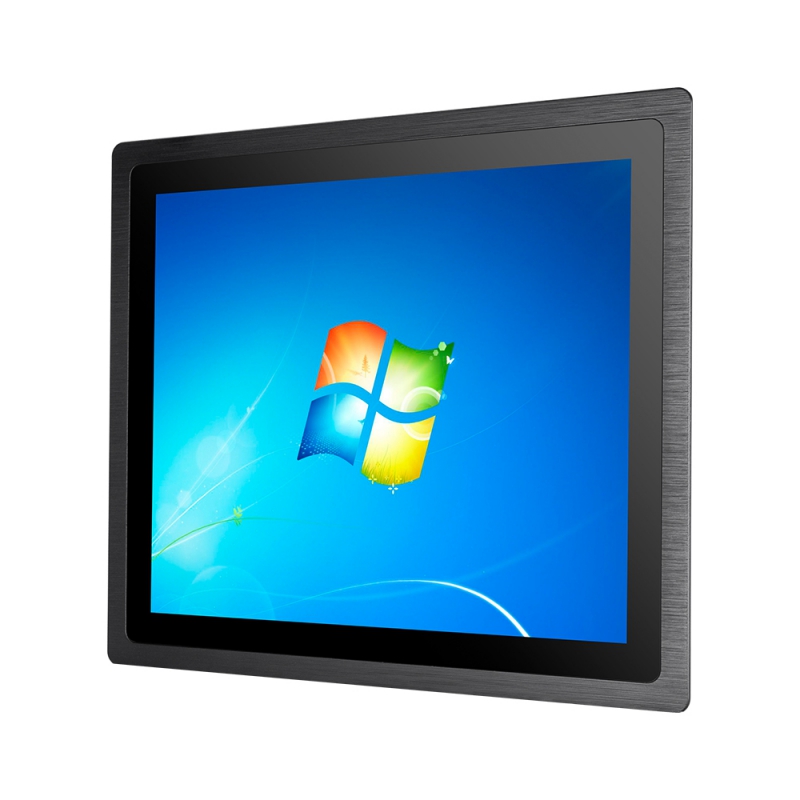

Screen Parameters:
LCD size: 17" TFT LCD
Resolution: 1280×1024(5:4)
Viewing angle: 85/85/80/70 (L/R/U/D)
Color: 16.7M
Brightness: 300 cd/m²
Contrast ratio: 1000:1
Physical Characteristics:

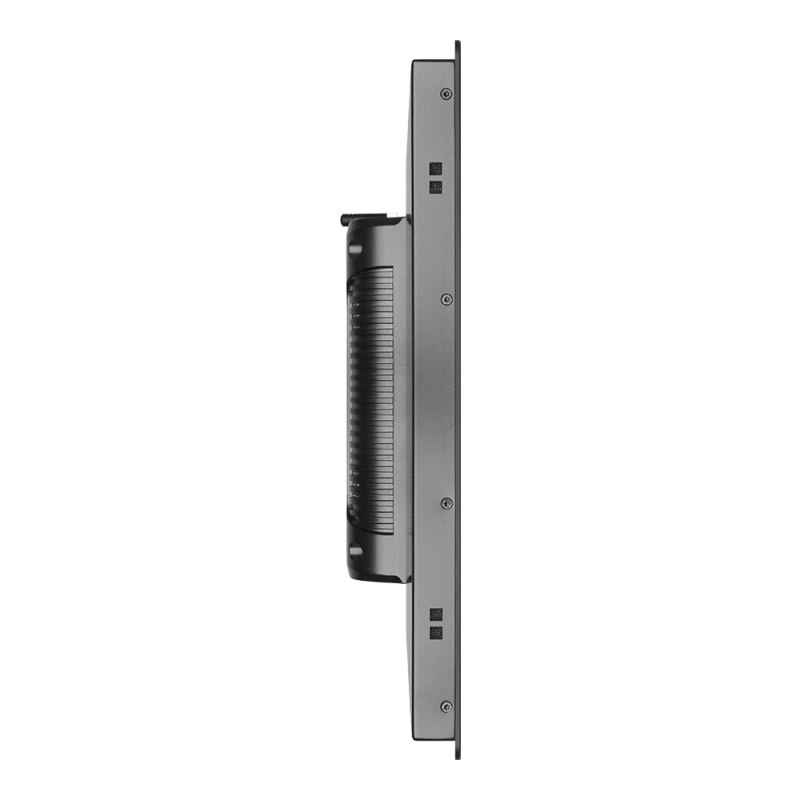

Overall dimensions: W414X H345X D63MM
Size of opening: W397.6x H328.6MM

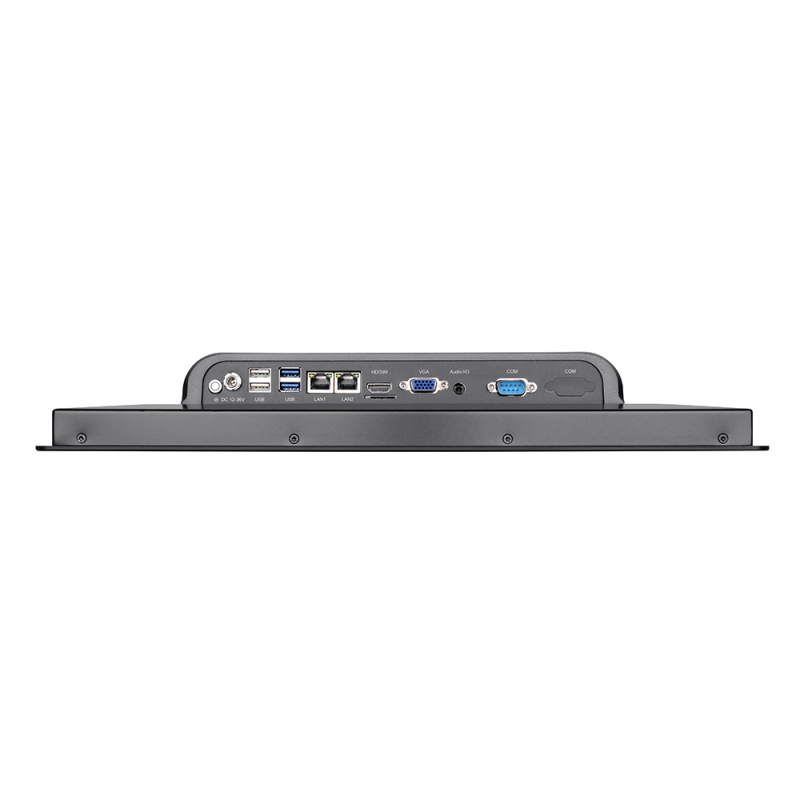

Interface Parameters:

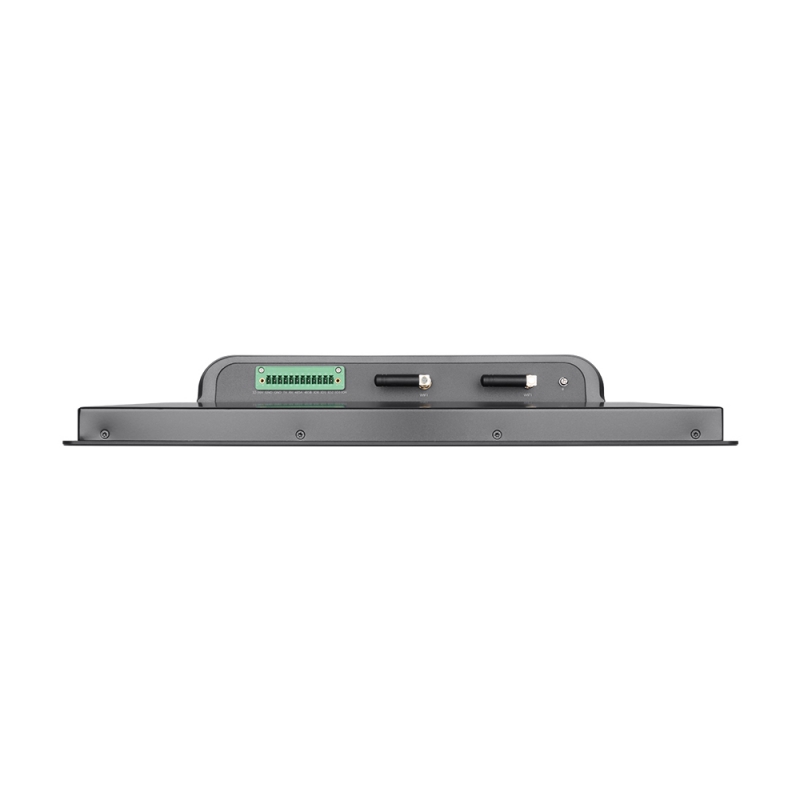

Power interface1: 1*12P Phoenix terminal (Power supply/RS232*1/RS485*1/GPIO*5)
Power interface2: 1*DC2.5, Supporting 12V-36V power input
USB :2*USB2.0, 2*USB3.0
VGA: 1*VGA
HDMI: 1*HDMI, Supporting HDMI data output, Up to 4K
SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
Network interface: 2*LAN, 1*Realtek PCI-E NIC RTL8111H (Applicable to 1000Mbps) 1*Realtek PCI-E NIC RT8152B (Applicable to 1000Mbps)
Audio interface: 1*Audio I/O, support audio input and output
COM: 1*RS232
WiFi antenna: 2*WiFi antenna
Grounding post: 1*Grounding post (GND)
Product Reliability Parameters:
Working temperature: -10°C~60°C
Storage temperature: -20°C~70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, Half sine wave, Lasting for 11ms
Product certification: CCC/CE/FCC/EMC/CB/ROHS
Waterproof grade: The front panel reaches IP65 protection level
Power Parameters:
Power input: DC 12V~36V
Static power: 18W
Hardware Configuration:
CPU: Intel Celeron J6412 quad-core 2.0GHz CPU
Memory: Standard: 8GB LPDDR4 ( It supports up to 16GB)
Storage: Standard: 256GB SSD (optional 512GB SSD, 1T/2T HDD)
Integrated graphics: Intel UHD Graphics 16 EUs
Broad pressure : With wide voltage (12V~36V)
WiFi: Support 2.4GHz/ 5GHz dual-band Wifi
Bluetooth: BT4.0（Optional）
Operating system :WIN10/11, Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04, Centos7.8/8.4/7.9, Redhat7.4, Debian10.0/11.6
