●Ultra-Slim 3mm Bezel for space-efficient cabinet integration
●IP65-Rated Protection with aluminum alloy enclosure
●Efficient Processing (Intel i3-6100U/8145U/10110U CPUs)
●True Industrial Design - Fanless X86 architecture
●High-Speed Connectivity - Dual Gigabit Ethernet
●Wide Voltage Support (12V-36V DC input)
●Enhanced Expandability - Multiple industrial I/Os
✓ Cost-Effective Reliability for industrial applications
✓ Large 17" Touch Interface for precise control
✓ Energy-Efficient Performance with Intel i3 CPUs
✓ Easy System Integration with existing equipment
Ideal For:
✔ Manufacturing process control
✔ Equipment monitoring interfaces
✔ Industrial HMI solutions
✔ Facility automation systems
Product Description
The overall use of flat aluminum alloy panel, fanless fully enclosed integrated design. Meet the requirements of different equipment in different environments. It is widely used in industrial control, military, communication, power, network, intelligent self-service terminal equipment and other automation applications.
Product Size: 17"
Non-touch: TPC170-W1000-I3
Capacitive touch: TPC170-W1010-I3
Resistive touch: TPC170-W1020-I3
Screen Parameters:
LCD Size: 17" TFT LCD
Resolution: 1280×1024
Viewing Angle: 85/85/80/70 (L/R/U/D)
Colour: 16.7M
Brightness: 300 cd/m2
Contrast ratio: 1000:1
Physical Characteristics:
Overall dimensions: W414x H345x D63mm
Size of opening: W397.6 x H328.6mm

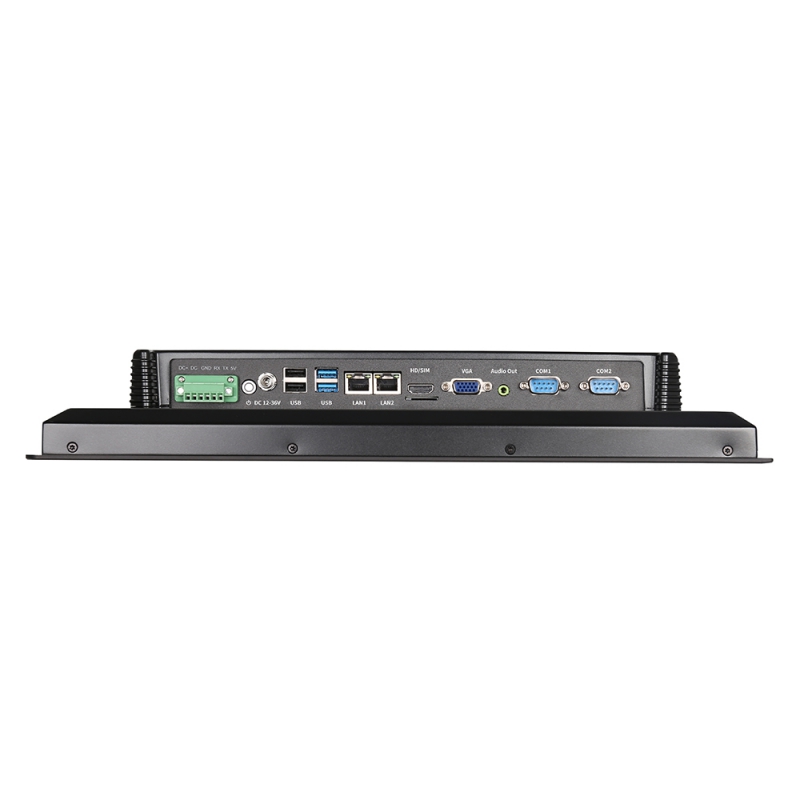

Interface:
Power interface1: 1*DC 2.5, Supporting 12V-36V power input
Power interface2: 1*Industrial terminal, Supporting 12V-36V power input
HDMI: 1*HDMI, Supporting HDMI data output, Up to 4K
USB: 2*USB 2.0 2*USB 3.0
LAN: 2*LAN, Dual 1000M adaptive Ethernet
AUDIO: 1*Audio Out, Support audio output
SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
VGA: 1*VGA
COM: 2*RS232

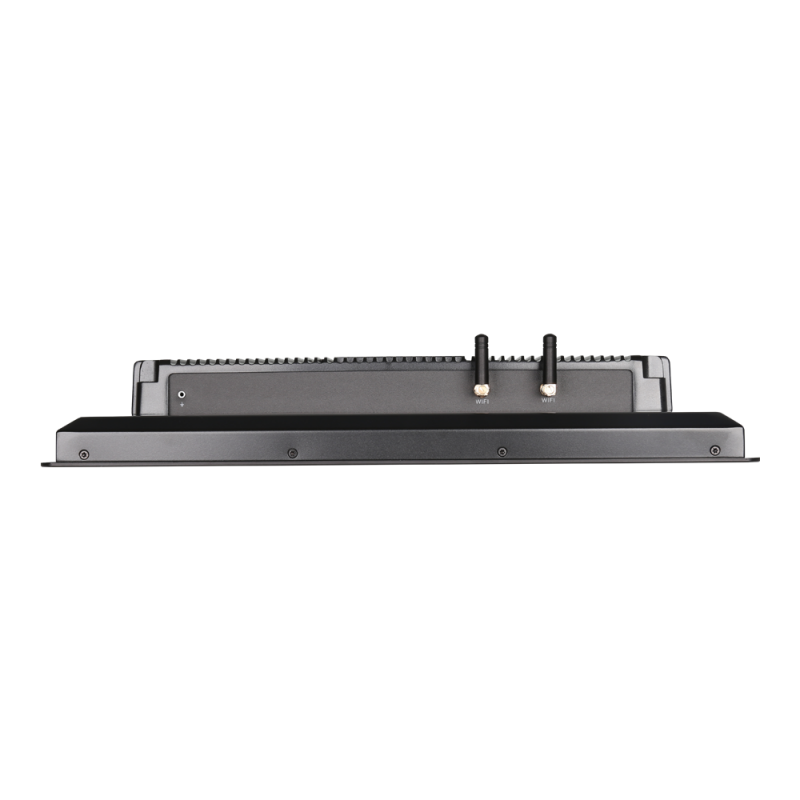

WiFi antenna: 2*WiFi antenna
POWER: Support (1*POWER)
Grounding post: 1*Grounding post (GND)
Product Reliability:
Working Temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, half sine wave, duration 11ms
Authentication: CCC/CE/FCC/EMC/CB/ROHS
Waterproof: Front panel reaches IP65 protection level
Hardware Configuration:
CPU: I3-6100U / I3-8145U / I3-10110U
CPU frequency: 2.3GHz / 2.1GHz / 2.1GHz
Integrated graphics: Inte HD Graphic 520 / Inte HD Graphic 620 / Intel UHD Graphic 620
RAM: 4G DDR4(Optional 8G/16G/32G) / 4G DDR4(Optional 8G/16G/32G) / 8G DDR4(Optional 16G/32G/64G)
Storage: 128G SSD(256G/512G SSD, 1T/2T HDD Optional)
WiFi: Dual band 2.4G&5G
Bluetooth: BT4.0(Optional)
Operating system: Win7/10/11, Ubuntu/Centos/Redhat/Debian/Linux
Other support: Support RTC real-time clock and timing switch
Power parameters:
Input voltage: DC 12V~36V
Static Power: 18W
