Key Specifications:
✔ 15" TFT LCD Touch Panel (1024×768, 300 cd/m²) - Capacitive/Resistive options
✔ Ultra-Slim 3mm Bezel - Optimized for embedded cabinet integration
✔ Military-Grade Protection - IP65 certified dustproof/waterproof aluminum alloy housing
✔ Powerful Processing - Supports Intel i7-6500U/7500U/8565U/10510U CPUs
✔ Industrial-Grade Reliability - Fanless X86 architecture with wide temperature operation
✔ Enhanced Connectivity - Dual Gigabit Ethernet + rich I/O interfaces
✔ Wide Voltage Input - 12V-36V DC power support for industrial environments
• Unmatched Durability - Engineered for 24/7 operation in harsh conditions
• Superior Expandability - Multiple expansion slots for industrial peripherals
• Future-Proof Performance - Supports latest Intel i7 processors
• Seamless Integration - Compatible with most industrial automation systems
Ideal For:
Factory automation control systems
HMI applications in extreme environments
Process monitoring stations
Heavy equipment operation interfaces
Product Description

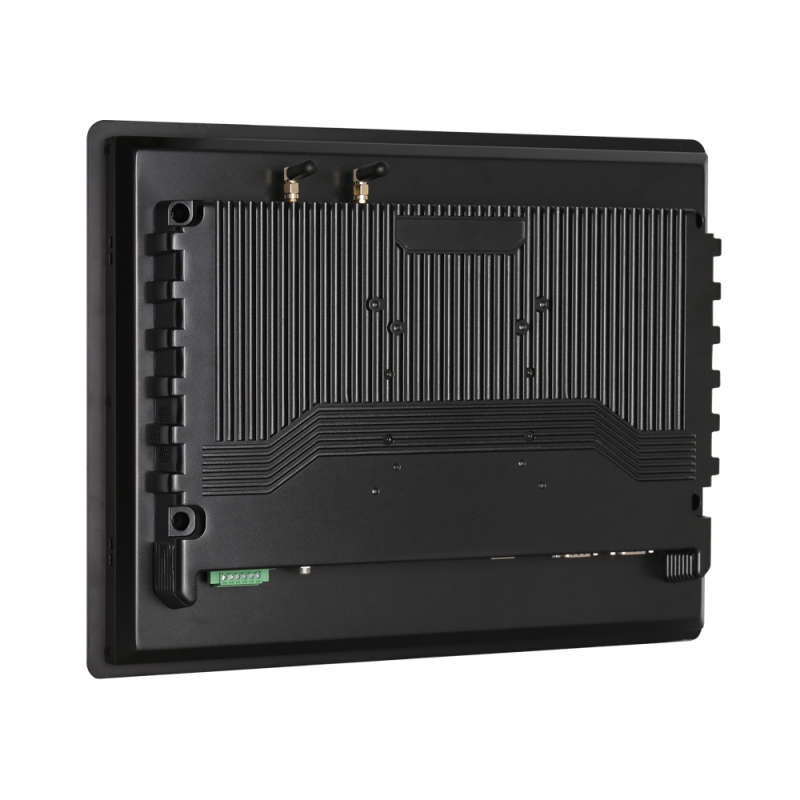

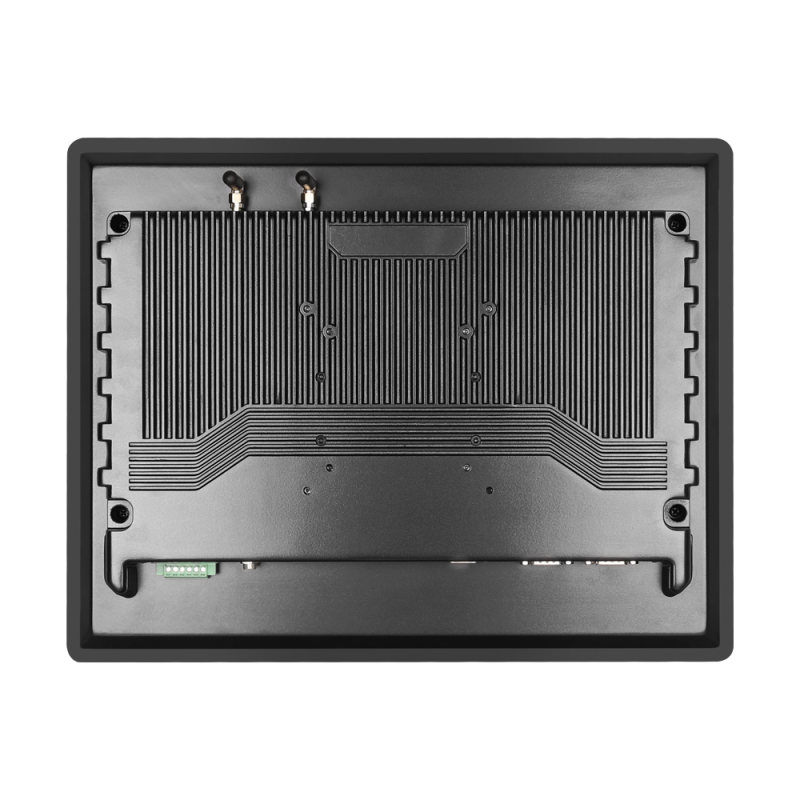

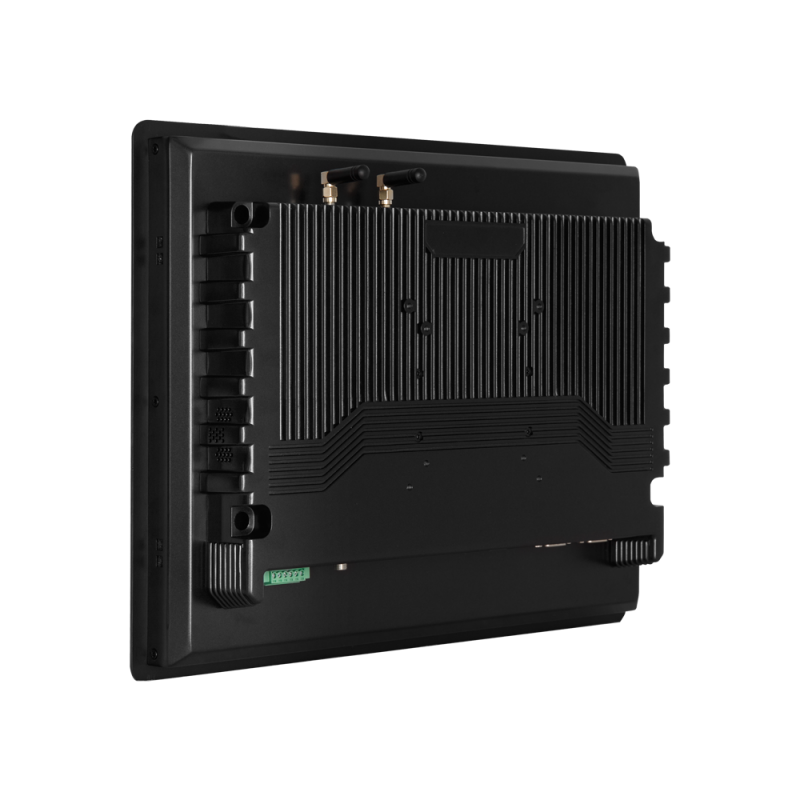

The overall use of flat aluminum alloy panel, fanless fully enclosed integrated design. Meet the requirements of different equipment in different environments. It is widely used in industrial control, military, communication, power, network, intelligent self-service terminal equipment and other automation applications.
Product Size: 15"
Non-touch: TPC150-W1000-I7
Capacitive touch: TPC150-W1010-I7
Resistive touch: TPC150-W1020-I7
Screen Parameters:

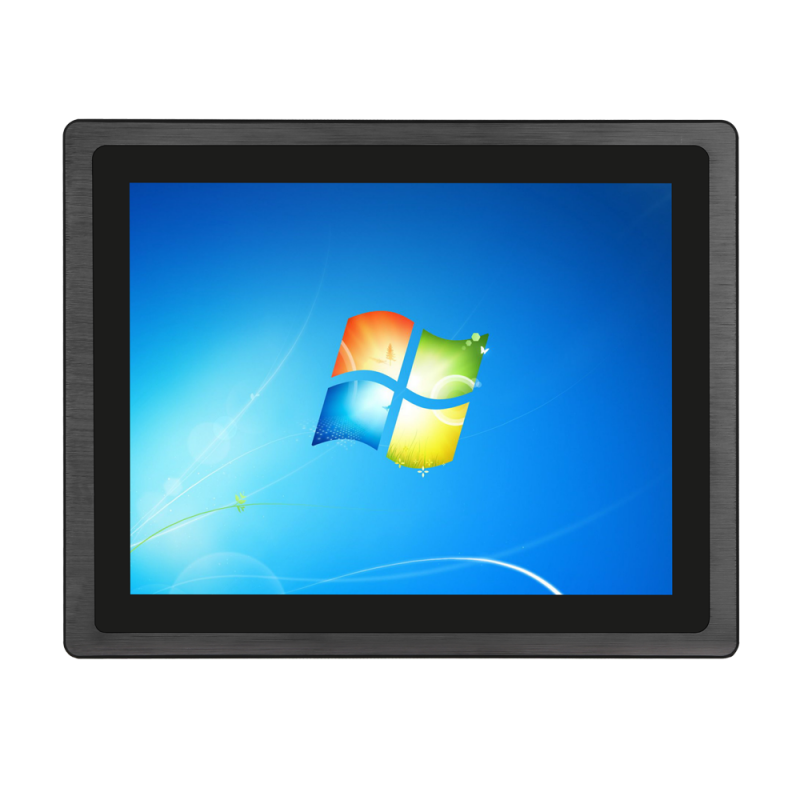

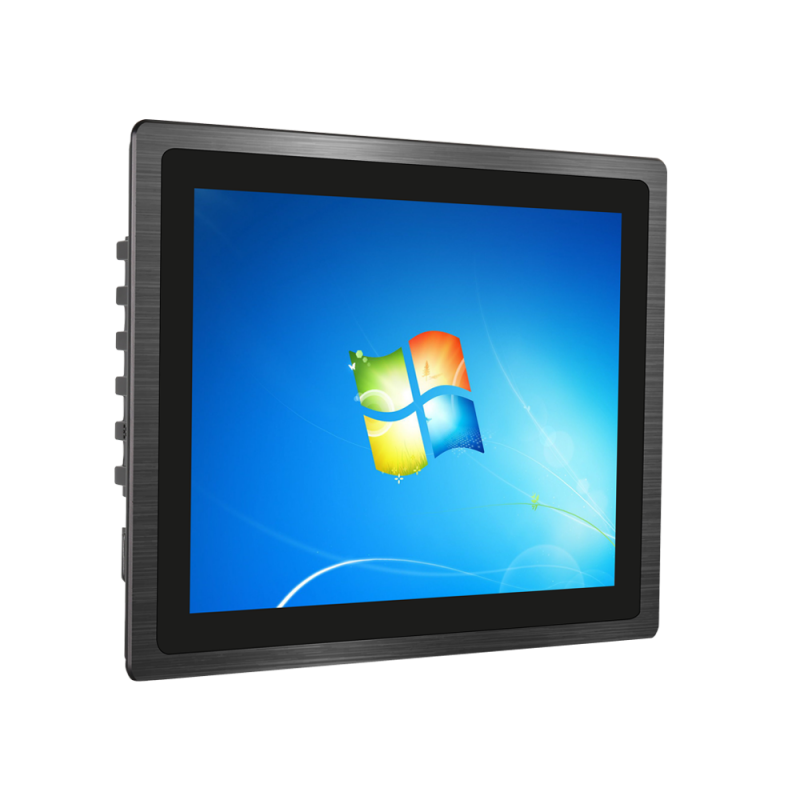

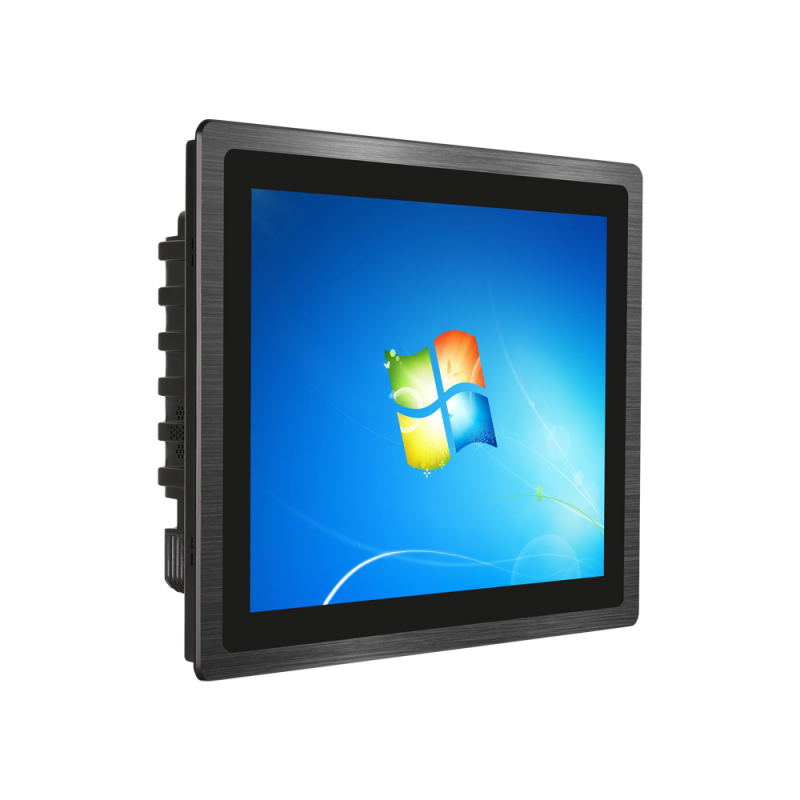

LCD Size: 15" TFT LCD
Resolution: 1024×768
Viewing Angle: 89/89/89/89 (L/R/U/D)
Colour: 16.7M
Brightness: 300 cd/m2
Contrast ratio: 1000:1

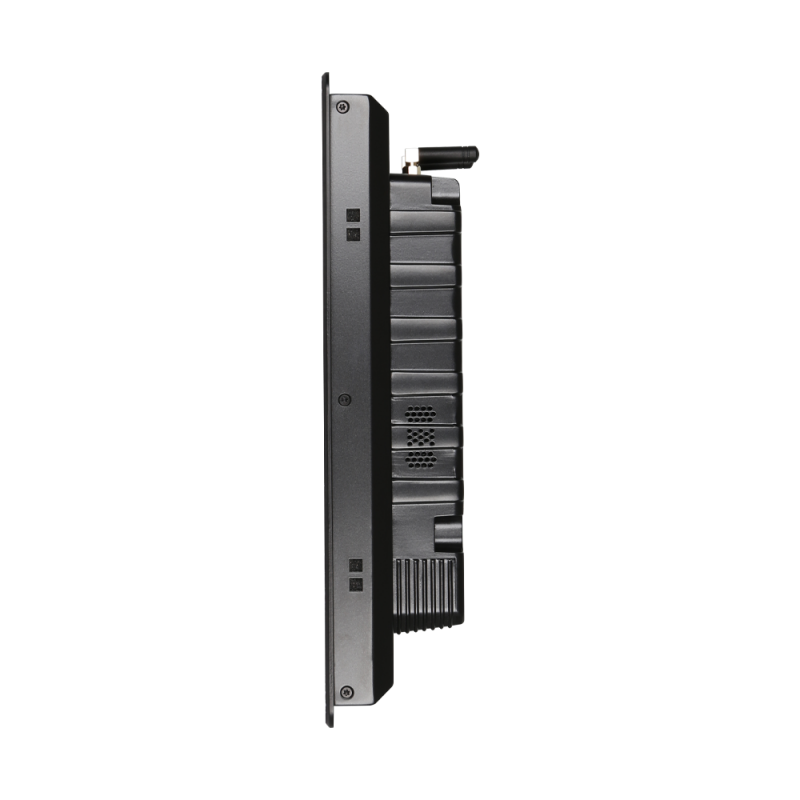

Physical Characteristics:
Overall dimensions: W379x H298.5x D65mm
Size of opening: W363 x H283mm

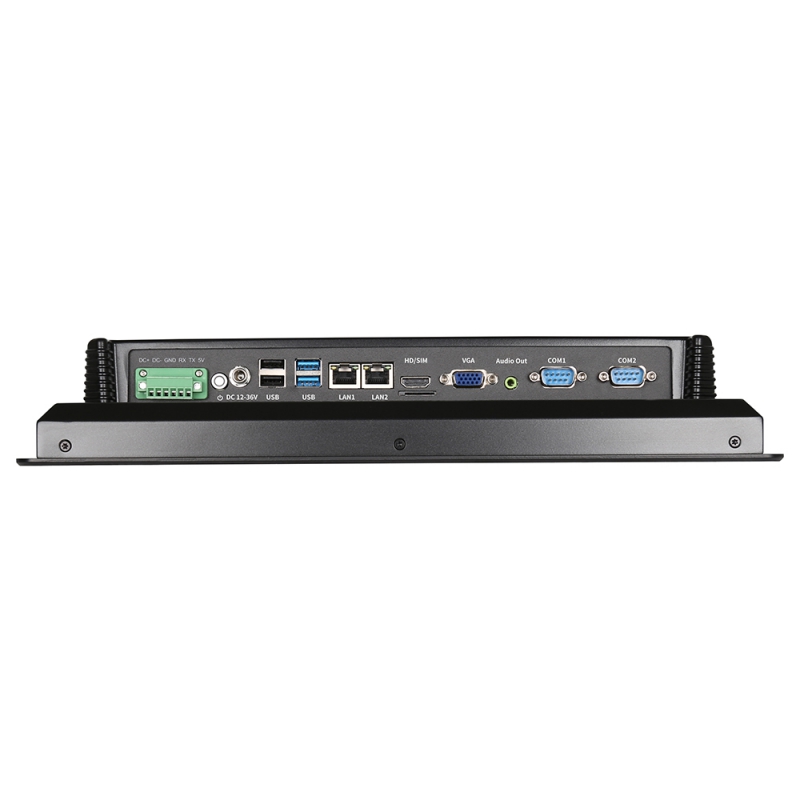

Interface:
Power interface1: 1*DC 2.5, Supporting 12V-36V power input
Power interface2: 1*Industrial terminal, Supporting 12V-36V power input
HDMI: 1*HDMI, Supporting HDMI data output, Up to 4K
USB: 2*USB 2.0 2*USB 3.0
LAN: 2*LAN, Dual 1000M adaptive Ethernet
AUDIO: 1*Audio Out, Support audio output
SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
VGA: 1*VGA
COM: 2*RS232

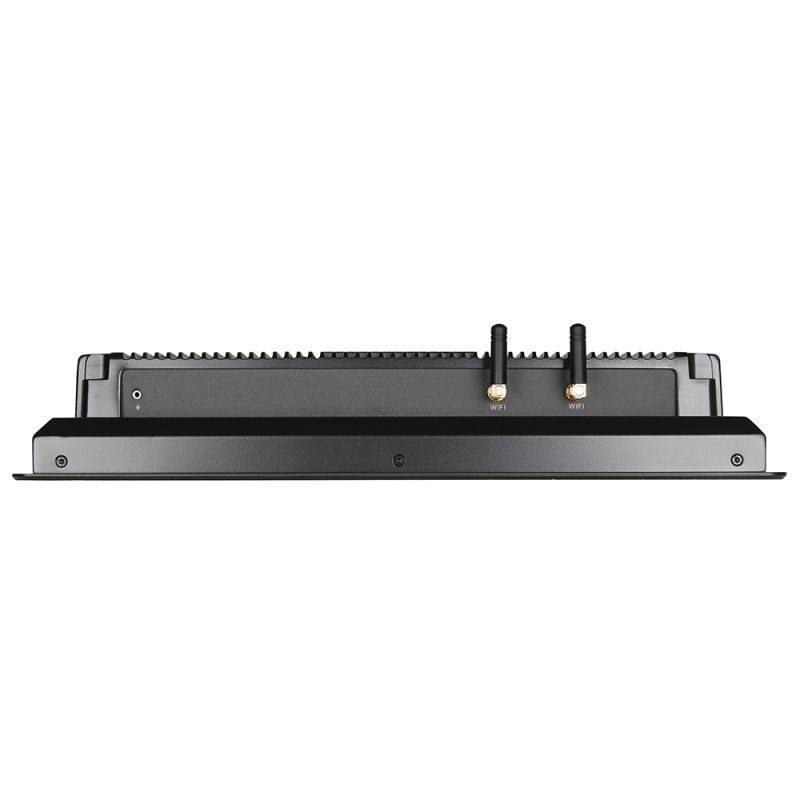

WiFi antenna: 2*WiFi antenna
POWER: Support (1*POWER)
Grounding post: 1*Grounding post (GND)
Product Reliability:
Working Temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, half sine wave, duration 11ms
Authentication: CCC/CE/FCC/EMC/CB/ROHS
Waterproof: Front panel reaches IP65 protection level
Hardware Configuration:
CPU: l7-6500U / l7-7500U / I7-8565U / I7-10510U
CPU frequency: 2.5GHz / 2.7GHz / 1.8GHz / 1.8GHz
Integrated graphics: Inte HD Graphic 520 / Inte HD Graphic 620 / Intel Ultra HD Graphic 620 / Intel UHD630 Graphics
RAM: 4G DDR4 (Optional 8G/16G) / 4G DDR4(Optional 8G/16G/32G) / 4G DDR4(Optional 8G/16G/32G) / 8G DDR4(Optional 16G/32G/64G)
Storage: 128G SSD(256G/512G SSD, 1T/2T HDD Optional)
WiFi: Dual band 2.4G&5G
Bluetooth: BT4.0(Optional)
Operating system: Win7/10/11, Ubuntu/Centos/Redhat/Debian/Linux
Other support: Support RTC real-time clock and timing switch
Power parameters:
Input voltage: DC 12V~36V
Static Power: 18W
