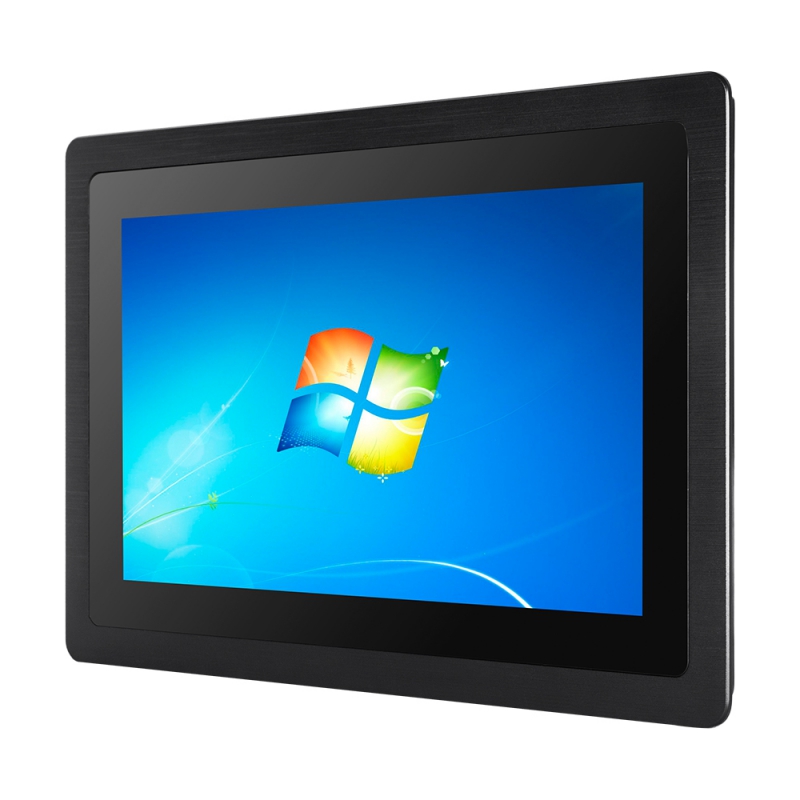

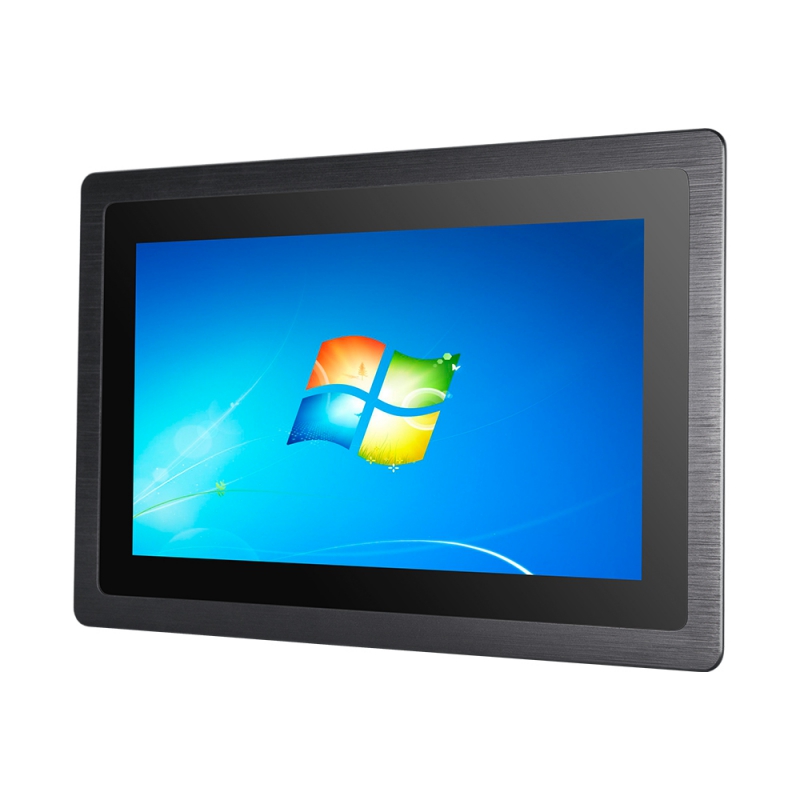

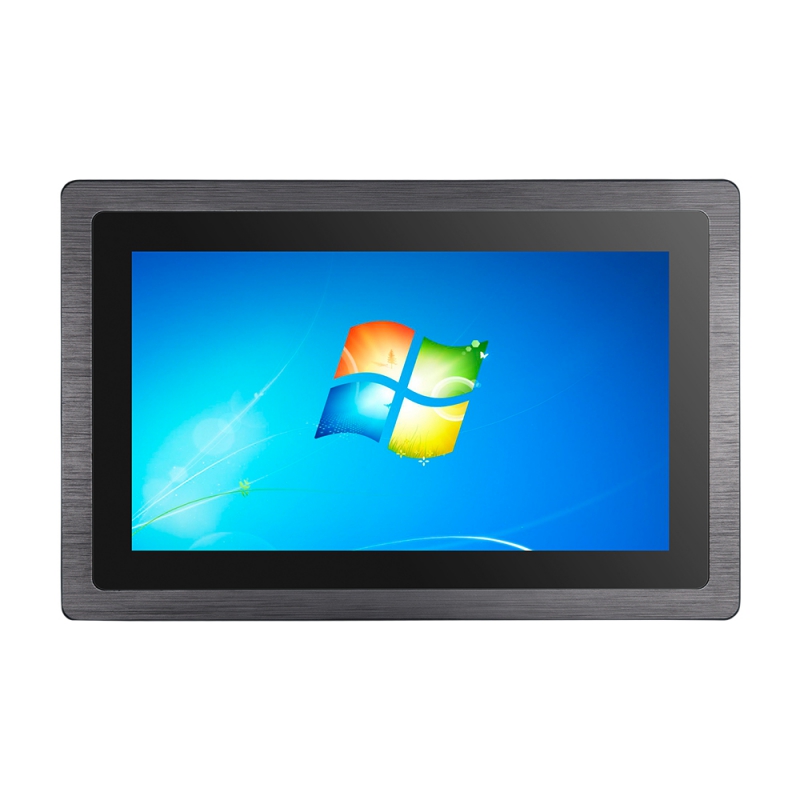

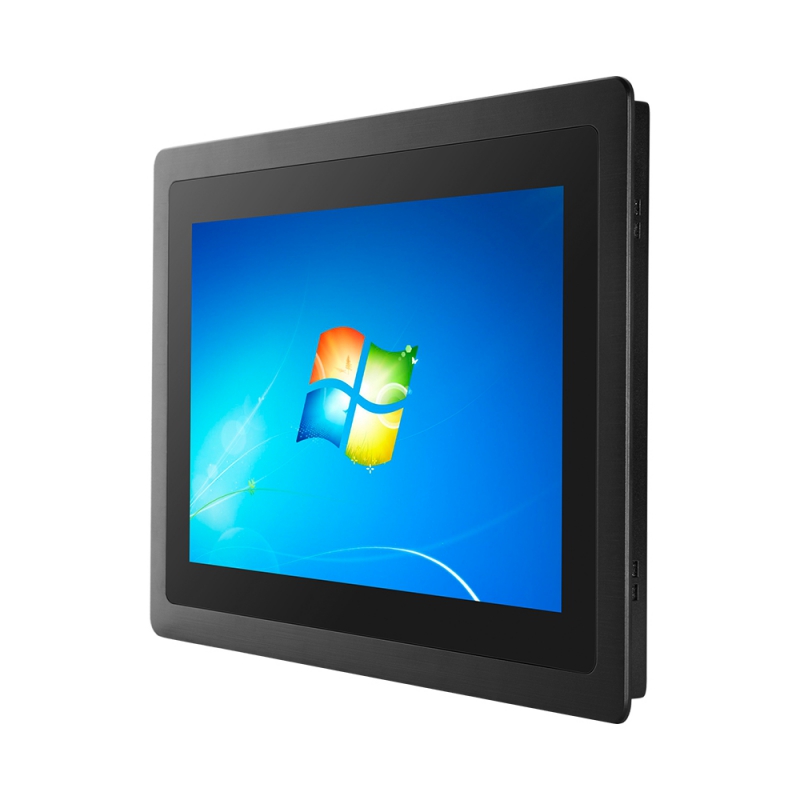

13.3 inch J4125 Windows Industrial Tablet PC

♦Capacitive / Resistive touch screen: 13.3” TFT LCD(1920 x 1080)/ 220 cd/m2
♦Ultra-thin bezel design，tailored for embedded installation applications
♦Pure flat panel IP65 dust-proof and waterproof.
♦Self-developed X86 architecture industrial motherboard
♦Intel Celeron J4125 quad-core 2.0GHz processor
♦Comply with EMC anti-electromagnetic interference standard
♦Compatible with 99% of industry software, With strong expansibility
  • Description
    Product Description

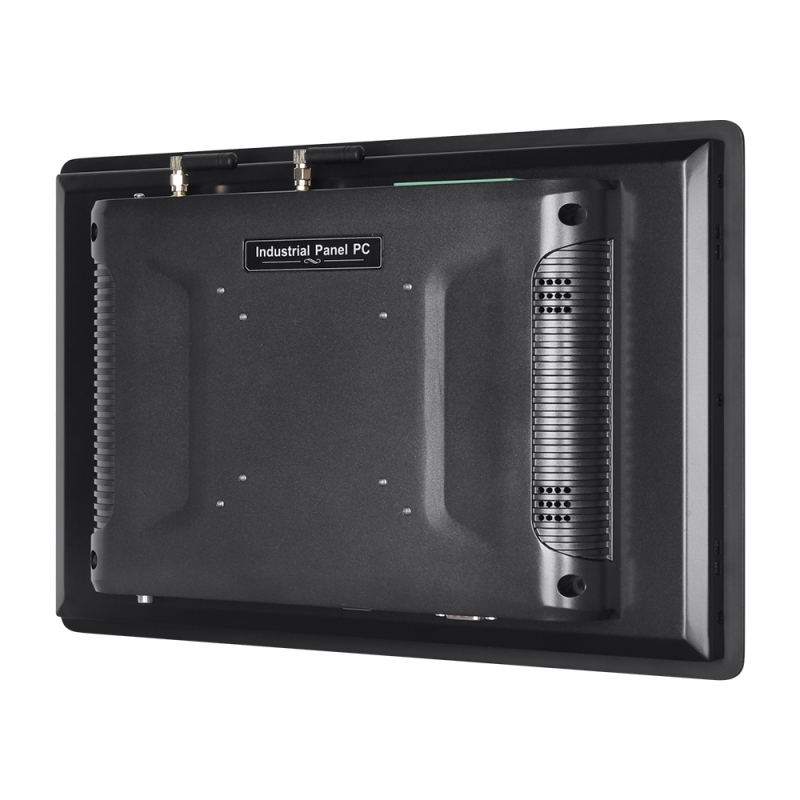

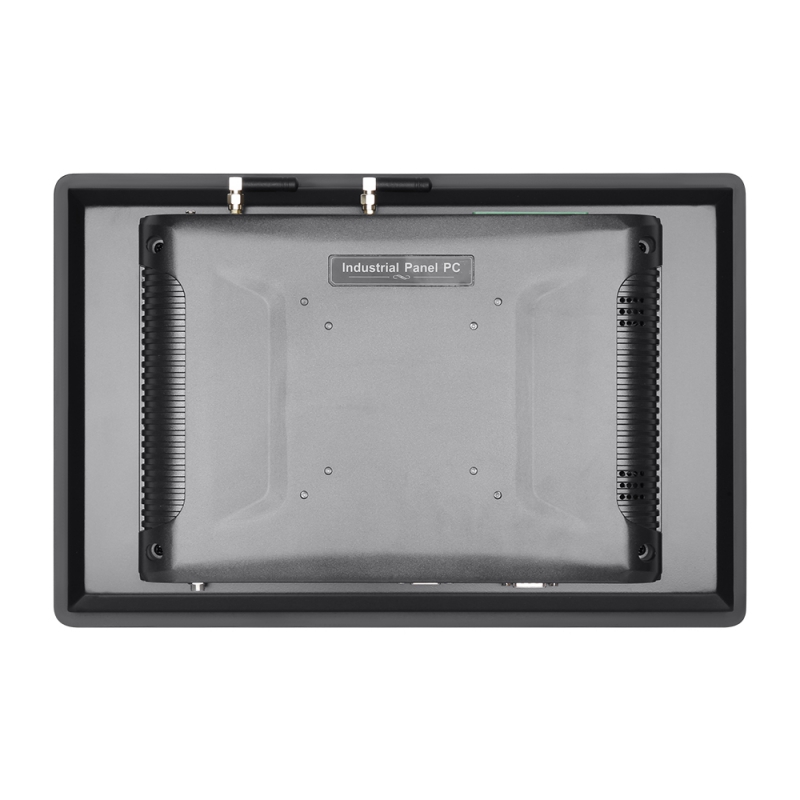

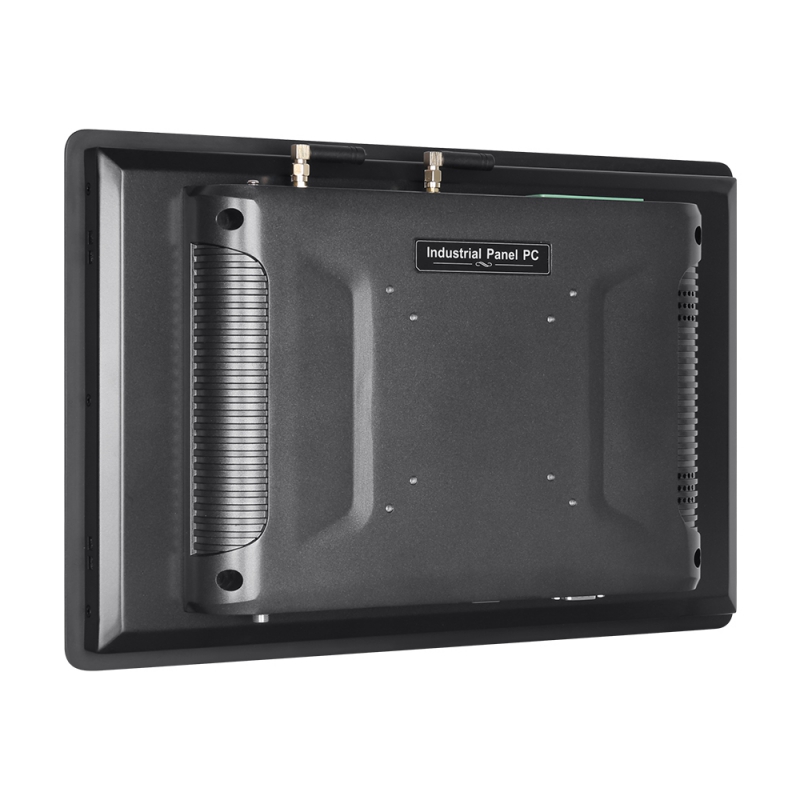

    Full aluminum alloy panel structure with an IP65 waterproof front panel and an aluminum alloy rear cover equipped with heat dissipation holes. It is low power consumption.It is suitable for embedded installation applications and supports various external device connections, making it widely applicable in self-service terminals such as self-ser- vice vending machines, inquiry kiosks, parcel lockers, industrial, and medical self-service terminal fields.
    Product Size: 13.3"
    Non-touch: TPC133-W200-4125
    Capacitive touch: TPC133-W210-4125
    Resistive touch: TPC133-W220-4125

    Screen Parameters:
    LCD size: 13.3" TFT LCD
    Resolution: 1920×1080(16:9)
    Viewing angle: 85/85/85/85 (L/R/U/D)
    Color: 16.7M
    Brightness: 220 cd/m²
    Contrast ratio: 1000:1

    Physical Characteristics:

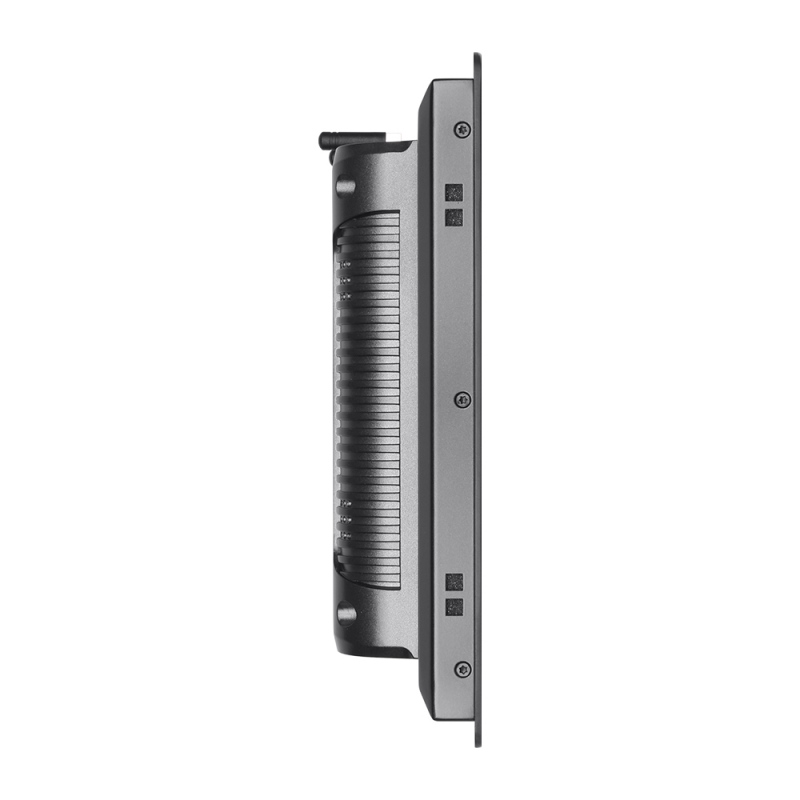

    Overall dimensions: W373.6X H245.2X D57MM
    Size of opening: W357.4 X H229MM

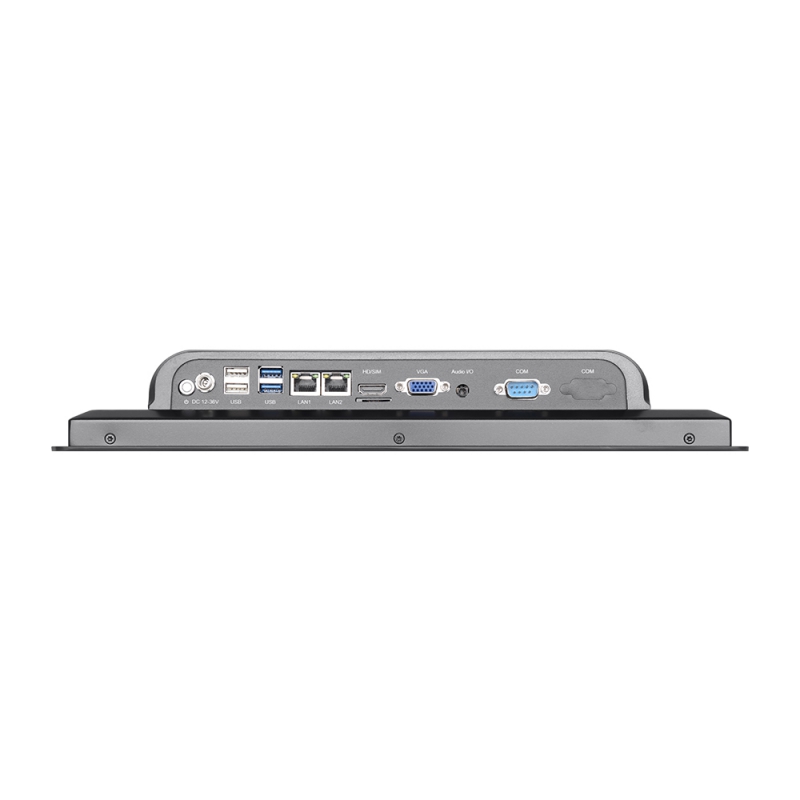

    Interface Parameters:

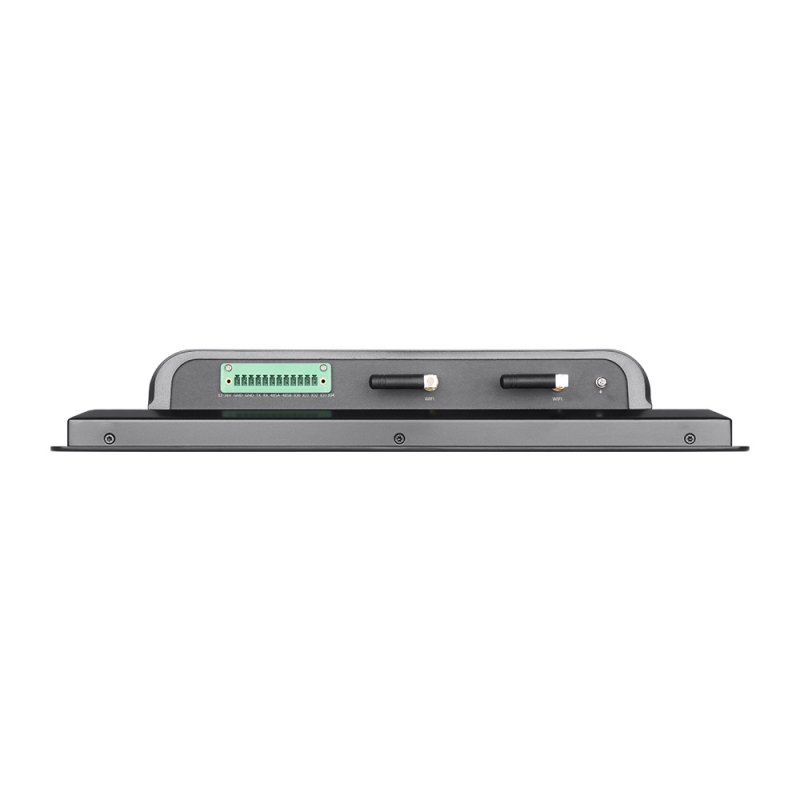

    Power interface1: 1*12P Phoenix terminal (Power supply/RS232*1/RS485*1/GPIO*5)
    Power interface2: 1*DC【5.5*2.5mm】, Supporting 12V-36V power input
    USB:  2*USB2.0,  2*USB3.0
    VGA: 1*VGA
    HDMI: 1*HDMI, Supporting HDMI data output, Up to 4K
    SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
    Network interface: 2*1000M Ethernet interfaces
    Audio interface: 1*Audio I/O, support audio input and output
    COM: 1*RS232
    WiFi antenna: 2*WiFi antenna
    Grounding post: 1*Grounding post (GND)

    Product Reliability Parameters:
    Working temperature: -10°C~60°C
    Storage temperature: -20°C~70°C
    Relative humidity: Humidity: 95% Non-Condensing
    Vibration protection: IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
    Impact protection: IEC 60068-2-27, Half sine wave, Lasting for 11ms
    Product certification: CCC/CE/FCC/EMC/CB/ROHS
    Waterproof grade: The front panel reaches IP65 protection level

    Power Parameters:
    Power input: DC 12V~36V
    Static power: 18W

    Hardware Configuration:
    CPU: Intel Celeron J4125 quad-core 2.0GHz CPU
    Memory: 8GB (Supports up to 8GB)
    Storage: 128GB SSD (Optional:256GB/512GB SSD, 1T/2T HDD)
    Integrated graphics: Intel UHD Graphics 600
    Broad pressure: With wide voltage (12V~36V)
    WiFi :Support 2.4GHz/ 5GHz dual-band Wifi
    Bluetooth: BT4.0（Optional）
    Operating system: Win10/11/Ubuntu/Centos/Linux
