Combining industrial-grade stability and reliability with the capabilities of an intelligent digital multimedia player, the ITX-YH404M1 is suitable for a wide range of applications, including advertising, education, media playback, large-format LCD displays, traffic control, information systems, financial equipment, automotive systems, and military/defense sectors.

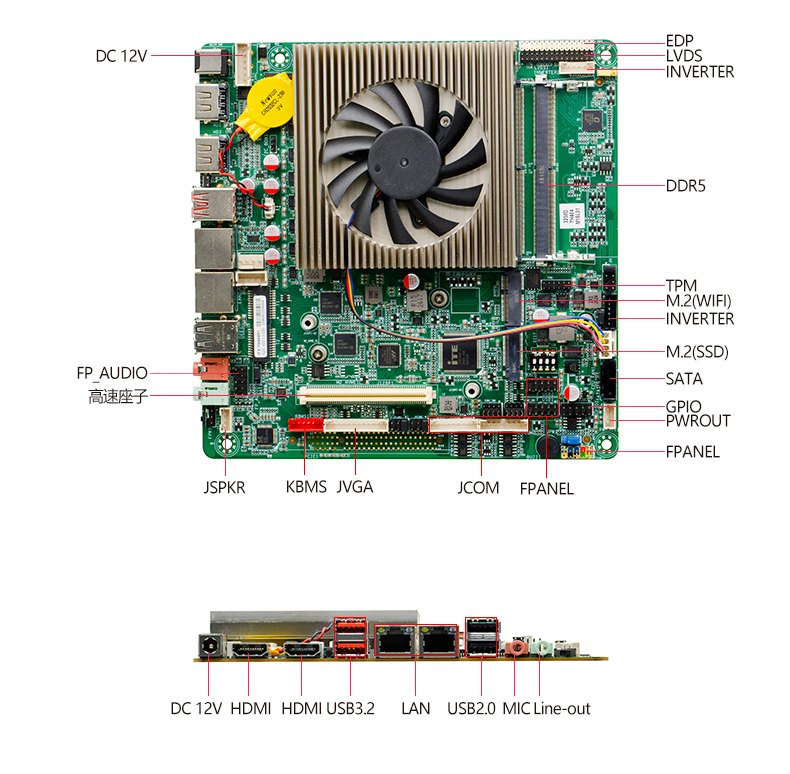

Detail Display

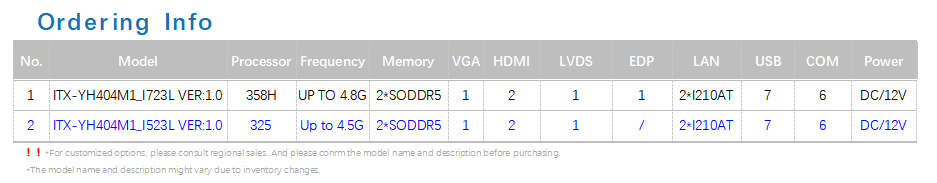

Product Description
Model No.:ITX-YH404M1_I523L VER:1.0(325)Processor:
Integrated Intel® Panther Lake Core™ Ultra 5 Processor 325, clocked at up to 4.5 GHz, with 8 cores and 8 threads, TDP 25W, NPU TOPS (Int8) 47
Compatible with Panther Lake Ultra 3/5/7/9 processors
Chipset: Based on Intel®Panther Lake SOC platform
RAM: 2* DDR5 SODIMM memory slots, supporting memory speeds of up to 6400 MT/s, with a maximum capacity of 64 GB
Dispay:
Integrated Intel® Graphics GPU: TOPS (Int8) 40; supports DirectX 12, OpenGL 4.6 and OpenCL 3.0; supports 4K
1* VGA port, supporting a maximum resolution of 1920x1200@60Hz
2* HDMI 1.4 ports, supporting a maximum resolution of 4096x2304@24Hz
1* dual-channel 24-bit LVDS port
1* EDP port; either LVDS or EDP can be selected via a jumper
Supports four displays via VGA, HDMI, LVDS or EDP
Ethernet: 2* Intel I210AT 1GbE network cards, supporting Wake-on-LAN and PXE; POE support available via an expansion board
Storage:
1* 7-pin SATA 3.0 hard drive port, with transfer speeds up to 6 Gbps
1* M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 4.0 x4 standard SSD
Note: The 7-pin SATA port cannot be used as a boot drive
Audio:
Integrated ALC897 7.1+2-channel high-fidelity audio controller, supporting MIC, Line Out and amplifier
Supports 4Ω 3W speakers via the amplifier
Expansion Slot:
1* M.2 slot, supporting M.2 Key E 2230 Wi-Fi/Bluetooth modules

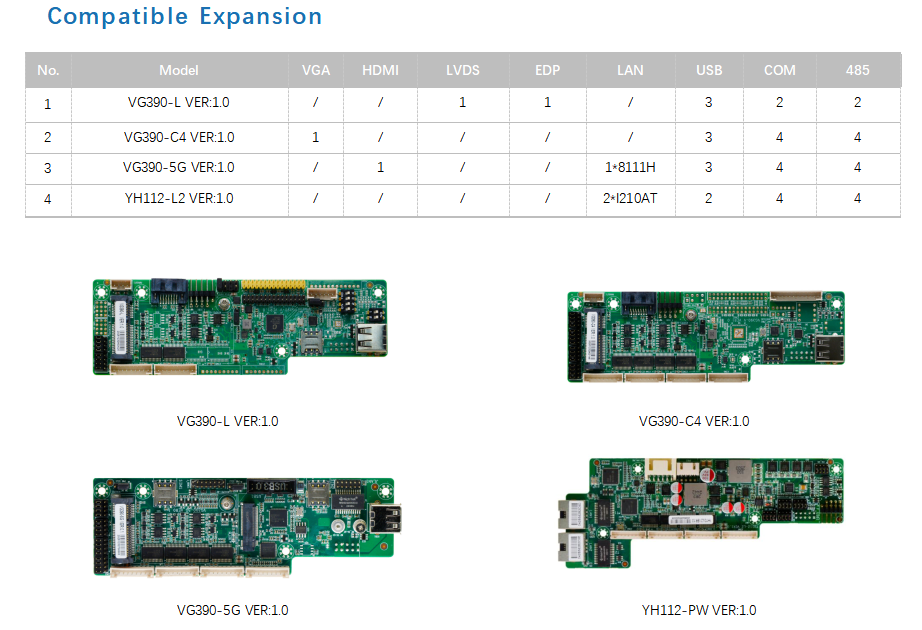

1* 120-pin high-speed header, including 4 TTL, 2* PCIe, 1* SATA, 1* DP (using VG390 series expansion board)
Rear I/O interface:
2* Type-A USB 3.2 ports (10 Gbps)
2* Type-A USB 2.0 ports
2* HDMI 1.4 ports
2* RJ45 Gigabit Ethernet ports
1* Line-out (green), 1* MIC (red)
1* DC power connector, supporting 12V input; co-located with a threaded DC connector; standard DC plug by default
1* CMOS reset button, 1* power-on DIP switch
Built-in I/O interface:
1* LVDS interface (2* 15-pin, PH = 2.0 mm), supporting dual-channel 24-bit
1* LVDS backlight power supply interface (black), 1* 6-pin, pitch = 2.0 mm
1* EDP port, 2 × 15-pin, pitch = 2.0 mm; selectable via jumper switch (either LVDS or EDP)
1* EDP screen backlight power supply interface (white), 1* 6-pin, pitch = 2.0 mm
1* JVGA interface, 1* 12-pin, pitch = 2.0 mm
2* RS232 serial interfaces, 1* 9-pin, pitch = 2.0 mm, supporting RS485/422, configurable via jumper settings
1* PS/2 keyboard and mouse interface (red), 1* 6-pin, pitch = 2.0 mm
4* USB 2.0 ports, 2* 5-pin, pitch = 2.54 mm; one of the USB 2.0 signals in F_USB1 is shared with Bluetooth and is set to Bluetooth by default
1* front audio port, 2* 5-pin, pitch = 2.54 mm
1* front panel switch and indicator port, 2* 5-pin, pitch = 2.54 mm
1* hard drive power connector, 1* 4-pin, pitch = 2.0 mm
1* power amplifier connector, 1* 4-pin, pitch = 2.0 mm
1* DC power connector (1* 6-pin, pitch = 2.54 mm); supports 12 V DC power; a wide-voltage board can be used to support 12–24 V DC input
1* Ethernet POE connector (1* 4-pin, pitch = 2.5 mm)
1* TPM connector (2* 6-pin, pitch = 2.0 mm)
Fan interface: 1* 4-pin CPU smart fan connector, 1* 4-pin system fan connector
GPIO: Support 4-way input and output GPIO
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows 11/Linux
Power type: Powered by 12 V DC; a expansion board can be used to support 12–24 V DC power supply
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, non-condensing
Size: 170mm x 170mm
