This high-performance machine vision motherboard is engineered with the Intel® H270 Chipset and Intel® Core i7-6920HQ Quad-Core processor (2.9GHz base, up to 3.8GHz Turbo), delivering exceptional image processing power for precision industrial vision systems.
Key Machine Vision Features:
●Real-time image processing:
Intel® HD Graphics 530 with Quick Sync Video (4K H.265 encode/decode)
Supports HDMI 1.4 + LVDS/eDP dual displays (4K@30fps + 1080p@60fps)
●High-speed data capture:
4× Intel I210AT Gigabit Ethernet (PoE-ready with add-on card)
1× M.2 NVMe SSD (PCIe 3.0 x4, up to 32Gbps)
●Industrial connectivity:
2× RS232 (for PLC/camera trigger)
GPIO (8x opto-isolated I/O)
●Robust operation:
Wide voltage input (12-19V DC)
Watchdog Timer (1-255s programmable)
Optimized for:
Automated optical inspection (AOI) systems
Robotic guidance vision controllers
High-speed packaging line inspection
Semiconductor wafer alignment

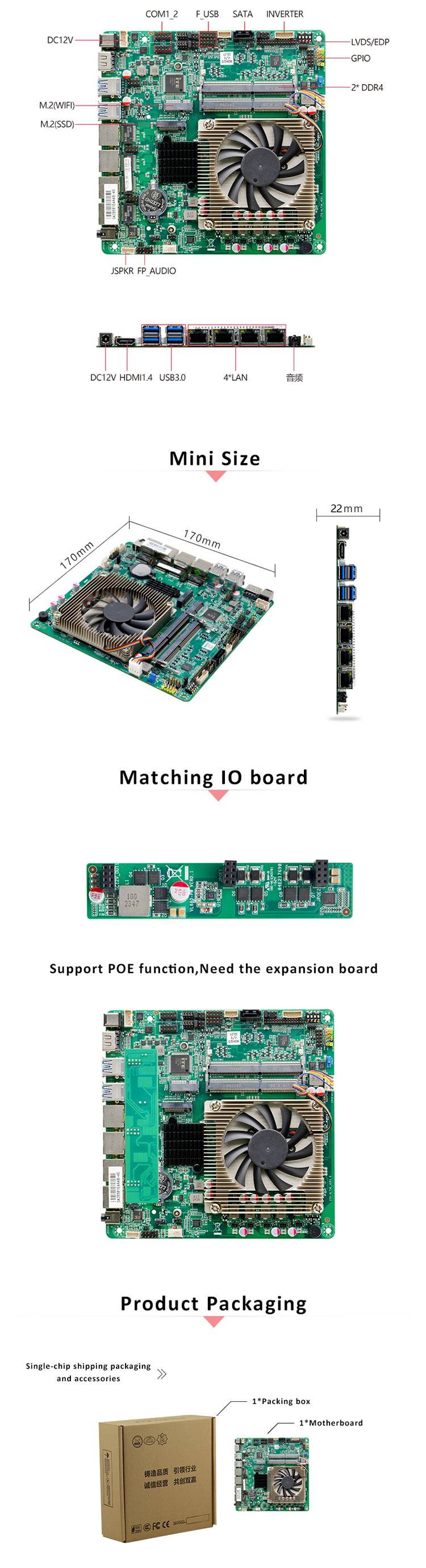

Detail Diplay
Product Description

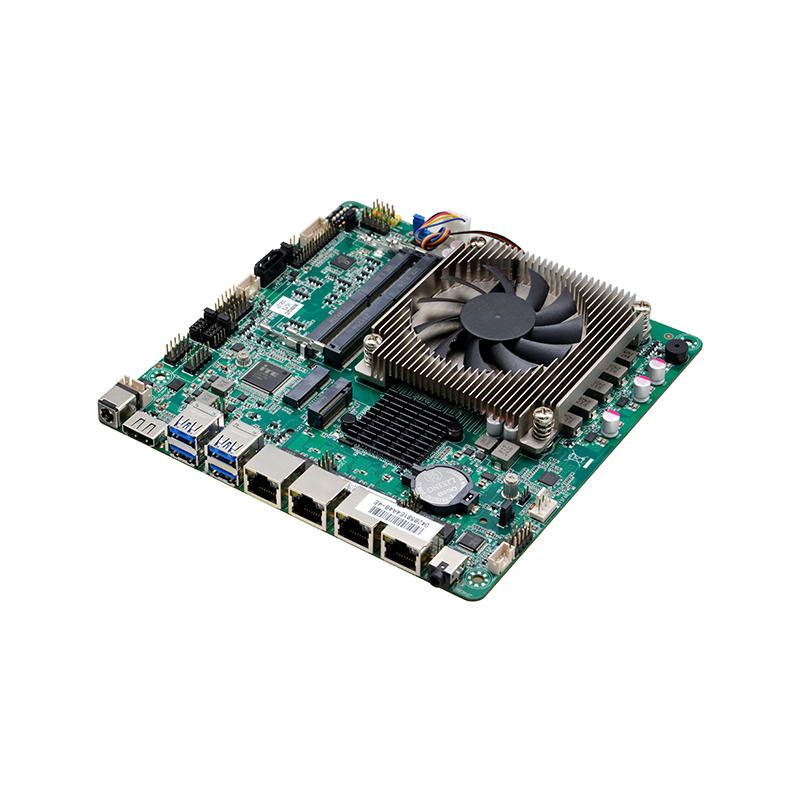

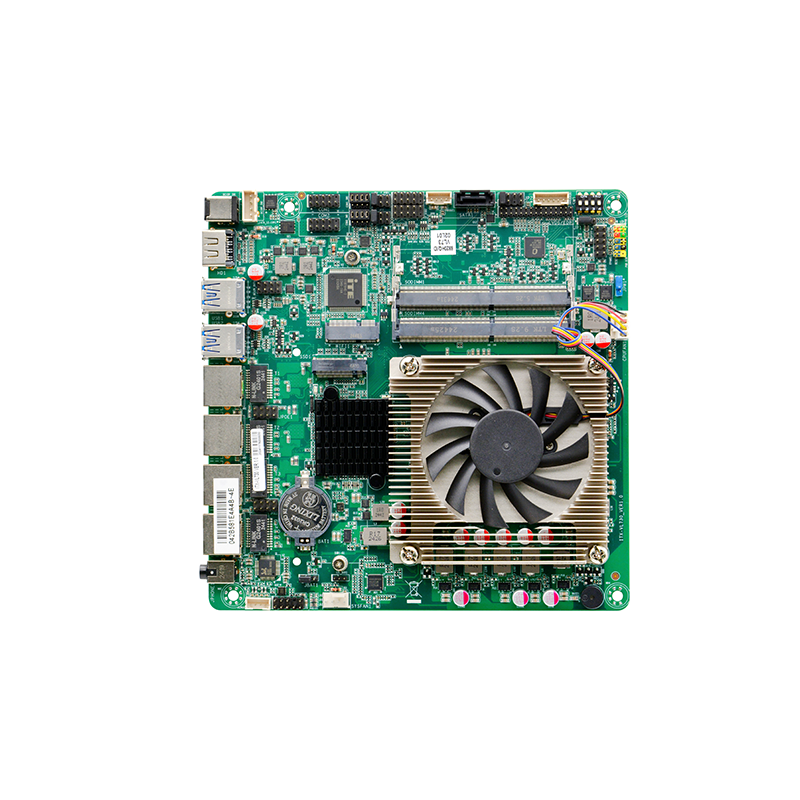

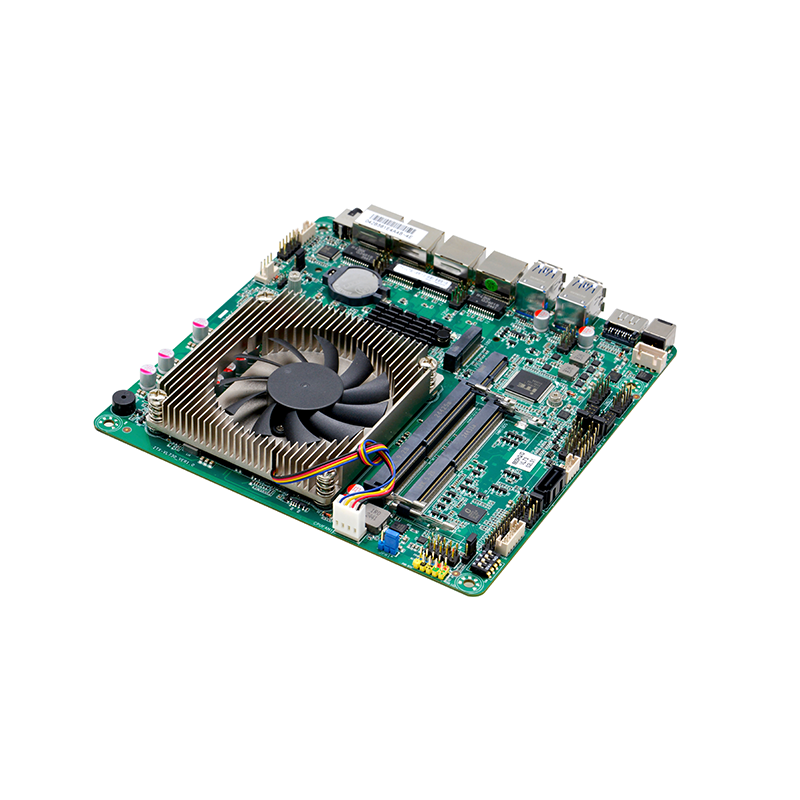

Model No.: ITX-VL730 VER:0.1(6920HQ)
Processor:
Integrated Intel@Kabylake-H I7-6920HQ 2.9GHz quad-core eight-thread processor,TDP:45W
Compatible with Intel@Skylake-H/Kabylake-H core/I3/I5/I7 processors Chipset Intel®H270 high speed chipset
Memory: 2x SODIMM slot, supports dual-channel 2133MHz DDR4 memory, up to 64GB
Graphics:
Intel® HD Graphics 530; support DirectX12,OpenGL4.5; support 4K
1x HDMI1.4, Max: 4096X2304@24Hz
1x Supports dual-channel 24-bit LVDS interface
1x EDP interface, shares the same pin header with the LVDS interface (switched by resistor)
Network:
4x Intel WGI210AT Gigabit network card, support network wake-up, PXE function,support POE
Note: To support POE function, you need to use VL680-POE board
Storage:
1x SATA3.0 , transmission rate up to 6Gbps
1x M.2 slot, supports M.22280 NVMEPCIE X4/SATA standard SSD
Audio:
Integrated ALC897 7.1+2 channel high-fidelity audio controller, supports MIC/Line-out,amplifier
Support amplifier 4Ω3W speaker
Expansion slots: 1x M.2 slot, support M.2 2230 WIFI/BT module

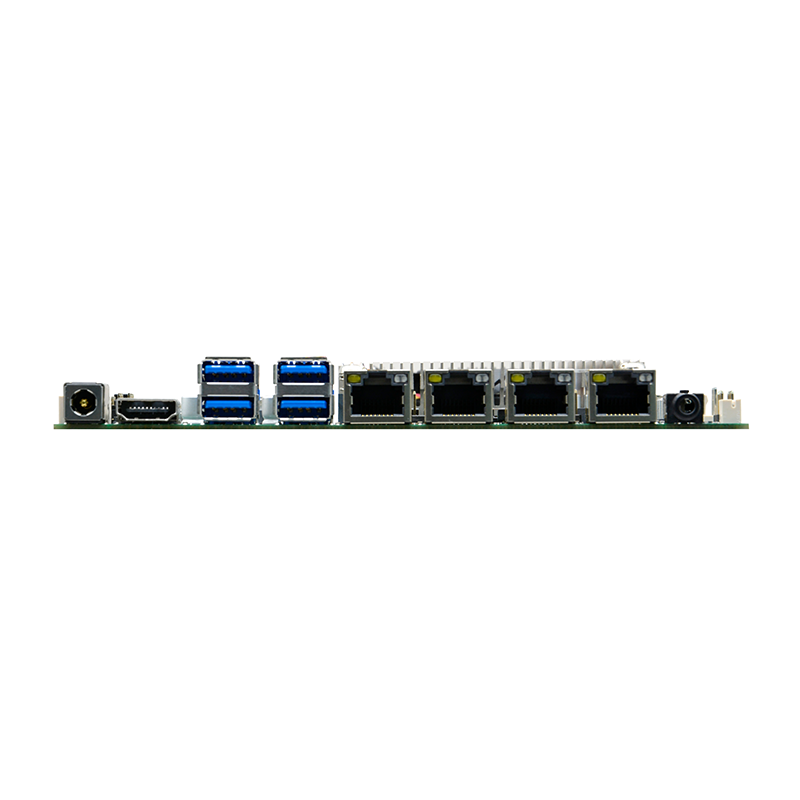

Rear I/O interface:
1x DC power interface (12V-19V)
4x USB3.0
1x HDMI1.4
1x Audio 2 and 1 interface 4x RJ45 Gigabit network interface
Built in I/O interface:
1x 4pin DC power interface, supports DC12~19V power supply
3x 2*4pin PH=2.54mm pin header, connect POE board
1x LVDS interface 2*15pin, supports dual-channel 24bit, shares pin header with EDP, switched by resistor 1x LVDS backlight power interface 1*6pin
2x RS232 serial interface, COM1/2 supports RS485/422 function
4x USB2.0 interface 2*5pin
1x front panel switch button and indicator interface 2*5Pin
1x hard disk power interface 1*4pin
1x front audio interface 2*5pin
1x amplifier interface 1*4pin
Fan interface: 1x 4pin CPU smart fan interface, 1x 4pin system fan interface
Power input: DC 12V-19V
BIOS: 64Mb Flash ROM
GPIO: Supports 4 input and 4 output GPIO interfaces
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows 7/Windows 10/Linux Working Temp. -10℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity:5%-95%(relative humidity; non-condensing)
Dimension: 170mm x 170mm
