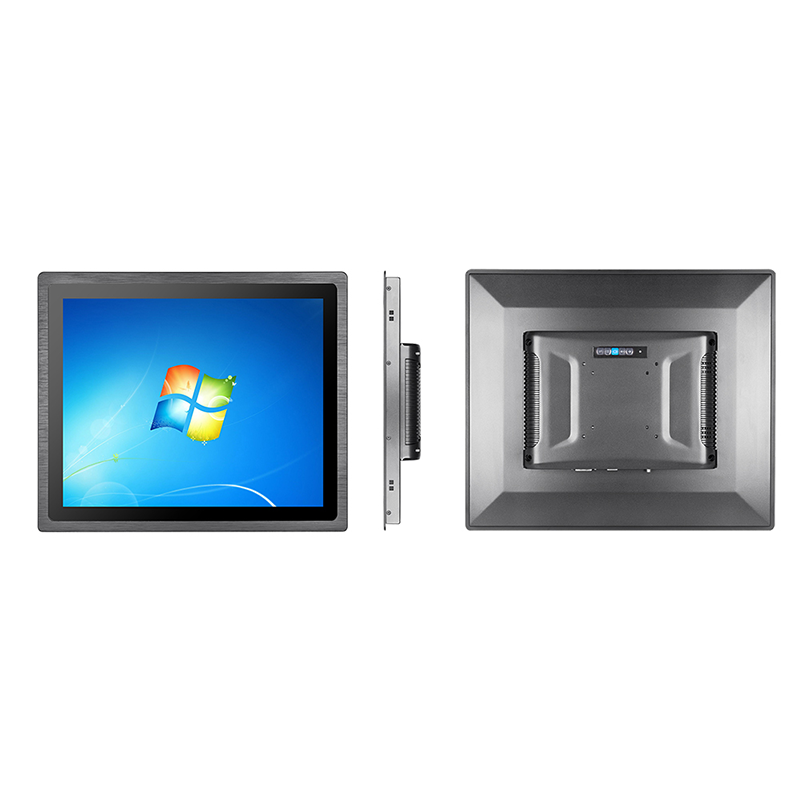

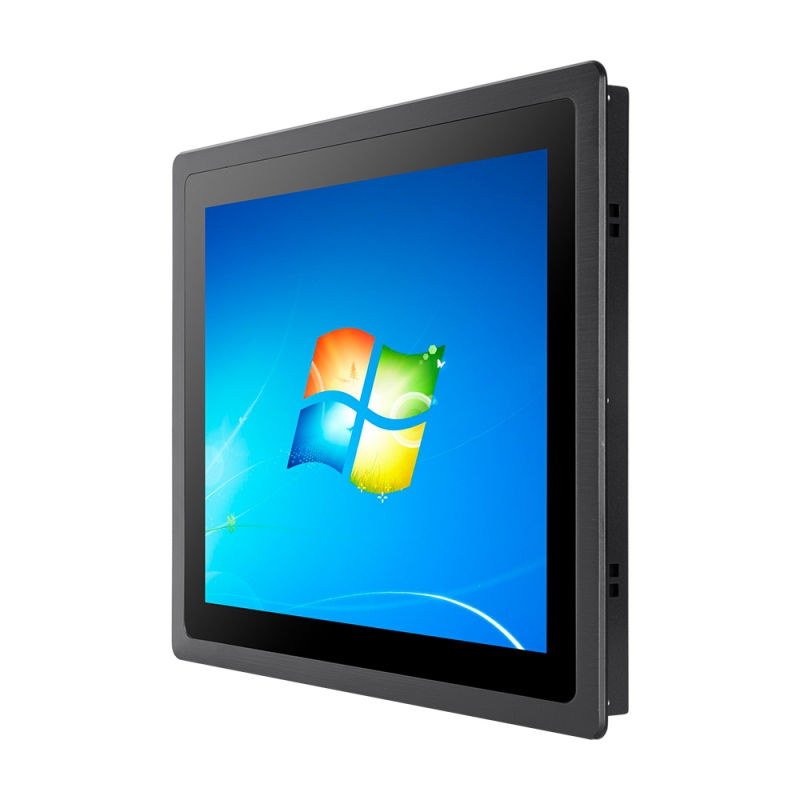

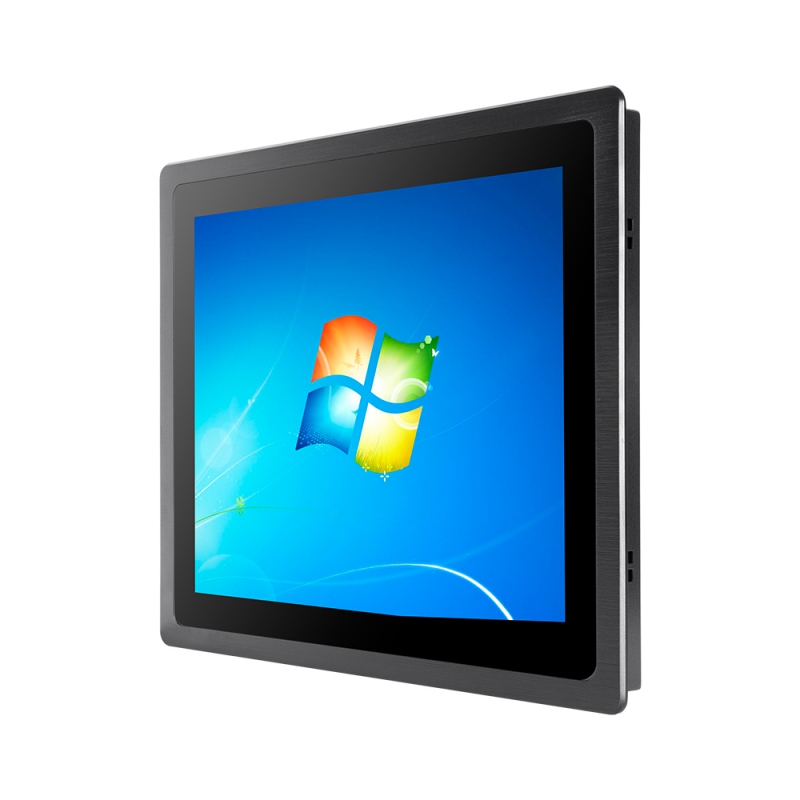

Product Description
The overall structure is made of 3mm ultra-thin aluminum alloy frame, fanless and totally enclosed design, equipped with self-developed industrial display drive board, low power consumption, and widely used in industrial control, military industry, communication, power, network, intelligent self-service terminal equipment and other automation applications.
Product Size: 19"
Non-touch: TPC190-M200-SS
Capacitive touch: TPC190-M210-SS
Resistive touch: TPC190-M220-SS
Screen Parameters:

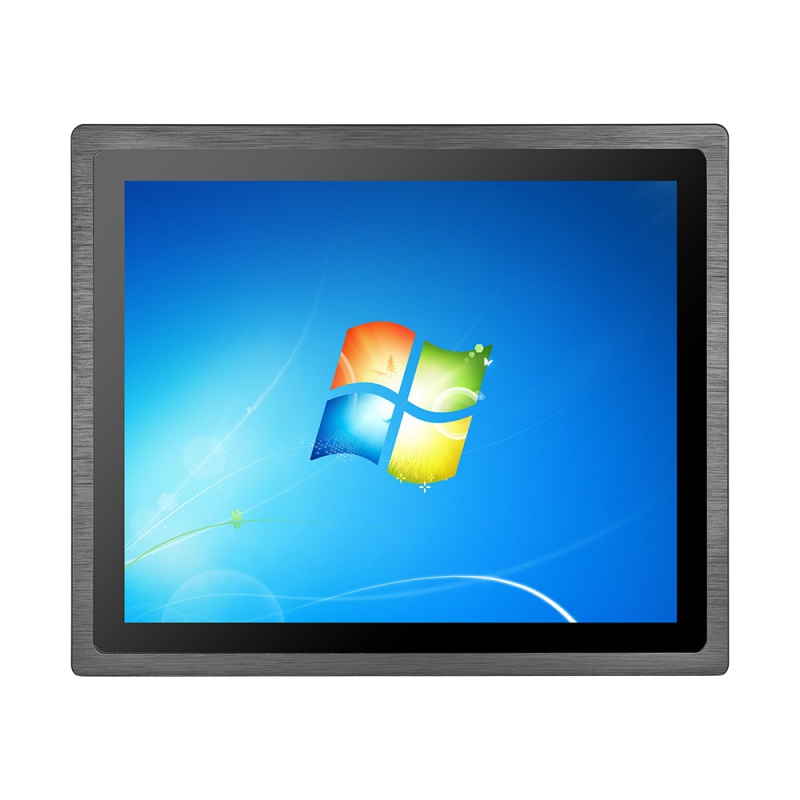

LCD size: 19" TFT LCD
Resolution: 1280 x 1024 (5:4)
Viewing angle: 85/85/80/80 (L/R/U/D)
Colour: 16.7M
Brightness: 300 cd/m2
Contrast ratio: 1000:1
Hardware Configuration:
CPU: RTD2513

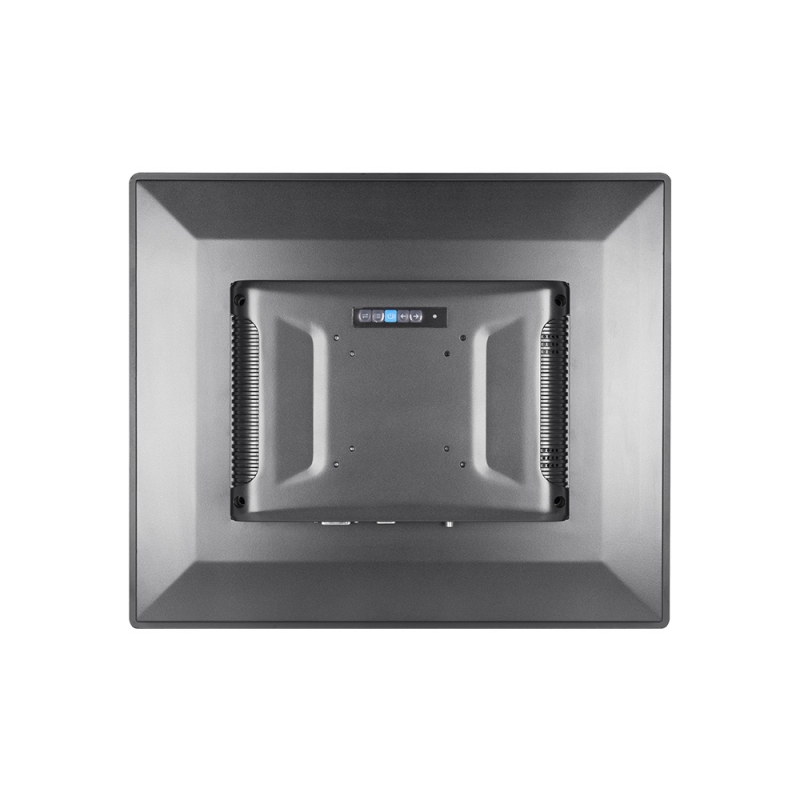

Key function: AUTO/MENU/POWER/LEFT/RIGHT
System language: Multilingual (default: English)
Video input: PC-RGB:Format Up to 1920 x 1080@60HZ Color 16bit/24bit/32bit
Physical Characteristics:

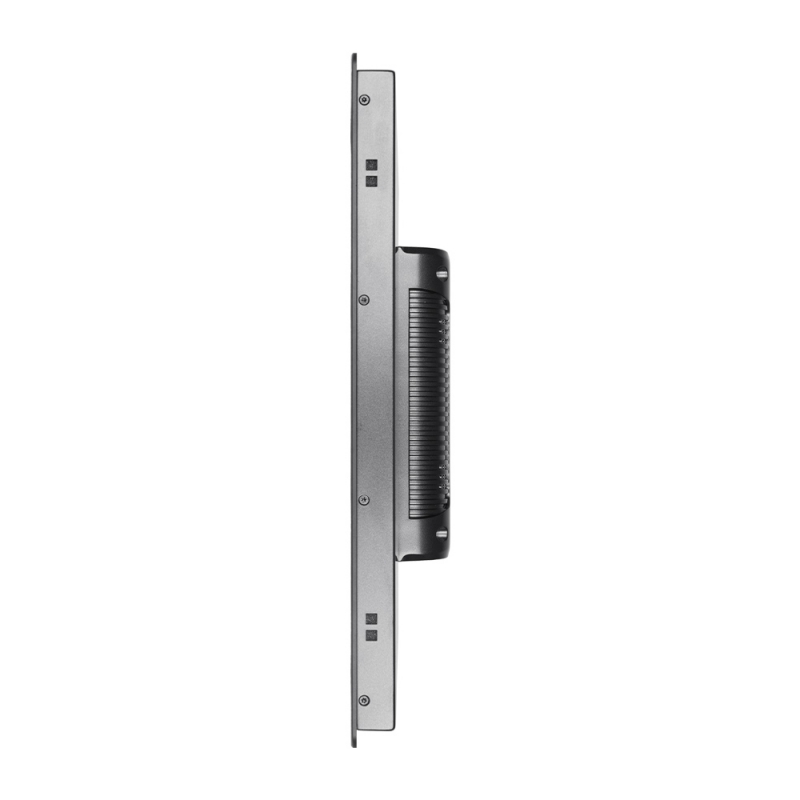

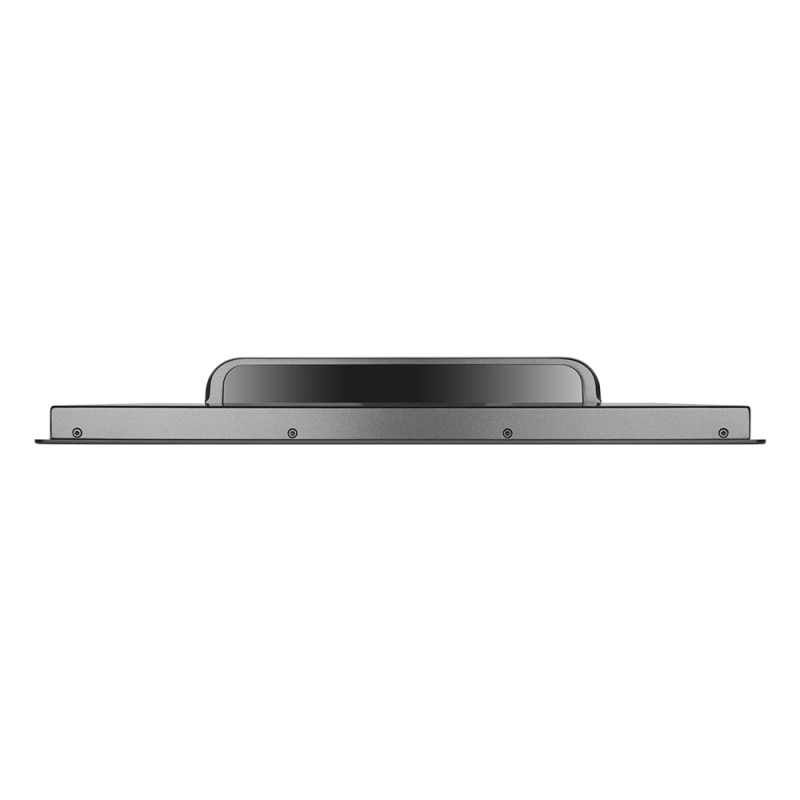

Overall dimensions: W451x H380x D63mm
Size of opening: W434.6x H363.6mm

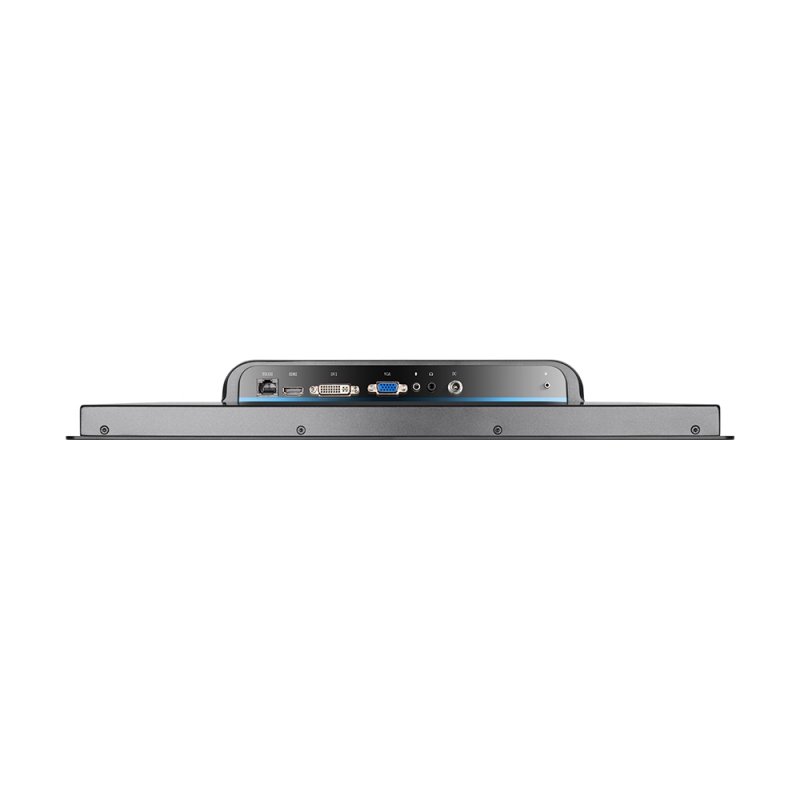

Interface Parameters:
Grounding column: Support (1x GND)
Power interface: 1x DC2.1, Support 12V-36V wide voltage power supply
HDMI: 1x HDMI, Support HDMI data input, With a maximum of 1080P
Touch interface: 1x TOUCH（RJ45)
VGA: 1x VGA, Analog signal transmission
DVI: 1x DVI, Digital signal transmission
Audio interface: 1x Audio I/O, Support audio input and output
Product Reliability Parameters:
Working temperature: -10°C~60°C
Storage temperature: -20°C~70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, Half sine wave, Lasting for 11ms
Product certification: CCC/CE/FCC/EMC/CB/ROHS
Waterproof grade: The front panel reaches IP65 protection level
Power Parameters:
Power input: DC 12V~36V
Static power: 18W
