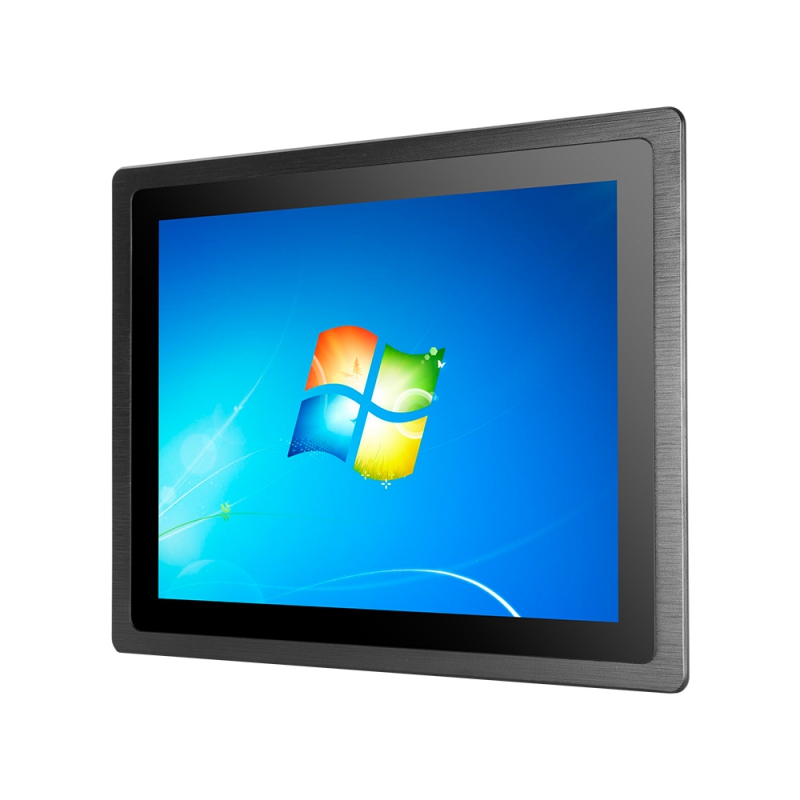

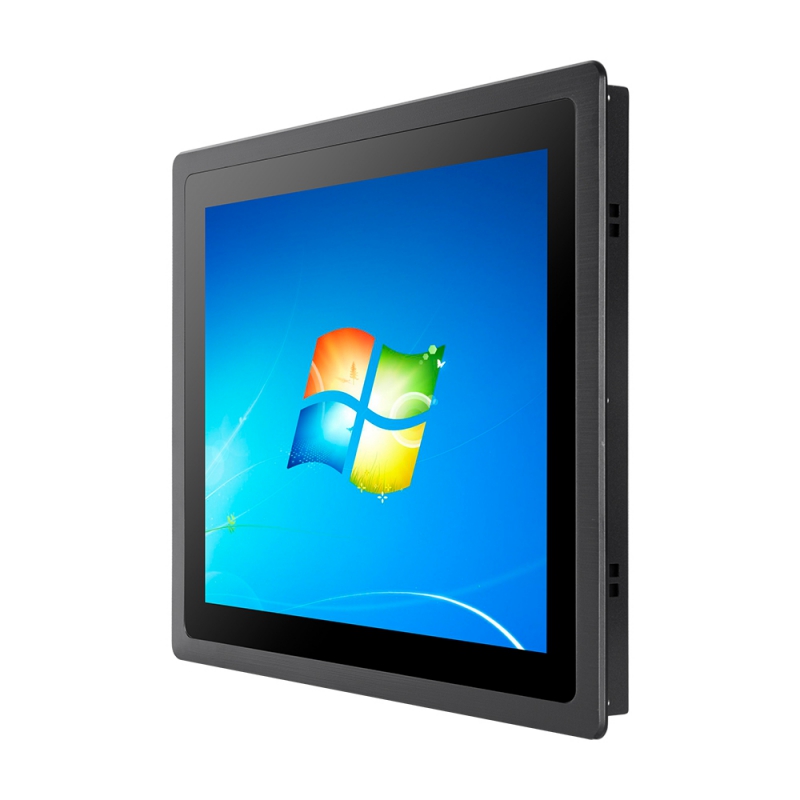

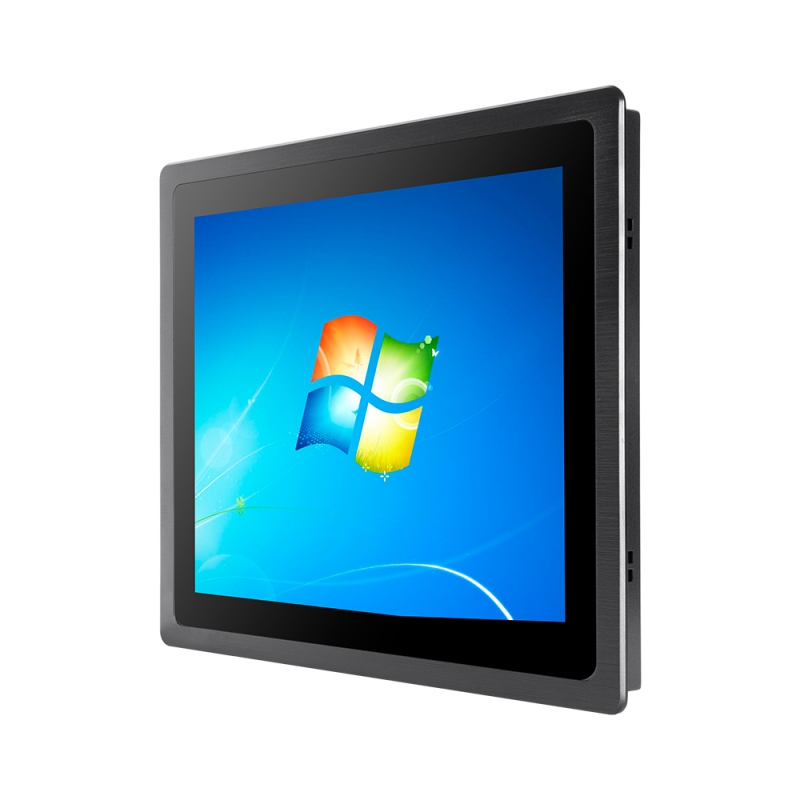

Product Description
The overall structure is made of 3mm ultra-thin aluminum alloy frame, fanless and totally enclosed design, equipped with self-developed industrial display drive board, low power consumption, and widely used in industrial control, military industry, communication, power, network, intelligent self-service terminal equipment and other automation applications.
Product Size: 15"
Non-touch: TPC150-M200-SS
Capacitive touch: TPC150-M210-SS
Resistive touch: TPC150-M220-SS
Screen Parameters:
LCD size: 15" TFT LCD
Resolution: 1024×768 (4:3)
Viewing angle: 89/89/89/89 (L/R/U/D)
Colour: 16.7M
Brightness: 300 cd/m2
Contrast ratio: 1000:1
Hardware Configuration:
CPU: RTD2513
Key function: AUTO/MENU/POWER/LEFT/RIGHT
System language: Multilingual (default: English)
Video input: PC-RGB:Format Up to 1920*1080@60HZ Color 16bit/24bit/32bit
Physical Characteristics:
Overall dimensions: W379.8x H300x D63.6mm
Size of opening: W363 x H283mm

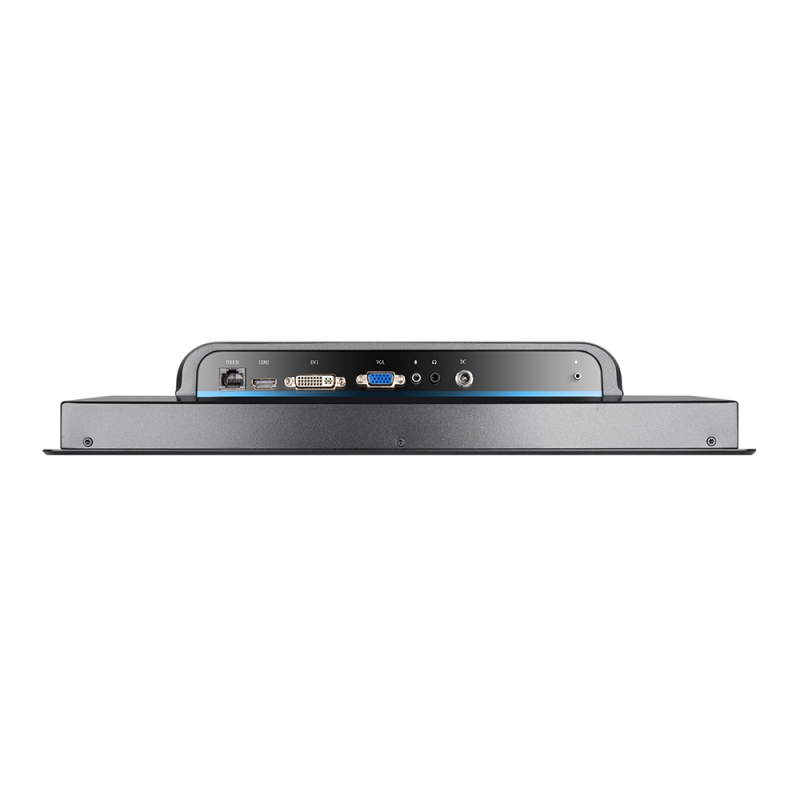

Interface Parameters:
Grounding column: Support (1*GND)
Power interface: 1*DC2.1, Support 12V-36V wide voltage power supply
HDMI: 1*HDMI, Support HDMI data input, With a maximum of 1080P
Touch interface: 1*TOUCH（RJ45)
VGA: 1*VGA, Analog signal transmission
DVI: 1*DVI，Digital signal transmission
Audio interface: 1*Audio I/O, Support audio input and output
Product Reliability Parameters:
Working temperature: -10°C~60°C
Storage temperature: -20°C~70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, Half sine wave, Lasting for 11ms
Product certification: CCC/CE/FCC/EMC/CB/ROHS
Waterproof grade: The front panel reaches IP65 protection level
Power Parameters:
Power input: DC 12V~36V
Static power: 18W
