Key Features:
✔ Efficient Processing: Intel J6412 (10W TDP) with UHD Graphics
✔ Multi-Display Support: VGA + HDMI + LVDS/eDP (triple output)
✔ Memory: Single DDR4 2400MHz (max 16GB)
✔ Industrial I/O:
1×GbE (Realtek 8111H) + 8×USB
6×COM (RS232/485/422)
✔ Storage & Expansion:
1×SATA3.0 + 1×mSATA
1×M.2 SSD + 1×M.2 WiFi + 1×M.2 5G
✔ Rugged Design:
GPIO + Watchdog + 4Ω/3W audio
Fanless 12V DC operation
Detail Display
Product Description

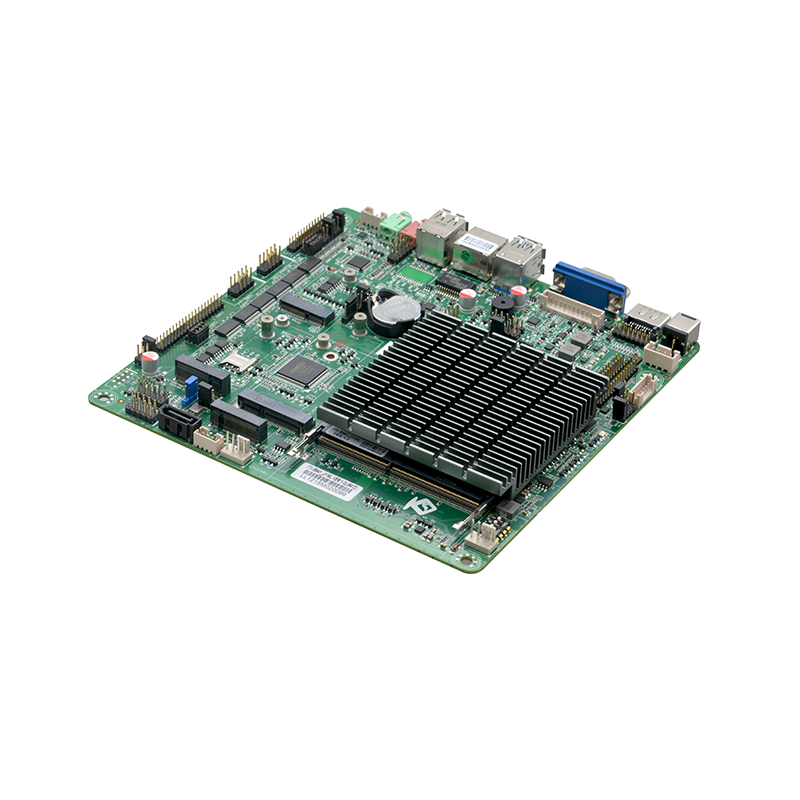

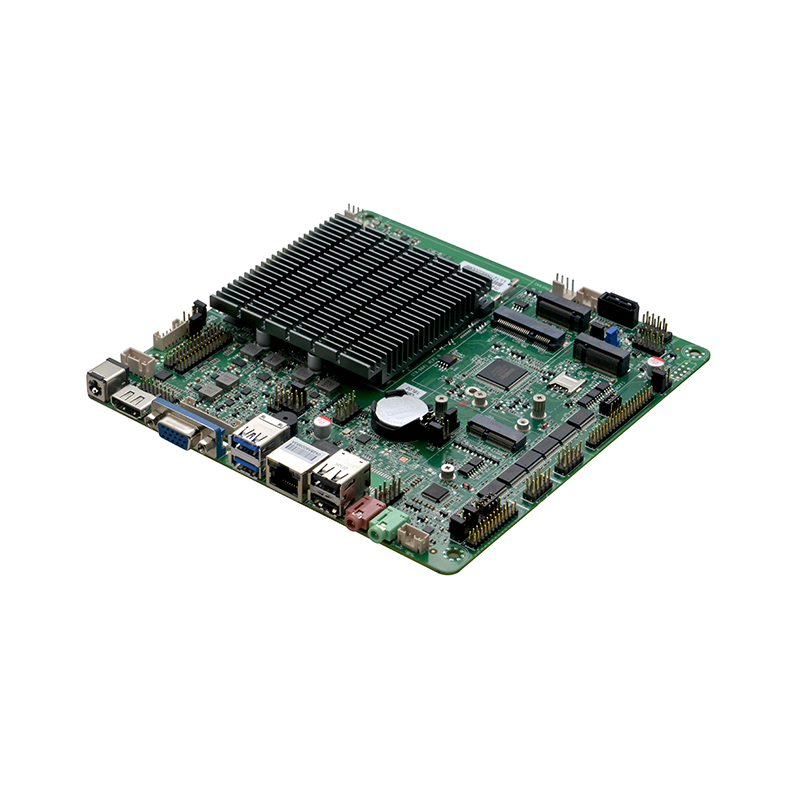

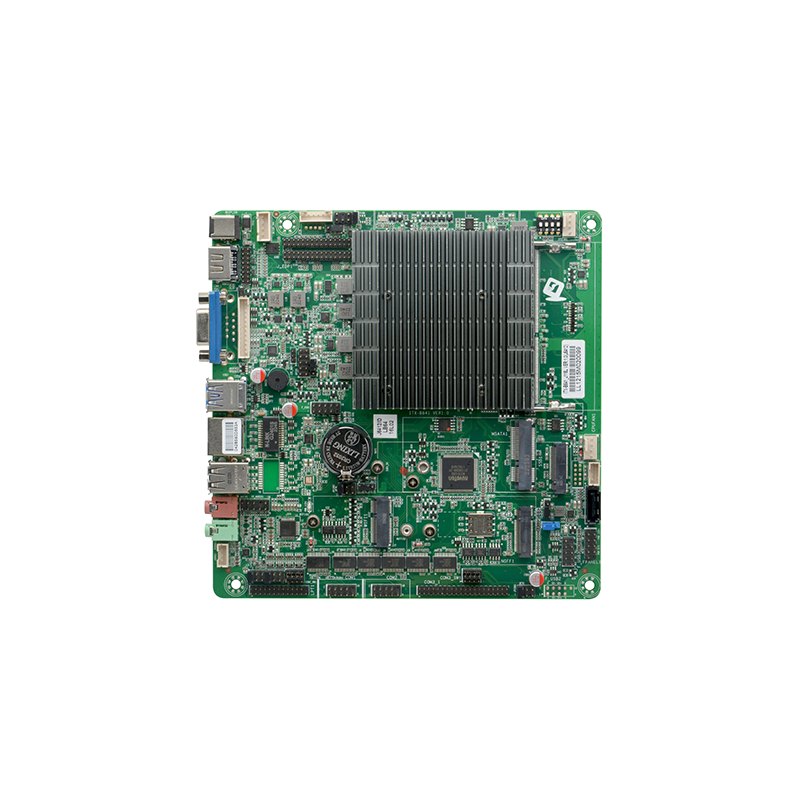

Model No.: ITX-B641_J116L VER:1.0(J6412)
Processor:
Integrated Intel®Celeron J6412 2.0GHz quad-core quad-thread processor, TDP 10W
Compatible with Intel® Elkhart Lake full range of CPUs, providing customers with flexible choices Chipset SOC
Memory:
1x SODIMM slot, supports single-channel 2400MHz DDR4 memory, maximum support 16GB
Graphics:
Intel® UHD Graphics 1x VGA, 1x HDMI, 1x LVDS, 1x EDP
Note: LVDS and EDP interfaces are adaptive and can be selected from either Network 1x RTL8111H Gigabit network card, support network wake-up, PXE function
Storage:
1x 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps
1x MSATA slot, supports SSD solid state drive, SSD transmission speed up to 6Gbps
1x M.2 slot, supports M.2 Key M 2260/2280 PCIE X2 specification SSD
Audio:
Onboard ALC897 7.1+2 channel high-fidelity audio controller, supports MIC/Line-out. amplifier
Power amplifier 4Ω 3W speaker
Expansion slots:
1x M.2 slot, supports M.2 Key B 2242/2252 5G module
1x M.2 slot, supports M.2 Key E 2230 WIFI module

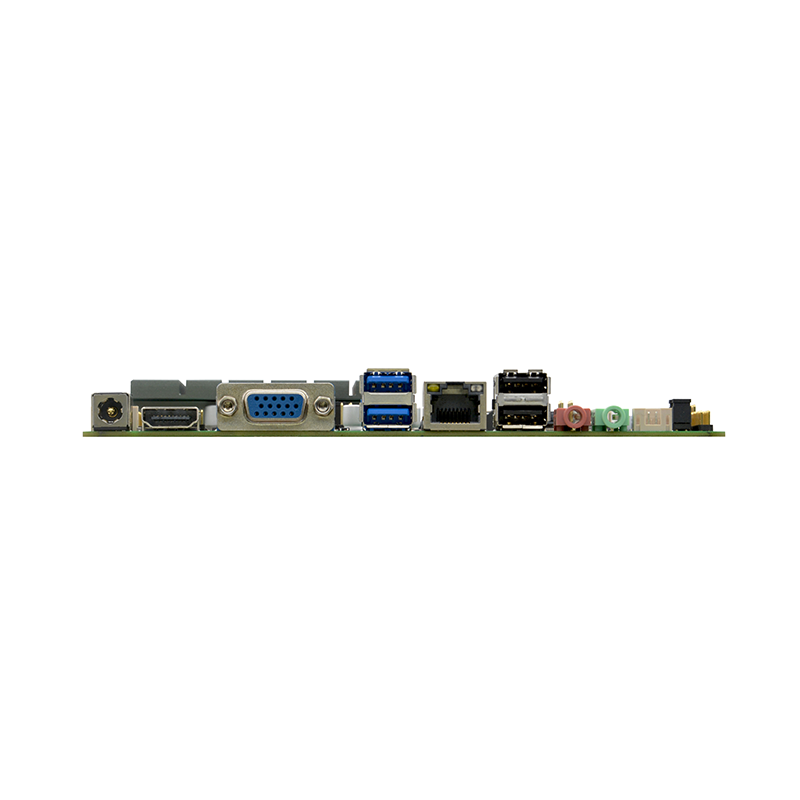

Rear I/O interface:
1x DC 12V power input interface
1x HDMI
1x VGA
1x RJ45 Gigabit network interface
2x USB3.0
2x USB2.0
1x Line out (Green)
1x MIC (red)
Built in I/O interface:
1x DC power interface 1*4pin, supports 12V power input and output
1x JVGA interface 1*12pin, same signal as DB15
1x J_HDMI interface, 2*8pin, same signal as HDMI
1x LVDS interface, 2*15pin, supports dual-channel 24BIT
1x EDP interface, 2*15pin, adaptive to LVDS
1x screen backlight power supply interface 1*6pin
4x USB2.0 interface, 2*5pin
6x RS232 serial interface, COM1/2 supports 9th pin with power, COM2/COM3 supports RS485/422 function
1x hard disk power supply interface 1*4pin
1x front audio interface 2*5pin
1x power amplifier interface 1*4pin
1x LPT, 2*13pin
1x SIM slot
1x Front panel function button and indicator light interface 2*5pin
Fan interface: Fanless cooling, reserved 1*4pin CPU smart fan interface, 1*4pin system fan interface
Power input: DC 12V
BIOS: 256Mb Flash ROM
GPIO: Supports 4 input and 4 output GPIO interfaces Watchdog Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows 10/Windows 11/Linux Working Temp. -10℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)
Dimension: 170mm x 170mm
