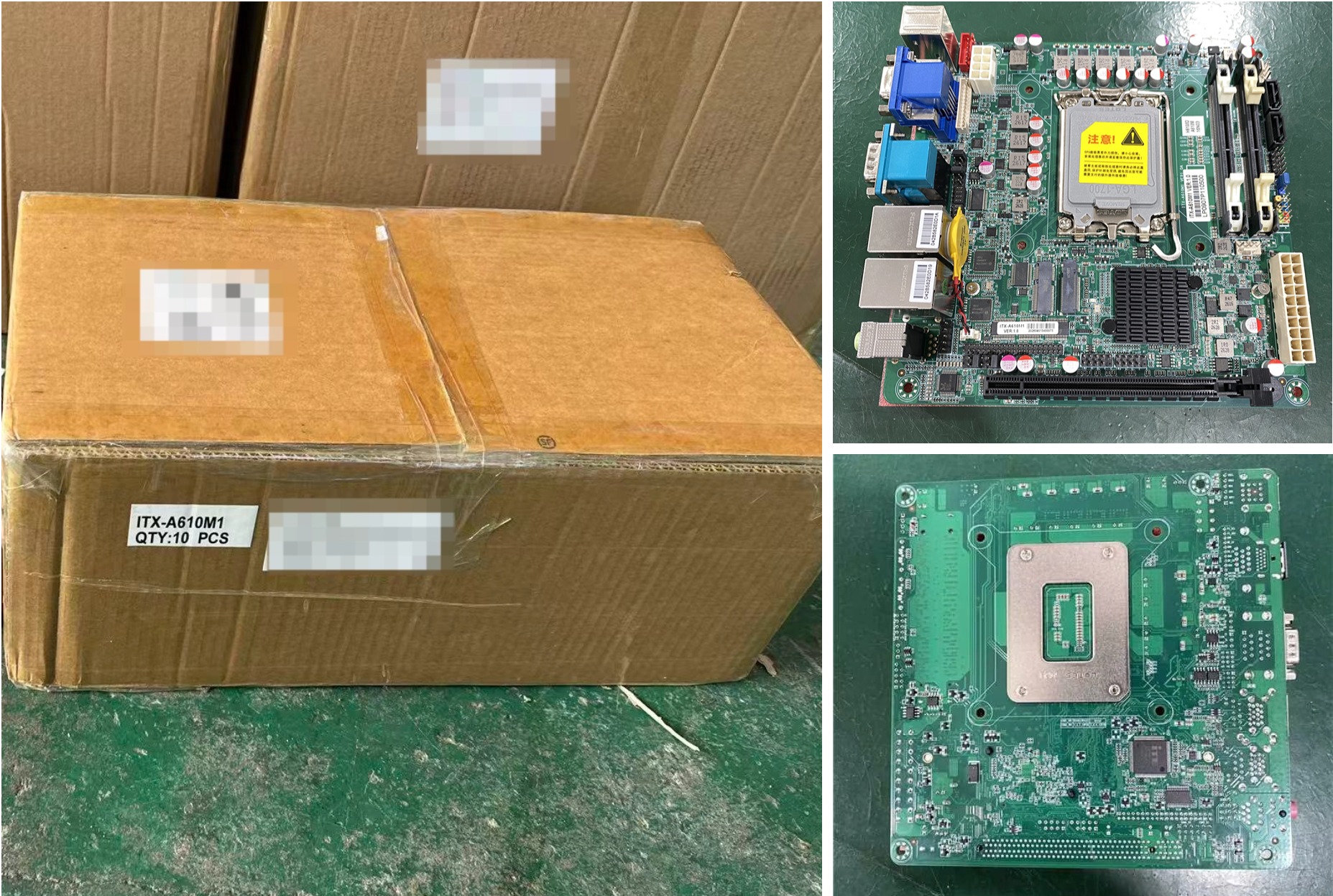

Recently, we had the great honor of completing the shipment of 10 units of ITX-A610M1 VER:1.0 LGA1700 Mini itx Motherboards, destined for South Korea. We would like to extend our special thanks to our South Korean client for their trust and support. From product selection to final delivery, your recognition is our greatest motivation to keep moving forward!

The ITX-A610M1 shipped in this batch is a powerful 170mm x 170mm standard Mini-ITX industrial-grade motherboard with rich I/O interfaces. Whether used as an industrial control core or a multimedia terminal, it delivers outstanding stability.

Below is an introduction to the key features and application scenarios of this product. If you have similar requirements, please feel free to contact us at any time!

Product Features
Based on the LGA1700 platform, the ITX-A610M1 demonstrates strong compatibility and expandability:
1.Powerful Computing, Broad Compatibility
●Equipped with the Intel® H610 chipset, supporting 12th/13th Gen Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors on the LGA1700 socket (Note: supports CPUs under 125W). Whether for entry-level or high-performance needs, it offers flexible configuration.

2.4K HD Dual Display Output
●Integrated Intel® HD Graphics, supporting DirectX12.1 and OpenGL4.5.
●Features 1x VGA (max 1920x1200@60Hz) and 1x HDMI 1.4 (max 4096x2304@24Hz), easily enabling dual-screen independent display for 4K HD viewing.

3.High-Speed Storage and Networking
●Memory: 2x DDR4 SODIMM slots with dual-channel design, supporting up to 3200MHz and expandable to 64GB maximum.
●Storage: 2x SATA3.0 ports (6Gbps) and 1x M.2 M Key slot (supports 2260/2280 NVME PCIE3.0 X4/SATA adaptive SSD).
●Network: Onboard 2x Intel® I210AT Gigabit Ethernet chips, supporting Wake on LAN/PXE functions for efficient and stable network transmission.

4.Industrial-Grade Rich I/O
●Rear I/O: Includes 2x DB9 RS232 COM ports (supporting 9th-pin powered function and RS485/422), 4x USB 3.0, 2x USB 2.0, 1x PS/2, etc.
●Built-in Expansion: Supports 1x PCIE3.0 X16 slot, 1x M.2 2230 WiFi module, plus rich COM ports (4x RS232) and USB pin headers.
●Audio: Onboard ALC897 7.1+2 channel high-fidelity audio controller, supporting MIC/Line-out.

5.High-Reliability Design
●Supports hardware watchdog reset function (256 levels, 0~255 seconds) and operates in a working temperature range of 0°C~60°C, purpose-built for demanding industrial environments.

Application Scenarios
With its compact size (170x170mm), rich expansion interfaces (especially multiple COM ports and dual LAN), and powerful 12th/13th Gen processor performance, the ITX-A610M1 is widely used in the following fields:
●Industrial Automation Control: Multiple COM ports perfectly connect various sensors, PLCs, and industrial equipment; dual LAN supports network redundancy.
●Smart Retail Terminals (POS/Kiosk): Compact size and 4K HD output make it ideal for embedding into space-constrained smart cash registers and self-service kiosks.
●Digital Signage & Advertising Machines: HDMI 1.4 supports 4K resolution for detailed advertising display.
●Security & Surveillance Systems: Dual Intel Gigabit LAN ensures stable video streaming; M.2 NVME SSD provides high-speed data read/write.
●Medical & Testing Instruments: High stability and wide operating temperature range meet the control requirements of medical devices and precision instruments.
●Edge Computing & Gateways: Supports 64GB large memory and multiple expansion slots, suitable as an edge computing node.

Looking for a Reliable Mini Motherboard Supplier?

The ITX-A610M1 not only offers balanced performance but also supports flexible customization (OEM/ODM). Whether you are in South Korea or anywhere else in the world, if you are interested in industrial motherboards, Mini-ITX motherboards, or embedded systems, or are looking for a long-term stable hardware partner, please feel free to contact us!
