We are pleased to announce that a batch of SII-3568-A RK3568 sample boards has been successfully shipped to Italy. This cooperation marks an important step in building our relationship with our Italian client, and it is a recognition of our product quality and technical capabilities. We sincerely thank our Italian client for their trust and support, and we look forward to working together to build a long-term, stable partnership!

Product Introduction: SII-3568-A

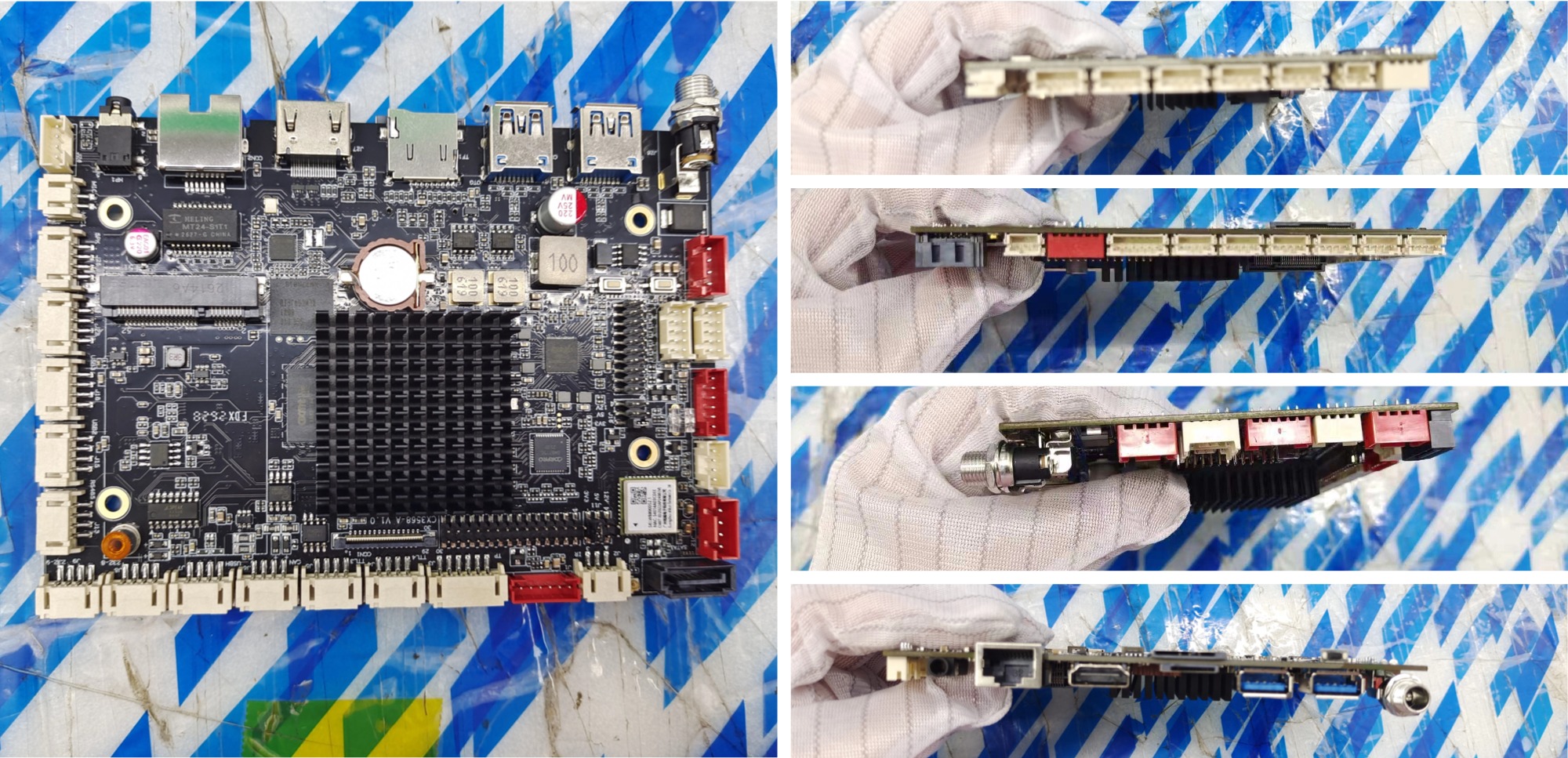

The SII-3568-A shipped in this batch is a high-performance embedded motherboard built on the Rockchip RK3568 platform. It combines strong computing power, rich interfaces, and high expandability, making it suitable for a wide range of industrial and intelligent terminal applications.

Key Specifications
●Model: SII-3568-A
●Processor: RK3568 64Bit, Quad Core Cortex-A55 2.0GHz
●RAM: Onboard LPDDR4 2G
●Storage: Onboard eMMC 32G (up to 64GB); 1× TF card slot
●Network: 1× 1000M Ethernet
●Display Interfaces: 1× HD, 1× LVDS, 1× eDP, 1× MIPI
●OS: Android 12
●Wireless: Built-in 2.4G WiFi
●Serial/Industrial Interfaces: 2× RS232, 1× 485, 2× TTL, 1× CAN
●Power Input: DC_12V
●Dimensions: 140mm × 100mm

Product Link: https://www.senbatech.com/rk3568/938.html
Board Features
●Quad-Core A55 Architecture, Stable Performance: The RK3568 quad-core Cortex-A55 processor runs at up to 2.0GHz, balancing performance and power consumption for mid-to-high-end embedded applications.
●Multiple Display Outputs: Supports HD, LVDS, eDP, and MIPI display interfaces, flexibly adapting to different sizes and types of displays.
●Rich Industrial Interfaces: Integrated RS232, RS485, TTL, and CAN interfaces for easy connection to various industrial devices and sensors.
●Dual Storage Solution: Onboard eMMC and TF card slot coexist, meeting independent storage needs for system and data.
●Gigabit Ethernet and WiFi: Supports wired Gigabit Ethernet and 2.4G WiFi for stable communication.
●Compact Size: 140mm × 100mm standard board form factor, easy to embed into various devices.
●Android 12 System: Provides a mature and stable system ecosystem for rapid development and deployment.

Application Fields
With its strong performance and rich interfaces, the SII-3568-A can be widely used in:
●Industrial Control: PLC, HMI, industrial gateways, data acquisition terminals
●Intelligent Terminals: Self-service kiosks, advertising machines, digital signage
●IoT Gateways: Edge computing, protocol conversion, device networking
●Medical Equipment: Patient monitors, diagnostic terminals, medical display devices
●Automotive & Transportation: In-vehicle terminals, charging piles, rail transit displays
●Security & Surveillance: NVR, video capture and processing terminals
●Commercial Displays: Retail terminals, smart POS, interactive large screens

Invitation for Cooperation
If you are interested in the SII-3568-A or other embedded motherboard solutions, please feel free to contact us for samples, technical documentation, and quotations. We look forward to working with customers worldwide to create a smarter future together!
