01 Industry Development Background
Dense urban population, frequent industrial and commercial activities, and continuous expansion of infrastructure have led to increasing pressure on security. Traditional human security has many bottlenecks in scene coverage, cost efficiency, and continuous operation, resulting in frequent public safety accidents, and there is an urgent need for strong support from intelligent robot technology.

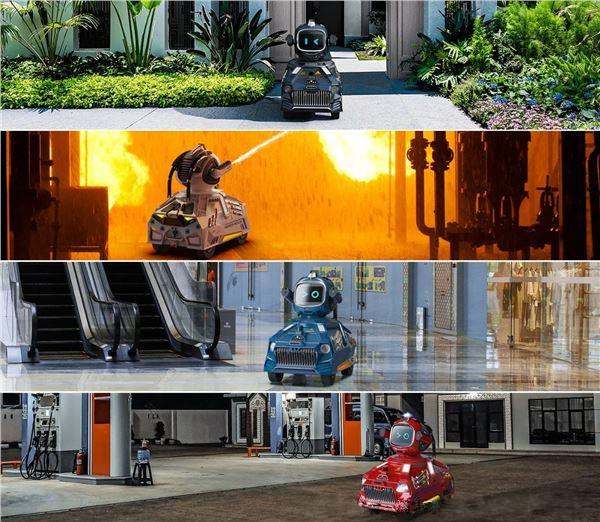

In response to this demand, an emergency rescue equipment manufacturer and Senbainnno have developed a security guard robot for underground parking lots, commercial centers, large warehouses, office parks, gas stations, and homes. It integrates key technologies such as 5G, AI, sensors, and autonomous navigation, which can effectively make up for the gap in manual inspections and protect urban safety.

02 Industry application requirements
The focus of security is not to find problems, but to solve them. Therefore, the customer security guard robot not only has the "find → early warning" function of the inspection robot, but also adds automatic handling modules for alarms such as fire extinguishing and disinfection. This places strict requirements on the performance of its core control component - the embedded motherboard.

●Integration capability: The robot realizes environmental perception and motion control through cameras, radars, ultrasonic sensors, motor drives, etc. The mainboard needs to have a rich set of expansion interfaces to realize control integration;
●Data processing: The robot needs to process real-time data from multiple sensors, and the mainboard should have powerful data processing capabilities for multi-task parallelism;
●AI computing power: The robot needs AI computing power to support image recognition, trajectory optimization, and alarm detection, etc., to improve accurate identification and handling efficiency;
●Storage and network: The robot needs to transmit and store images/video streams in real time and ensure a stable connection with the control center or cloud platform;
●Stability: Facing the challenges of robot mobility and operating environment, the industrial control motherboard needs to balance power consumption and performance and provide strong environmental adaptability.

03 Senbainno product matching

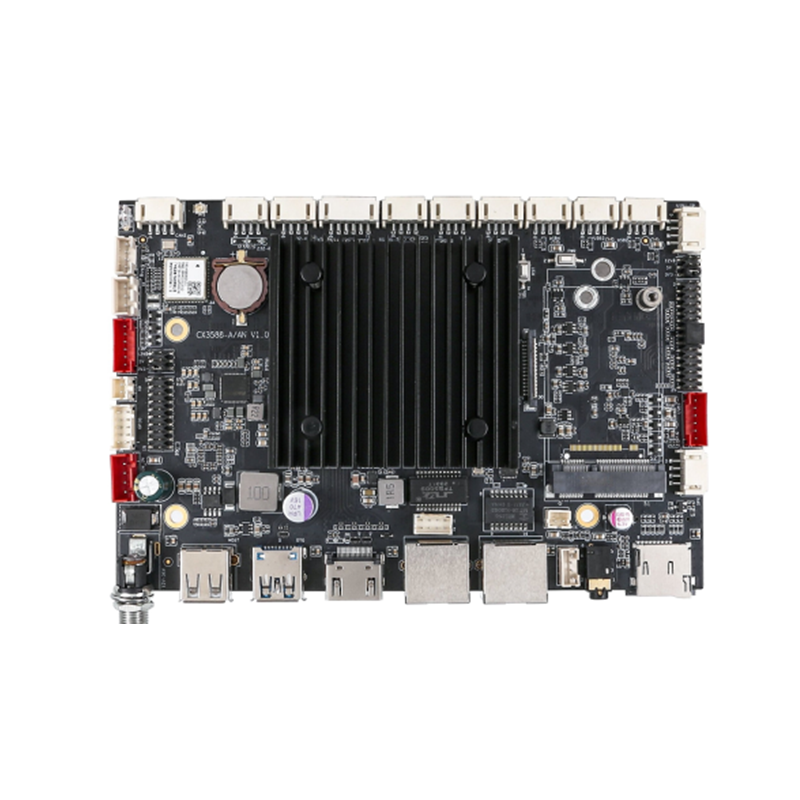

The CX-3588 embedded industrial control motherboard has powerful computing performance and 5G+AI intelligent support. It has passed the project test and has become an ideal choice for customers‘ security and guard robot matching applications.

High-performance GPU+CPU+NPU collaboration

CX3588 is equipped with Rockchip®RK3588 octa-core processor with a main frequency of up to 2.4GHz, which can efficiently manage the robot‘s sensor data collection, navigation path planning, motion control and obstacle avoidance tasks. It integrates ARM Mali G610 MP4 graphics processor and 6 TOPS AI computing power NPU, which can quickly process images and video stream data collected by the camera, run AI visual recognition, image analysis and algorithm optimization, and greatly improve the robot‘s inspection efficiency and intelligence level.
Comprehensive I/O interfaces

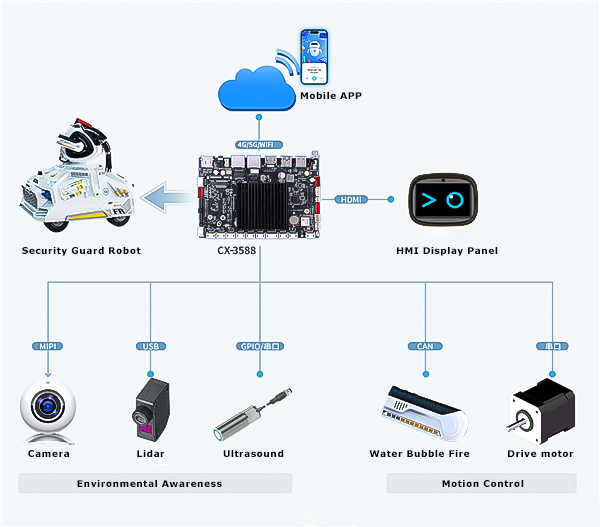

CX3588 has high-speed interfaces such as MIPI Camera, USB, COM, CAN, GPIO, supports HDMI/LVDS/EDP/MIPI output, and can simultaneously connect multiple high-definition cameras, LiDAR, ultrasonic sensors and motor drives, HMI modules, and realize all-round environmental perception, motion control and interactive applications.

High-speed network and storage

CX3588 has a maximum 32GB+258GB high-speed storage combination, which ensures high transmission rate and algorithm response, and also supports local storage of inspection records.

Equipped with 2 Gigabit Ethernet, it supports M.2 5G module, WiFi6, Bluetooth and other communications for mobile phone APP video monitoring and remote scheduling, ensuring high-speed and low-latency communication.

Uninterrupted operation guarantee

CX3588 is developed based on ARM low-power architecture, which can reduce the pressure of robot endurance. The motherboard is covered with three anti-coatings, without the trouble of corrosion and moisture, and has industrial-grade protection such as -20℃~70℃ wide temperature, DC 12V-36V wide voltage, anti-electromagnetic interference, anti-static, and anti-vibration, providing customers with 24-hour uninterrupted operation guarantee for security guard robots.

04 Application Empowerment

With its excellent comprehensive performance, the CX3588 motherboard provides customers‘ robots with a super "brain", enabling them to efficiently and intelligently complete core tasks such as environmental perception, autonomous navigation and obstacle avoidance, data analysis and transmission, and is an ideal choice for unmanned inspection.
