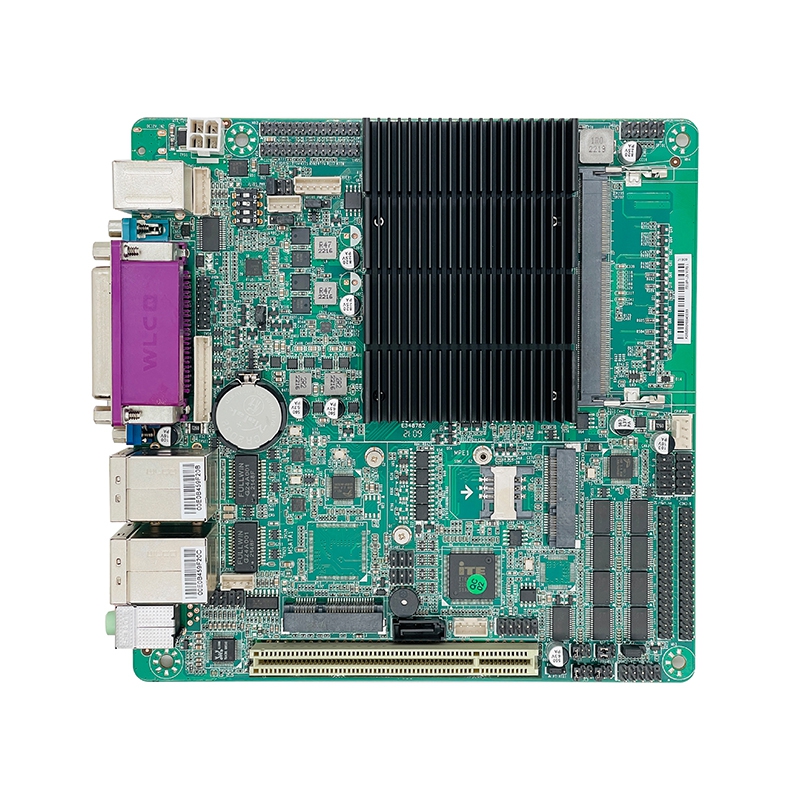

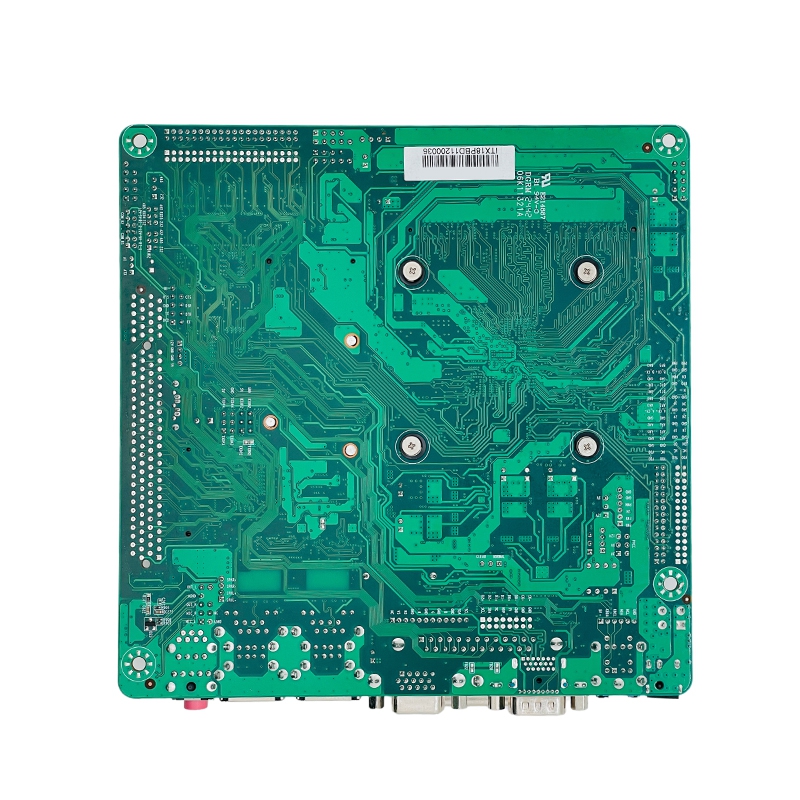

Overview
SII-ITX-18P-L2AP Ver1.1 is a 170×170 mm Mini ITX Intel Embedded Motherboard powered by Intel Celeron J1900 quad-core processor with 10W TDP. It features one SO-DIMM DDR3L slot supporting up to 8GB memory, with integrated Intel HD Graphics.
It delivers multi-display outputs via VGA, HDMI and optional LVDS/eDP interfaces. Equipped with 2×RTL8111H Gigabit LAN ports supporting Wake-on-LAN and PXE boot, it provides rich onboard I/O including configurable multi-COM ports, LPT, multiple USB2.0, GPIO and power-amplified audio. Storage includes SATA2.0 and mSATA slots. A Mini-PCIe slot supports WiFi/4G modules, and an optional PCI slot is available. It adopts DC 12V power input and supports hardware watchdog reset.
Compatible with Windows 7/10 and Linux systems, this mainboard operates stably from -10℃ to 60℃. It is well-suited for cost-effective embedded control, IoT gateway and industrial terminal equipment.
Product Description
Model No.: SII-ITX-18P-L2AP VER:1.1
Processor:
Integrated Intel® Celeron J1900/2.0GHz quad-core quad-thread processor, TDP:10W ;
compatible with Intel® Baytrail-I/M/D series CPUs.
RAM:1x SO-DIMM slot, supports 1333/1600MHz DDR3L / 1.35V memory, up to 8GB
Display:
1x VGA, 1x HDMI, 1x LVDS / eDP (Option)
Supports synchronous/asynchronous display via VGA, HDMI, LVDS, or eDP
Integrated Intel® HD Graphics
Ethernet :2x Realtek RTL8111H GbE ports (1 network option), support wake-up / PXE function
Storage:
1x SATA 2.0 slot
1x MSATA SSD slot
Audio:
Integrated ALC662 6-channel high-fidelity audio controller, supporting MIC/Line-out and a power amplifier (supporting dual-channel 2Ω/5W operation).
Expansion Slot:
1x Mini PCIe slot (Both half-credit and full-credit cards are supported.), supports Wi-Fi/4G module
1x PCI slot (Option)

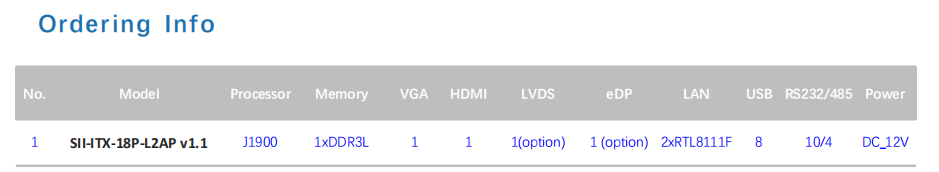

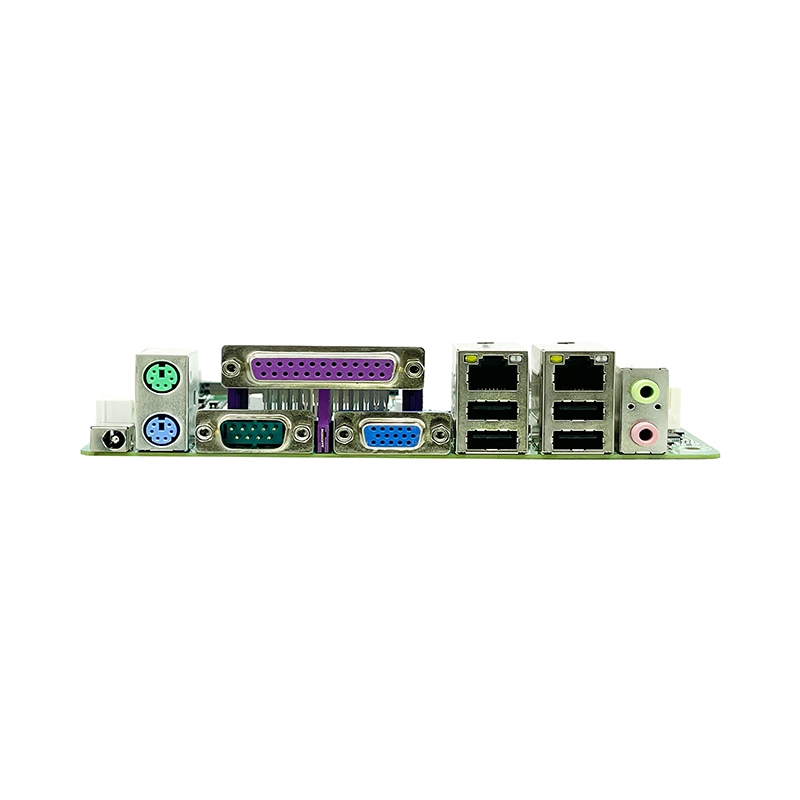

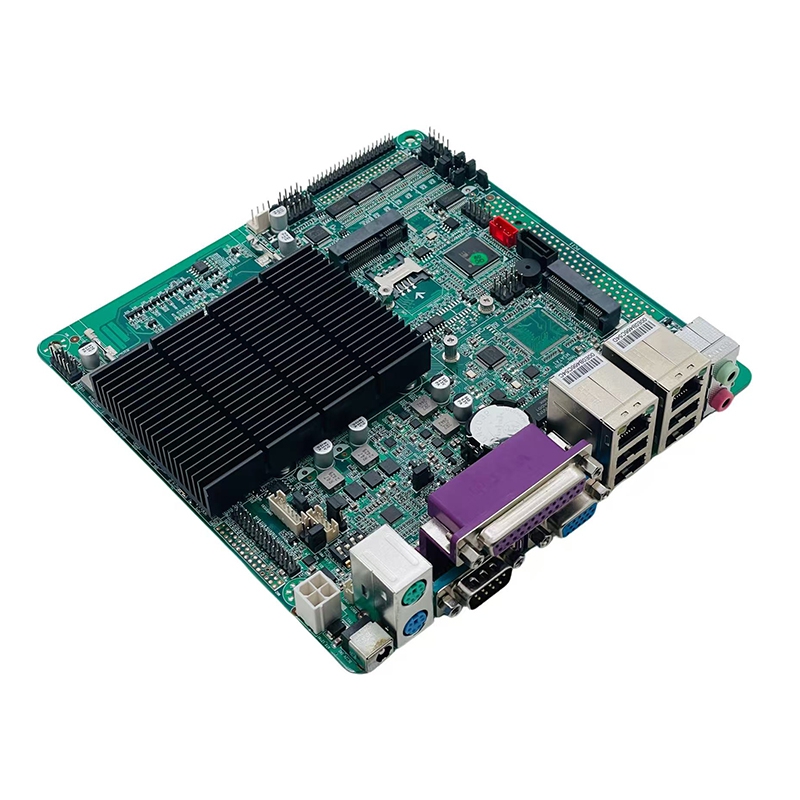

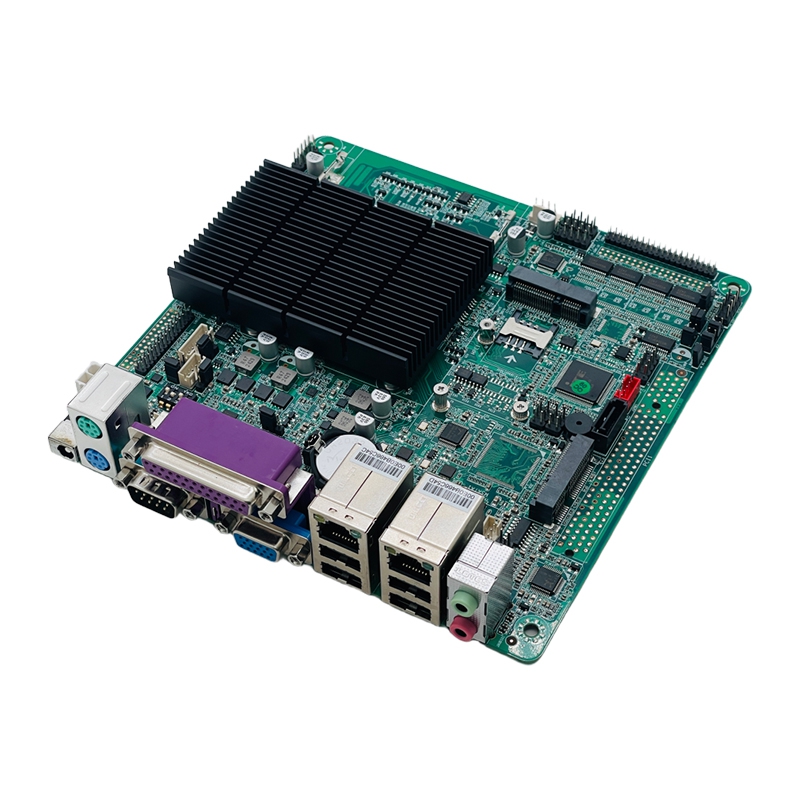

Rear I/O interface:
1x 12V DC power input interface
2x RJ-45 Gigabit network interface
1x COM
4x USB 2.0
1x LPT interface
1x VGA display interface
1x Line out (Green) , 1x MIC (Red)
1x Standard keyboard and mouse interface
Built-in I/O interface:
1x JHDMI interface 2x8-pin
1× LVDS interface, 2×15 pins, supports dual-channel 24-bit (either LVDS or eDP, with the former being the default).
1x JVGA; 1x12-pin (same signal as DB15)
1x eDP interface, 2 x 15-pin (choose either eDP or LVDS, optional)
4× USB 2.0 ports, 2× 5-pin
1× Front audio interface, 2× 5-pin
1× Screen backlight power interface, 6-pin
1x Power amplifier interface: 1×4-pin
9x COM interfaces (optionally configurable as 5 or 9 serial ports, with COM2–COM5 supporting RS485, and COM1/2 supporting 9-pin interface)
1 x Keyboard/Mouse interface, 6-pin
1× 4-pin ATX power connector
1x Hard drive power interface
1x Front panel switch buttons and indicator light interfaces; 2x 5-pin
Fan interface: Fanless cooling design, with a reserved 1×4-pin CPU fan interface
GPIO: Support 4-way input/output GPIO function
BIOS: AMI 64Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows 7/10/ Linux
Power type: DC 12V
Operating temperature: -10℃~60℃
Storage temperature: -20℃～70℃
Working humidity: 5%—95% relative humidity, non-condensing
Size: 170 mm x 170 mm
