Overview
Industrial Touch Panel Computer - Windows 10 Professional Solution

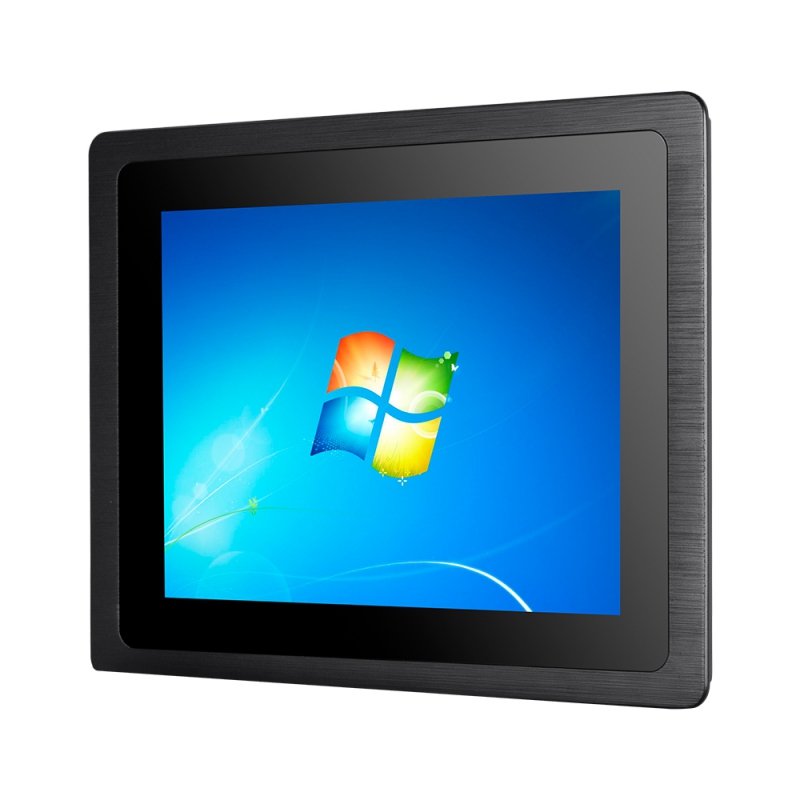

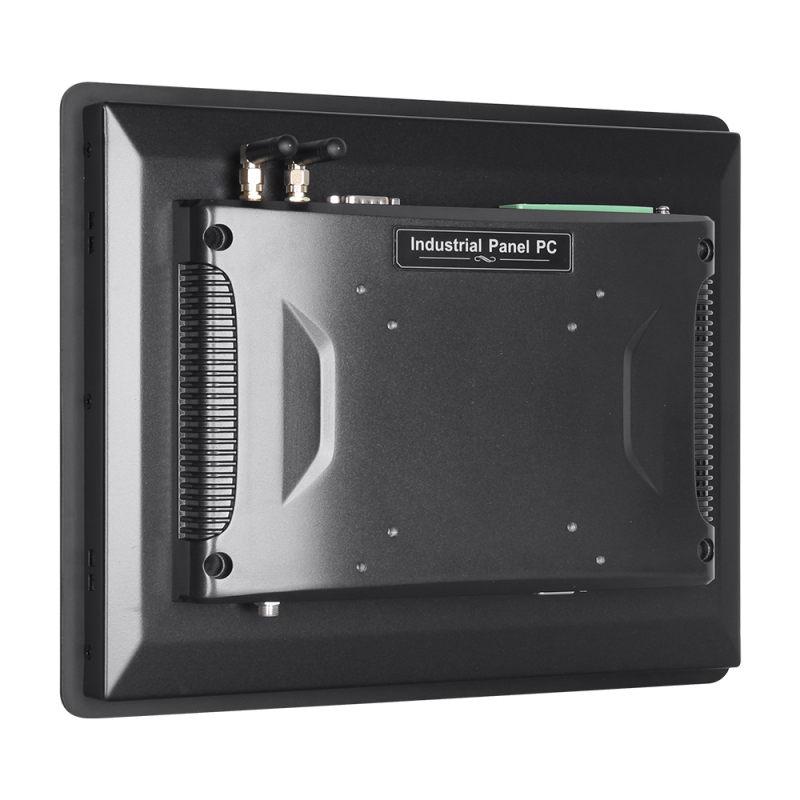

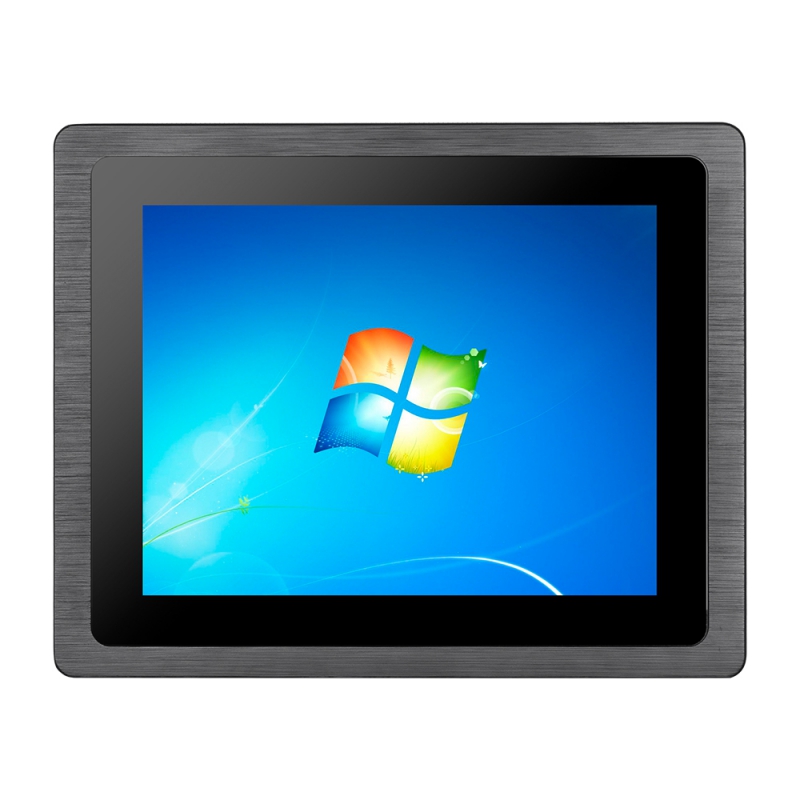

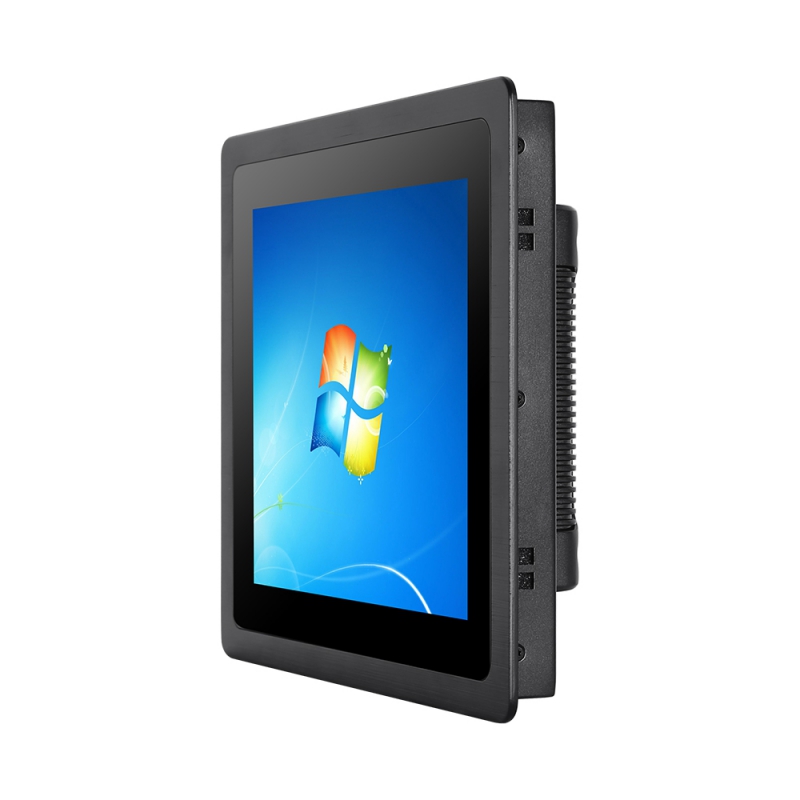

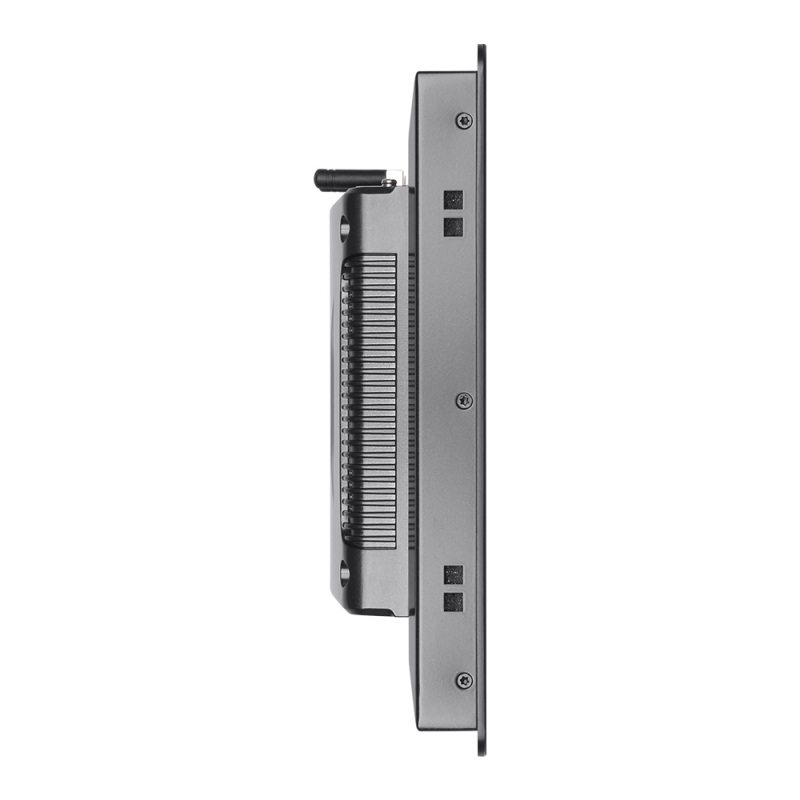

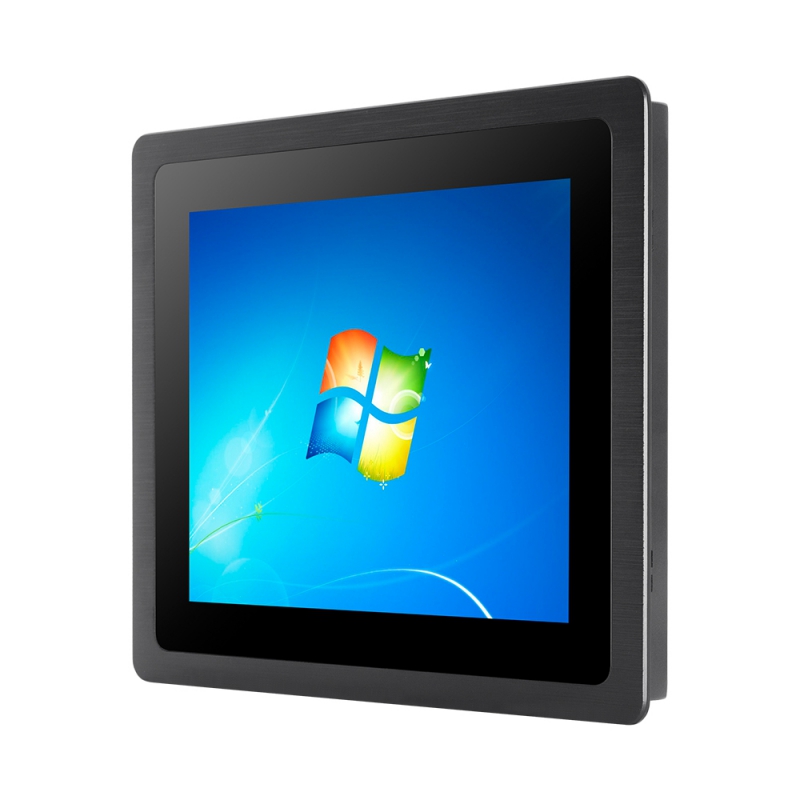

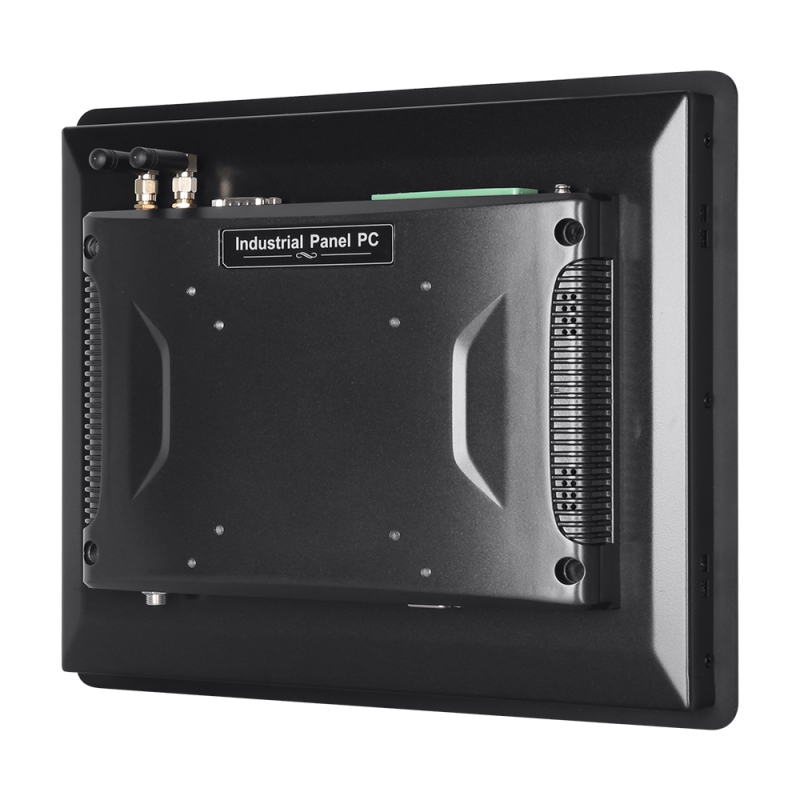

Our Touch Screen Industrial Panel PCs feature Intel Celeron J4125 quad-core processor (2.0GHz) with pre-installed Windows 10 OS. This Industrial Panel PC Windows 10 device is equipped with a 10.4" TFT LCD industrial touch display (1024×768, 400cd/m²) and 3mm ultra-thin bezel, optimized for industrial environments.
Key Advantages
Windows OS: Pre-installed genuine Windows 10 for industrial software
Industrial Performance: Quad-core CPU + X86 industrial motherboard
Robust Protection: IP65 sealed + EMC compliant
High Visibility: 400cd/m² brightness for challenging lighting
Rich Expansion: Multiple interfaces for industrial peripherals
Specifications
OS: Windows 10 IoT Enterprise
CPU: Intel Celeron J4125 Quad-core 2.0GHz
Touchscreen: 10.4" dual-mode touch
Protection: IP65 + EMC
Brightness: 400cd/m²
Typical Applications
Smart factory control systems
Automated production monitoring
Industrial HMI interfaces
Equipment condition monitoring
Product Description
Product Size: 10.4"
Non-touch: TPC104-W200-4125
Capacitive touch:TPC104-W210-4125
Resistive touch: TPC104-W220-4125
Screen Parameters:
LCD size: 10.4" TFT LCD
Resolution: 1024×768(4:3)
Viewing angle: 80/80/80/80 (L/R/U/D)
Color: 16.7M
Brightness: 400 cd/m²
Contrast ratio: 1000:1

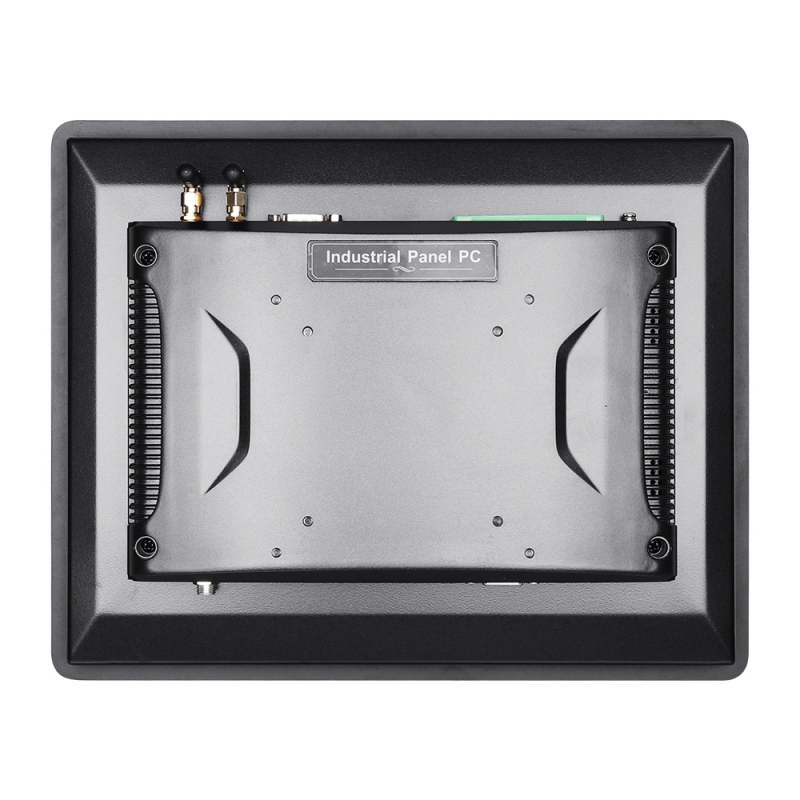

Physical Characteristics:
Overall dimensions: W288X H231X D56.5MM
Size of opening: W273 X H216MM

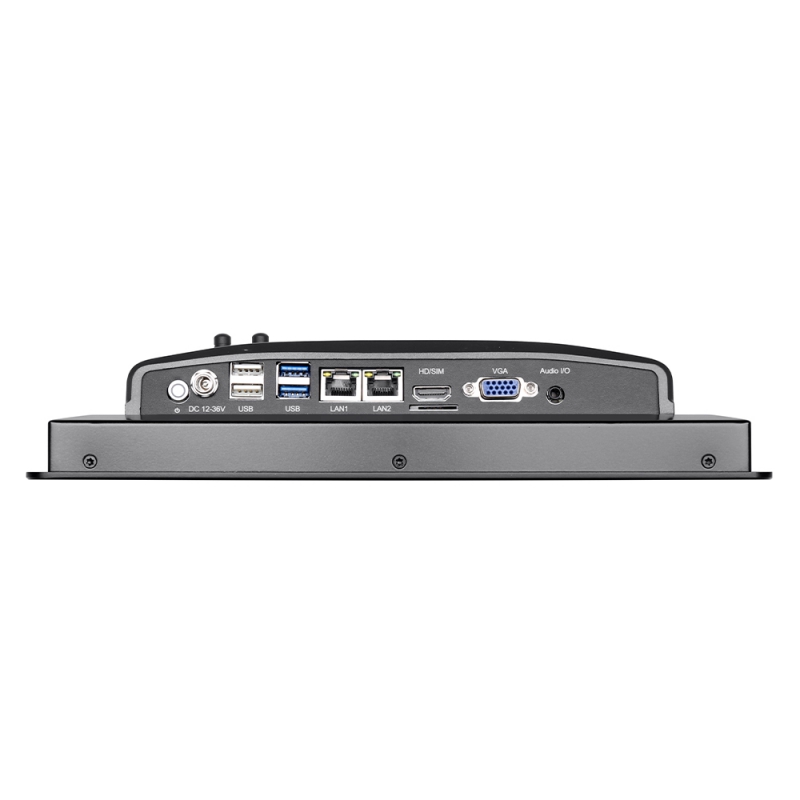

Interface Parameters:

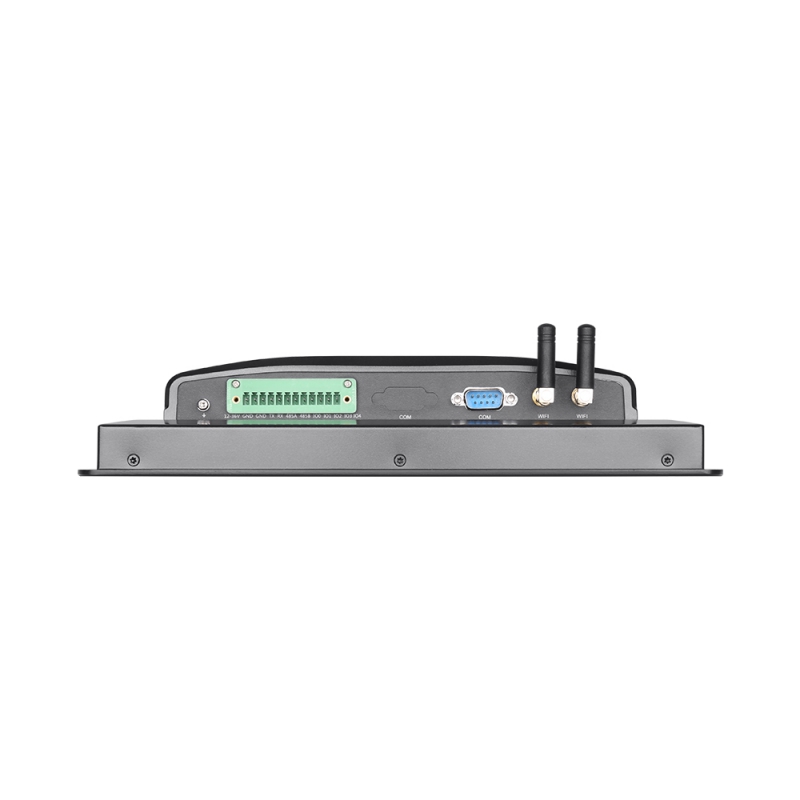

Power interface1: 1*12P Phoenix terminal (Power supply/RS232*1/RS485*1/GPIO*5)
Power interface2: 1*DC【5.5*2.5mm】, Supporting 12V-36V power input
USB: 2*USB2.0, 2*USB3.0
VGA: 1*VGA
HDMI: 1*HDMI, Supporting HDMI data output, Up to 4K
SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
Network interface: 2*1000M Ethernet interfaces
Audio interface: 1*Audio I/O, support audio input and output
COM: 1*RS232
WiFi antenna: 2*WiFi antenna
Grounding post: 1*Grounding post (GND)
Product Reliability Parameters:
Working temperature: -10°C~60°C
Storage temperature: -20°C~70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, Half sine wave, Lasting for 11ms
Product certification: CCC/CE/FCC/EMC/CB/ROHS
Waterproof grade: The front panel reaches IP65 protection level
Power Parameters:
Power input: DC 12V~36V
Static power: 18W
Hardware Configuration:
CPU: Intel Celeron J4125 quad-core 2.0GHz CPU
Memory: 8GB (Supports up to 8GB)
Storage: 128GB SSD (Optional:256GB/512GB SSD, 1T/2T HDD)
Integrated graphics: Intel UHD Graphics 600
Operating system: Win10/11/Ubuntu/Centos/Linux
Broad pressure: With wide voltage (12V~36V)
WiFi: Support 2.4GHz/ 5GHz dual-band Wifi
Bluetooth: BT4.0（Optional）
