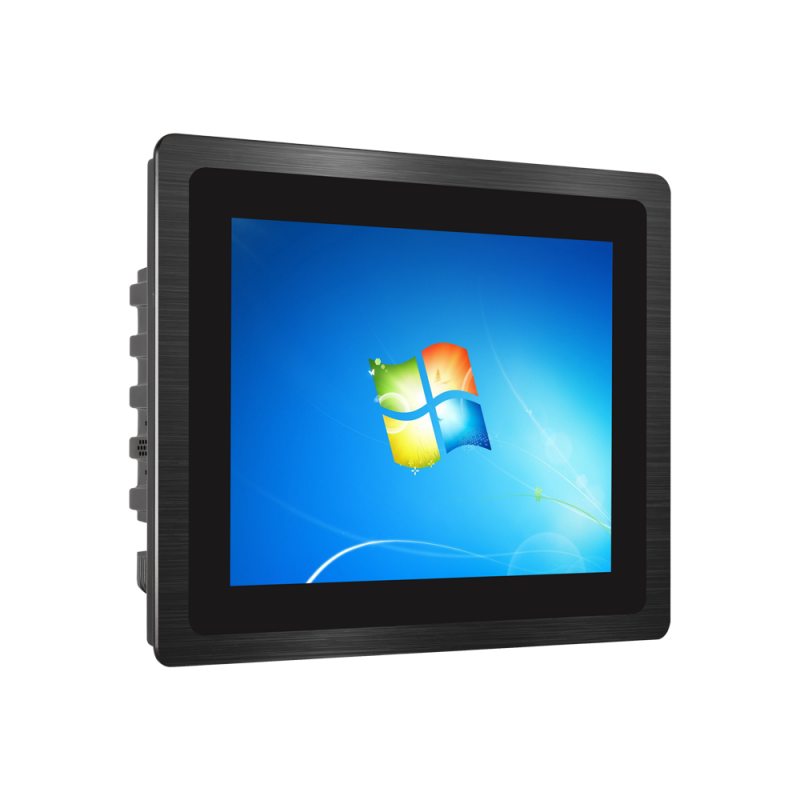

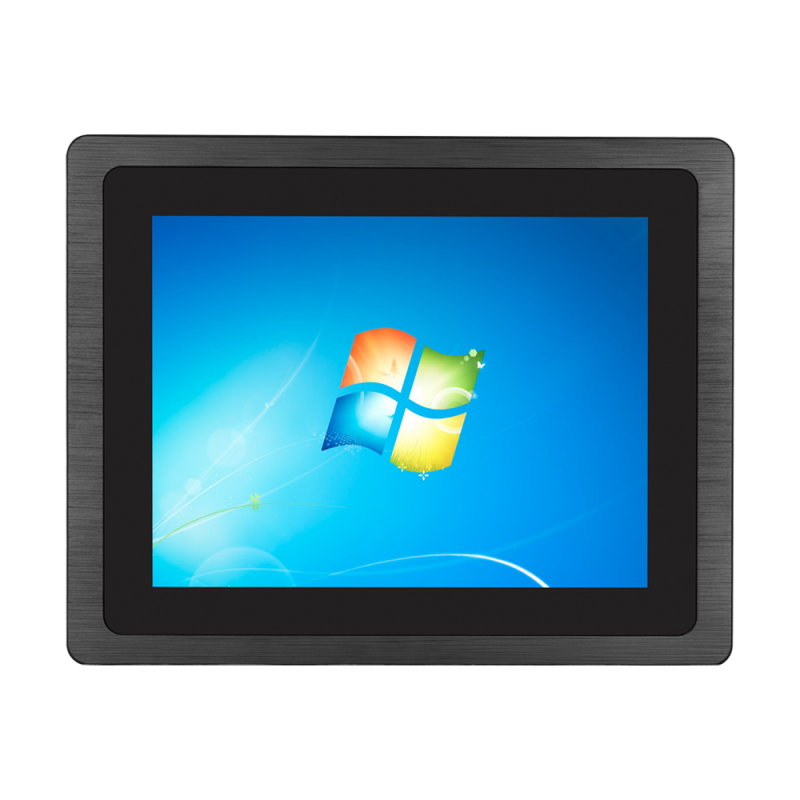

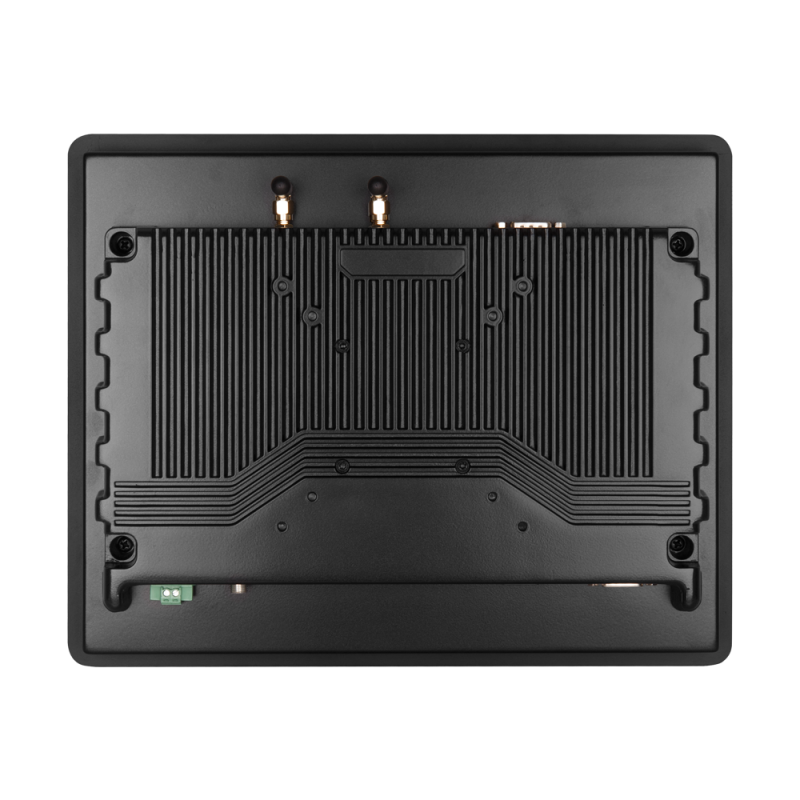

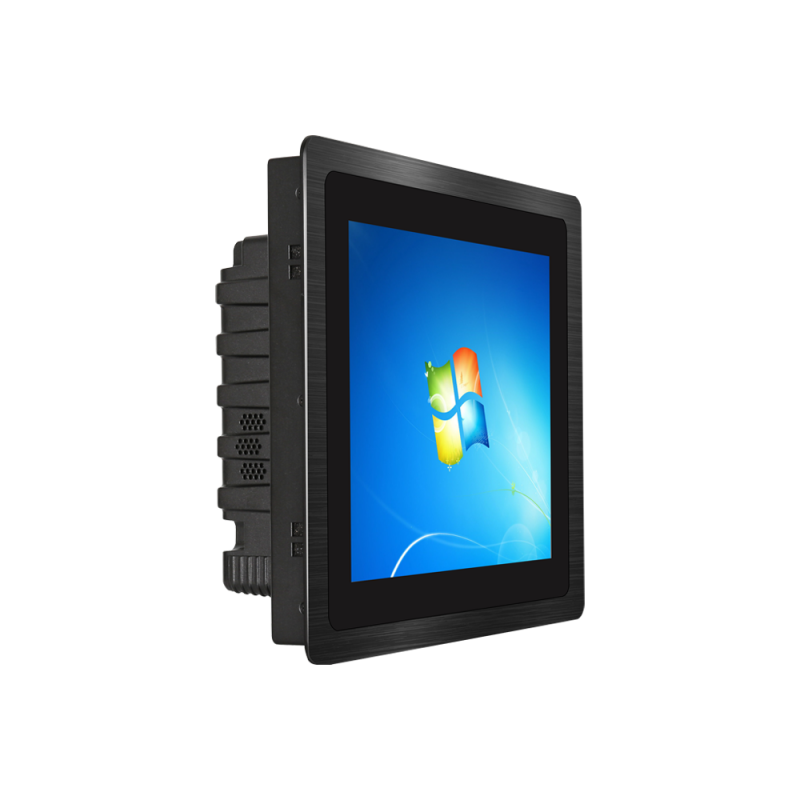

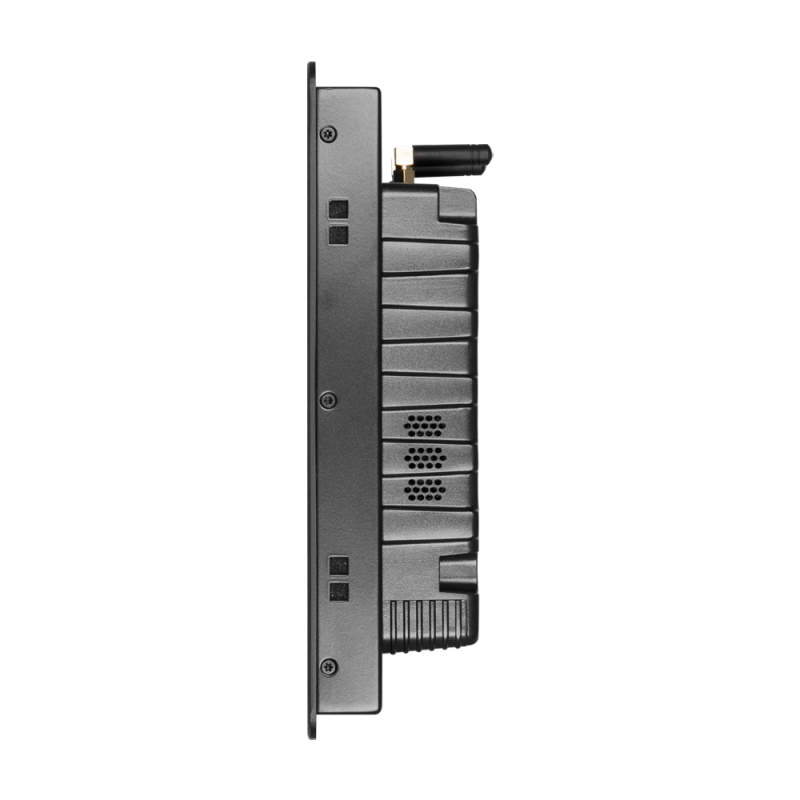

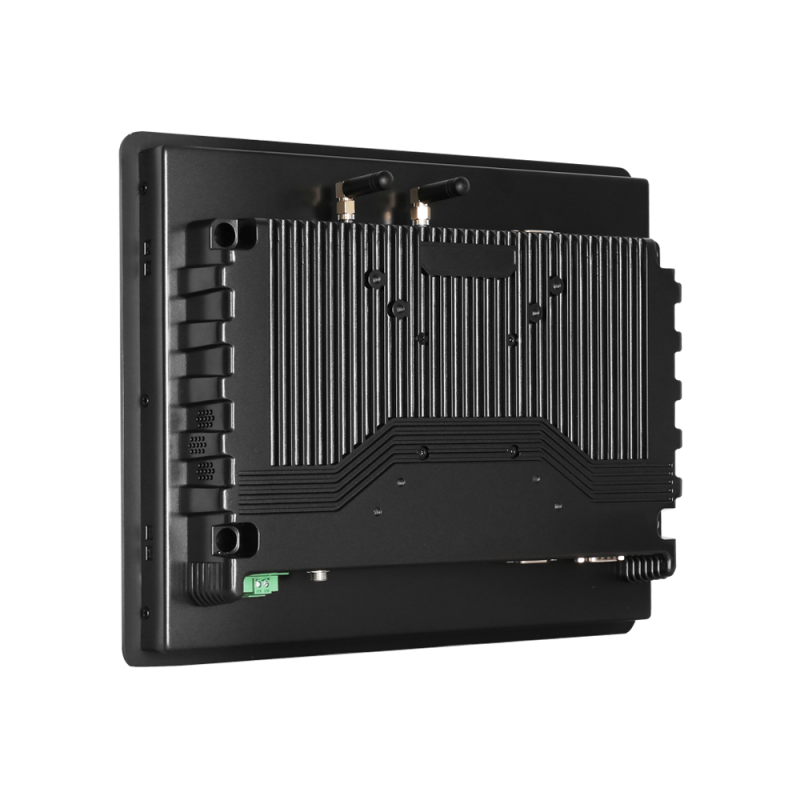

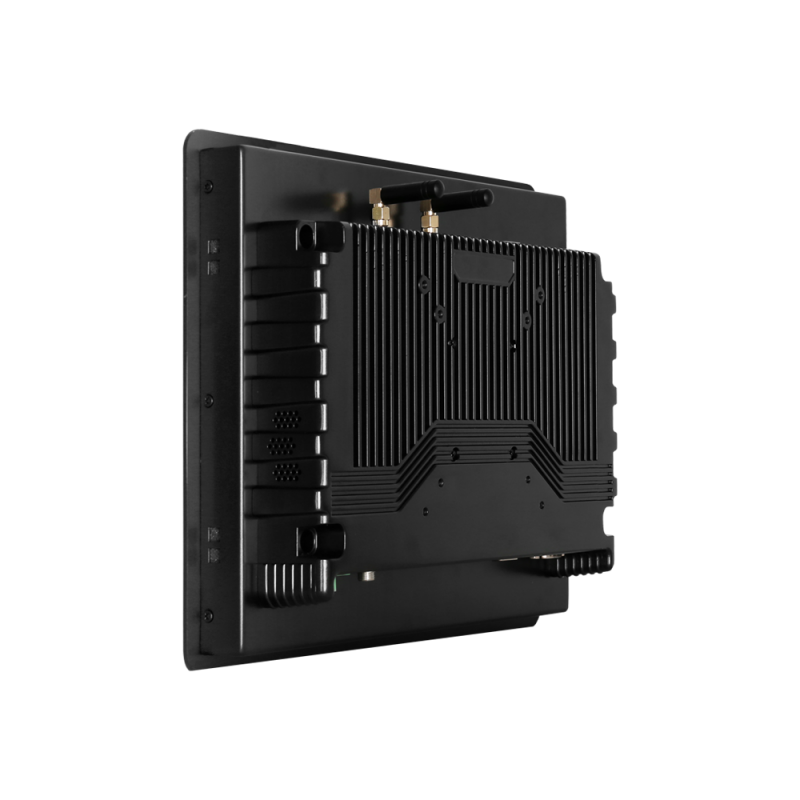

Our Panel PC IP65 series supports multiple Intel Core i7 processors (i7-6500U/i7-7500U/i7-8565U/i7-10510U) with fanless X86 architecture. This IP65 Panel Computer features a 10.4" TFT LCD industrial touch display (1024×768, 400cd/m²), 3mm ultra-thin bezel, and aluminum alloy enclosure for superior protection.
Key Advantages
Multiple CPU Options: Four Intel Core i7 generations
Industrial Protection: IP65 rated aluminum housing
Fanless Operation: Silent and reliable performance
Industrial Connectivity: Dual gigabit Ethernet + wide voltage input
High Visibility: 400cd/m² brightness for harsh lighting
Specifications
CPU Options: i7-6500U/i7-7500U/i7-8565U/i7-10510U
Touchscreen: 10.4" dual-mode touch
Protection: IP65 certified
Power Input: 12V-36V wide range
Material: Precision aluminum alloy
Typical Applications
Machine vision inspection
Smart warehouse systems
High-end equipment monitoring
Product Description
Product Size: 10.4"
Non-touch: TPC104-W1000-I7
Capacitive touch: TPC104-W1010-I7
Resistive touch: TPC104-W1020-I7
Screen Parameters:
LCD Size: 10.4" TFT LCD
Resolution: 1024×768
Viewing Angle: 80/80/80/80 (L/R/U/D)
Colour: 16.7M
Brightness: 400 cd/m2
Contrast ratio: 1000:1
Physical Characteristics:
Overall dimensions: W288x H231x D59.5mm
Size of opening: W273 x H216mm

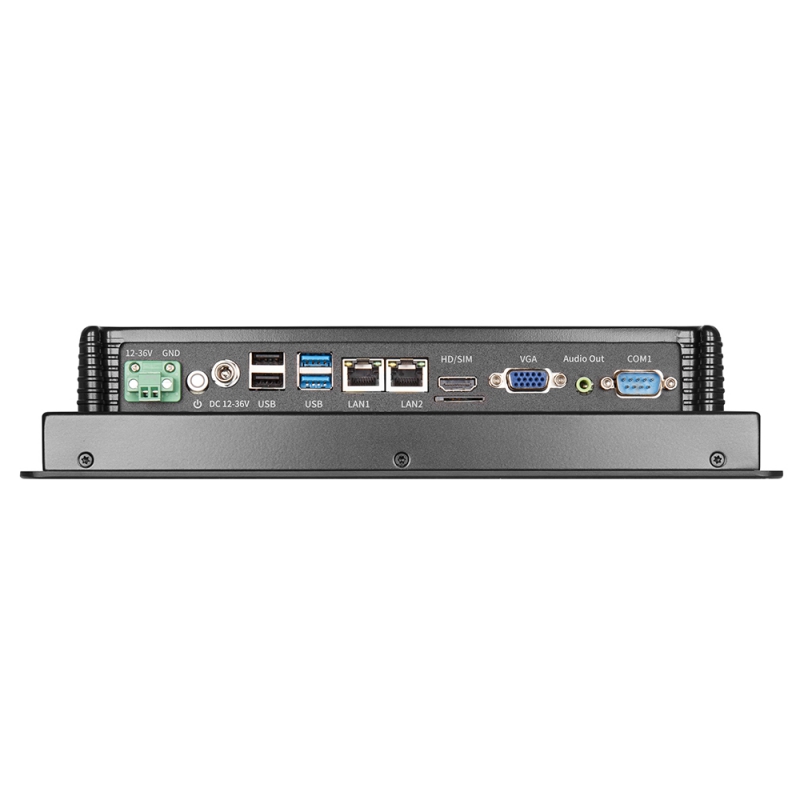

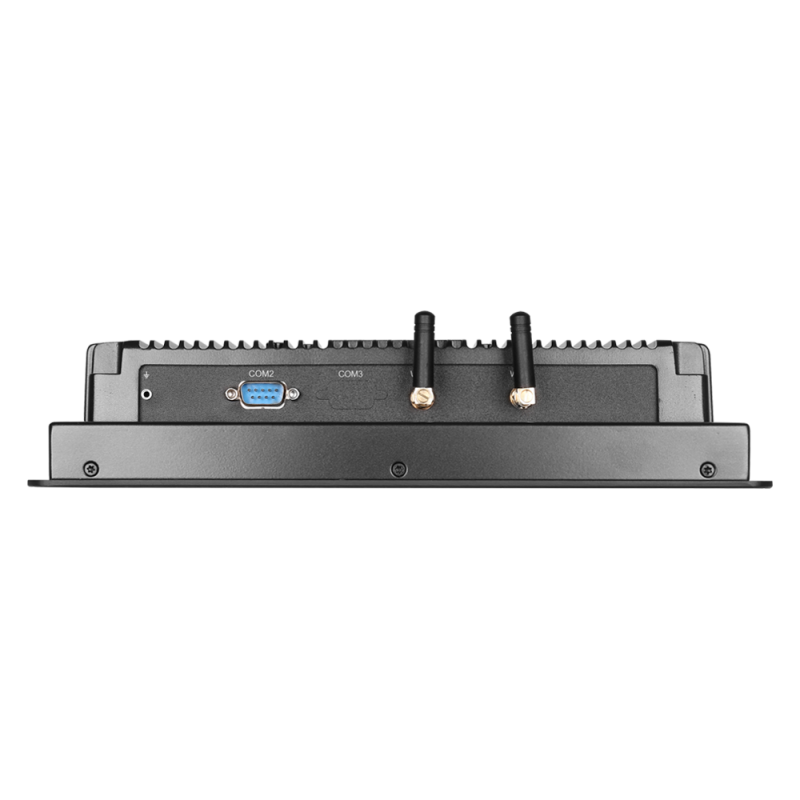

Interface:
Power interface1: 1*DC 2.5, Supporting 12V-36V power input
Power interface2: 1*Industrial terminal, Supporting 12V-36V power input
HDMI: 1*HDMI, Supporting HDMI data output, Up to 4K
USB: 2*USB 2.0 2*USB 3.0
LAN: 2*LAN, Dual 1000M adaptive Ethernet
AUDIO: 1*Audio Out, Support audio output
SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
VGA: 1*VGA
COM: 2*RS232
WiFi antenna: 2*WiFi antenna
POWER: Support (1*POWER)
Grounding post: 1*Grounding post (GND)
Product Reliability:
Working Temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, half sine wave, duration 11ms
Authentication: CCC/CE/FCC/EMC/CB/ROHS
Waterproof: Front panel reaches IP65 protection level
Hardware Configuration:
CPU: l7-6500U / l7-7500U / I7-8565U / I7-10510U
CPU frequency: 2.5GHz / 2.7GHz / 1.8GHz / 1.8GHz
Integrated graphics: Inte HD Graphic 520 / Inte HD Graphic 620 / Intel Ultra HD Graphic 620 / Intel UHD630 Graphics
RAM: 4G DDR4 (Optional 8G/16G) / 4G DDR4(Optional 8G/16G/32G) / 4G DDR4(Optional 8G/16G/32G) / 8G DDR4(Optional 16G/32G/64G)
Storage: 128G SSD(256G/512G SSD, 1T/2T HDD Optional)
WiFi: Dual band 2.4G&5G
Bluetooth: BT4.0(Optional)
Operating system: Win7/10/11, Ubuntu/Centos/Redhat/Debian/Linux
Other support: Support RTC real-time clock and timing switch
Power parameters:
Input voltage: DC 12V~36V
Static Power: 18W
Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:We offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
