Overview
The ITX-YS140R1_I526L VER:0.1(125H) Mini-ITX Industrial Motherboard features the powerful Intel® Core™ Ultra 5 125H processor (4.5GHz, 14C/18T) in a compact Mini-ITX motherboard form factor (170×170mm). This high-performance computing platform delivers an exceptional balance between computing power and space efficiency, making it ideal for industrial automation, edge computing, and AI applications.
Key Features:
●Intel® Core™ Ultra 5 125H CPU with 4.5GHz Turbo, 14C/18T configuration
●Dual-channel DDR5 memory supporting up to 96GB 5600MHz
●Dual Gigabit Ethernet ports for high-speed networking
●Versatile display outputs: EDP+DP+HDMI1.4+LVDS for multi-monitor setups
●Expansion options: Mini-PCIE (4G/WIFI)+M.2 (WIFI)+dual SATA3.0
●Industrial I/O: 6×COM+8×USB+SIM slot
●12V DC power input for industrial environments
Product Description
Model No.: ITX-YS140R1_I526L VER:0.1(125H)
Processor: Integrated Intel®Meteor Lake Core™ Ultra 5 125H 4.5GHz, 14 core 18 thread processor, TDP 28W
Compatible with Intel® Meteor Lake-U/H 14th processor
Chipset: SOC
Memory: 2x SODIMM slot, supports 5600MHz DDR5 memory up to 96GB
Display: Integrated Intel® Arc™ graphics, supports DirectX 12.1 OpenGL 4.6, supports 4K
1x HDMI1.4, the highest resolution supported is: 4096x2304@24Hz
1x DP
1x Support dual-channel 24bit LVDS interface
1x EDP interface, choose one of two with LVDS through pop-up
Network: 2x RTL8111H Gigabit ethernet, supports network wake-up and PXE functions
Storage: 2x SATA3.0 hard disk interface, transmission speed up to 6Gbps
1x M.2 slot, supports M.2 2280 NVME PCIE x4 specification SSD
Audio: Integrated ALC897 7.1+2 channel high-fidelity audio controller, supports MIC, Line_out, power amplifier
Support amplifier 4Ω 3W speaker
Expansion slots:
1x Mini-PCIE slot, supports WIFI / 4G module
1x M.2 slot, supports M.2 Key E 2230 WIFI module
Backplane I/O interface:
4x USB3.0
1x HDMI1.4
1x DP
2x RJ45 Gigabit ethernet
1x Line-out(green),1x MIC(red)
1x DC12V power interface, supports 12V power input

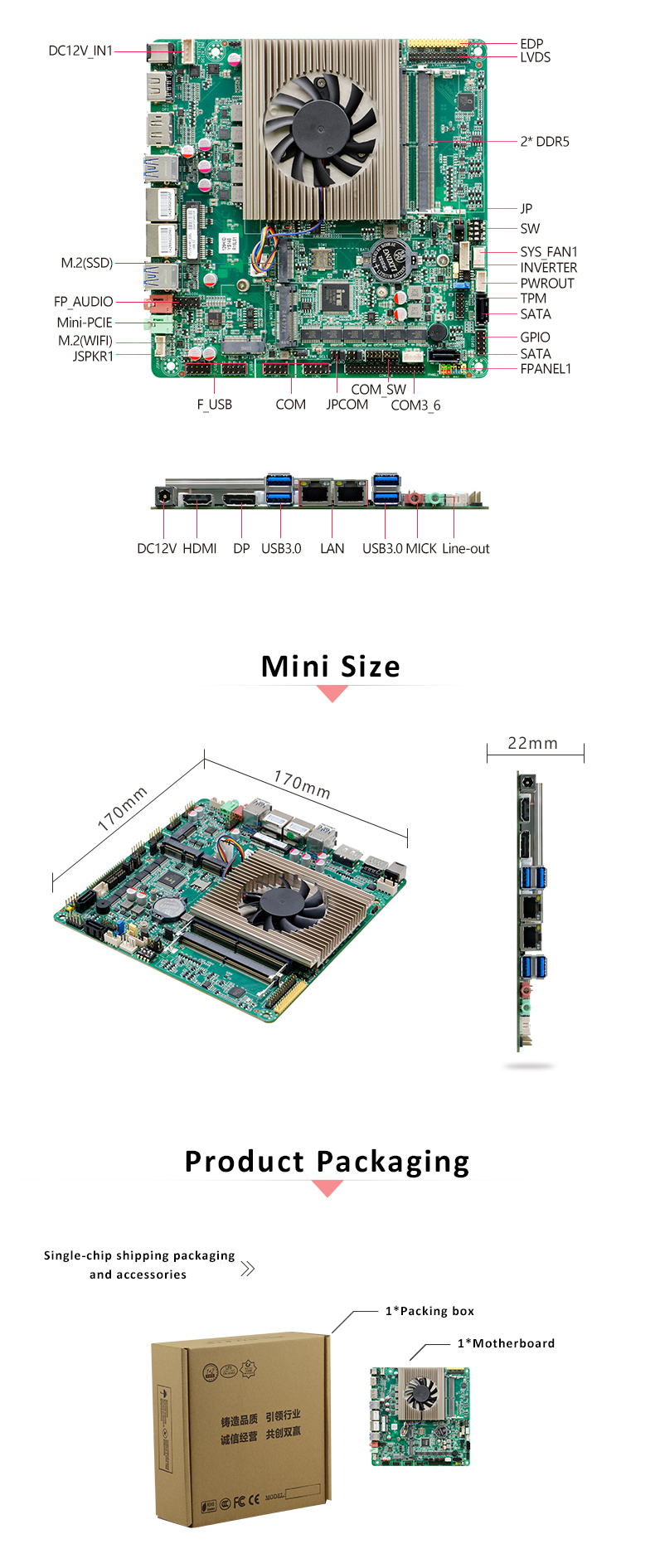

Built in I/O interface:
1x LVDS interface 2x 15pin, supports dual channel 24bit
1x LVDS backlight power supply interface 1x 6pin
1x EDP interface 2x 15pin, choose one of the two with LVDS through pop-up
6x RS232 serial interface, COM2 supports the 9th pin powered function, COM2/3 supports RS485/422 function
4x USB2.0 interface 2x 5pin
1x Front audio interface 2x 5pin
1x Front panel switch button and indicator light interface 2x 5Pin
1x Hard drive power supply interface 1x 4pin
2x Power amplifier interface 1x 4pin
1x DC power interface 1x 4pin (can be used as 12V input power interface)
1x SIM card slot
Fan: 1x 4pin CPU fan interface; 1x 4pin system fan interface
GPIO: Supports four-in and four-out GPIO functions
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (level 256, 0~255 seconds)
OS: Windows 10 /Linux
Power supply: DC 12V
Working temperature: -10℃~60℃
Storage temperature: -20℃~70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)
Dimension: 170mm x 170mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
