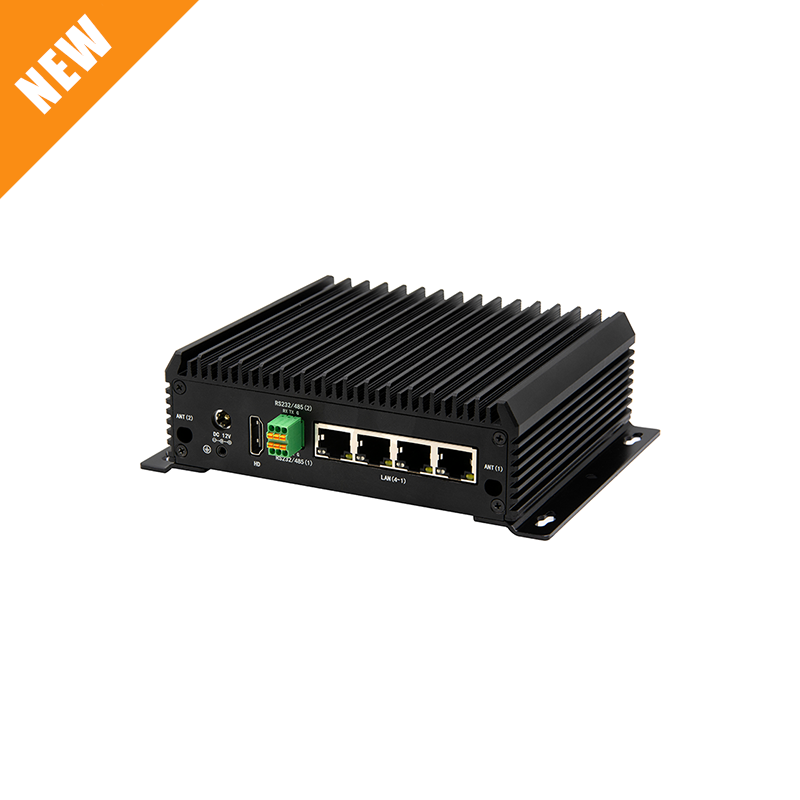

Overview
●12th Gen Intel® Alder Lake-N N97 processor (Quad-core/3.6GHz)
Key Features
1.Industrial Design:
●All-aluminum enclosure with IP40 rating
●Fanless cooling for silent operation
2.Industrial Networking:
●4×Gigabit LAN ports
●Mini-PCIe for 4G/WiFi expansion
3.Industrial Expansion:
●Dual storage (SATA+M.2)
●Multiple USB ports (5×USB3.0+1×USB2.0)
Applications
●Industrial automation systems
●Machine vision inspection equipment
Product Description
Model NO.: C2120Z-L4 V2.0(N97)

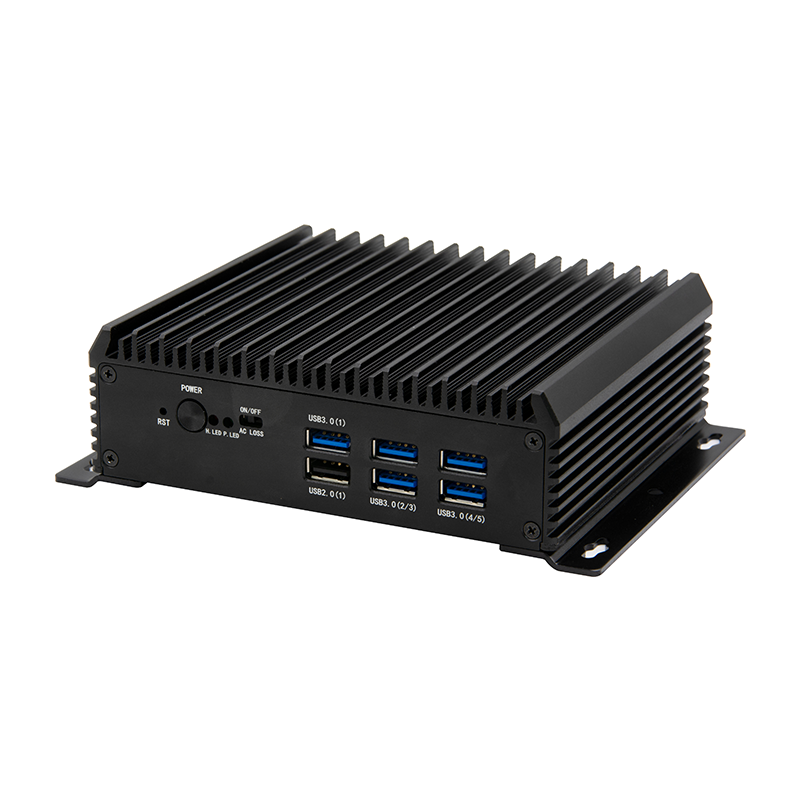

Chassis:
Structure: All aluminum alloy, fanless cooling structure
Dimension: 141.4mm*126mm*44mm
Color:Black
Weight:0.7KG

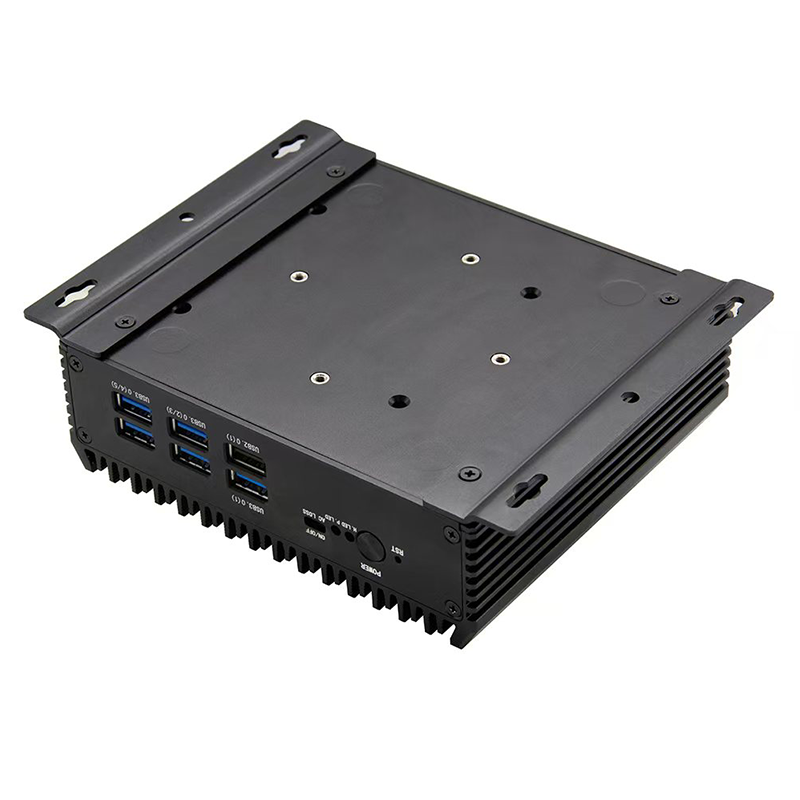

Installation:Support desktop/wall-mounted installation

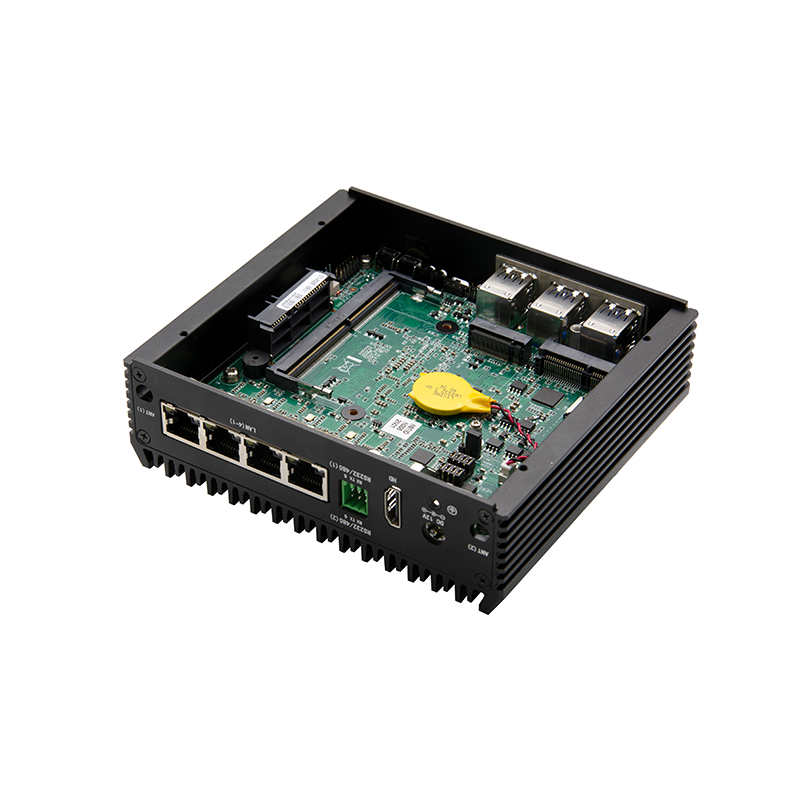

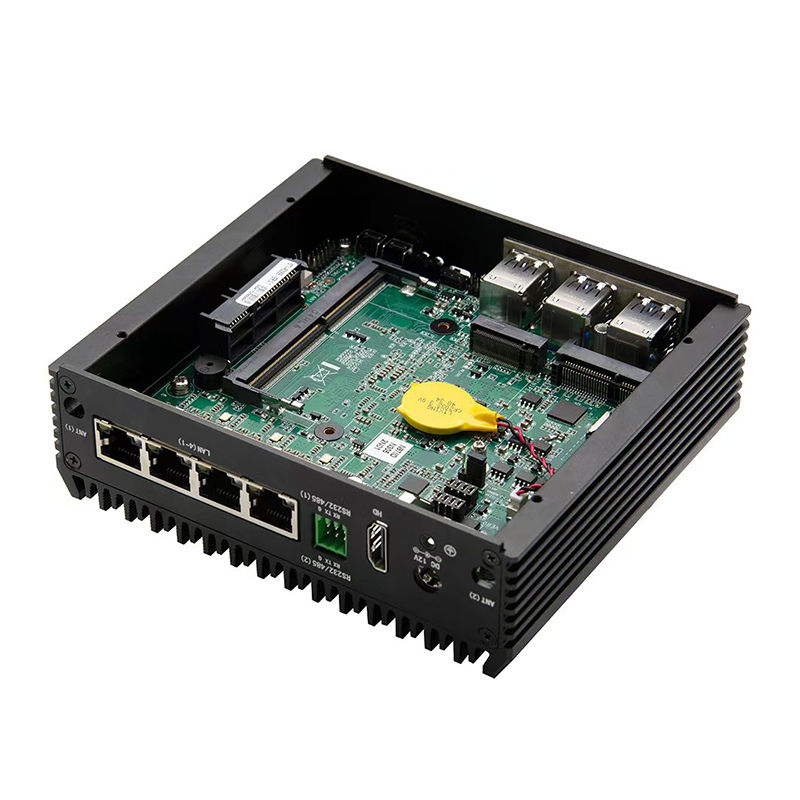

Motherboard:
Processor: Integrated Onboard Intel®Alder Lake-N N97/Turbo 3.6GHz quad core processor，TDP 12W
Chipset: Intel SoC
Memory: 1x SO-DIMM slot,3200MHz DDR4 Memory, up to 16GB

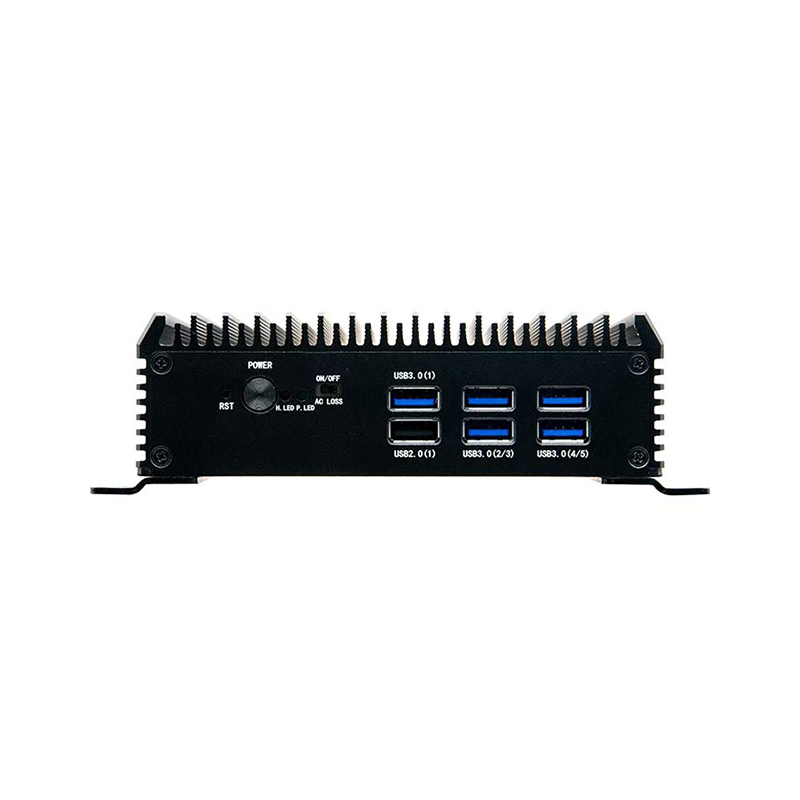

Front Panel:
POWER: 1x Power button,1x One-key recovery, 1x ACLOSS（auto power ON/OFF）
LED: 1x Power LED, 1x HDD LED
USB: 5x USB3.0, 1x USB2.0

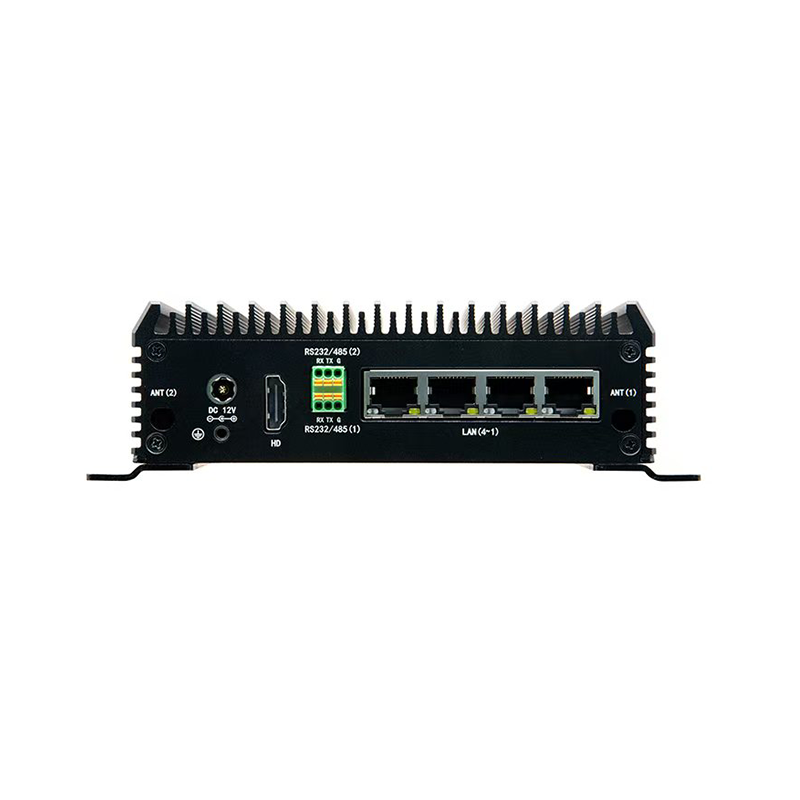

Rear Panel:
Display: 1x HDMI1.4(4096x2160@60Hz)
Lan: 4x Intel I210 Gigabit LAN port，support Wake on LAN、PXE
COM: 2x RS232/RS485 Phoenix connector (2*3P P=2.54)
Power: 1x DC 12V（5.5*2.5）
Storage:
SATA :1x 2.5-inch HDD (7mm thickness)
M.2: 1x M.2, supports Key-M, 2280, NVME PCIE x1/SATA adaptive SSD
Expansion: Mini PCIE: 1x Min-PCIE, supports WIFI/4G module
OS Support:
Windows: Windows 10
Linux: Ubuntu
Watch Dog: Support hardware reset function (level 256, 0~255 seconds)
Power Supply:
Power supply: External power adapter
Voltage input: DC 12V
Power output: AC TO DC 36W
Reliability:
Working Temp.: - 10℃ ~ 50℃
Storage Temp.: -20℃ ~ 70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
