Key Features:
✔ Energy-Efficient Processing: Intel N4020 with UHD Graphics 600
✔ Multi-Display Support: VGA + dual LVDS + dual eDP (quad display capable)
✔ Memory Configuration: Single DDR4 2400MHz (max 8GB)
✔ Industrial I/O:
1×GbE LAN + 10×USB ports
2×COM (RS232) + LPT + PS/2
✔ Storage & Expansion:
1×SATA + 1×mSATA
1×M.2 SSD + 1×M.2 WiFi
✔ Rugged Design:
GPIO + Watchdog Timer
4Ω/3W audio amplifier
Fanless 12V DC power
Detail Display
.png)
--%E7%99%BD%E5%BA%95(6).png)
--%E7%99%BD%E5%BA%95(7).png)
Product Description
Model No.: ITX-LS421_J112L VER:1.0（N4020）
Processor: Integrated Intel®Celeron N4020 1.1GHz dual-core dual-thread processor,TDP 6W
Compatible with the full range of Intel® Gemini Lake cpus, customers can choose flexibly
Chipset: SOC
Memory: 1x SODIMM slot, Supports single channel 2400MHz DDR4 memory, up to 8GB
Display: Integrated Intel® UHD Graphics 600 core graphics card
1x VGA,1x LVDS interface, support dual channel 24BIT,2x EDP
Note: Dual EDP display or dual LVDS display can be supported,LVDS and EDP can choose one of the two by jumping,LVDS2 does not load by default
Ethernet: 1x Realtek RTL8111H Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage: 1x 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps
1x MSATA slot, support SSD,SSD transfer speed up to 6Gbps
1x M.2 slot, Supports the M.2 2280 PCIE X2 signal SSD
Audio: Onboard USB HS-100B audio controller, support MIC, Line_out, power amplifier
Suggest power amplifier 4Ω3W horn
Expansion Slot: 1x M.2 slot, supporting the M.2 Key E WIFI module
Rear I/O interface:
1x12V DC power input port
1x VGA
1x DB9 RS232 serial port with 9pin energized
1x RJ45 Gigabit network interface
1x Line out interface (green),1x MIC interface (red)
2x USB3.0 port, 2*USB2.0 port
Built in I/O interface:
1x DC power connector 1x 4pin (12V input/output power connector)
1x LVDS interface 2x 15pin, support dual channel 24bit
2x screen backlight power supply interface 1x 6pin
2x EDP interface, (LVDS1 and J_EDP1 to choose one of the two through the jumper）
6x USB2.0 interface, 2x 5pin,F USB2 and F USB3 are the outgoing signals of PCIE
1x Cash box interface 1x 6pin
1x RS232 serial interface, support 9pin live function
1x LPT parallel interface 2x13Pin
1x PS/2 keyboard and mouse interface 1x 6pin
1x Front panel switch button and indicator port 2x 5Pin
1x hard drive power port 1x 4pin
1x power amplifier interface 1x 4pin
Fan Connector: Support fan-less heat dissipation, reserved 1x 4pin CPU intelligent fan port, 1x 4pin system fan port
GPIO: Support 4-way input output GPIO function
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: DC 12V power supply
Operating system: Windows 10/Linux
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

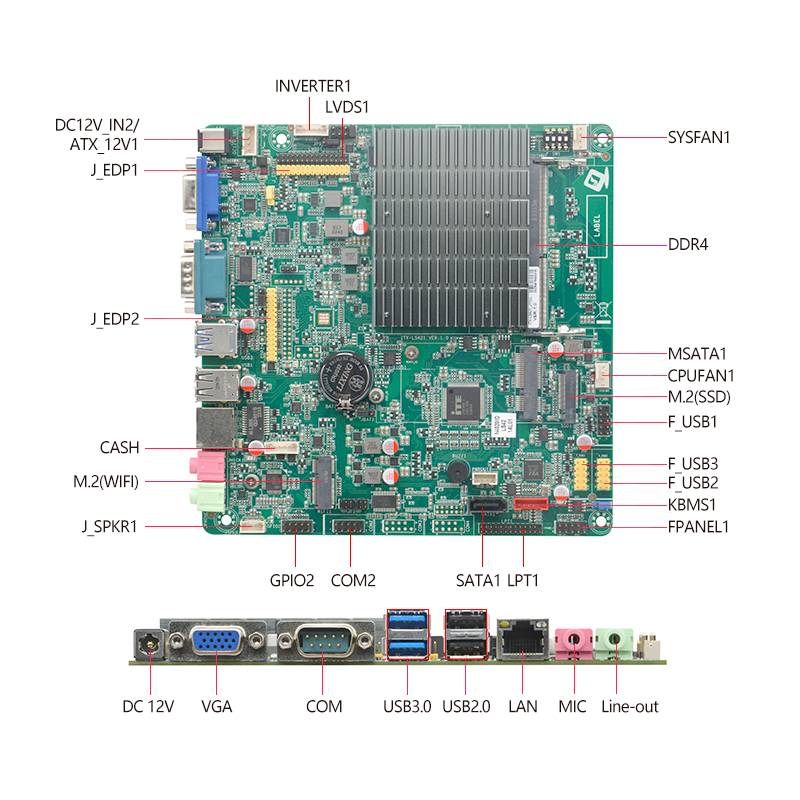

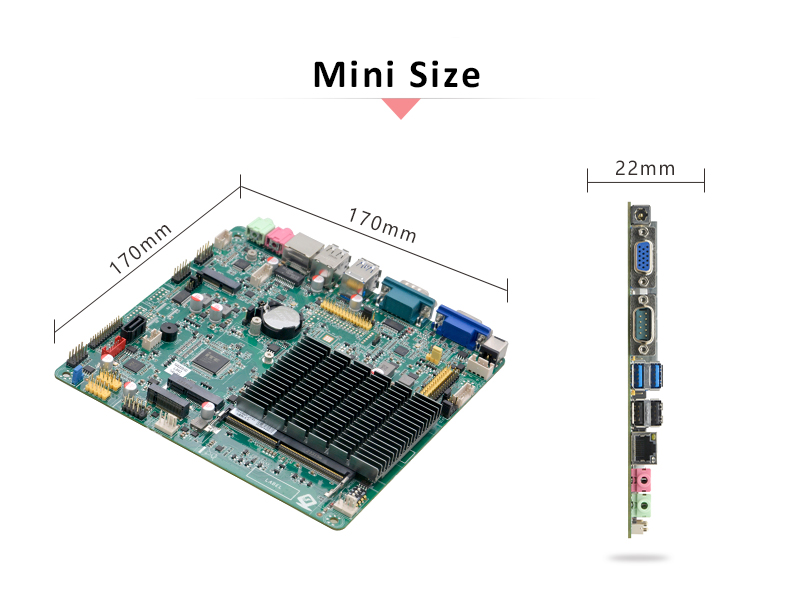

Dimension: 170mm x 170mm
