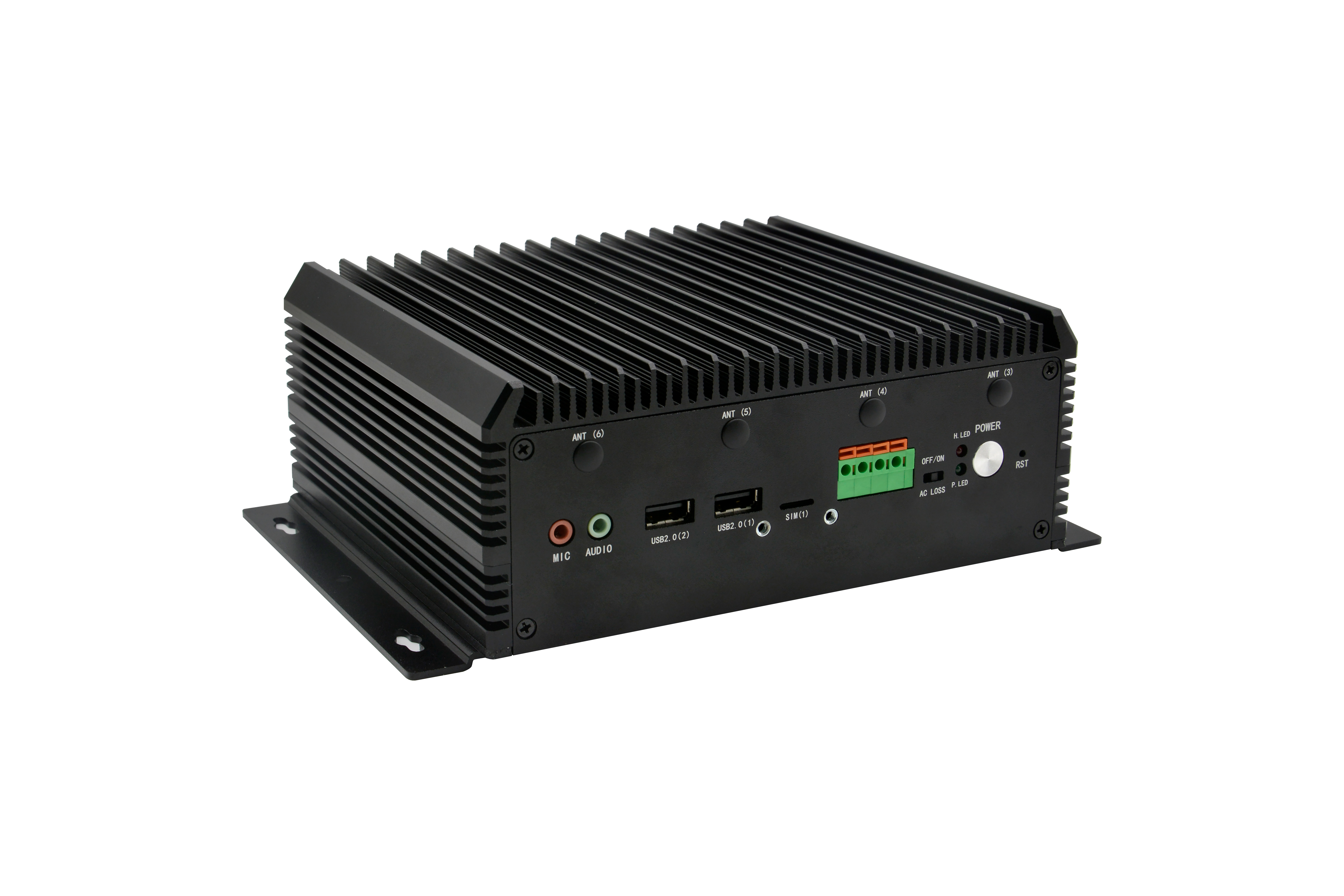

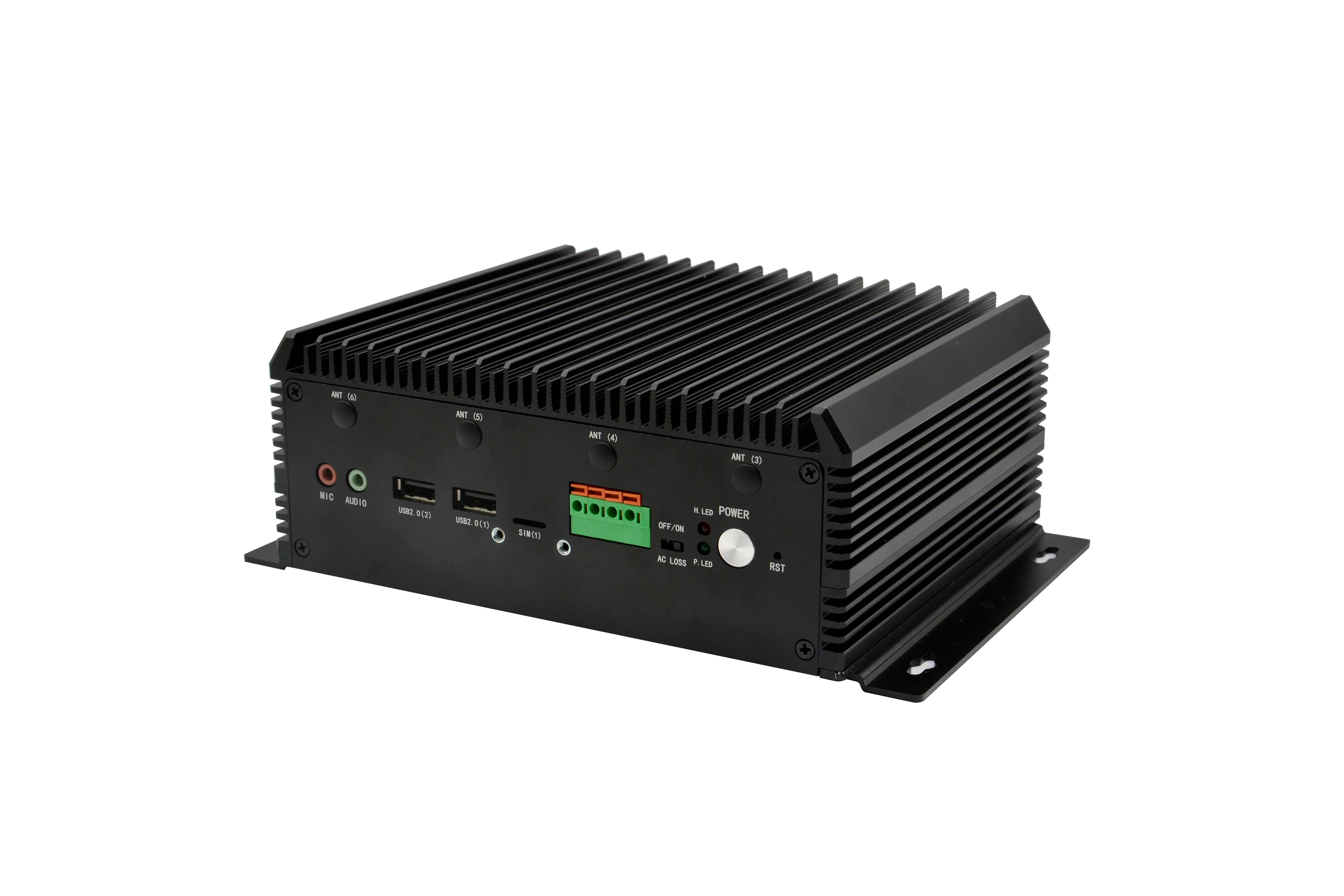

Industrial sites have an ever‑growing demand for stable, durable, and richly interfaced industrial computers. Today we introduce a hardcore model – the C5160Z‑W4 V2.0 – featuring a full aluminum fanless chassis, J6412 quad‑core processor, 4 Intel Gigabit LAN ports with POE, multiple serial ports, and wide voltage input. Designed for industrial automation, machine vision, IoT gateways, security surveillance, and more.


PART 01
Stable, powerful, economical – industrial grade reliability

This industrial PC uses an integrated design that perfectly balances performance and power consumption, operating 7×24 hours with high reliability.

(1) Processor & Performance
CPU: Intel Celeron J6412 quad‑core, quad‑thread, 2.0GHz base, TDP only 10W
Chipset: SoC single chip – simplified structure, improved reliability
Cooling: Full aluminum chassis + fanless passive cooling – zero noise, dust‑proof, vibration‑resistant

(2) Memory & Storage
Memory: 2×DDR4 SODIMM, up to 3200MHz, max 32GB
Storage: 1×2.5" SATA HDD bay + 1×M.2 Key M 2280 NVMe PCIe×2 SSD
Expansion: 1×MiniPCIe (Wi‑Fi/4G/CAN), 1×M.2 Key B (4G/5G)

(3) Power Supply & Environment
Input: DC 9–36V wide voltage – better compatibility on industrial sites
Operating temperature: −10°C to 50°C
Storage temperature: −20°C to 70°C
Humidity: 5%–95% non‑condensing
Vibration: 0.5g rms/5–500Hz random

PART 02
I/O configuration at a glance – full industrial coverage

The C5160Z‑W4 V2.0 takes multi‑LAN, multi‑serial, multi‑display and multi‑USB to the extreme – all interfaces are ready without additional expansion.

(1) Display outputs – Triple simultaneous displays for more efficient monitoring/HMI
1×HDMI 2.0
1×DP
1×VGA
Supports triple independent displays

(2) 4×Intel I210AT Gigabit + POE – the industrial communication choice
4×Intel I210AT 1GbE LAN ports
Supports POE (48V/15W) – directly power cameras and APs
Low latency, high stability – ideal for machine vision, data acquisition, gateway aggregation

(3) USB – High speed + legacy compatibility
USB3.0: 5 (rear)
USB2.0: 4 (2 front + 2 rear)
Meets various peripherals: USB drive, dongle, keyboard/mouse, scanner, industrial camera

(4) Serial ports, CAN & GPIO – the core of automation control
6×RS232/485 serial ports (Phoenix terminal)
2×CAN (shared on Phoenix terminal)
4in/4out GPIO
Perfectly interfaces with PLCs, sensors, servos, access controls, meters

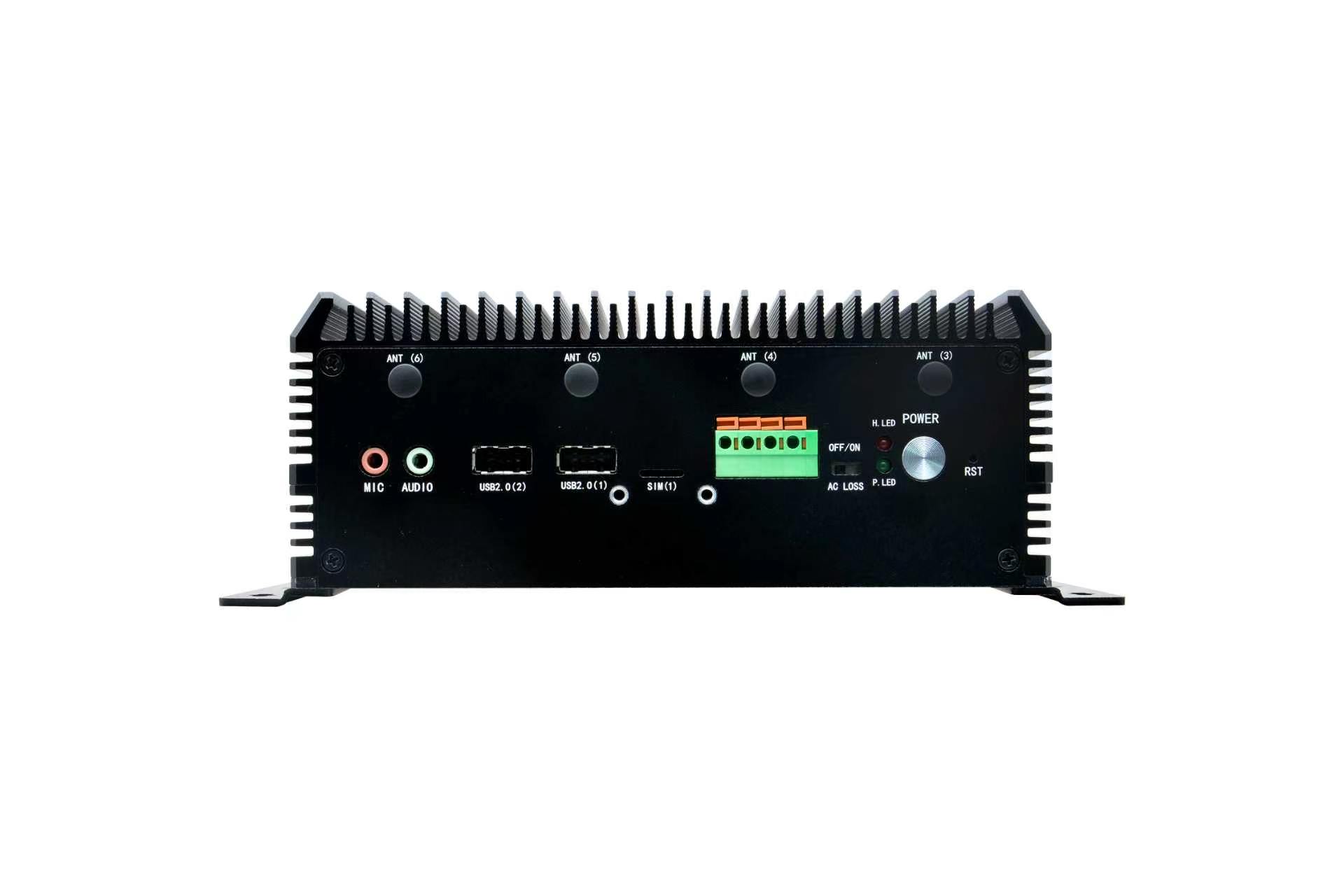

(5) Front panel interfaces
Power switch, reset, power‑on via DIP switch
Power / HDD indicators
Remote power‑on Phoenix terminal
Audio: Line out + MIC
USB2.0×2, SIM card×1

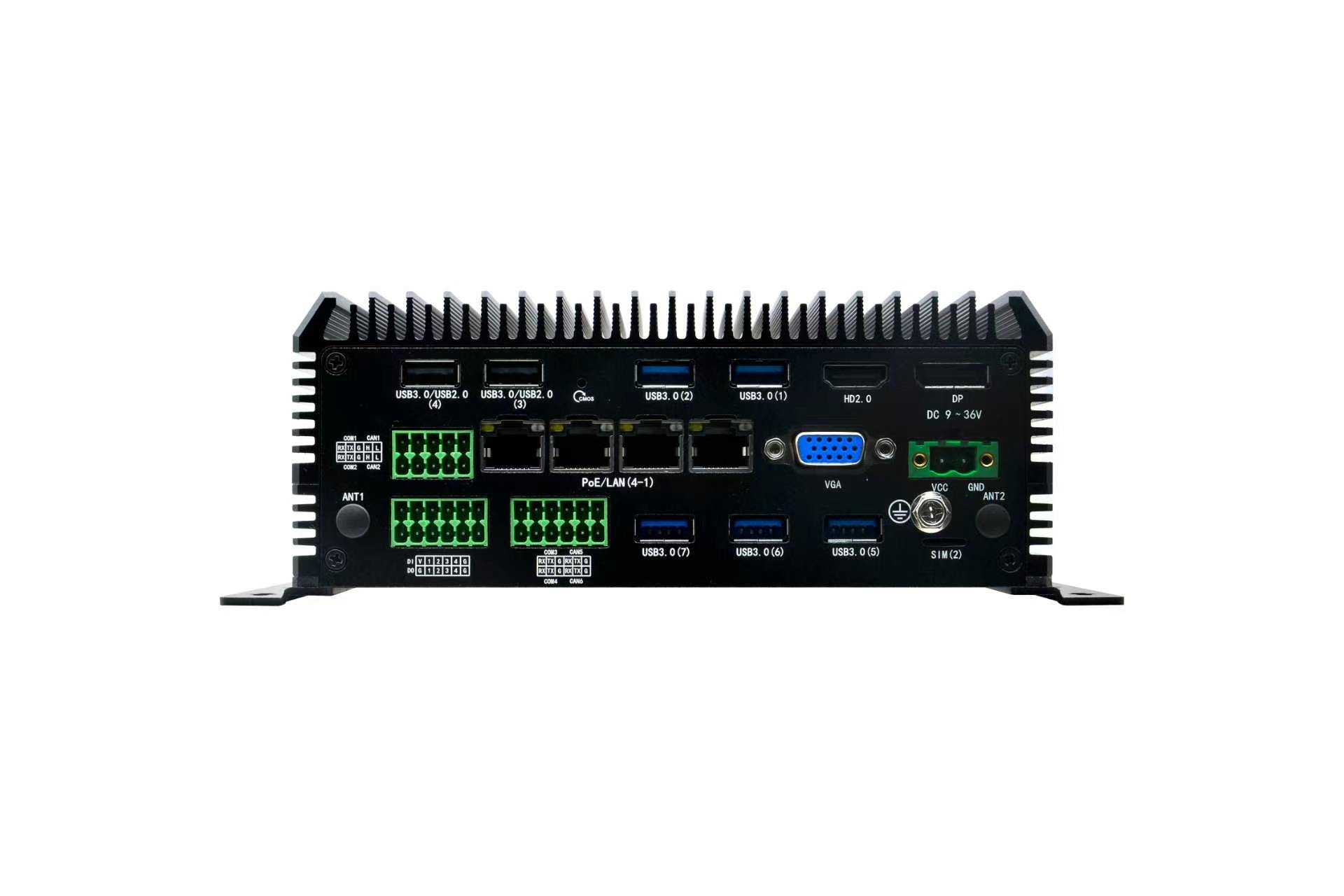

(6) Rear panel interfaces
Triple display outputs + 4×Gigabit POE
USB3.0×5 + USB2.0×2
6×COM + CAN + GPIO
SIM card×1, DC 9–36V power input

PART 03
Compact size, easy deployment

Material: Full aluminum alloy
Construction: Fanless
Color: Black
Dimensions: 173mm × 148mm × 72mm
Mounting: Desktop / wall‑mount (70×70mm)
Suitable for racks, equipment cabinets, walls, embedded installations

PART 04
One unit meets many industry needs

Based on the J6412 low‑power + fanless + 4×POE + multi‑serial + wide voltage combination, this model covers mainstream industrial and IoT scenarios:

(1) Machine vision / vision inspection
4×Intel Gigabit LAN ports for low‑latency camera data acquisition
POE provides direct power – simple cabling

(2) Industrial automation / PLC control
RS232/485 + CAN + GPIO to interface with various controllers
Fanless and dust‑proof, suitable for dusty and greasy workshop environments

(3) Security surveillance / NVR / video aggregation
4×POE power network cameras directly
Triple displays for more intuitive monitoring walls

(4) IoT gateway / data acquisition
Multi‑LAN + multi‑serial + 4G/5G expansion
Edge computing, data upload, protocol conversion

(5) Transportation / energy / building automation
Wide voltage 9–36V – suitable for vehicle, cabinet, outdoor enclosures
Vibration‑resistant and moisture‑proof, long‑term stable

PART 05
Industrial must‑haves – broad market
Fanless trend – industrial sites increasingly prefer zero‑noise, high reliability, long life
POE demand exploding – machine vision, smart factories, security widely use POE power
Multi‑serial irreplaceable – traditional industrial equipment still relies on RS485/232
Edge computing popular – compact, low‑power, highly expandable industrial PCs keep growing
Cross‑industry reuse – one unit fulfills vision, automation, gateway, surveillance etc., reducing selection and stocking costs

PART 06
System & accessories
Supported OS: Windows 10/11, Ubuntu
Hardware watchdog: 256‑level, 0–255 sec auto reset
Optional accessories: 12V/5A power adapter, IEC power cord, wall‑mount bracket

Summary
The C5160Z‑W4 V2.0 (J6412) is an industrial fanless PC with fully loaded interfaces, rugged stability, and versatility across scenarios: J6412 quad‑core + 32GB memory + 4 Intel Gigabit POE LAN + 6 serial ports + triple display + wide voltage + fanless – easily handles machine vision, automation, surveillance, and IoT gateway applications.
