Product Description
Product Size: 19.1"
Non-touch: TPC191-W200-6412
Capacitive touch: TPC191-W210-6412
Resistive touch: TPC191-W220-6412
Screen Parameters:
LCD size: 19.1" TFT LCD
Resolution: 1440×900(16:10)
Viewing angle: 80/80/80/80 (L/R/U/D)
Color: 16.7M
Brightness: 300 cd/m²
Contrast ratio: 1000:1
Physical Characteristics:
Overall dimensions: W486X H332X D63MM
Size of opening: W469.6x H315.6MM

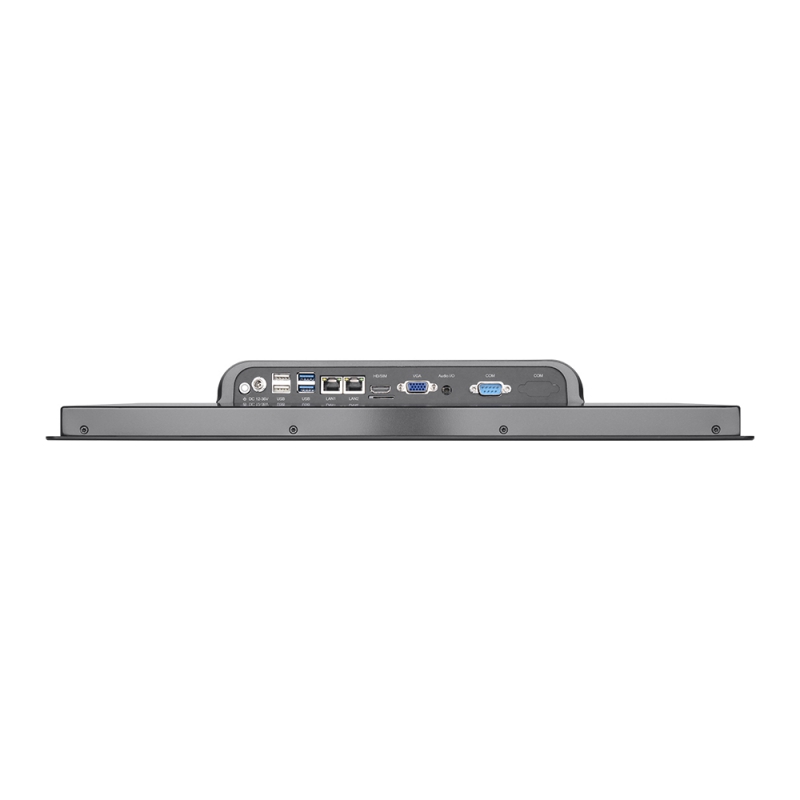

Interface Parameters:
Power interface1: 1*12P Phoenix terminal (Power supply/RS232*1/RS485*1/GPIO*5)
Power interface2: 1*DC2.5, Supporting 12V-36V power input
USB: 2*USB2.0, 2*USB3.0
VGA: 1*VGA
HDMI: 1*HDMI, Supporting HDMI data output, Up to 4K
SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
Network interface: 2*LAN, 1*Realtek PCI-E NIC RTL8111H (Applicable to 1000Mbps) 1*Realtek PCI-E NIC RT8152B (Applicable to 1000Mbps)
Audio interface: 1*Audio I/O, support audio input and output
COM: 1*RS232
WiFi antenna: 2*WiFi antenna
Grounding post: 1*Grounding post (GND)
Product Reliability Parameters:
Working temperature: -10°C~60°C
Storage temperature: -20°C~70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, Half sine wave, Lasting for 11ms
Product certification: CCC/CE/FCC/EMC/CB/ROHS
Waterproof grade: The front panel reaches IP65 protection level
Power Parameters:
Power input: DC 12V~36V
Static power: 18W
Hardware Configuration:
CPU: Intel Celeron J6412 quad-core 2.0GHz CPU
Memory: Standard: 8GB LPDDR4 ( It supports up to 16GB)
Storage: Standard: 256GB SSD (optional 512GB SSD, 1T/2T HDD)
Integrated graphics: Intel UHD Graphics 16 EUs
Broad pressure : With wide voltage (12V~36V)
WiFi :Support 2.4GHz/ 5GHz dual-band Wifi
Bluetooth: BT4.0(Optional)
Operating system: WIN10/11, Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04, Centos7.8/8.4/7.9, Redhat7.4, Debian10.0/11.6
