Product Description
Product Size: 13.3"
Non-touch: TPC133-W1000-I7
Capacitive touch: TPC133-W1010-I7
Resistive touch: TPC133-W1020-I7
Screen Parameters:
LCD Size: 13.3" TFT LCD
Resolution: 1920×1080
Viewing Angle: 85/85/85/85 (L/R/U/D)
Colour: 16.7M
Brightness: 220 cd/m2
Contrast ratio: 1000:1
Physical Characteristics:
Overall dimensions: W373.62x H245.17x D58.5mm
Size of opening: W357.4 x H229mm

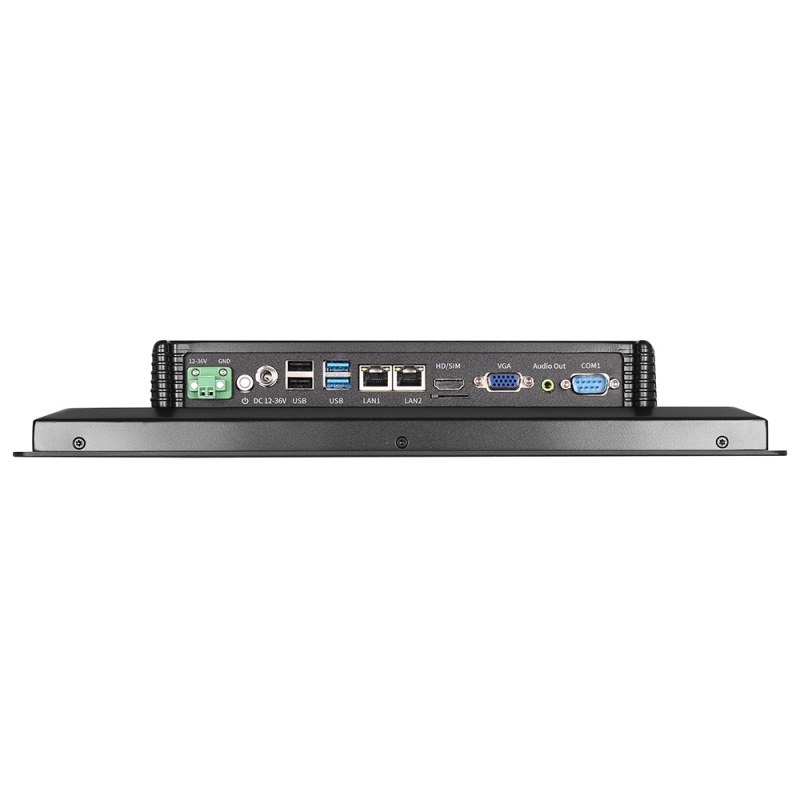

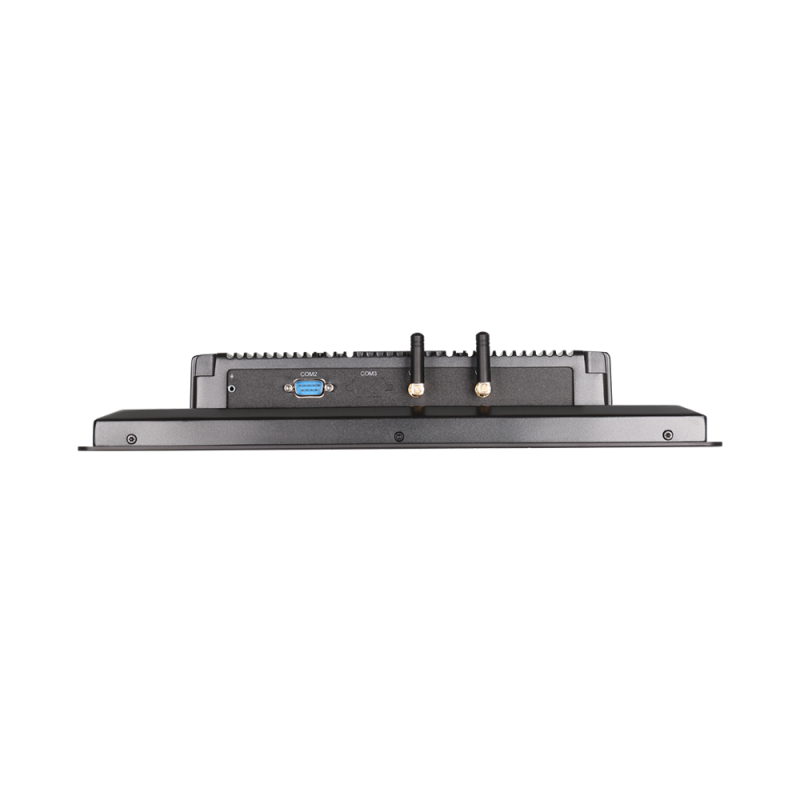

Interface:
Power interface1:1*DC 2.5, Supporting 12V-36V power input
Power interface2:1*Industrial terminal, Supporting 12V-36V power input
HDMI:1*HDMI, Supporting HDMI data output, Up to 4K
USB: 2*USB 2.0 2*USB 3.0
LAN: 2*LAN, Dual 1000M adaptive Ethernet
AUDIO: 1*Audio Out, Support audio output
SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
VGA:1*VGA
COM: 2*RS232
WiFi antenna: 2*WiFi antenna
POWER: Support (1*POWER)
Grounding post:1*Grounding post (GND)
Product Reliability:
Working Temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C
Relative humidity:Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Impact protection:IEC 60068-2-27, half sine wave, duration 11ms
Authentication:CCC/CE/FCC/EMC/CB/ROHS
Waterproof: Front panel reaches IP65 protection level
Hardware Configuration:
CPU: l7-6500U / l7-7500U / I7-8565U / I7-10510U
CPU frequency: 2.5GHz / 2.7GHz / 1.8GHz / 1.8GHz
Integrated graphics: Inte HD Graphic 520 / Inte HD Graphic 620 / Intel Ultra HD Graphic 620 / Intel UHD630 Graphics
RAM: 4G DDR4 (Optional 8G/16G) / 4G DDR4(Optional 8G/16G/32G) / 4G DDR4(Optional 8G/16G/32G) / 8G DDR4(Optional 16G/32G/64G)
Storage: 128G SSD(256G/512G SSD, 1T/2T HDD Optional)
WiFi: Dual band 2.4G&5G
Bluetooth: BT4.0(Optional)
Operating system: Win7/10/11, Ubuntu/Centos/Redhat/Debian/Linux
Other support: Support RTC real-time clock and timing switch
Power parameters:
Input voltage: DC 12V~36V
Static Power: 18W
